Система откачки тепла и вентиляции системы овкв с помощью теплового насоса для контроля постоянной температуры

Сохранить в закладки 1600066382764:


Цена:1 300,00 $ - 1 350,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


HVAC recuperator heat recovery ventilation system with fresh air heat pump to control the constant temperature and humidity



Product Description





















































































































































































Hanging type Fresh Air Heat Pump series parameter sheet
 ModelModel number ZJXRA-150ZJXRA-200ZJXRA-300ZJXRA-400
Installation mode Hanging typeHanging typeHanging typeHanging type
 Rated cooling capacityW75083020002300
 Rated heating capacityW80095025002800
 Rated cooling powerW260290550630
 Rated cooling currentA1.231.372.63
 Rated heating powerW260290610685
 Rated heating currentA1.231.372.93.3
 Max operation powerW400430750800
 Max operation currentA1.92.043.63.8
 Compressor/Constant speed compressorConstant speed compressorConstant speed compressorConstant speed compressor
 PowerPower supplyV/Ph/Hz220-240/1/50220-240/1/50220-240/1/50220-240/1/50
 Fresh air/Exhaust air   flowm3/h70~150100~200150~300220~400
 External static pressurePa8080130130
 NoisedB(A)31313132
 Air outlet dimensionmm150150184184
 Condensate drainage sizeinch(BSP)1/2"1/2"1/2"1/2"
 Machine size(L/W/H)mm840/685/250840/685/2501170/760/4001170/760/400
 Packing size(L/W/H)mm891/731/358891/731/3581211/811/4981211/811/498
 Net weight/Gross weightKg43/5043/50120/13595/113
 Refrigerant/R134aR134aR410AR410A




Future:


Fresh Air+Heat PumpBased on the traditional air conditioner,Fresh Air Heat Pump is equipped with air-conditioning heat pump system.With multistage energy recovery,the energy efficiency is even higher.It overcomes the weaknesses of no fresh air of ordinary air conditioner,high energy consumption and big temperature fluctuation of ordinary fresh air ventilator.It controls the fresh air at a constant temperature and humidity,and the regulation of indoor CO2,harmful gases,concentration of fine particulate matter (PM2.5).It makes the fresh air led into the room more comfortable and healthy.





Compared to the traditional fresh air exchanger, below are our advantages:


1.The two-stage heat recovery system with heat pump and air heat exchanger.


2.Balanced ventilation deals with indoor air fast and efficiently to improve its quality.


3. complete EC / DC silent fan


4.Special PM2.5 filter with high efficiency and low resistance.


5.Home environment real-time monitoring.


6.Intelligent self-learning function, APP remote control.








Product show

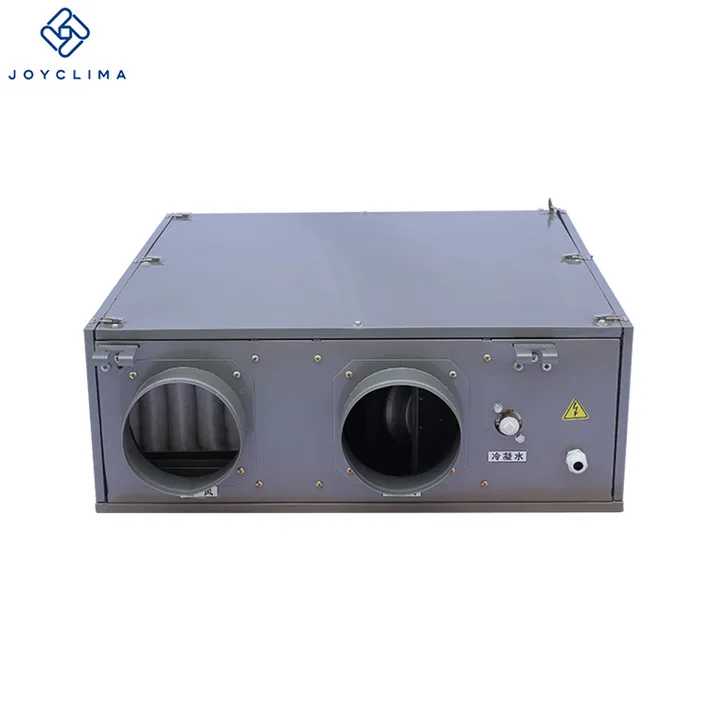

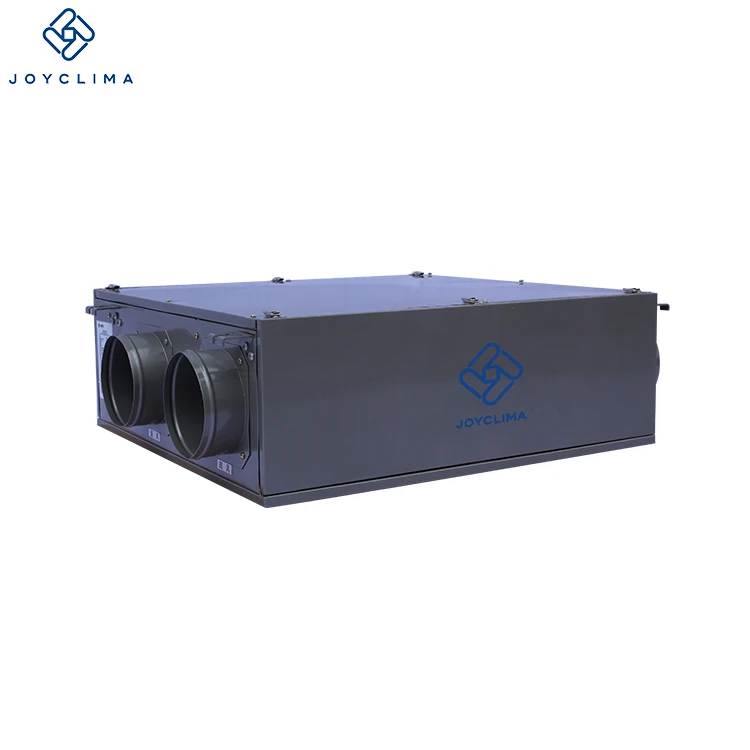

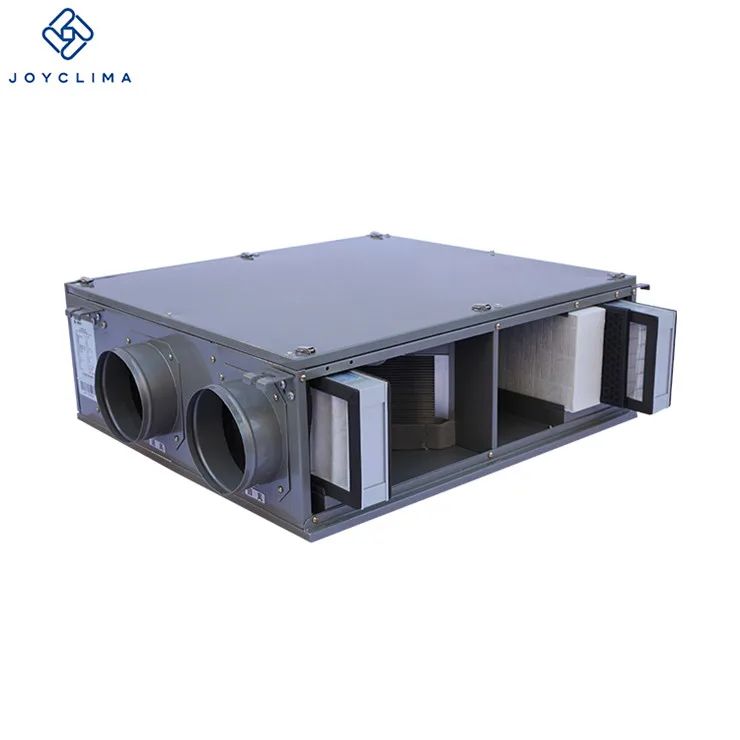

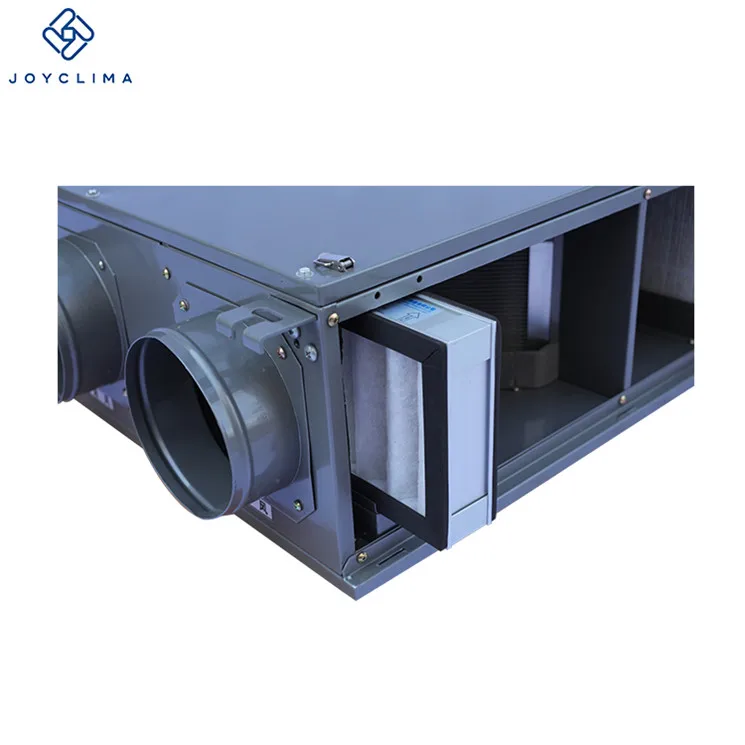

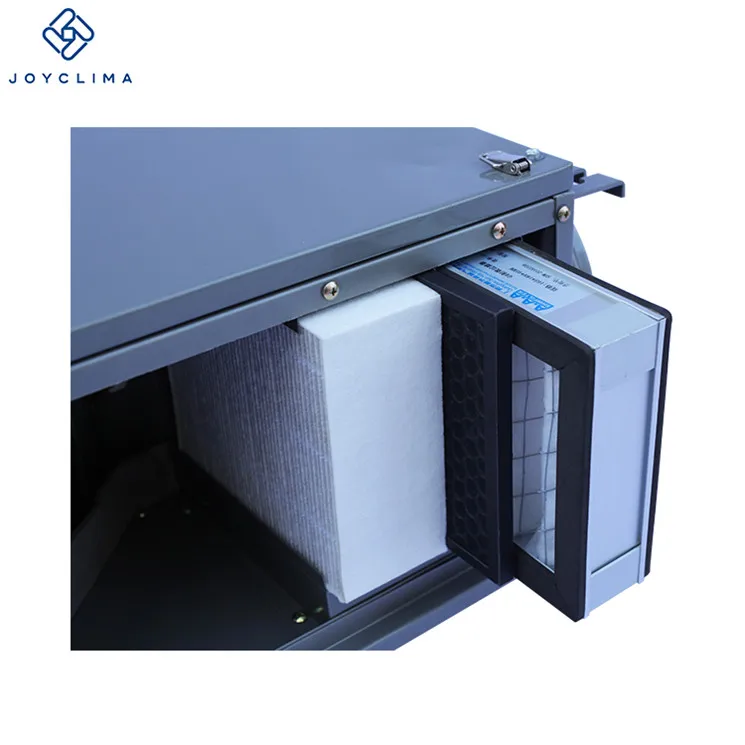

 ZJXRA-100~400 112ZJXRA-400-2ZJXRA-400-1ZJXRA-100~400 111ZJXRA-100~400 15ZJXRA-100~400 14ZJXRA-100~400 16





Application


 ZJXRA








Related Products










Certifications


 (2)








Company Information







FAQ


Q1:what’s your ERV machine’s advantage?
A1: overall filtering, adopt multi-filtering screen, the efficiency of filtering rise up to 99%.

Q2:can you accept customized needs?
A2: we can do OEM sevice for customers. The specifc needs can be negotiated

Q3:Are your machines energy-saving?
A2: yes, our whole series of ERV adopts EC fan motor, less electricity cost,  and safer.

Q4: Do your machines have controller board to monitor its operation?
A4: yes, our ERV machines are equipped with our own developing system integrated into its controller board, it’s convenient for customers to ask to find problem accurately and timely.

Q5: how do you guarantee your service timely?
A5: both of our engineers and salesmen work at factory office, it can reflect customers’ feedback as soon as possible after shortening the distance between sale department and technical department.

Q6: Can your own system be interfaced with other control center by establish communication protocols?
A6: yes, we have many such experiences in this part.
