Солнечная Панель лучшая цена инвертор 72 элемента солнечная панель 320 Вт поликристаллическая

Солнечная Панель лучшая цена инвертор 72 элемента солнечная панель 320 Вт поликристаллическая

Категория: >>>
Поставщик: XUZHOU FUTURESOLAR CO. LTD

Цена:17,55 ₽ - 20,84 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

FSM320P-72 jinko solar panel best price power inverter 72cell solar power panel 320W Polycrystalline

Product Description

Specification

Model	FSM320P-72	FSM325P-72	FSM330P-72	FSM335P-72	FSM340P-72
Nominal Power	320W	325W	330W	335W	340W
Open-circuit Voltage(Voc)	49V	49.2V	49.24V	49.39V	50.12V
Short-circuit Current(Isc)	10.44A	10.53A	10.57A	11.02A	11.14A
Maximum Power Voltage(Vmp)	40.8V	41V	41.17V	41.45V	41.76V
Maximum Power current(Imp)	9.57A	9.64A	9.72A	9.77A	9.82A
Module Efficiency(%)	19.79%	20.04%	20.61%	20.87%	21.13%
Power Tolerance	0~+5W
Maximum System Voltage	1000V / 1500V DC(IEC)
Operating Temperature	-40 ºC to 85 ºC

\t\t\t\t\t\t\t\t\tDetailed &Production \t\t\t\t\t\t\t

Glass

> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

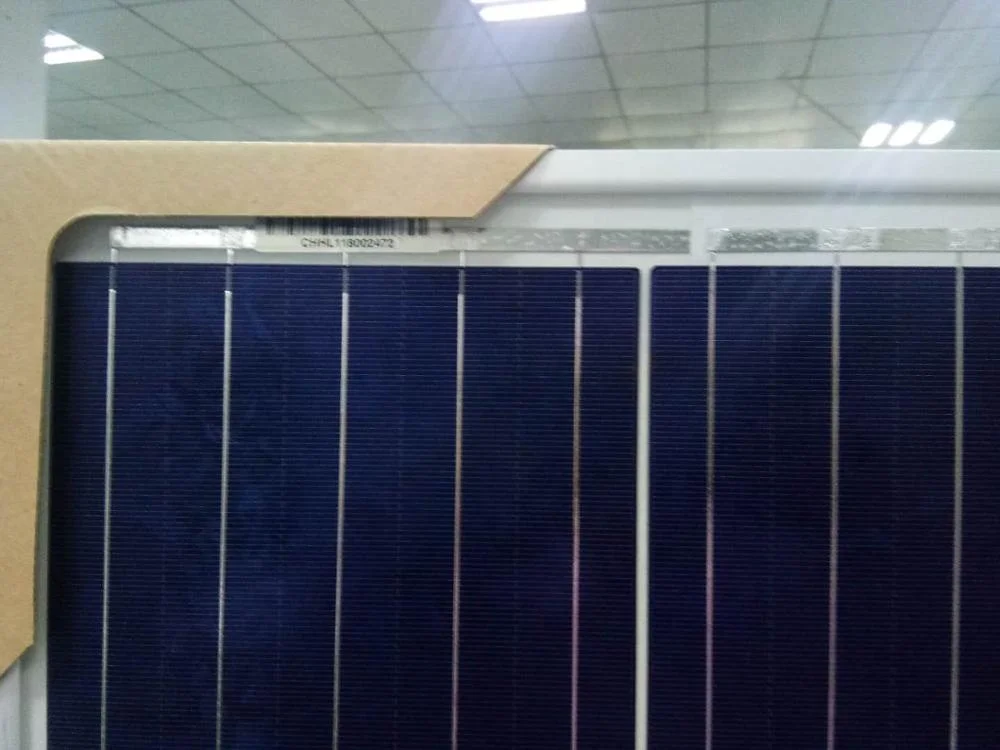

Solar Cell

> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

Frame

> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

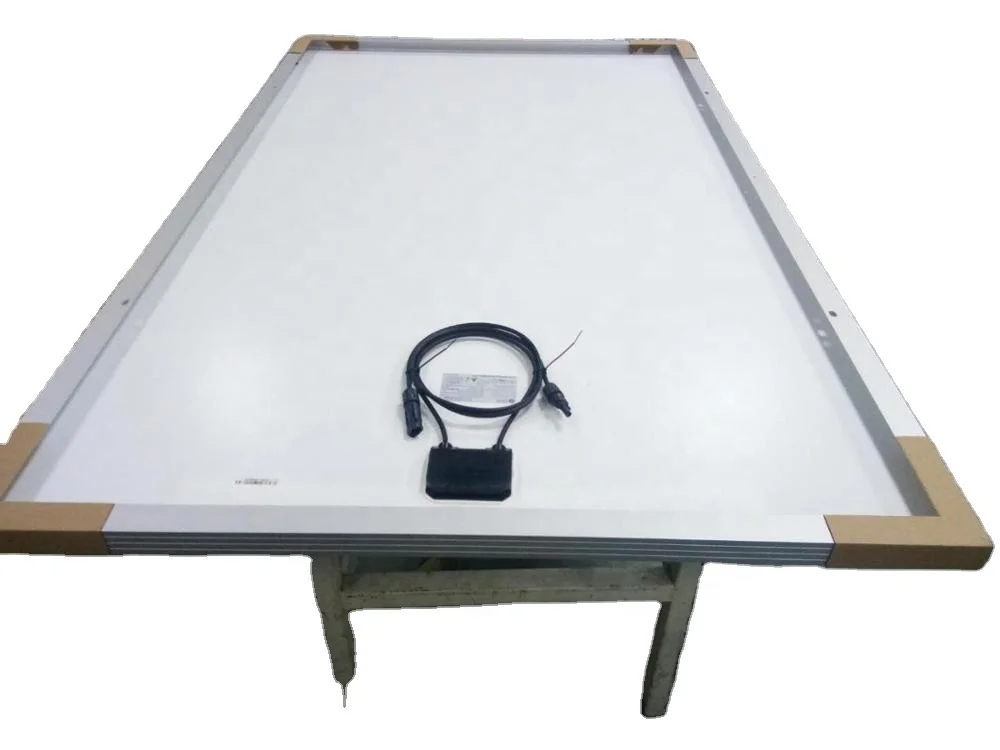

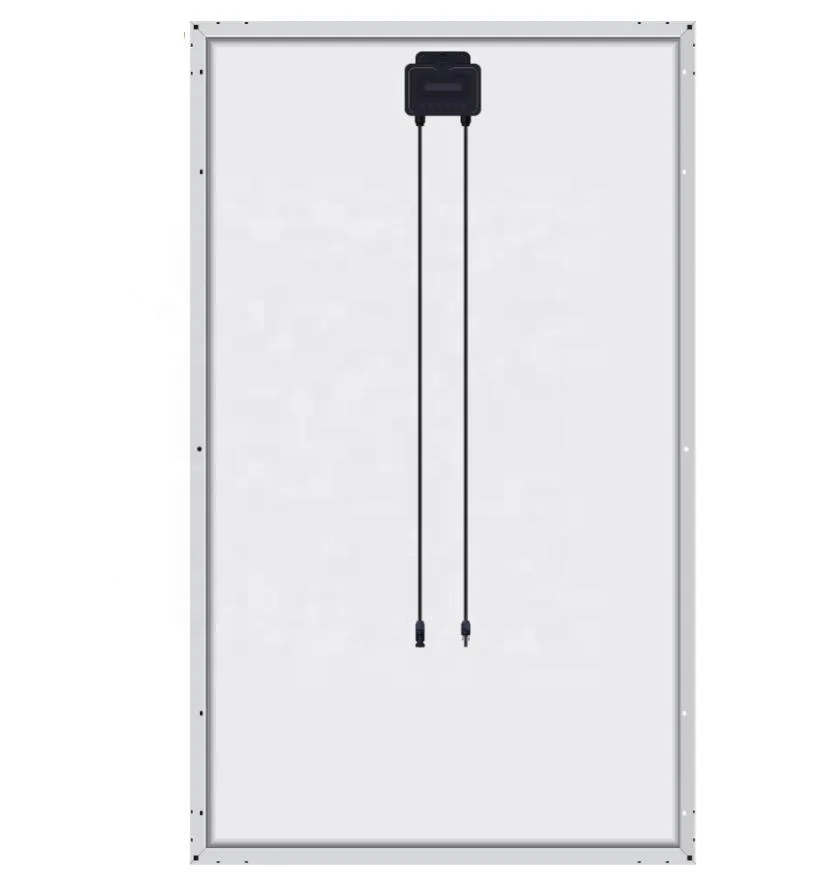

Junction box

> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life

Packing & Delivery

\t\t\t\t\t\t\t\t\tWho Is Futuresolar \t\t\t\t\t\t\t

\t\t\t\t\t\t\t\t\tPayment \t\t\t\t\t\t\t

Payment Terms	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment			FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L (Not Suitable for Solar System Orders)
				CIF
				DDP
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight (Not Suitable for Solar System Orders)
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container

\t\t\t\t\t\t\t\t\tRelated Product \t\t\t\t\t\t\t

FAQ

Question 1. : Can I have a sample order for solar panel?
Answer 1. : Sure, we are glad to provide solar panel samples for customer to make a test to check the quality.

Question 2. : How long is the warranty of your solar panel?
Answer 2. : We provide 10 year product warranty and 25 year linear performance warranty for our solar panels.

Question 3. : Which country you mainly export to?
Answer 3. : More than 80% of our solar panels are exported. And we have exported mainly to Japan, Turkey, Pakistan, Brazil, India,Argentina and so on. We sincerely welcome customer from all over the world to visit our factory and witness our full-automaticsolar panel production line.

Question 4. : How about the lead time of your solar panel?
Answer 4. : Normally we do have stocks, thus we can arrange for shipment within 7 days. But if you have special requirements or big quantity, we would have to produce accordingly. And we can produce about 450 PCS of solar panels per day. That is the lead time would be very favorable.
