Products Description
General information

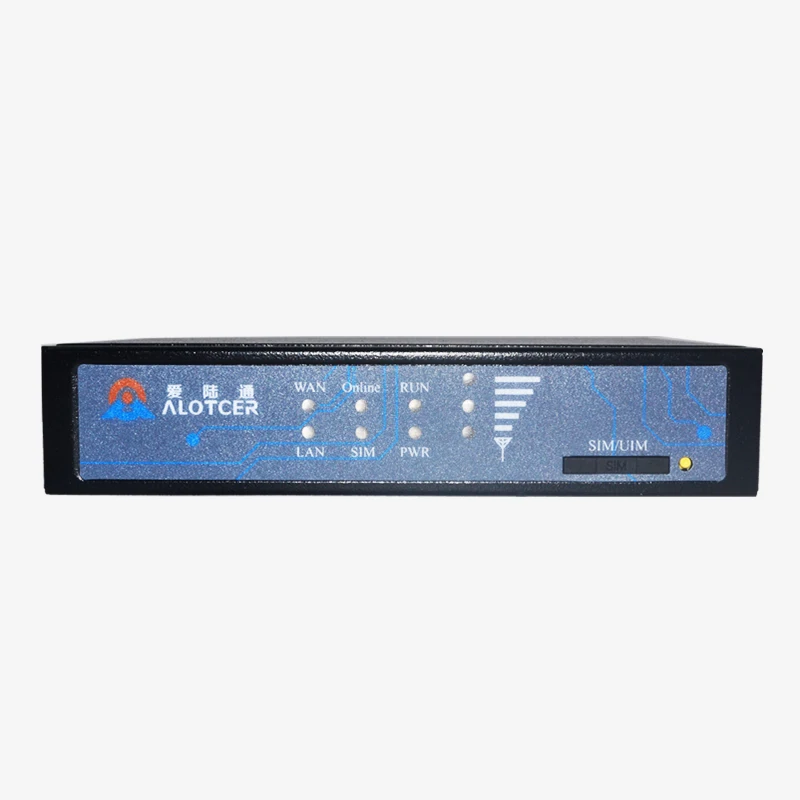

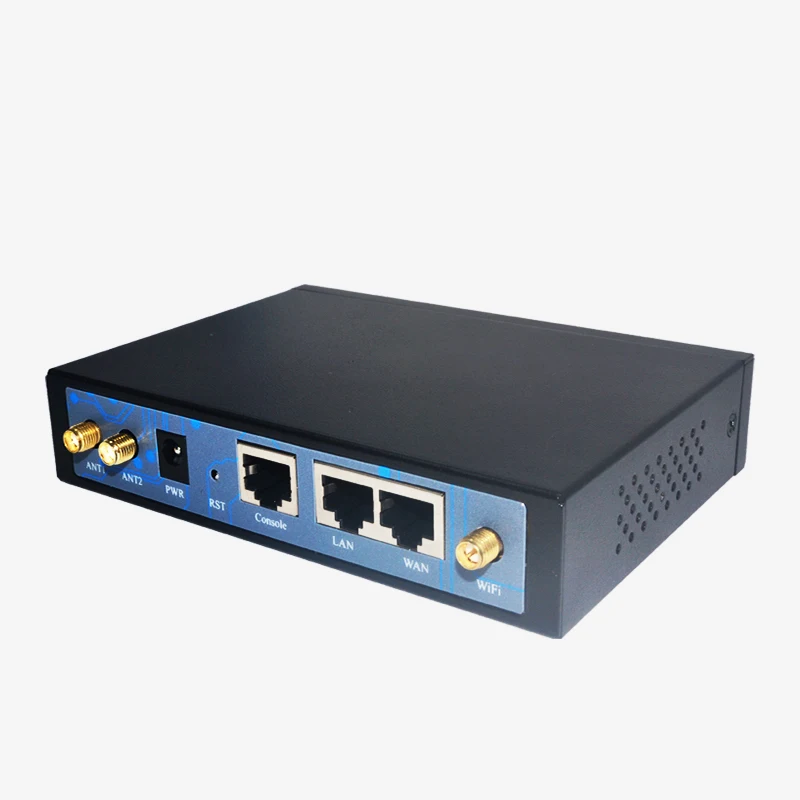

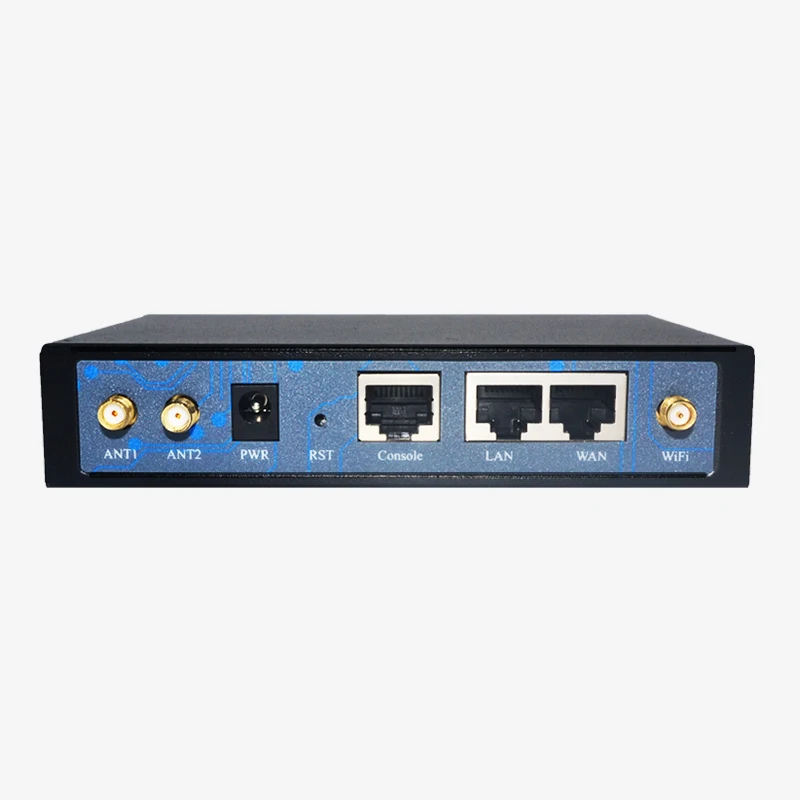

AR7088 ROUTER is a kind of terminal device that developed based on 2G/3G/ 4G, WIFI, VPN technology. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, postal services,industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, postal services,industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
Item | Contents | ||
Hardware System | CPU | Industrial 32 bits CPU | |
FLASH | 16MB (Extendable to 64MB) | ||
SDRAM | 128MB | ||
Interface | WAN | 1 10/100Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection | |
Serial | 1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps | ||
LAN | 1 10/100Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection | ||
Antenna | Cellular: Standard SMA female interface, 50 ohm WIFI: Standard SMA male interface, 50 ohm | ||
SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection | ||
Power | Standard 3-PIN power jack, reverse-voltage and over voltage protection | ||
Reset | Press this key for 8 seconds to restore the router to its original factory default settings | ||
Indicator | "Signal strength"、"PWR"、"RUN"、"SIM"、"Online"、 "LAN"、”WAN" | ||
Network | Wireless Network | GSM/GPRS/EDGE: 850/900/1800/1900MHz CDMA: 800/1900MHz WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz CDMA2000 1x/ EVDO Rev. A: 800/1900MHz TD-S CDMA: 1880-1920/2010-2025MHz(A/F) TDD-LTE:Band 38/39/40/41& Band 61/62 (Private Network) FDD-LTE:Band1/2/3/4/5/7/8/12/13/17/18/19/20/21/25 /26/28/66 | |
WAN | Support PPP/PPPOE | ||
LAN | Support APR | ||
IP Applications | Support Ping,Trace, DHCPServer, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet | ||
Network Access | Support APN/VPDN | ||
IP Routing | Support static routing | ||
Network Authentication | Support CHAP/PAP Authentication | ||
WIFI | Standard | IEEE802.11b/g/n | |
Bandwidth | IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max) | ||
Security | WEP, WPA, WPA2, etc. WPS (optional) | ||
Power supply | Power range | DC 5~35V, Recommended 12VDC | |
Standard Power | DC 12V/1.5A | ||
Consumption | <410MA(@12VDC) | ||
Physical | Dimensions | 136x99x28mm | |
Weight | 395g | ||
Environmental Limits | Operating Temperature | -35~+75ºC (-31~+167℉) | |
Storage Temperature | -40~+85ºC (-40~+185℉) | ||
Operating Humidity | 95% ( unfreezing) | ||
Highlights
operating system, ect. Easily cope with -40 ℃ to 80 ℃.
Strong signal, cellular antenna with 7dbi High gain
Packaging & Delivery
Our Company
Xiamen Alotcer Communication Technology Co., Ltd. is a leading provider of M2M, IOT
communication products and solutions.vDeeprooted in Networking Wireless Communications for 5 years, both from the product quality and the company's scale are in theindustry-leading level. We have obtained SGS certification and are ISO9001 certified, along with CE, FCC, EMC, ROHS, RED National Network Center certifications. There are more than 200 employers in Alotcer, R & D personnel is about 30%, and with 3000 squaremeters of office space. Because focused, so specialized. Our products are sold all over the world and well received by customers.
communication products and solutions.vDeeprooted in Networking Wireless Communications for 5 years, both from the product quality and the company's scale are in theindustry-leading level. We have obtained SGS certification and are ISO9001 certified, along with CE, FCC, EMC, ROHS, RED National Network Center certifications. There are more than 200 employers in Alotcer, R & D personnel is about 30%, and with 3000 squaremeters of office space. Because focused, so specialized. Our products are sold all over the world and well received by customers.
Exhibition & Visiting
Why Choose Us
FAQ
1.What's the shipping cost?
Shipping bia DHL, UPS, Fedex, TNE is 3-5 days. For 1 pc router,shipping cost is 23 USD to United Sates by Express DHL.
2.What's the package?
3.What's the warranty?
4.How can i visit you?
2.What's the package?
Industrial package with 10 pcs router in a main box, 1kg/pc.
3.What's the warranty?
Repair rate less than 0.1%, even after a one- year warranty, we will only charge a small amount of maintenance cost.
4.How can i visit you?
You are welcome to visit Alotcer in Xiamen,China. And we have booth world wide every year.
