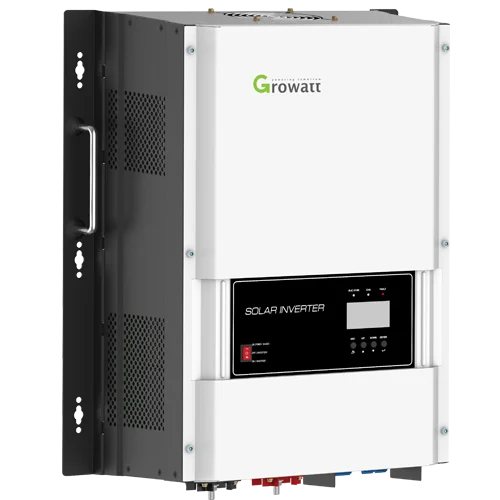

DV 2 Growatt инверсор 12000w солнечный инвертор 12Kw с pwm дешевой цене 120/240Vac 12kva Солнечный

DV 2 Growatt инверсор 12000w солнечный инвертор 12Kw с pwm дешевой цене 120/240Vac 12kva Солнечный

Категория: >>>
Поставщик: Eitai (xiamen) New Energy Technology Co. Ltd.Eitai Ltd.

Цена:149 239,48-172 199,40 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Our Advantages

Product Description

Datasheet

SPF 4KT DVM

SPF 5KT DVM

SPF 6KT DVM

SPF 8KT DVM

SPF 10KT DVM

SPF12KT DVM

Battery Voltage

48VDC

Battery Type

Lithium/Lead-acid

INVERTER OUTPUT

Rated Power

4KW

5KW

6KW

8KW

10KW

12KW

Surge Rating

12KW

15KW

18KW

24KW

30KW

36KW

Waveform

Pure sine wave/ same as input(bypass mode)

Nominal Output Voltage RMS

104-110-115-120/208-220-230-240VAC(optional)

Output Frequency

50Hz/60Hz +/-0.3 Hz

Inverter Efficiency(Peak)

>85%

Transfer Time

10ms(max)

SOLAR CHARGER

Maximum PV Charge Current

80A

120A

Maximum PV Array Power

5000W

7000W

Number of independent MPP trackers/
strings per MPP tracker

1/1

2/1

MPPT Range @ Operating Voltage

60~145VDC

Maximum PV Array Open Circuit Voltage

150VDC

Maximum Efficiency

>98%

AC INPUT

Voltage

240VAC

Selectable Voltage Range

184~272VAC(UPS);154~272VAC(APL)

Frequency Range

50Hz/60Hz (Auto sensing)

Maximum Charge Current

40A

50A

60A

70A

80A

100A

MECHANICAL SPECIFICATIONS

Protection Degree

IP20

Dimensions (W*H*D)

360/540/218mm

380/650/255mm

Net Weight (Solar CHG) kg

42

47

52

64

66

75

OPERATING ENVIRONMENT

Operation Temperature Range

0°C to 45°C

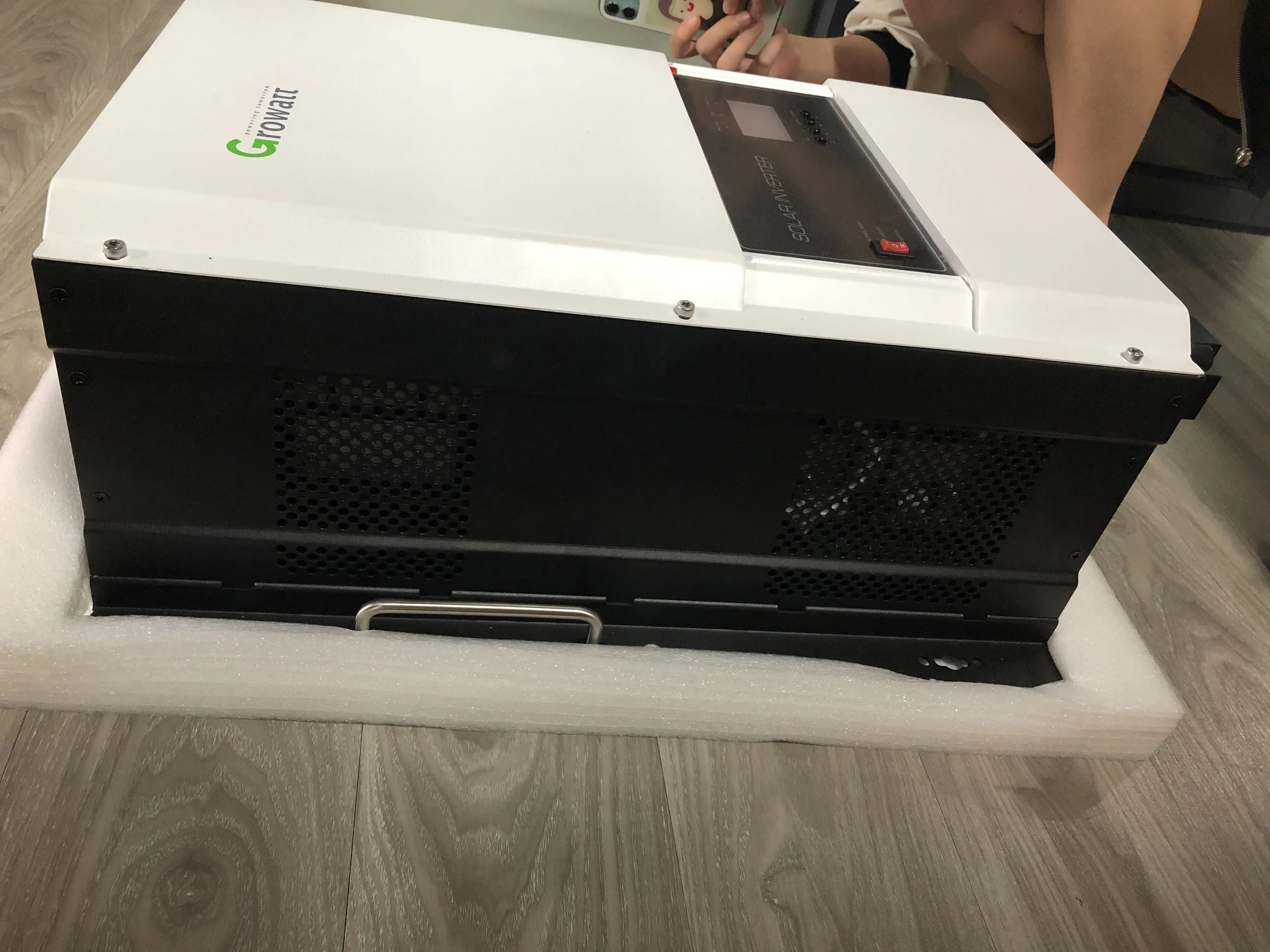

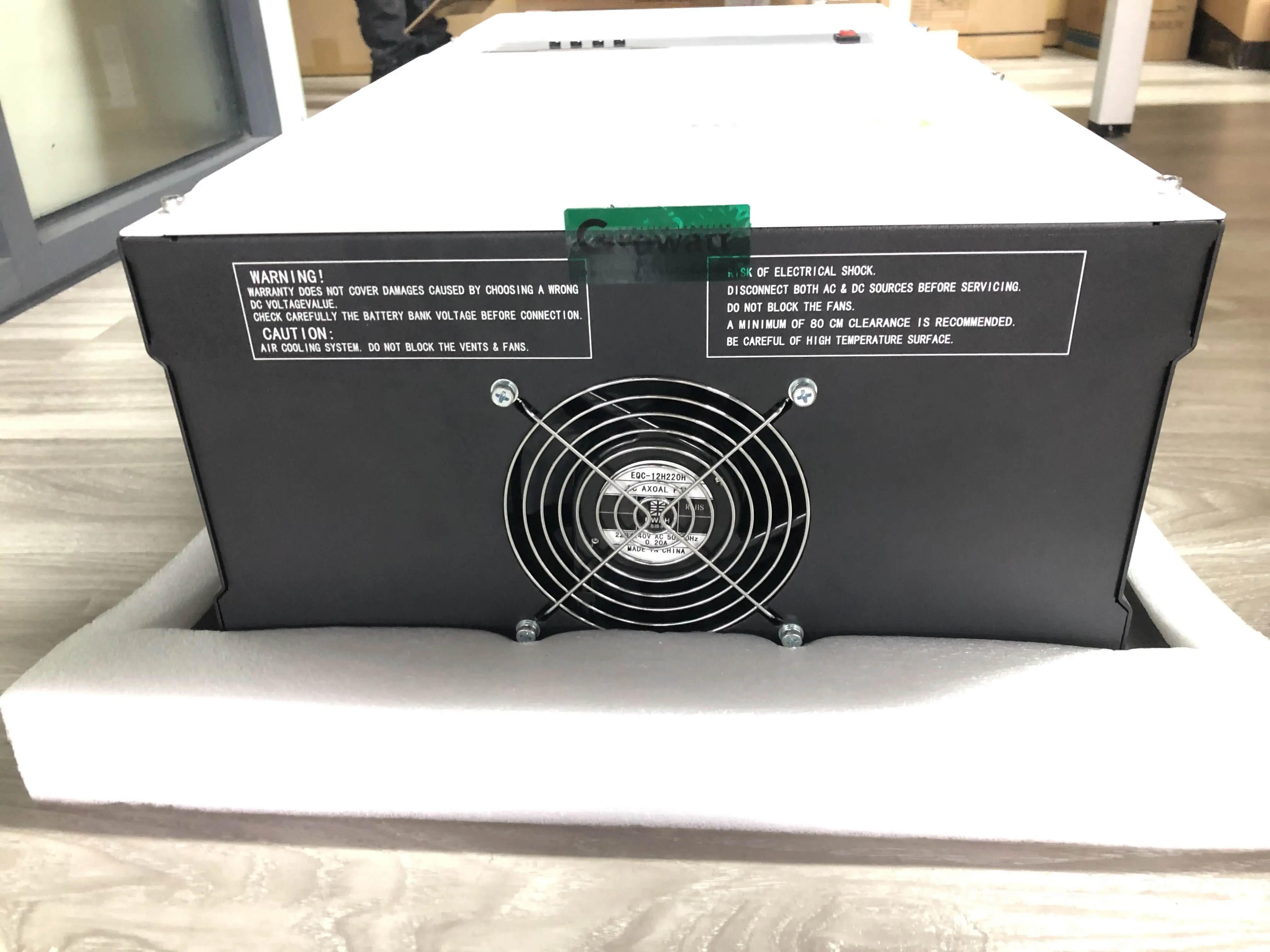

Product Detail Images

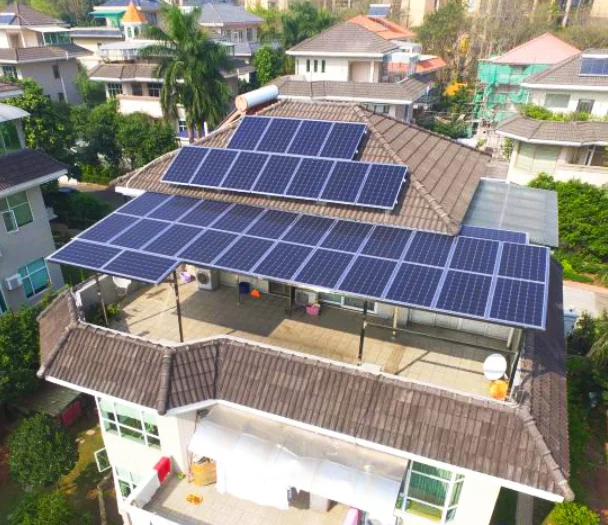

Product Application

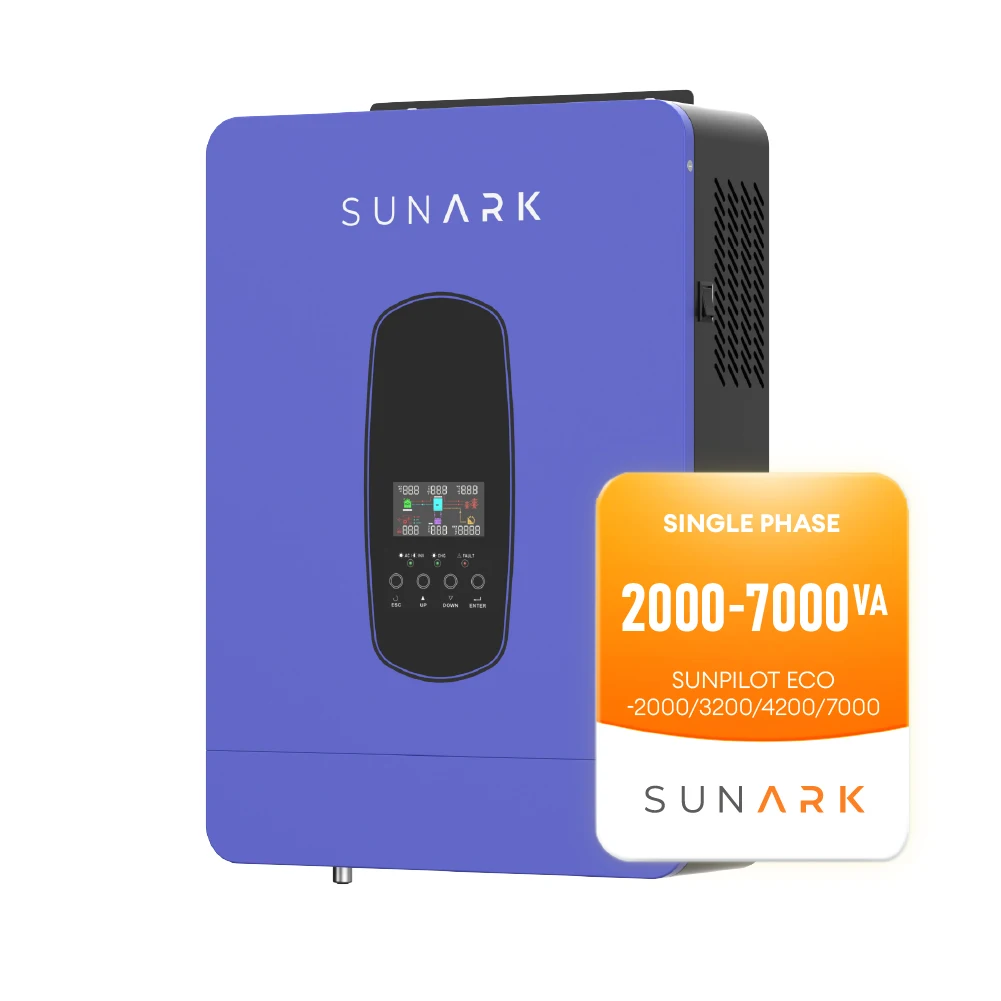

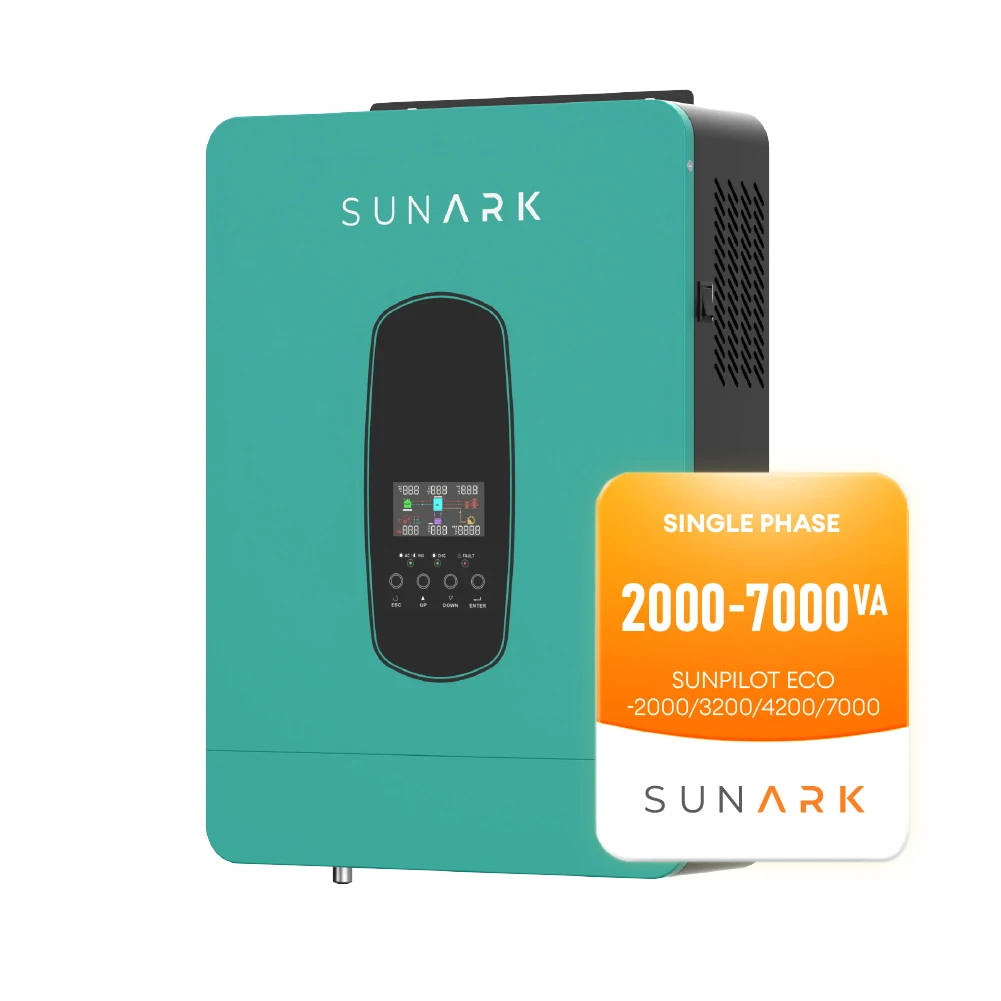

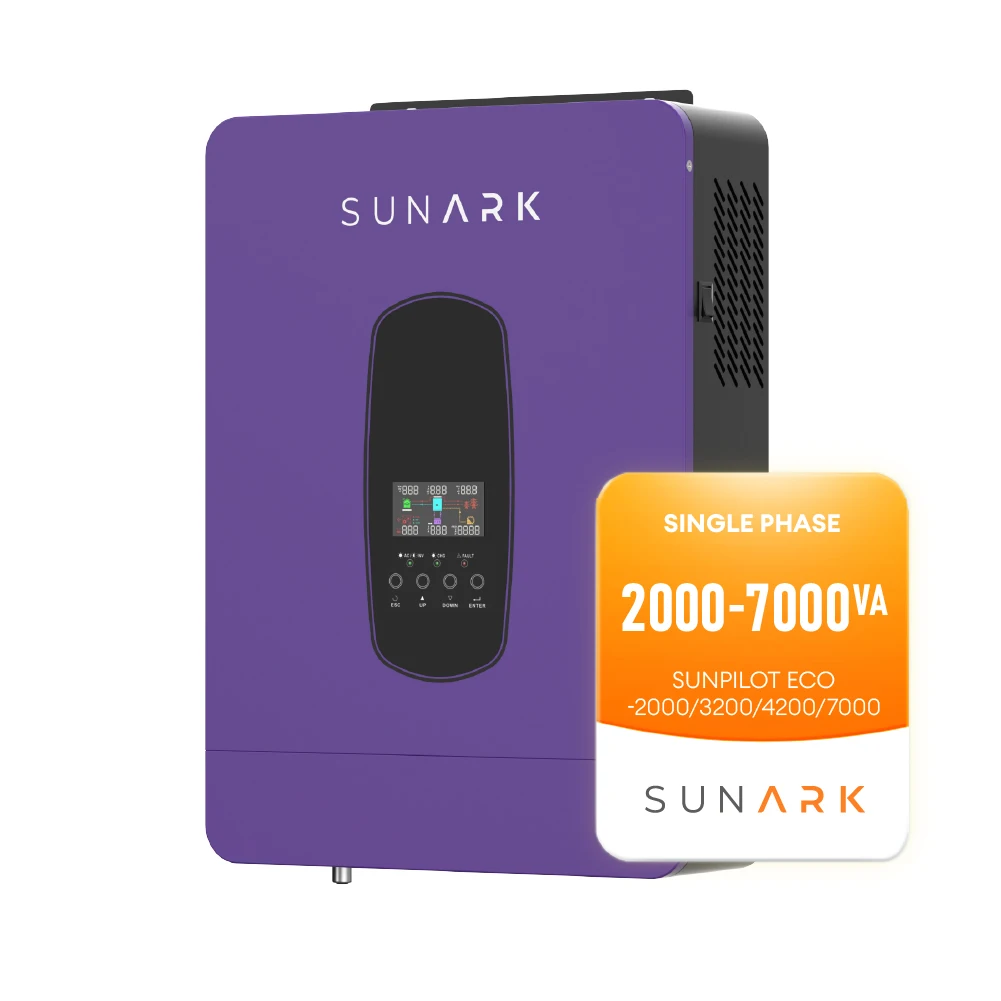

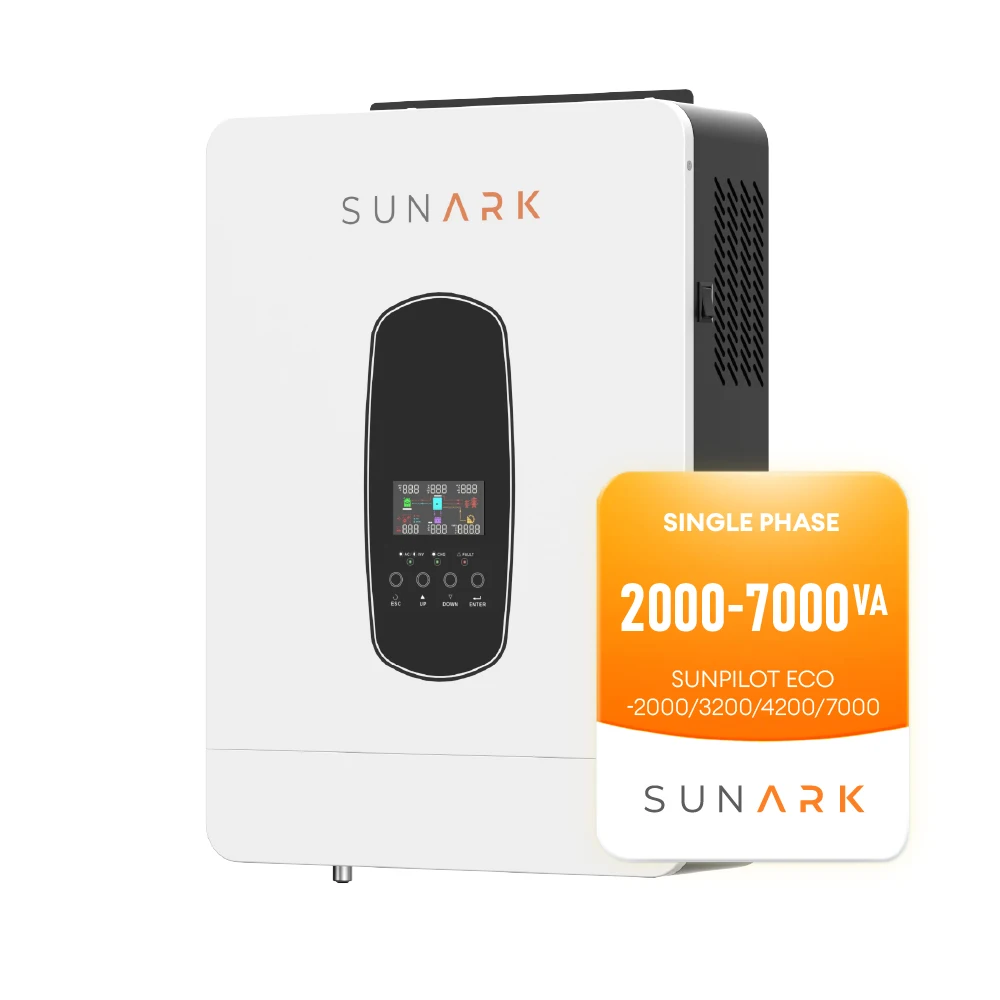

Related Products

Certificate

Certificate Introduction

Certificate Introduction

Certificate Introduction

Packing&Shipping

Company Introduction

Eitai (XiaMen) Photovoltaic Technology Co., Ltd is a high-tech enterprise specialized in the field of new energy, especially inthe product research & development, production, sales and service. Its Headquarters are located in Xiamen Special Economic Zone,and it also has branches in Japan. With support of a professional team, the company provides its clients with safe, reliable,stable and efficient solutions for the solar photovoltaic power station. It focuses on core businesses like automatic positioning piling machines, automatic solar module installation and cleaning equipment, PV mounting and related accessories, PV power plant construction business and so on.
