JEREL, медицинская алюминиевая фольга для растворителей, ультрафиолетовая печать, рулон
492,28 ₽ - 656,37 ₽
Алюминиевая фольга JEREL 20 микрон для любого рисунка может быть напечатана NC & UV Вода и растворитель основа чернила блистерная упаковка
- Категория: >>>
- Поставщик: Yangzhou Jerel Pharmaceutical New Material Co. Ltd.
Сохранить в закладки 1600122447492:
Описание и отзывы
Характеристики
Products Description

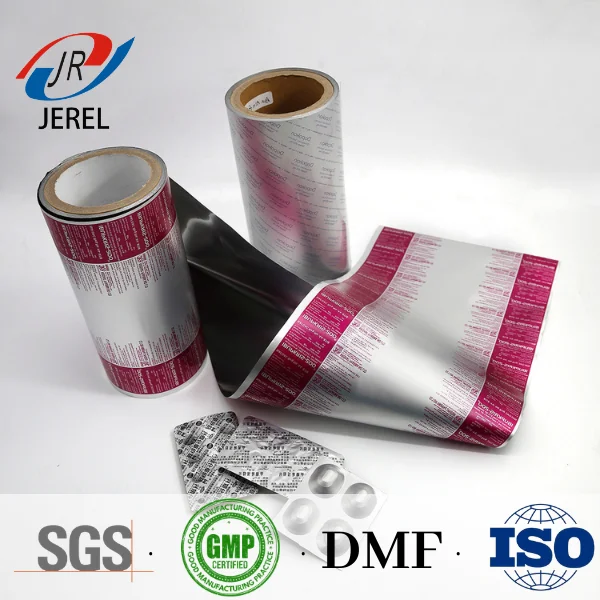

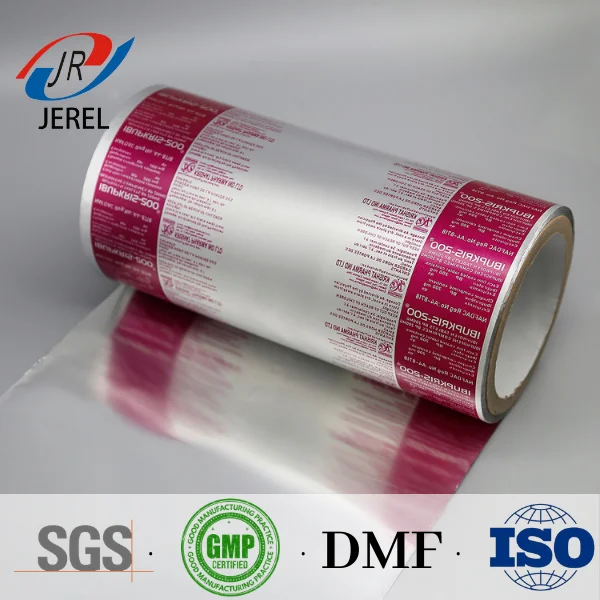

BLISTER ALUMINUM FOIL
Adopting hard anodized aluminum as cover material, PTP foil is easy to break aluminum foil to take out the drugs by pushing the cover.
Adopting heat-seal coating material, which cannot be stripped, PTP blister foil can be bonded with all kinds of plastic-based materials.
PRODUCT SPECIFICATION & PACKING
Product Name Blister aluminum foil/Pharmacitical aluminum foil/PTP aluminum foil
Alloy 8011 H state
Width ≤600mm
Thickness 20mic, 25mic, 30mic
Construction (Unprinted) OP/ALU/VC; (Printed) OP/INK/ALU/INK/VC
ID 76mm/152mm(3 inches/6 inches)
ED 240mm
Length 1500m(20mic)
Weight 60g/㎡(20mic); 20kg/roll(250*0.02mm)
Density 2.7g/㎤
Packing PE film/Foam gasket/plastic plug/carton/pallet
Container load 20-25 tons in 20 GP container
Product Name Blister aluminum foil/Pharmacitical aluminum foil/PTP aluminum foil
Alloy 8011 H state
Width ≤600mm
Thickness 20mic, 25mic, 30mic
Construction (Unprinted) OP/ALU/VC; (Printed) OP/INK/ALU/INK/VC
ID 76mm/152mm(3 inches/6 inches)
ED 240mm
Length 1500m(20mic)
Weight 60g/㎡(20mic); 20kg/roll(250*0.02mm)
Density 2.7g/㎤
Packing PE film/Foam gasket/plastic plug/carton/pallet
Container load 20-25 tons in 20 GP container
PRODUCT PERFORMANCE AND CHARACTERISTICS
1 Primer (OP) is suitable for uvink, solvent ink, water based ink
2 Heat sealing lacquer (vc) is suitable for ALU ALU FOIL/PVC /PP/PS/PET
3 HSL 3-5g is suitable for Asian standards, 6-8g is suitable for European standards
4 Printing colors: 1-3 colors, double-sided printing, full bottom with single color printing
5 Water vapor transmission rate, national standard 0.5g/㎡24h
6 Heat sealing strength 7.0N(PVC),6N(PVDC)

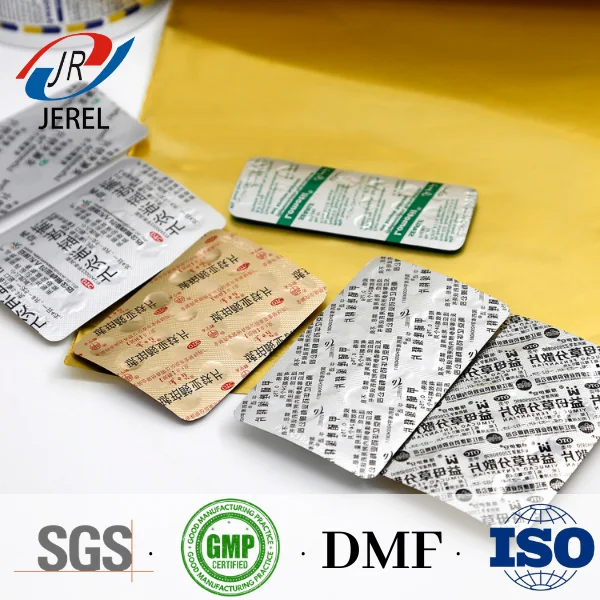

Blister Aluminum Foil is a kind of coated aluminum foil, used for cover lidding foil in pharma industry. It provides excellent
properties such as of anti-oxygen, moisture-proof, leak-proof, carry-home, anti-pollution, etc.
Adopting hard anodized aluminum as cover material, blister foil is easy to break aluminum foil to take out the drugs by pushing the cover. Adopting heat-seal coating material, which cannot be stripped, PTP blister foil can be bonded with all kinds of plastic-based materials.
PRODUCT USAGE
Commenly heatsealed with PVC, PVDC, PP PET PE etc.
1 Primer (OP) is suitable for uvink, solvent ink, water based ink
2 Heat sealing lacquer (vc) is suitable for ALU ALU FOIL/PVC /PP/PS/PET
3 HSL 3-5g is suitable for Asian standards, 6-8g is suitable for European standards
4 Printing colors: 1-3 colors, double-sided printing, full bottom with single color printing
5 Water vapor transmission rate, national standard 0.5g/㎡24h
6 Heat sealing strength 7.0N(PVC),6N(PVDC)
Blister Aluminum Foil is a kind of coated aluminum foil, used for cover lidding foil in pharma industry. It provides excellent
properties such as of anti-oxygen, moisture-proof, leak-proof, carry-home, anti-pollution, etc.
Adopting hard anodized aluminum as cover material, blister foil is easy to break aluminum foil to take out the drugs by pushing the cover. Adopting heat-seal coating material, which cannot be stripped, PTP blister foil can be bonded with all kinds of plastic-based materials.
PRODUCT USAGE
Commenly heatsealed with PVC, PVDC, PP PET PE etc.
STRUCTURE | UNIT | ALU 20 | ALU 25 | ALU 30 |
OP Lacquer | g/m2 | 1.5+/-0.5 | 1.5+/-0.5 | 1.5+/-0.5 |
Alu Foil | micron | 20+/-1 | 25+/-1 | 30+/-2 |
VC Lacquer | g/m2 | 3.5+/-0.5 | 3.5+/-0.5 | 3.5+/-0.5 |
TOTAL THICKNESS | micron | 24+/-1 | 30+/-1 | 35+/-1 |
TOTAL WEIGHT | g/m2 | 59+/-0.5 | 72.5+/-0.5 | 85+/-0.5 |
OP LACQUER - I | OP LACQUER - II | OP LACQUER -III | OP LACQUER - IV | |||||
SOLVENT PRINTING INK AS ACETIC ETHER | UV PRINTING INK | ETHANOL PRINTING INK | SCREEN PRINTING INK | |||||
SPECIAL REQUIREMENTS FOR VC LACQUER | ||||||||
VC LACQUER (g/m2) | 4.5+/-0.5 | 5.5+/-0.5 | 6.5+/-0.5 | 4.5+/-0.5 | ||||
Our Company
PTP BLISTER ALUMINUM FOIL FROM YANGZHOU JEREL PHARMACEUTICAL NEW MATERIAL COMPANY.
Yangzhou Jerel Pharmaceutical New Material Co., Ltd. is a manufacturing enterprise specialized in drug packaging material production and development.
It is the professional technical specialists and quick-reaction sales team that guarantee the high-quality products, competitive price and first-rate service Jerel provide to our customers.
Jerel, established in 2007, has become a new promising company in the field of pharmaceutical packaging in China.
Main products are cold forming aluminum foil, PTP aluminum foil, strip aluminum foil and tropical aluminum foil.
Main products are cold forming aluminum foil, PTP aluminum foil, strip aluminum foil and tropical aluminum foil.
We have passed several certificates such as ISO9001,ISO14001, DMF NO.27426 and DMF of China.
It is the professional technical specialists and quick-reaction sales team that guarantee the high-quality products, competitive price and first-rate service Jerel provide to our customers.
QUALITY ASSURANCE
1 100k class cleaning work room to ensure a clean and hygienic production environment

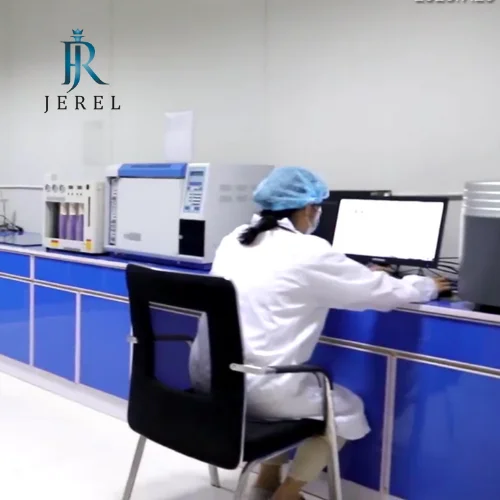

2 Physics, chemistry, microbiological testing rooms and various testing instruments to ensure that all kinds of testing are done before the products leave the factory
3 Passed China Food and Drug Administration (CFDA) registration and certification of pharmaceutical packaging materials and CDE filing
Registration number: 201502481; CDE NUMBER:B20190004754
4 Passed the US DMF product safety certification, number 029719
5 Passed the ISO9001-2015 quality system certification of British QA company, number: QAIC/CN/131016
6 Passed TUV factory field certification, number: 20751956_P+T
7 Passed the SGS factory site certification, number: QIP-ASI164141
1 100k class cleaning work room to ensure a clean and hygienic production environment
2 Physics, chemistry, microbiological testing rooms and various testing instruments to ensure that all kinds of testing are done before the products leave the factory
3 Passed China Food and Drug Administration (CFDA) registration and certification of pharmaceutical packaging materials and CDE filing
Registration number: 201502481; CDE NUMBER:B20190004754
4 Passed the US DMF product safety certification, number 029719
5 Passed the ISO9001-2015 quality system certification of British QA company, number: QAIC/CN/131016
6 Passed TUV factory field certification, number: 20751956_P+T
7 Passed the SGS factory site certification, number: QIP-ASI164141
Our customers
80 percent of our products are exported to all over the world, including South America, West Europe, the Middle East, Southeast Asia, South Asia, and Africa and so on. Our major customers consist of some international well-known enterprise like Pfizer, Sanofi, Novartis, Sami, Highnoon and so on.
