Product Overview
We will work hard to make the world like Made in China
Auotoamtic PET/PP bottle blowing moulding machine
Full automatic blow molding machine is suitable for producing PET/PP/PE plastic containers and bottles in all shapes. It is widely used to produce the carbonated drinks,soft drinks,mineral water,juice,tea,milk drinks, beer and liquors,salad dressings, medicine,pesticide oil bottle cosmetics, wide-mouth bottle and hot filling bottle/barrel etc.
FEATURES AT A GLANCE
Detailed introduction:
1. servo motor and PLC run stably.
2. use FESTO / AirTAC air cylinder to avoid contamination and noise.
3. process is fully automatic,high efficiency,easy operation, simple maintenance and safety.
4. ideal cooling system make the finished bottles without any flaws.
5. automatic and manual operating.easy to change mould,suitable for PET/PP plastic containers and bottles.
2. use FESTO / AirTAC air cylinder to avoid contamination and noise.
3. process is fully automatic,high efficiency,easy operation, simple maintenance and safety.
4. ideal cooling system make the finished bottles without any flaws.
5. automatic and manual operating.easy to change mould,suitable for PET/PP plastic containers and bottles.
Top view
Rear view

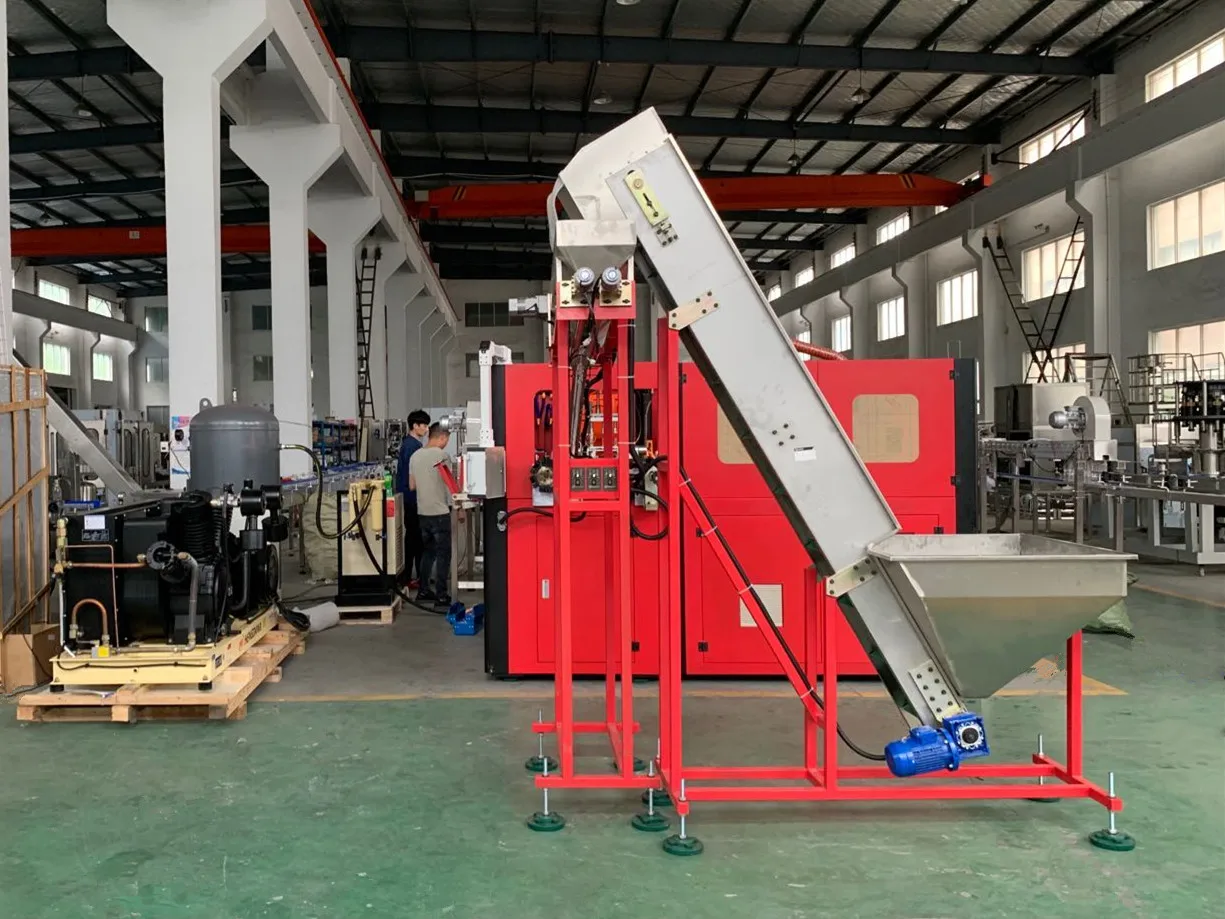

Side view
PRODUCT CONFIGURATION
Bottle feed-in system
Mould, blowing system
Transportation system
Heating system
Reserve pressure system
Air compressor system
PRODUCT SPECIFICATIONS
Parameter | JUST S2-2000 | JUST S4-4000 | JUST S6-6000 | JUST S9-9000 | JUST 10-20L |
Capacity: BPH | 1000-2500 | 3000-4000 | 5000-8000 | 9000-12000 | 500-2500 |
Bottle volume: L | 0.2-2 L | 0.2-2 L | 0.2-2 L | 0.2-2 L | 5-20 L |
Mouth diameter: MM | 16-38 | 16-38 | 16-38 | 16-38 | 38-125 |
Bottle diameter: MM | 30-125 | 30-125 | 30-125 | 30-125 | 38-150 |
Bottle height: MM | 60-320 | 60-320 | 60-320 | 60-320 | 200-520 |
Cavity: PC | 2 PC | 4 PC | 6 PC | 9 PC | 1-4 PC |
Machine size: M | 2.4X1.7X1.9 | 3.0X1.9X2.2 | 4.0X2.1X2.4 | 5.4X2.1X2.4 | 3.8X1.9X2.6 |
Machine weight: T | 2 | 3.3 | 6.5 | 7.0 | 3.6 |
Feeding dimension: M | 2.1X1.0X2.5 | 2.1X1.0X2.5 | 2.6X1.2X3.1 | 2.6X1.2X3.1 | 2.1X1.0X2.5 |
Feeding weight: T | 0.25 | 0.3 | 0.45 | 0.5 | 0.3 |
Heating power: | 21 KW | 45 KW | 60 KW | 65 KW | 50 KW |
Installation power: | 25 KW | 48 KW | 63 KW | 68 KW | 53 KW |
SALES AND SERVICE NETWORK
Help customers building ideal factory, help employees realize their ideals.
Successful Project
We have a professional team,SEAMASTER is the largest bottled water manufacturer in Malaysia.They provide Coca-Cola with processing services and produce 100 million bottles of bottled water every month. Cooperation till now,We have provided them with 30 sets of bottle water production lines.
SIMILAR PRODUCTS
Automatic liquid production line
The automatic production line is suitable for bottle/barrel water, beverages,liquors,liquid condiments, daily chemical products, pre-processing filling and packaging.
Plastic blowing moulding machine
Bottle Making Machine is suitable for producing PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE PETG plastic containers and bottles in all shapes.
Semi automatic blowing machine
Manual/Semi automatic PET Bottle Making Machine is suitable for producing PET/PP plastic containers and bottles in all shapes.
FAQ
Q1: Are you manufacturer?
A1:Yes, welcome to visit us ! We can show you our machine running.
Q2: How long of your warranty?
A2: Regarding warranty, normally we offer 5 years warranty, and we offer lifetime maintenance.
Q3: Can you provide turnkey project service?
A3: Yes, of course, we can provide the full set of turnkey project service to you, from raw material, to equipments, installation nd training etc.
Q4. Do you accept OEM order?
A4: Yes, we have strong design team and technical team. Therefore we can also accept OEM and customized order with special requirements.
Q5: What else need to be paid attention besides price?
A5: except for the price, we also need pay attention to quality, product construction, design principle, configuration of part list, reasonability, convenience of operation, professional, service and etc.
Contact us：
Q2: How long of your warranty?
A2: Regarding warranty, normally we offer 5 years warranty, and we offer lifetime maintenance.
Q3: Can you provide turnkey project service?
A3: Yes, of course, we can provide the full set of turnkey project service to you, from raw material, to equipments, installation nd training etc.
Q4. Do you accept OEM order?
A4: Yes, we have strong design team and technical team. Therefore we can also accept OEM and customized order with special requirements.
Q5: What else need to be paid attention besides price?
A5: except for the price, we also need pay attention to quality, product construction, design principle, configuration of part list, reasonability, convenience of operation, professional, service and etc.
Contact us：
Our services:
Q1: Proposal design and make budget:We are capable of providing specialized proposal design and make a general budget for you.
Q2: Equipment production&commissioning:
We will arrange the production for you as soon as the order confirmed, and make sure the quality of products, We have client cases in different countries , we can provide theirproduction working video for you
Q3: Factory layout design:
Machines and factory layout design is also available after the proposal confirmed.
Q4: Bottle shape design:
We can also help to do the bottle shape design for you according to your needs.
Q5: Raw Material supply: We are capable of provide one-stop service, so the raw material supply is also available.
After- services:
1. The guarantee of our machines is 5 years, life-long services, also we will supply spare parts along with the machines free of charge, the parts will be enough for at least 3 years for the normal operation of machines.
2. We can train your engineers in our factory free of charge. IMeans you can send your engineers to our factory to study and training, we have rich experiences for the training, it is the good way to make sure that you can operate and maintain our machines successfully and for long time normal use.
3. We will supply you detail user manual for our machines, also we will make one Video CD to show you how to install and maintain the machines, it will help you to maintain the machines for the long time.
4. We will send our engineers to your factory to install the machines and train your staff how to operate the machines,We have been doing the install jobs for our overseas customers for many years.
5. We will help to arrange the shipping of goods for you and keep you posted about the steps.
