With its built-in multi-constellation GNSS engine, smaller dimension, and industrial-grade compact design, TS5 provides a flexible GNSS work solution. Supports 4G module, Wi-Fi, Bluetooth, NFC technology, built-in Linux system, and 8G storage, to make the data transmission more convenient. Accompanied by Hi-Target professional field surveying software and its up-to-10-hours working time, TS5 meets users’ needs of efficient and convenient surveying experience.

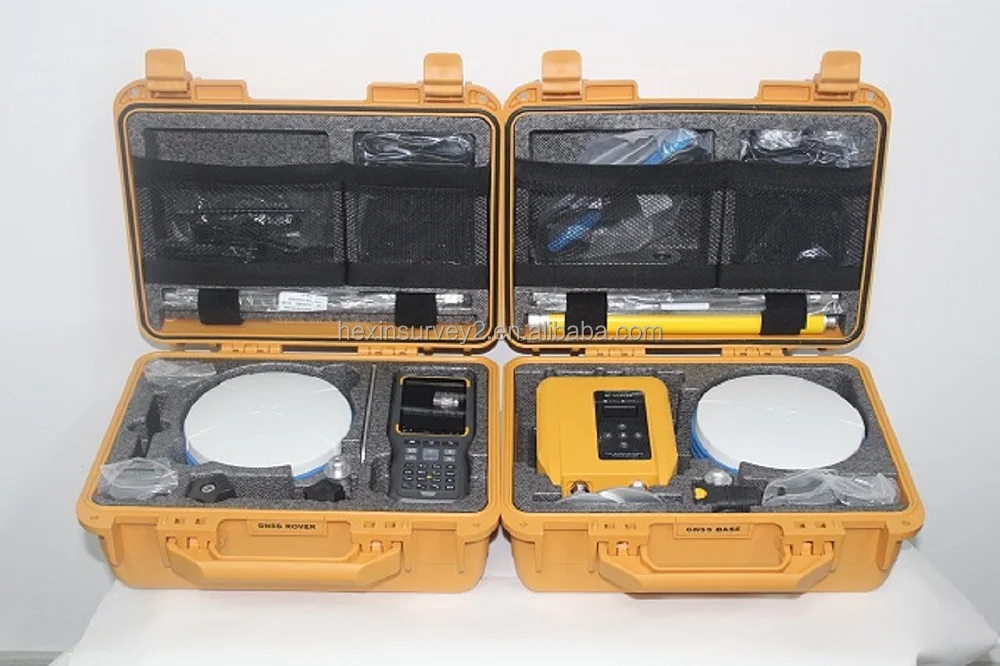

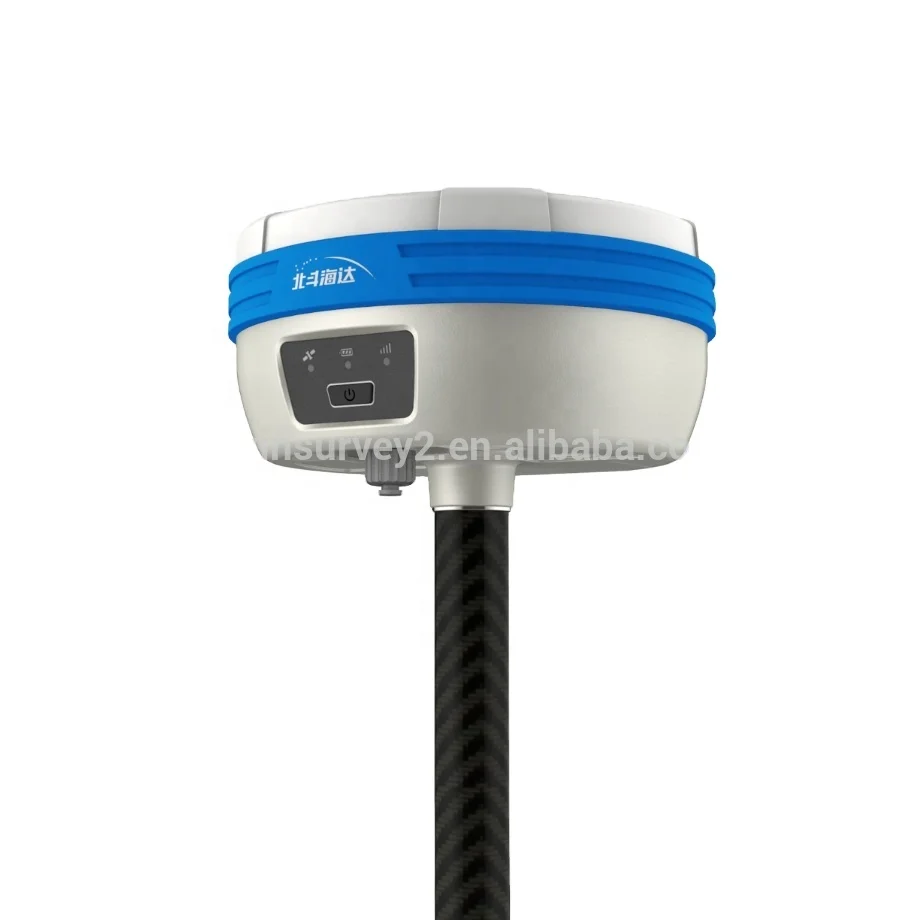

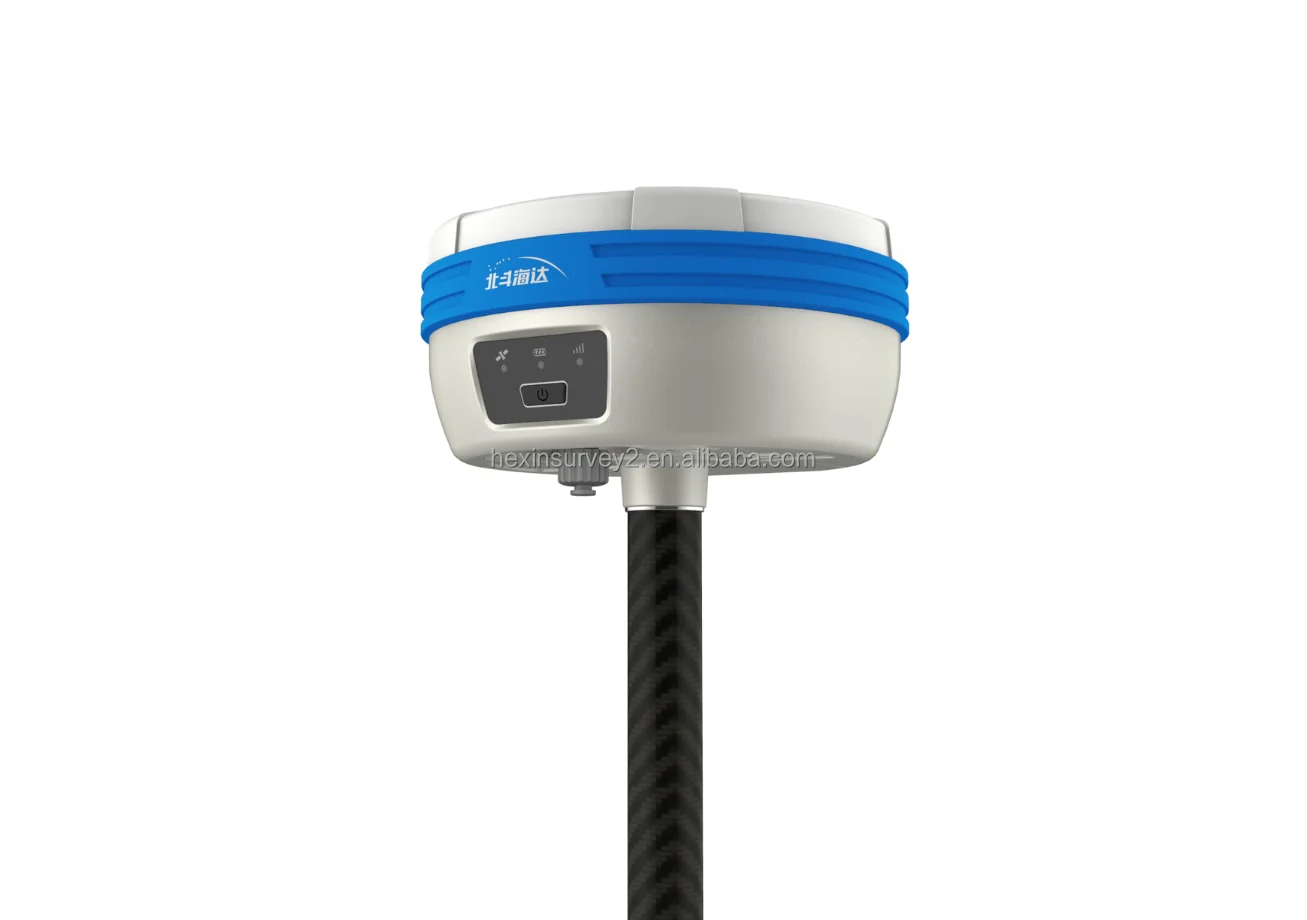

TS5 GNSS RTK System
Key features of TS5
1.Multi-constellation GNSS engine;
2.440 tracking channels, extendable to 600;
3.Perfectly compatible with a variety of CORS systems;
4.Supports multiple transmission protocols.
1.Detail advantage functions
1.Full-frequency air antenna
1) Stable and better noise resistance full-wave GNSS antenna;
2) Supports a wide range of satellite tracking signals;
3) Reduces the multipath effect influence.
2.Multi-constellation GNSS engine
1) 440 tracking channels, extendable to 600;
2) Auto-selection satellite constellations;
3) Provides reliable results in harsh environments with its unique GNSS positioning algorithm.
3.Smart application
1) Built-in Linux system and 8G storage;
2) Intelligent management of the static data;
3) Intelligent voice assistant for guiding field operations;
4) Standard Rinex data and Hi-Target raw data recorded simultaneously.
4.Data communication
1) Compatible with other vendors’ communication protocols;
2) Long transmission distance and good electromagnetic compatibility;
3) Perfectly compatible with a variety of CORS systems.
5.WebUI
1) Intelligent query of the device information;
2) Intelligent management of the device status automaticall

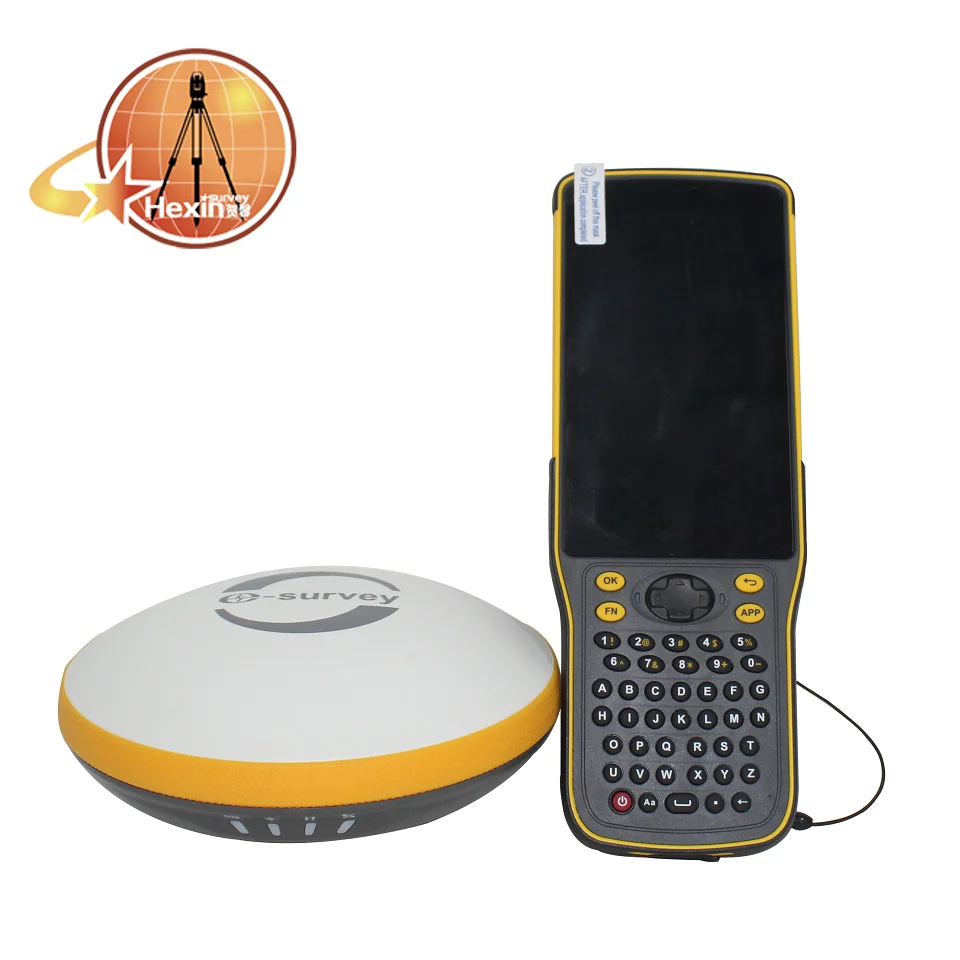

iHand30 Controller
Professional Field Controller
The iHand30 is a rugged controller that is designed for data collection and GNSS device control.
Based on the Android operating system, it is compatible with Hi-Target professional software and third-party Android software.
Combining the physical keyboard with a touchscreen, it can boost efficient fieldwork and provide reliable solutions for users.
KEY FEATURES
| Hardware Configuration | OS: Android 6.0 Processer: 1.5GHz, 4 core Storage: RAM 2G, ROM 16GB (up to 32GB extension Micro-SD) Display: 3.7’’, 640 x 480, sunlight readable Camera: 8MP, tag available Sensors: G-sensor, E-compass, barometer, light readable sensor, gyro |
| Communication | Cellular mode: Dual SIM card, dual stand-by Cellular network: 4G TDD-LTE, ,WCDMA, GPRS Wi-Fi: IEEE 802.11b/g/n, 2.4GHz/5GHz Bluetooth: V2.0/4.0 USB: Type-C, supports OTG NFC |
| Physical | Weight: 440g(within battery) Size: 208mm*83mm*24mm Temperature: -20℃ ~ +60℃(Operating); -30℃~ +70℃(Storage) Free-fall: 1.2m Water/Dustpoof: IP67 |
| GNSS Features | GNSS: GPS, GLONASS, AGPS, 20 channels Update rate: 1Hz |
| Power Supply | Battery: Removable 3.7V lithium battery, 5200mAh Duration: 15 hours |

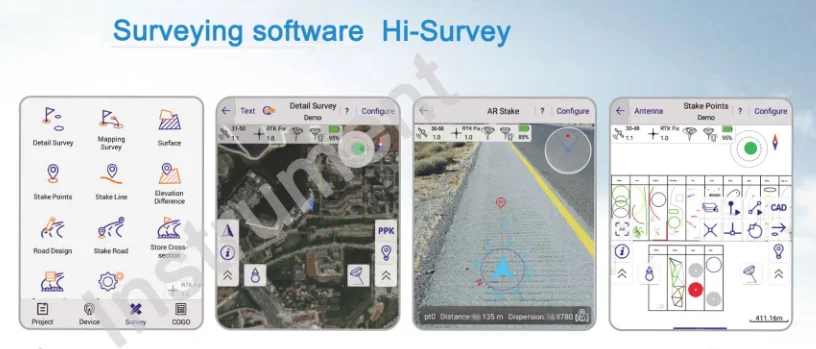

Hi-Survey Road is an Android software that is designed for all types of land survey and road engineering projects in the field. It is compatible with Hi-Target professional controllers, Android phones, tablets and other third-party Android devices. It is a sleek and easy-to-use software that supports the operating of big data with built-in tools. With customized industrial application solutions, more possibilities are created for users.
PERFORMANCE SPECIFICATIONS OF Hi-target TS5
Satellite Signals Tracked Simultaneously
Channels...................................................................... ............................................. 440+
GPS............................................................................ ........................... L1, L2C/L2P, L5
BeiDou........................................................................ .....................................B1, B2, B3
GLONASS.......................................................................................... L1C/L1P, L2C/L2P
Galileo ........................................................................................................ ...... Reserved
SBAS .................................................................................................................Reserved
POSITIONING PERFORMANCE
Horizontal ............................................................................... 2.5mm + 0.5ppm RMS
Vertical ............................................................... ......................... 5mm + 0.5ppm RMS
Real Time Kinematic (RTK)
Single Base
Horizontal………………...................................……….......………...... 8mm+1ppm RMS
Vertical…………………….....................................….......………....... 15mm+1ppm RMS
Network RTK
Horizontal…………………...............................….......................…. 8mm+0.5ppm RMS
Vertical…………………..............................……….........................15mm+0.5ppm RMS
Initialization time ..................................................... ........................... Typically 2-10s
Initialization reliability................................................................... Typically > 99.9%
Communication
Bluetooth 4.0/2.1+EDR, 2.4GHz
4G cellular mobile network (TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM)
Wi-Fi frequency 2.4GHz, supports 802.11b/g/n protocol
Internal UHF Radio
Frequency................................................................ ................................... 410-470MHz
Channels ......................................................................................... 116 (16 adjustable)
Transmitting power........................................................ ...... 1W/2W/4W adjustable

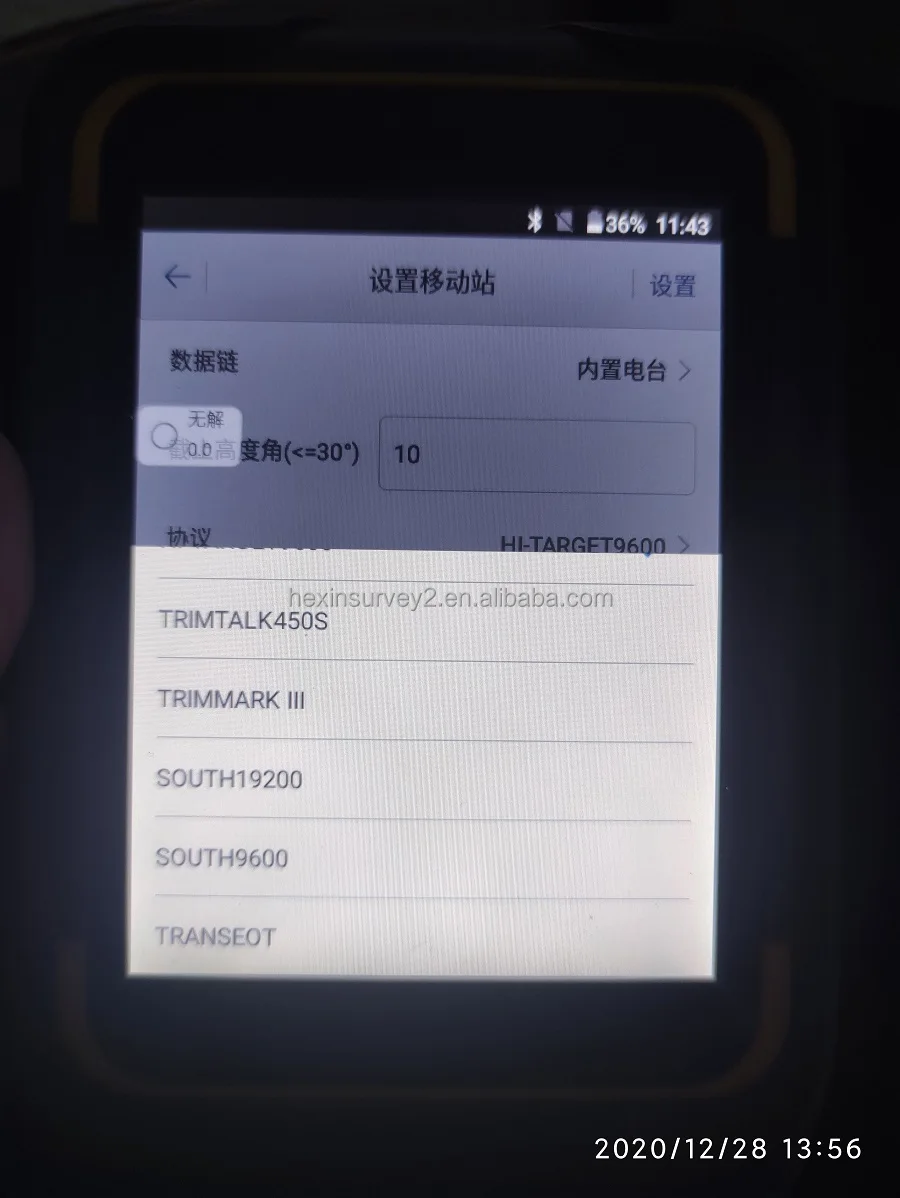

Supports multiple protocols: HI-TARGET, TRIMTALK450S, TRIMMARK III,
TRANSEOT, SATEL-3AS, etc.
Working Range........... ...... ....... ......... .... .... ... .. .. ... .. ... 3-5km typical, 5-8km optimal
Physical
I/O Interface
1 × Mini USB port
1 × TNC antenna connector
1 × DC power input (5-pin)
1 × SIM card slot

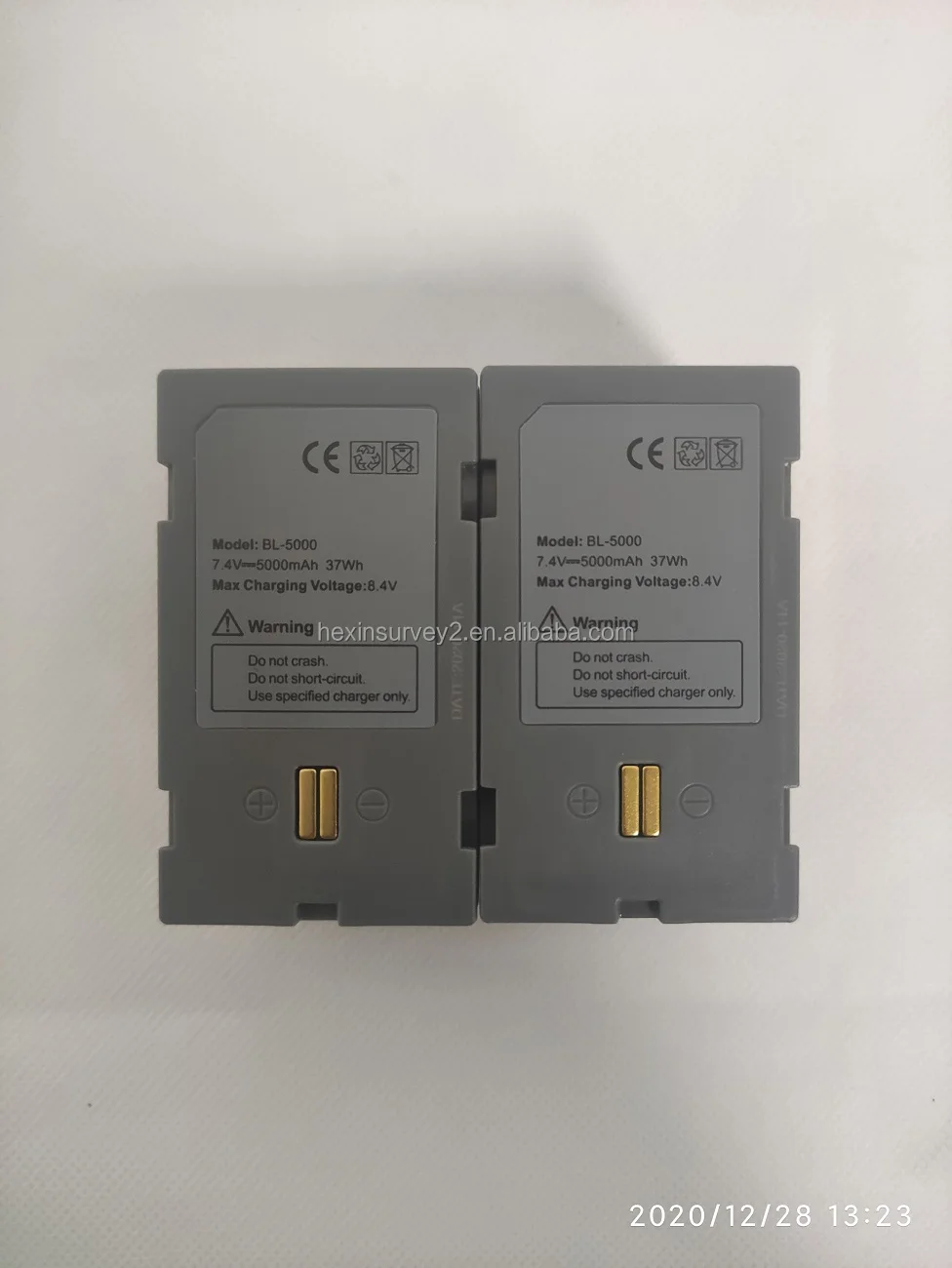

Internal Battery
5000mAh lithium-ion rechargeable and removable battery
RTK Rover (UHF/Cellular) for 10 hours
External Power
6-28V DC external power input (5-pin port) with over-charge protection
Power consumption………………… ........... .......... ............ ...............…………… 4.2W
Dimensions(W×H) .............................……………….………………… 164mm×83.5mm
Weight ..................................................…………… ………… ≤1.4kg (includes battery)
Data storage ...............................................…………… … …… …. 8G internal storage
Environment
Water/Dustproof ....................................................................................................IP67
Shock and vibration: Designed to survive a 2m natural fall onto concrete
Humidity............................................................................. .........100% condensing
Operation temperature .......................................................... ..............-45℃~+75℃
Storage temperature .............................................................................-55℃~+85℃

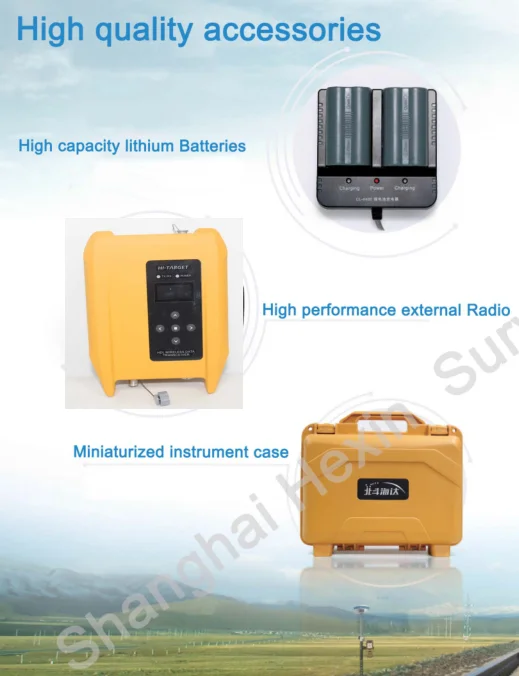

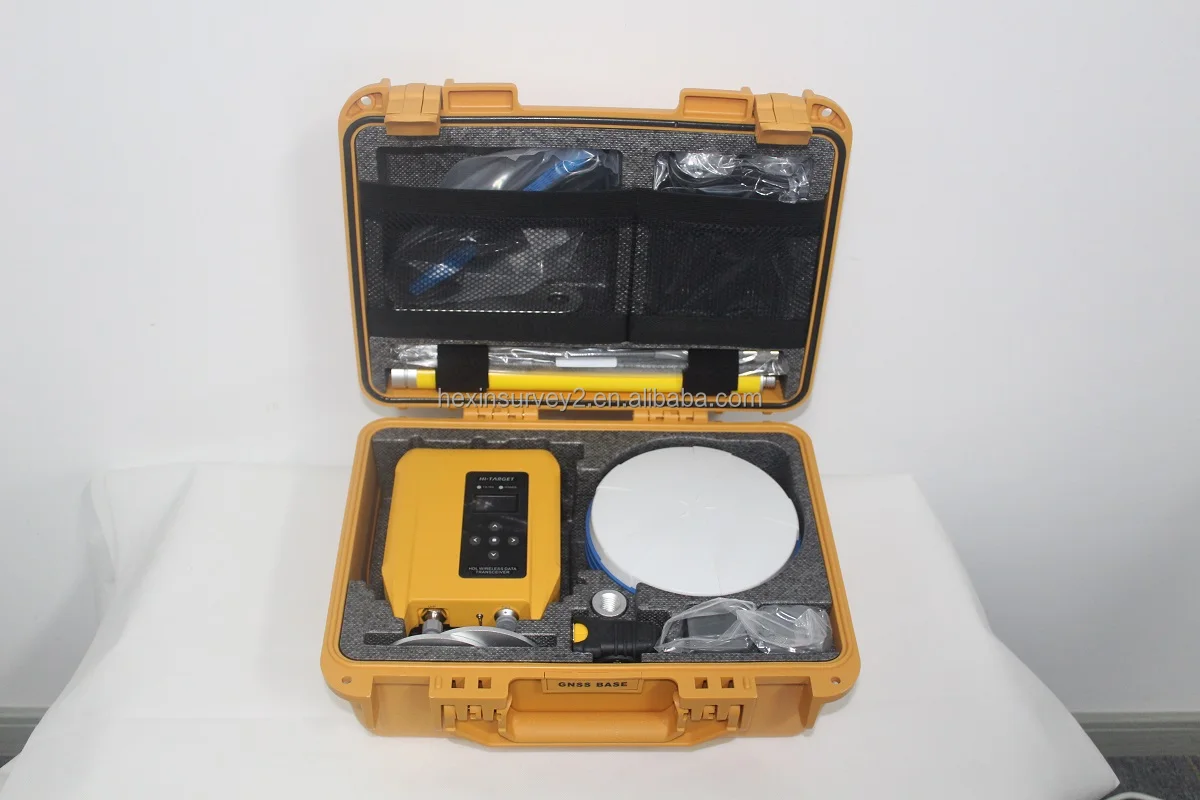

External UHF Radio
Frequency...........................................................................................450-470MHz
Channels ................................................................ ................. .......... ............... 8
Transmitting power....................................................................5W/25W adjustable
Supports multiple protocols: TRIMTALK450S, TRIMMARK III, TRANSEOT
Data Formats
Static data format.........................................................................................GNS, Rinex
Network model............................... .... ....... ....... ..... ..VRS, supports NTRIP protocol
CMR&RTCM................................ .................CMR, RTCM 2.x, RTCM 3.0, RTCM 3.2
Navigation outputs ASCII............... ..... ......... ........ ........ ...........................NMEA-0183
