Product Overview
China Supplier Industrial Spray Dryer Instant Coffee Powder Making Machine
Spray drying process is the widest used in the liquid forming process and in drying industry. The drying technology is most
suitable for powder, particle products from materials, such as,solution, emulsion, SC and pumpable paste states material. For this reason, when the particle size and distribution of the final product, their residual water contents, the stacking density and particle shape must meet the precision standard, spray drying process is one of the most desired processes.
FEATURES AT A GLANCE
HIGH EFFICIENCY
STAINLESS STEEL
EASY OPERATION
EASY MAINTENANCE
SIMPLE CONTROL
VERSATILITY
LARGE RANGE CAPACITY
HIGH SPEED
Right elevation
Front elevation
Left elevation
Working Principle
After filtering and heating, the air enters into air distributor on top of the Drying Equipment. The hot air enters into the drying tower spiral form and uniformly. By .passing through high-speed centrifugal atomizer on top of tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting with heating air, the material can be dried into final products. The final products will be discharged continuously from the bottom of drying tower and from cyclone separator.
The waste gas will be discharged from exhaust fan.
Product Parameters
Model | WTPG-5 | WTPG-25 | WTPG-50 | WTPG-100 | WTPG-150 | ||||
Inlet temperature | 140-350 ℃ automatic control | ||||||||
Outlet temperature | ~80-90℃ | ||||||||
Max water evaporation capacity | 5 kg/h | 25kg/h | 50kg/h | 100kg/h | 150kg/h | ||||
Centrifugal spraying nozzle transmission mode | Compressed air transmission | Mechanical transmission | |||||||
Rotation speed | 25000 r.p.m | 18000 r.p.m | 18000 r.p.m | 18000 r.p.m | 15000 r.p.m | ||||
Spraying desc diameter | 50 mm | 100 mm | 120 mm | 140 mm | 150 mm | ||||
Heat supply | Electric | Electric+steam | Electric+steam, fuel oil and gas | ||||||
Max electric heating power | 9 Kw | 36 Kw | 63 Kw | 81 Kw | 99 Kw | ||||
Overall dimensions (L*W*H) m | 1.8*0.93*2.2 | 3*2.7*4.26 | 3.7*3.2*5.1 | 4.6*4.2*6 | 5.5*4.5*7 | ||||
Dried powder collecting | ≥95% | ||||||||
APPLICATION SCOPE
Food industry: fat milk powder, collagen, cocoa milk powder, emulsion, pig blood powder, egg white (yellow) and so on.
Food and plants: oats, chicken juice, coffee, instant tea, flavored meat, protein, soybean, peanut protein, hydrolysate, etc.
Sugar: corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, etc.
Plastic resin: AB, ABS emulsion, urea formaldehyde resin, phenolic resin, rubber (urea) formaldehyde resin, polyethylene, polyfluoroethylene and so on.
Chemical industry: sodium fluoride (potassium), basic dye pigment, dye intermediate, compound fertilizer, formaldehyde silicic acid, catalyst, sulfuric acid agent, amino acid, white carbon black, etc.
Ceramics: alumina, ceramic tile materials, magnesia, talcum powder, etc.

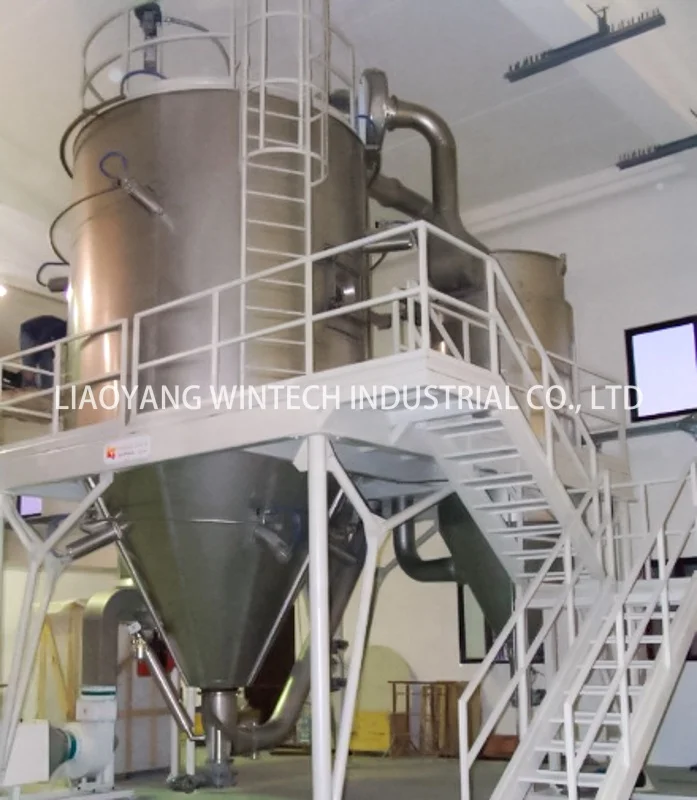

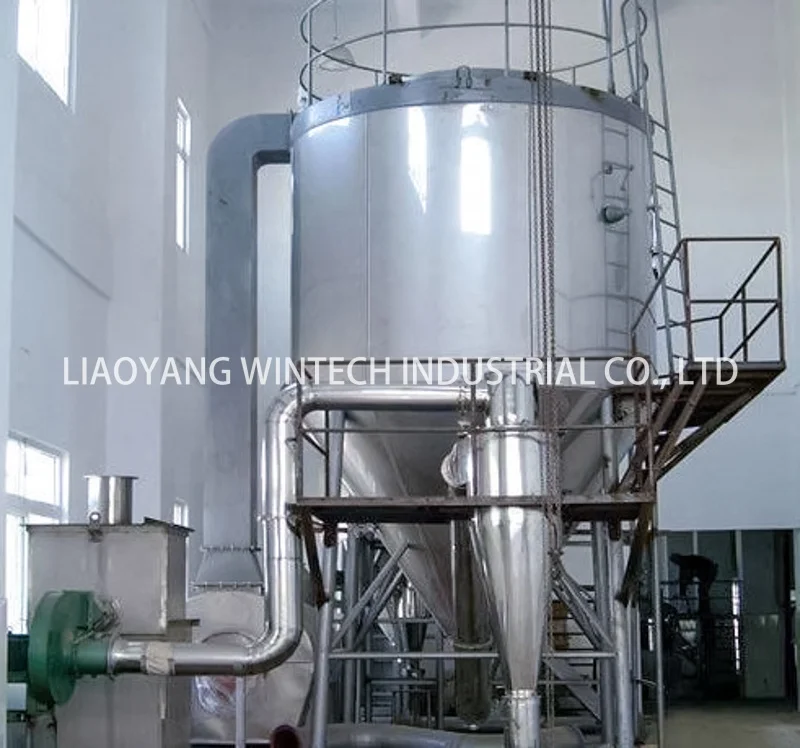

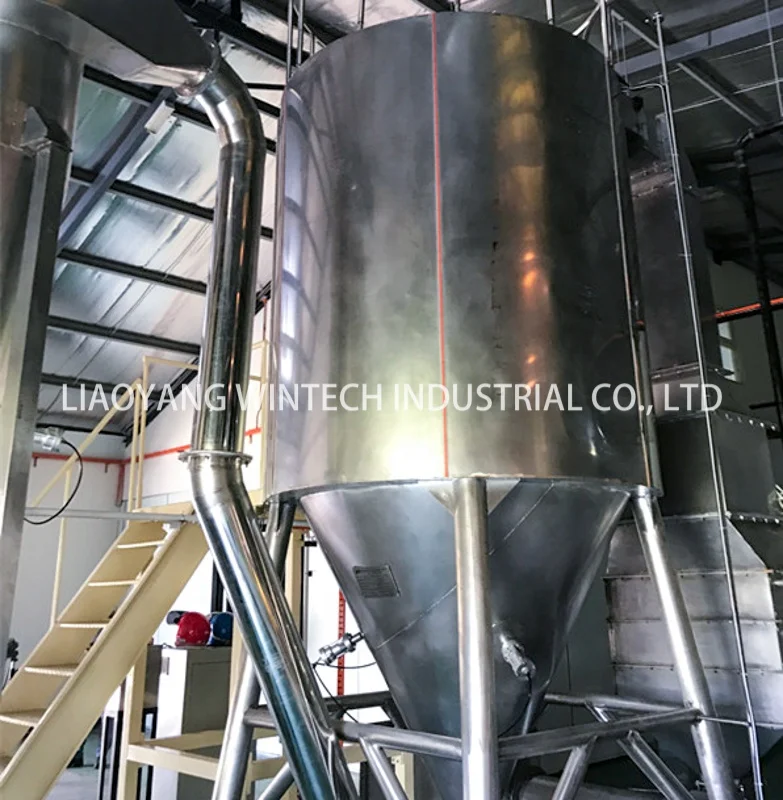

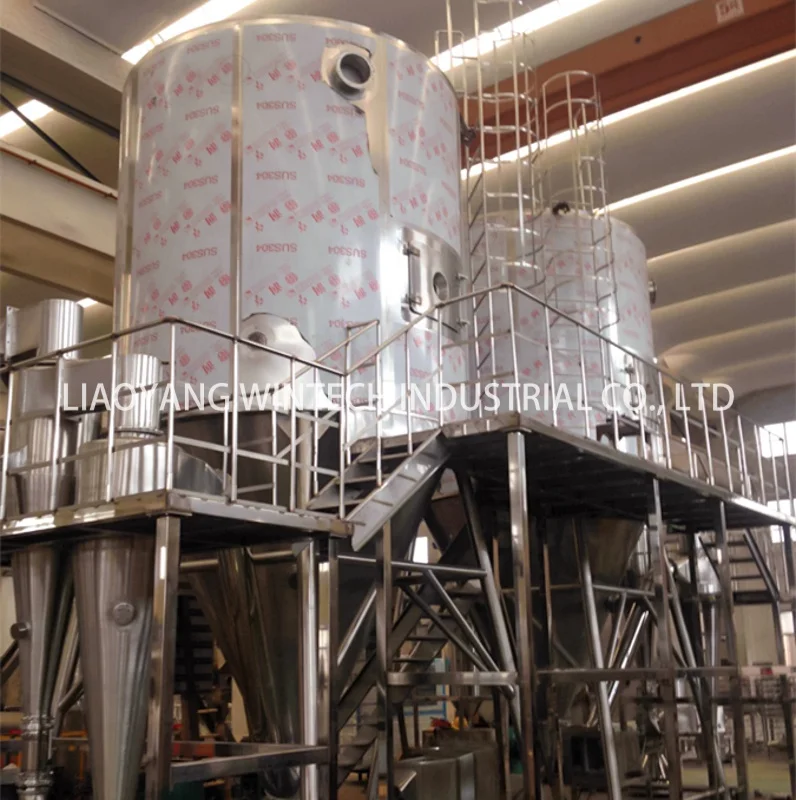

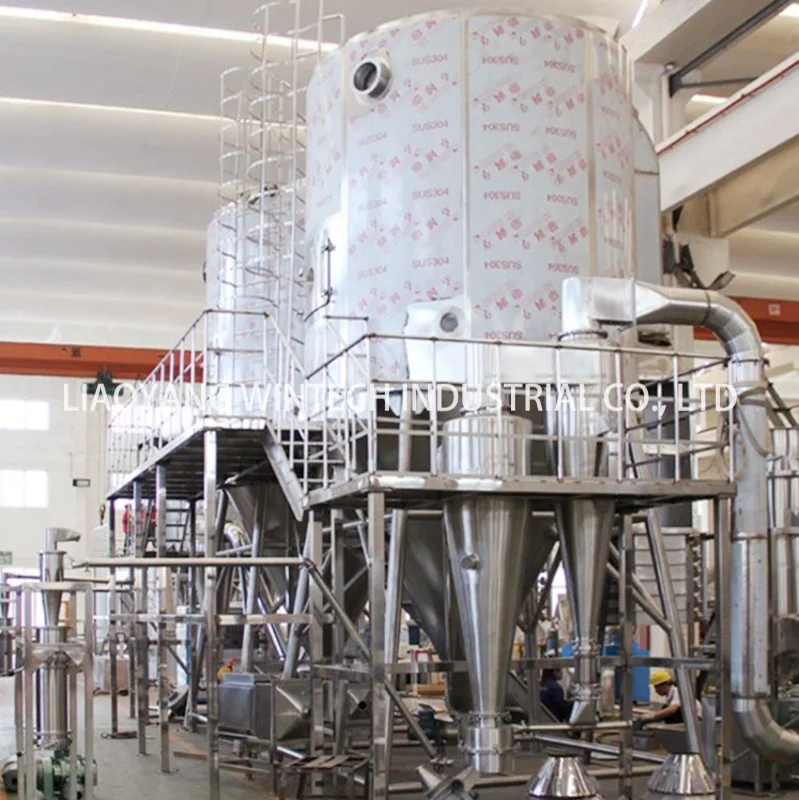

Product More Pictures
PACKING AND SHIPPING
Company Profile
LIAOYANG WINTECH INDUSTRIAL CO.,LTD, takes Centrifugal Filter Equipment and Drying Equipment processing and manufacturing as the main industry, main products are Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, Spray Dryer, Fluid Bed Dryer, Drying Oven, Drum Dryer and corresponding supporting equipment, eg. food line, pharmaceutical line, chemical line. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.
Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery.
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and
accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired,
lifetime maintenance service is provided and at buyer’s cost.
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and
accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired,
lifetime maintenance service is provided and at buyer’s cost.
SIMILAR PRODUCTS
FAQ
1. What data is required to confirm the model?
(1) Materials to be dried (2) Treatment capacity per hour (3) Moisture requirements before and after drying (4）Heating
source（electricity/ gas/ thermal oil, etc)
2. What certificates do you have?
We can provide CE, ISO 9001, etc.
3. What is the warranty period of the equipment?
Normally 1 year warranty.
4. Can we visit your factory?
Sure, we sincerely invite you to visit, if it's not convenient for you, you can visit our factory and solve problems through
video conference.
5. Can we bring our own materials to your factory for experiments?
Sure, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.
6. Can it be customized?
No problem, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
