HUALONG оборудование для работы с камнем HKNC 650J пила резки камня и гидроабразивной комбинация 5 Axis cnc струи воды
- Категория: Building Material Shop Machines >>>
- Поставщик: Fujian Province Hualong Machinery Co. Ltd.
Сохранить в закладки 1600207288333:
Описание и отзывы
Характеристики

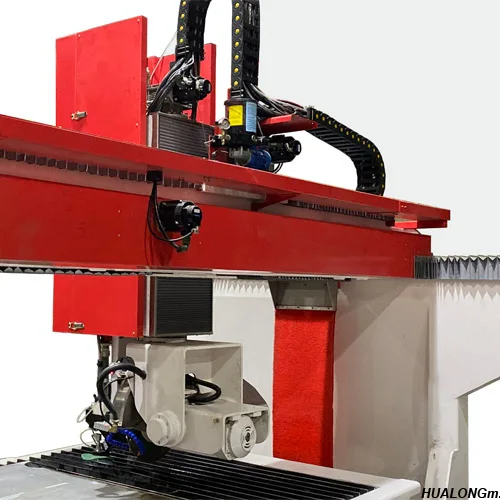

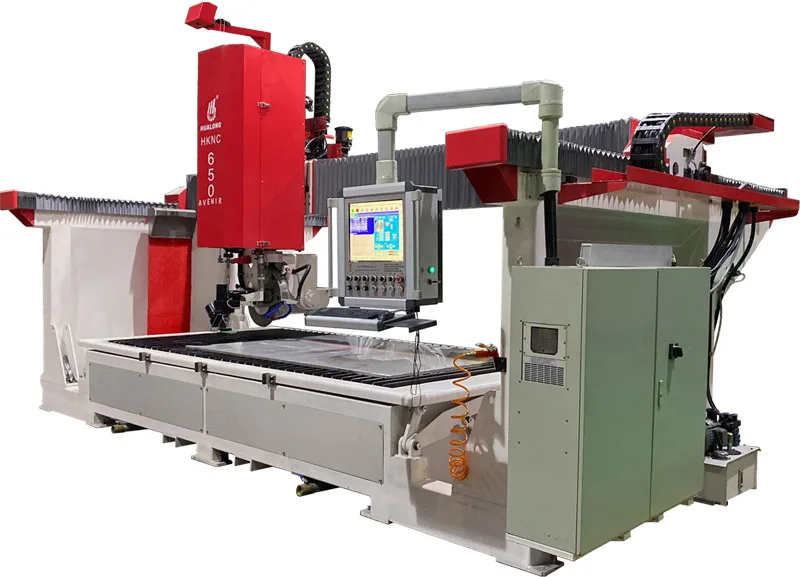

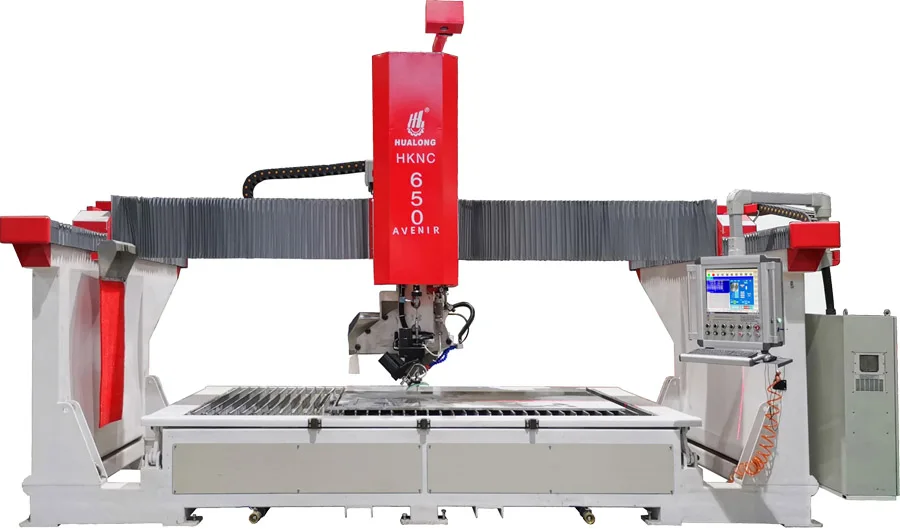

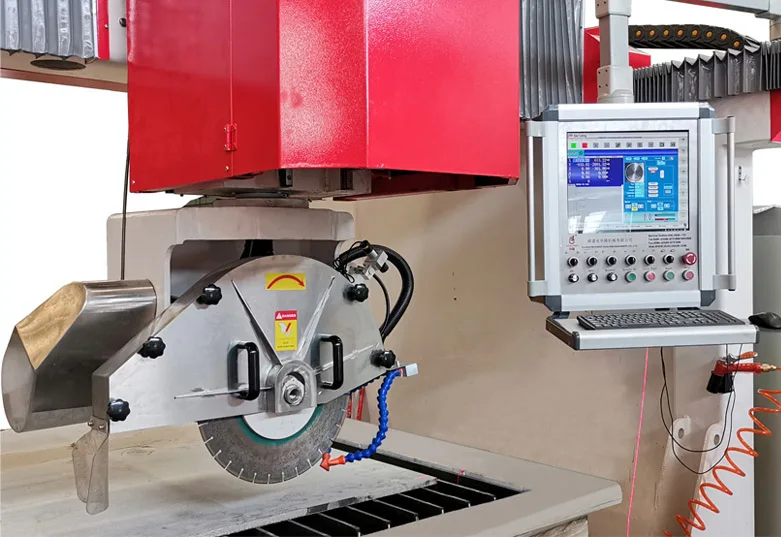

5 Axis Stone CNC Sawjet HKNC-650J
with top of the line Italian CNC control system ESA, is a fully automated dual-use machine, a combination of a 5-axis CNC saw and a 5-axis CNC waterjet, which is gone together constructing the revised concept system for cutting granite, marble, quarts,
limestone and the rising new ceramic material.CNC saw is used for cutting stone slabs, countertops and sinks, blade profiling, engraving and more.

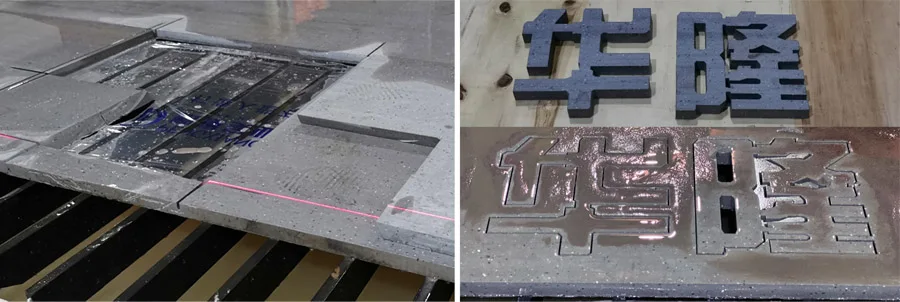

The waterjet cutting head is perfect for mitering and cutting through different materials into precision intricate shapes and
angles, ideal for cutting porcelain, stone, marble and granite inlay patterns.
limestone and the rising new ceramic material.CNC saw is used for cutting stone slabs, countertops and sinks, blade profiling, engraving and more.
The waterjet cutting head is perfect for mitering and cutting through different materials into precision intricate shapes and
angles, ideal for cutting porcelain, stone, marble and granite inlay patterns.
Main Features:

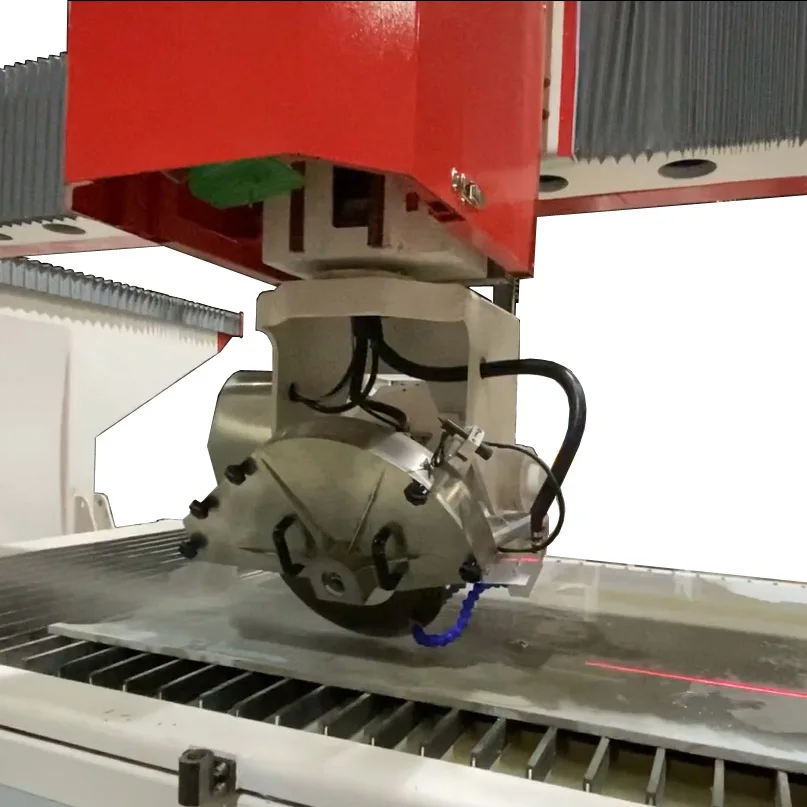

5-axis Saw --- this machine is a fully interpolated 5 axis bridge saw
* Automatic head rotation from 0° to 360° combined with automatic blade tilting from 0° to 90° makes it suitable for large
production runs, at the same time containing costs.

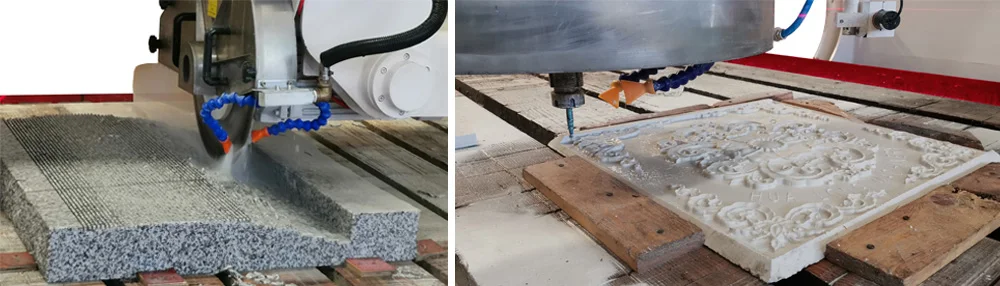

* It can implement different complex curved surface processing and combines the functions of cutting, drilling, milling, engraving
into an oganic whole.

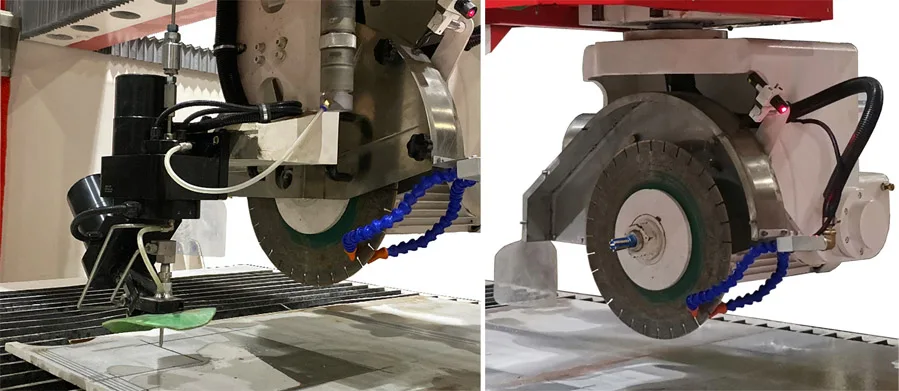

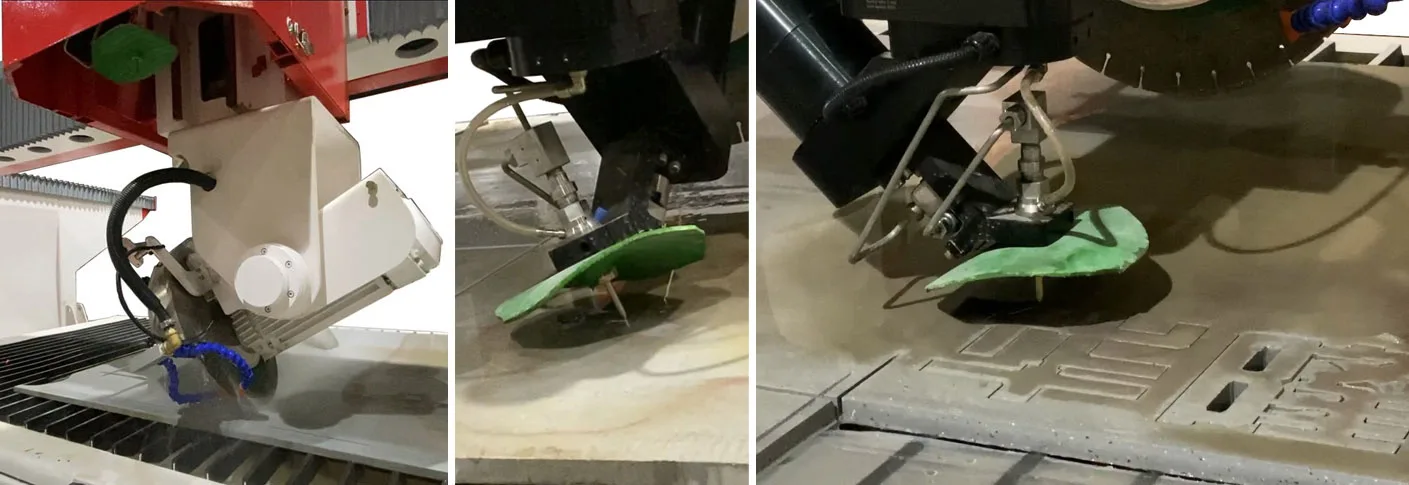

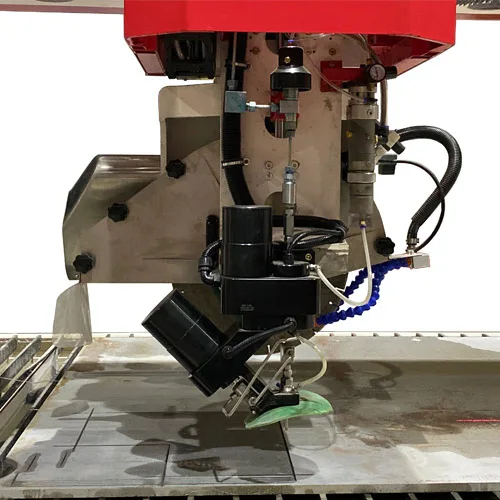

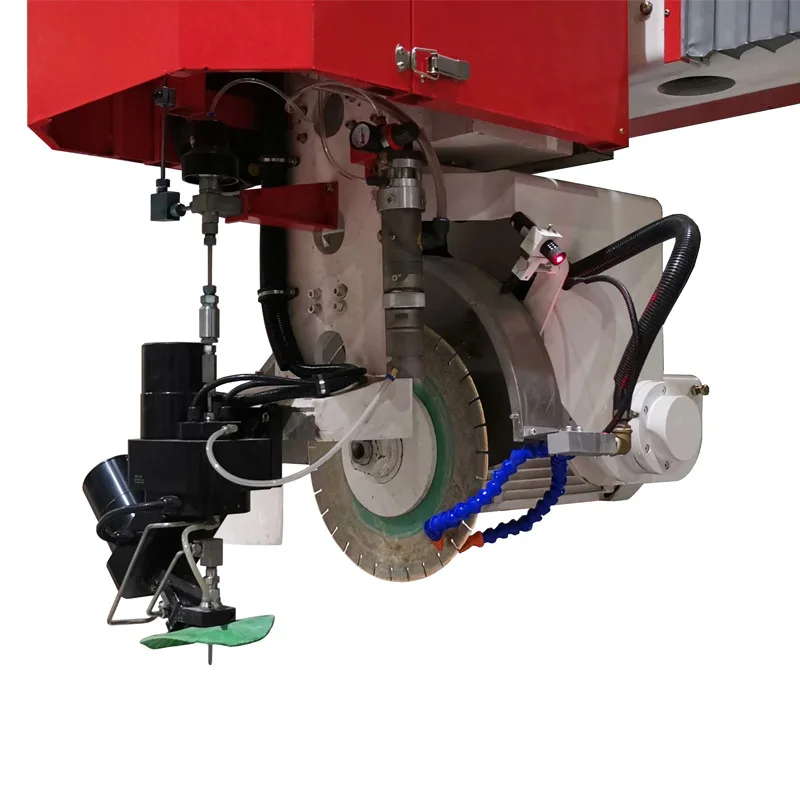

5-axis Waterjet ---this machine is a fully interpolated 5 axis waterjet either
* Automatic head rotation from 0° to 360° combined with automatic Abrasive Cutting Head tilting from 0° to 60° for precise
inside-corner fabrication for mitered edge.
* KMT-H20 JET50 super-pressure pump equipped with Siemens PLC and motor.
* Automatic head rotation from 0° to 360° combined with automatic blade tilting from 0° to 90° makes it suitable for large
production runs, at the same time containing costs.
* It can implement different complex curved surface processing and combines the functions of cutting, drilling, milling, engraving
into an oganic whole.
5-axis Waterjet ---this machine is a fully interpolated 5 axis waterjet either
* Automatic head rotation from 0° to 360° combined with automatic Abrasive Cutting Head tilting from 0° to 60° for precise
inside-corner fabrication for mitered edge.
* KMT-H20 JET50 super-pressure pump equipped with Siemens PLC and motor.
Other Features:
1) 5 axis linkage control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Y axis is moved by a gantry system, which guarantees a perfect square of the bridge
4) The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by servo motors through high precision helical gears and racks.5) CNC Sawjet & bridge saw can quickly do easy cuts in manual, the machine also can import and work with DXF (AutoCAD) files
6) Working platform can tilt 85 degrees, easy for slabs loading.
7) Photo slab for nesting and avoiding defects.
8) Nesting manual / automatic to optimize slab surface usage
9) RTCP tool point tracking function ensure precision machining easy.

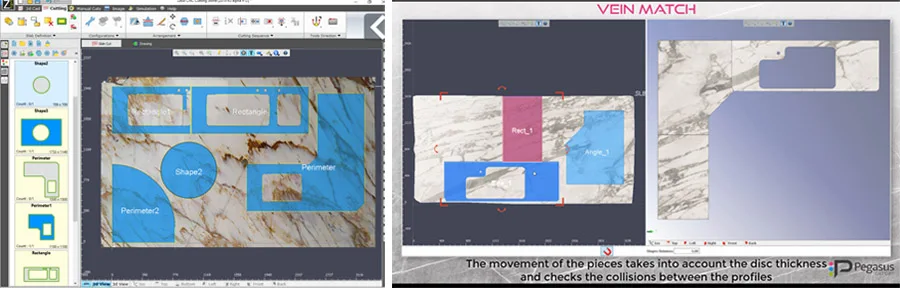

10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
2) Easy to use interface with 19" color touch-screen.
3) Y axis is moved by a gantry system, which guarantees a perfect square of the bridge
4) The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by servo motors through high precision helical gears and racks.5) CNC Sawjet & bridge saw can quickly do easy cuts in manual, the machine also can import and work with DXF (AutoCAD) files
6) Working platform can tilt 85 degrees, easy for slabs loading.
7) Photo slab for nesting and avoiding defects.
8) Nesting manual / automatic to optimize slab surface usage
9) RTCP tool point tracking function ensure precision machining easy.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
Technical Data for HKNC-650J | ||||
Diameter of blade | mm | 350 - 650 | ||
Dimension of working platform | mm | 4100x2200 | ||
X axis stroke | mm | 3500 | ||
Y axis stroke | mm | 2000 | ||
Z axis stroke | mm | 500 | ||
Max. cutting thickness | mm | 190 | ||
Power of saw blade motor | kw | 15 | ||
Power for abrasive waterjet | kw | 37 | ||
Max. operating water pressure | psi | 60,000 | ||
Water pressure required | psi | 35 | ||
Water consumption | l/min | 11.4-16.7 | ||
Dimension (L x W x H） | mm | 6200x3900x3400 | ||
Gross Weight | kg | 10000 | ||
Benifits：
* Low investment, Double capability, small room occupied.
* Enjoy both advantages of cnc bridge saw and cnc waterjet.
Mamaximizes cutting time by using a CNC saw for straight cuts, then switches to a precision waterjet for tight angles. This powerful sawing station saws 3 times faster than conventional bridge saws, reducing your costs and increasing your capacity.
* Enjoy both advantages of cnc bridge saw and cnc waterjet.
Mamaximizes cutting time by using a CNC saw for straight cuts, then switches to a precision waterjet for tight angles. This powerful sawing station saws 3 times faster than conventional bridge saws, reducing your costs and increasing your capacity.

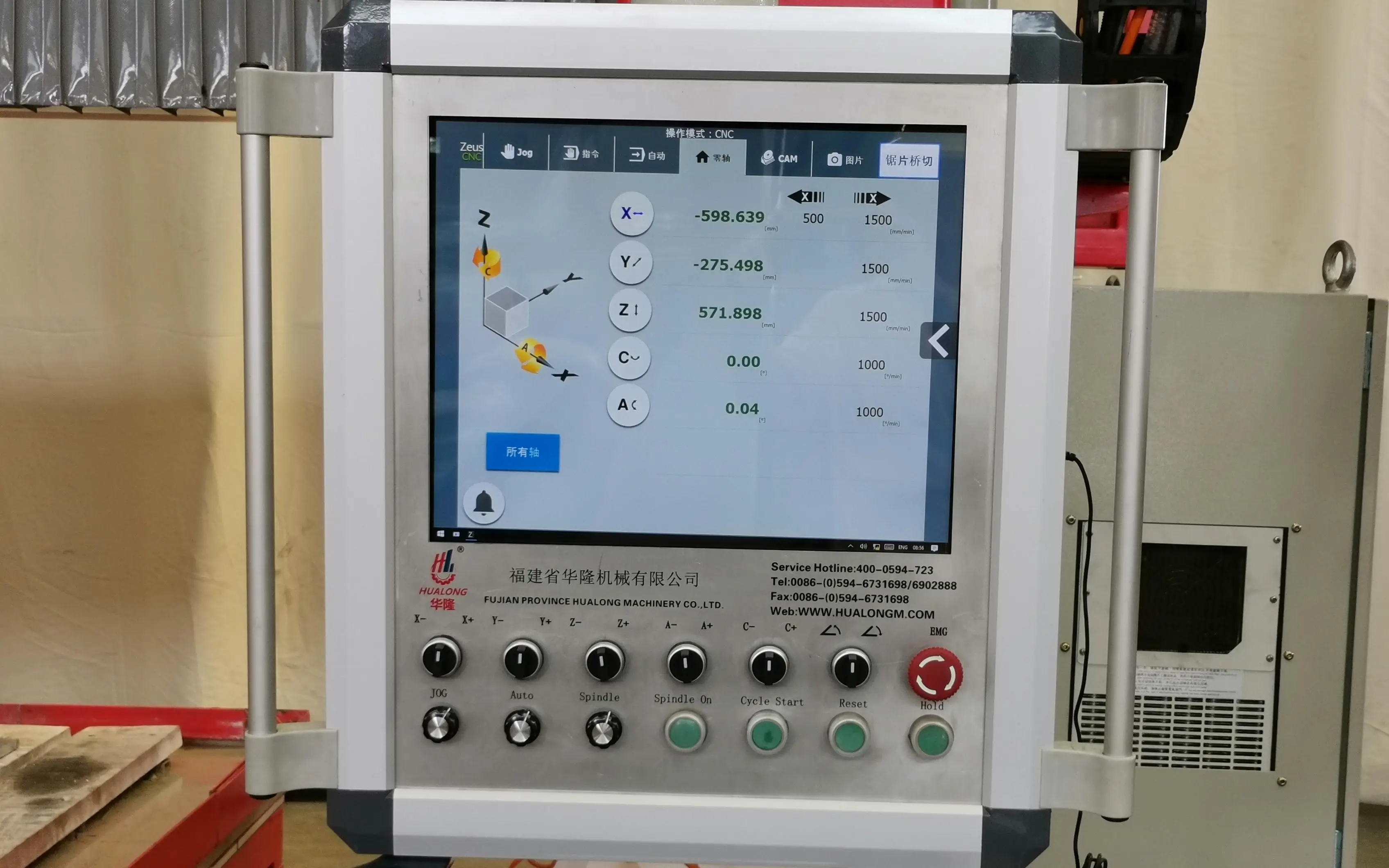

Control system -- CNC
Brand: Esa
Original: Italy
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.
easy, perfect and high efficient.

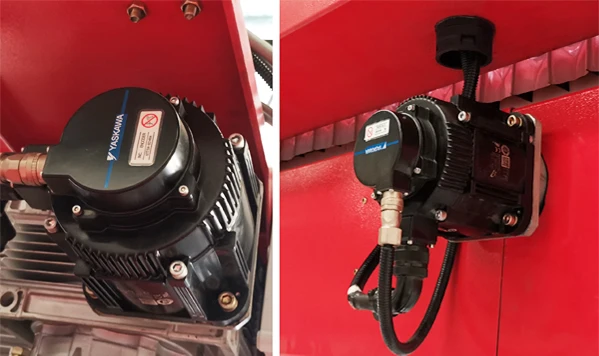

Digital Servomotor
Brand: YASKAWA
Original: Japan
Original: Japan
A permanent magnet servomotor with intergrated drives, well matching with Esa’s CNCs, creates a reliable controlling power for X, Y, Z, C and A axises

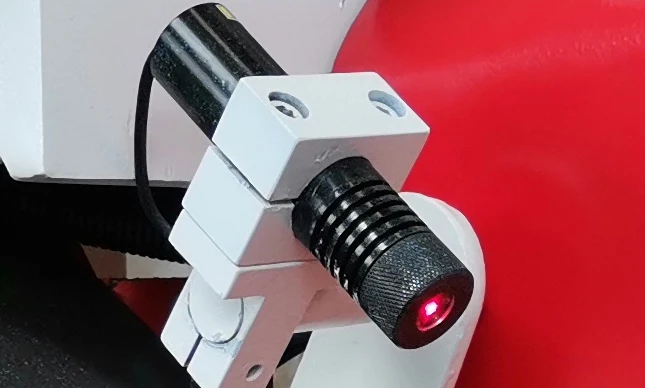

Laser Reticule Apparatus
Origin: China
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.

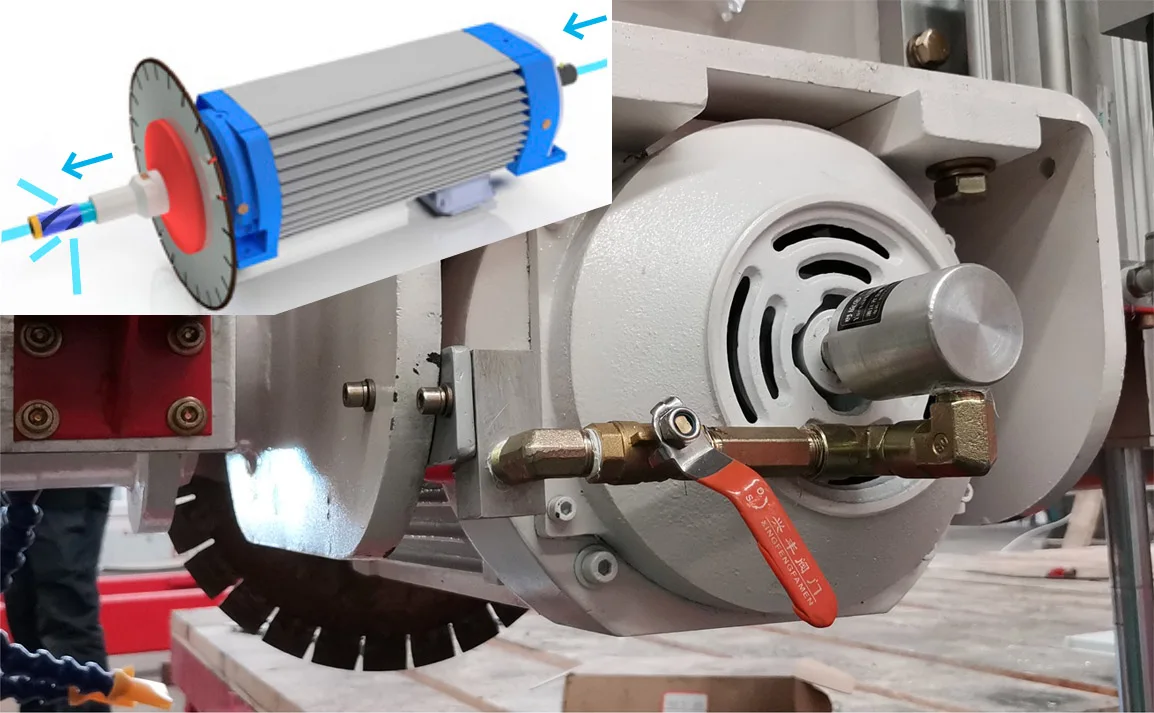

Electro-spindles
of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage

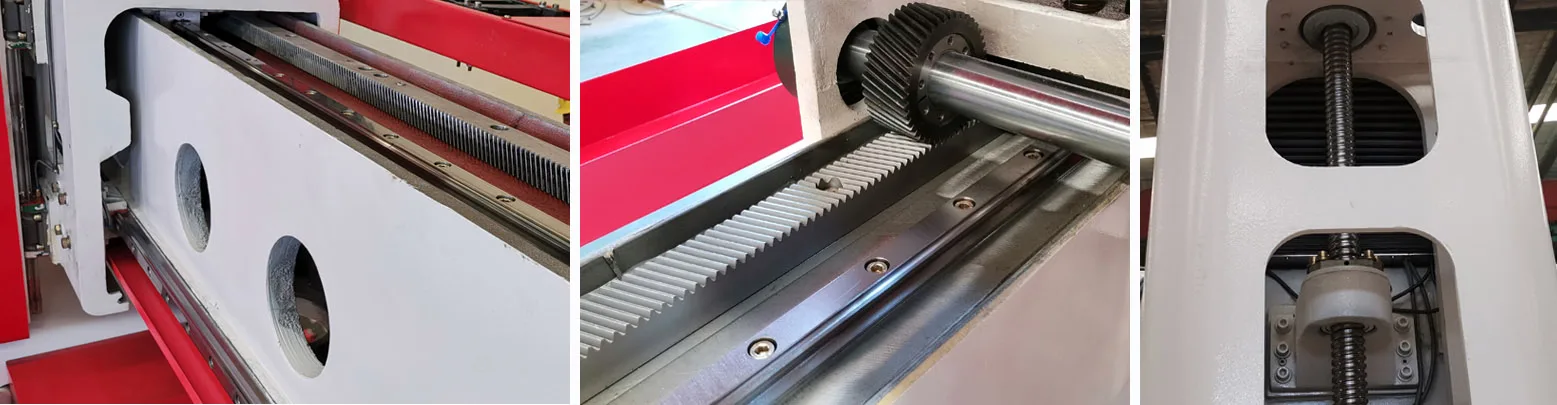

Linear Guide
Brand: Hiwin Original: Taiwan, China
Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.

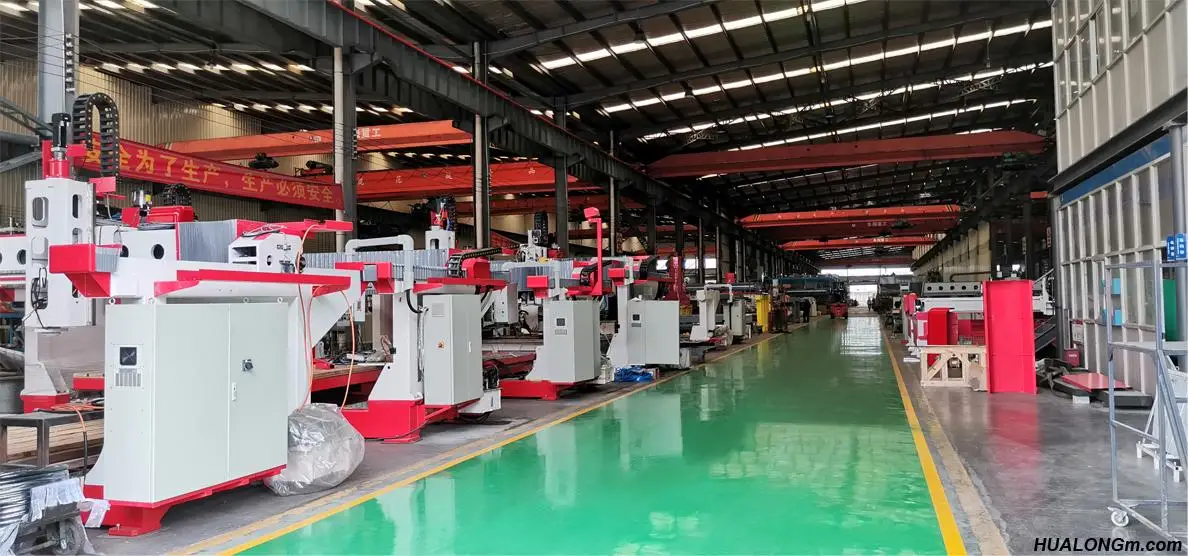

Quality Fabrication Equipment
* Made with 25 years+ expertise and patents.
* Many machines available to order
* Experienced techs for all your questions
* Customization available
* Many machines available to order
* Experienced techs for all your questions
* Customization available
Pre-sale Service
* Inquiry and consulting support.
* Technical cooperation.
* View our Factory.
* Technical cooperation.
* View our Factory.
After-sale Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
