Q28Y 6 мм * 220 гидравлическая угловая вырубная машина для вырубки труб станок на продажу

Q28Y 6 мм * 220 гидравлическая угловая вырубная машина для вырубки труб станок на продажу

Категория: Вырубная машина >>>
Поставщик: Maanshan Bamboo CNC Machinery Technology Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Notching Machine Main Features

●Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.

●The thing that sets our corner notchers apart from other sheet metal equipment out there is our patented blade gap adjustment that allows the operator to cut different thickness without any adjustments needed by the operator.This allows our blades to last longer and gives us a nice burr free cut.
●Our machines shear with the blades in the negative position as well as the positive position. Which one you use is based on which part you want to keep, the finished part pulled from the machine (best is Negative) or the dropped piece (best is Positive). Negative cut allows for less deformation on the finished part. Negative cutting clamps the sheet metal down so there isn't any movement. Positive cutting will want to move the sheet away from the stops allowing for room for error.

Product Type:	adjustable angle hydraulic notching machine
Press Material:	Metal/ Stainless Steel /Carbon Steel /Aluminum
Gear pump	SJapan Oil Research
Shear blade	Material: H13K
Electric Parts	Schneider IDEC and Omron
Main Motor	Siemens (China)Co,.Ltd
Standard	Europe CE/South America NR12
After-sales Service	Engineers available to service machinery overseas

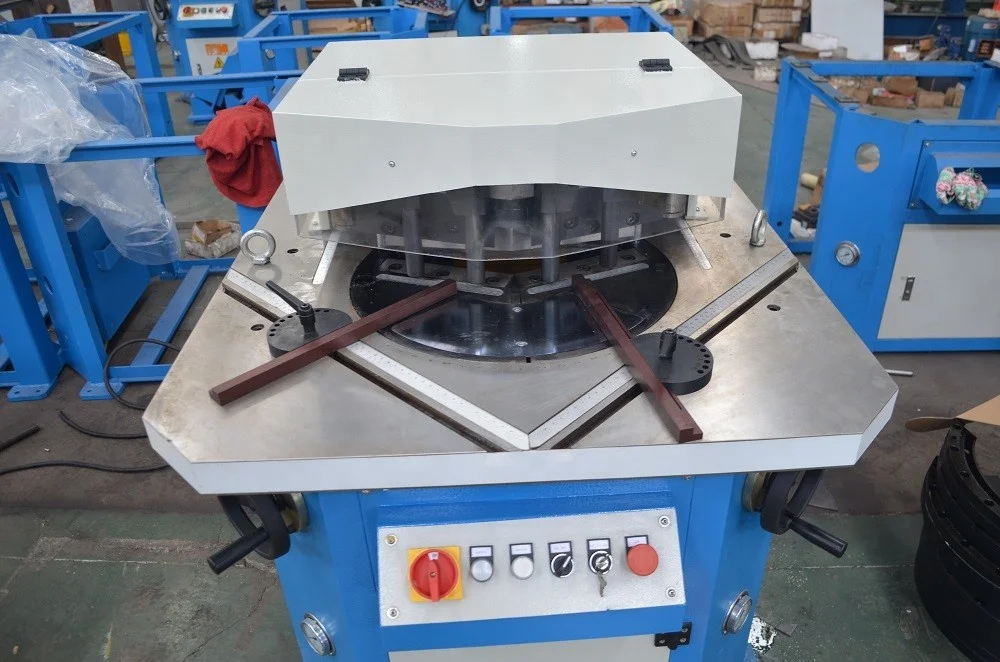

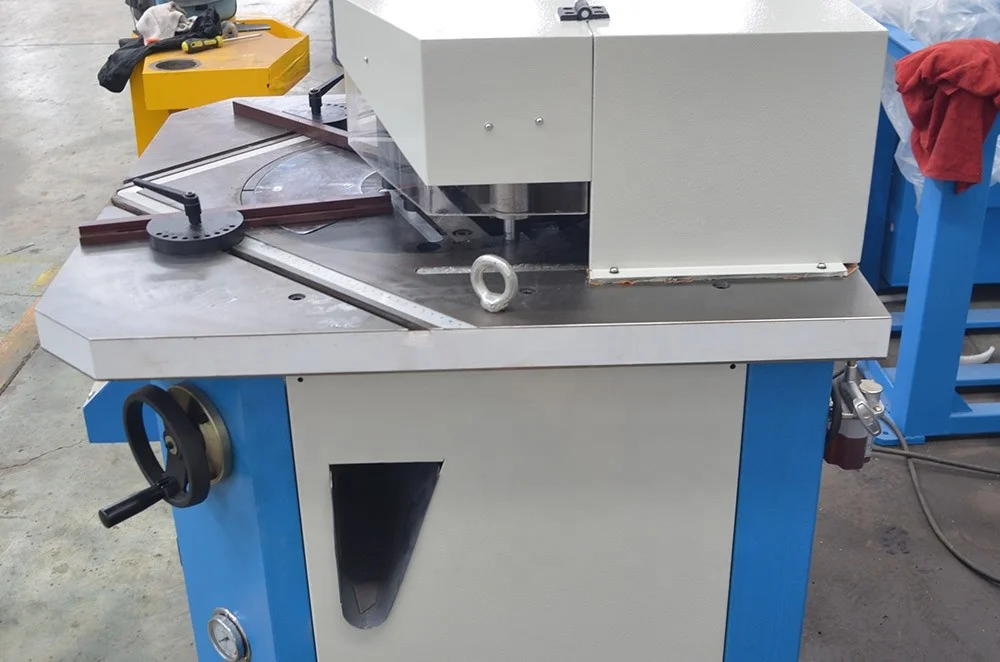

Notching Machine Details

●Regarding our variable angle notchers, the variable angle blades are fixedin three positions. The pivot point and the end points of each blade is fixed after adjustment to angle is made. This type of rigidity separates us from other sheet metal fabricating equipment on the market.

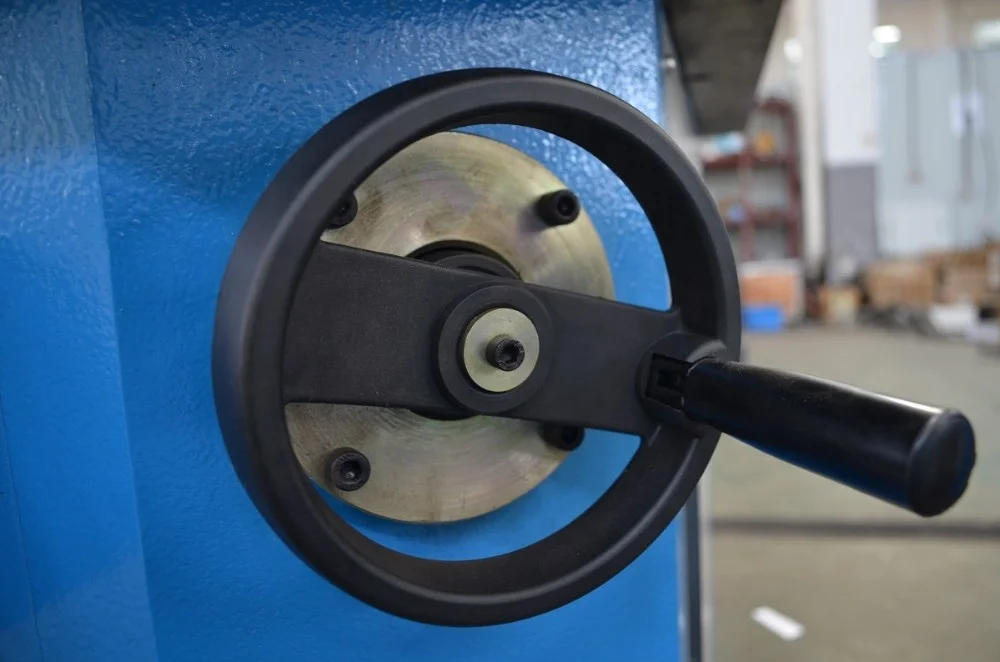

Parts Details

Technical Specifications

item			unit	QF28Y-4*200	QF28Y-4*200B	QF28Y-6*220	QF28Y-6*220B
min.notching thickness			mm	0.3	0.3	0.3	0.3
max.notching thickness	carbon steel	mm	4	4	6	6
max.notching thickness		stainless steel	mm	2	2	3.25	3.25
notching length			mm	200	200	220	220
stroke			mm	50	50	60	60
notching angle range			°	90°(fixed)	45°-135°（variable)	90°(fixed)	45°-135°（variable)
the speed of notching			Spm	45	45	40	40
system pressure			Mpa	20	20	20	20
blade gap adjustment				automatic	automatic	automatic	automatic
motor			Kw	3	4	5.5	7.5
power requirement			Voltage	220V(380)/3-Ph	220V(380)/3-Ph	220V(380)/3-Ph	220V(380)/3-Ph
dimension	F.B.	mm	1350	1450	1450	1550
		L.R	mm	1400	1550	1500	1600
		Height	mm	1450	1550	1550	1650
gross weight			Kg	1650	2150	2650	3850

Company Profile

BAMBOO CNC MACHINERY TECHNOLOGY CO., LTD

Bambeocnc is a mordern enterprise mainly focusing on the manufacturing, sales and service of adjustable plate shears, CNC shearin machines, CNC hydraulic Guillotine shear, CNC press brake, CNC Electro-hydraulic press brake, Full CNC V grooving machine, Hydraulic Angle Notching machine and so on.

Our company has a group of knowledgeable and professional, young team workers who are committed to machinery cutting, bending area development. With three dimensional CAD, CAPP, PDM and other designing software, we can meet the special order requirments from our customers and provide an optimum plan for every customer.

Our company advocates "Technology stays ahead, quality comes first, keep honest, pragmatic and innovative" business philosophy. We had implemented ISO9001:2008 international quality system standards fully and manufacture our machine in strict accordance with users' requirements, national standards and industry standards. We can guarantee the product quality and delivery by ensuring each process and checking every detail in the production period.

BAMBOO With 10 years of experience in a 2000 m2 modern production facility by a qualified team of 220 people adopting efficiency and quality as primary principles besides leading Sheet Metal Processing Machines sector via its powerful R&D structure.

Our Advantages

Packing & Delivery

1. Bamboo fixed Notching Machine in container by steel wire and all of the machine is by plastic film;
2.Small Notching Machine we use wooden package to protect it

3.\tNormally we use 20 GP to loading
4.\tDelivery time 35-45days
