4PON GPON OLT EPON GEPON Совместимость других брендов XPON ONUs 4 порт ftth
- Категория: >>>
- Поставщик: HiOSO Technology Co. Ltd.
Сохранить в закладки 1600227416283:
Описание и отзывы
Характеристики
Product Description
Product Name | 4PON GPON OLT |
Material | METAL CASE,PCB,power cable |
Function | network communicaton |
Package | 57*47*13cm |
Overview

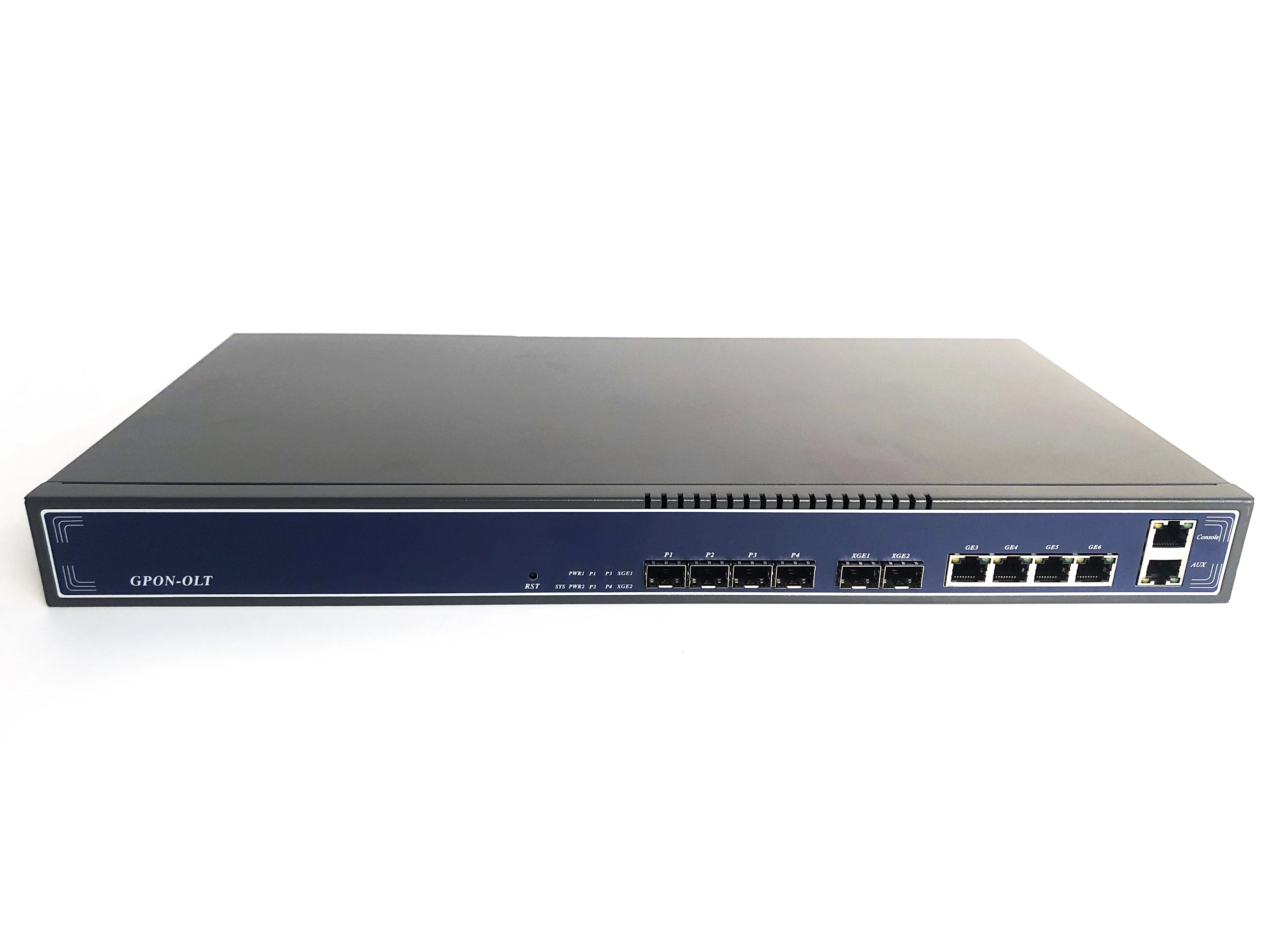

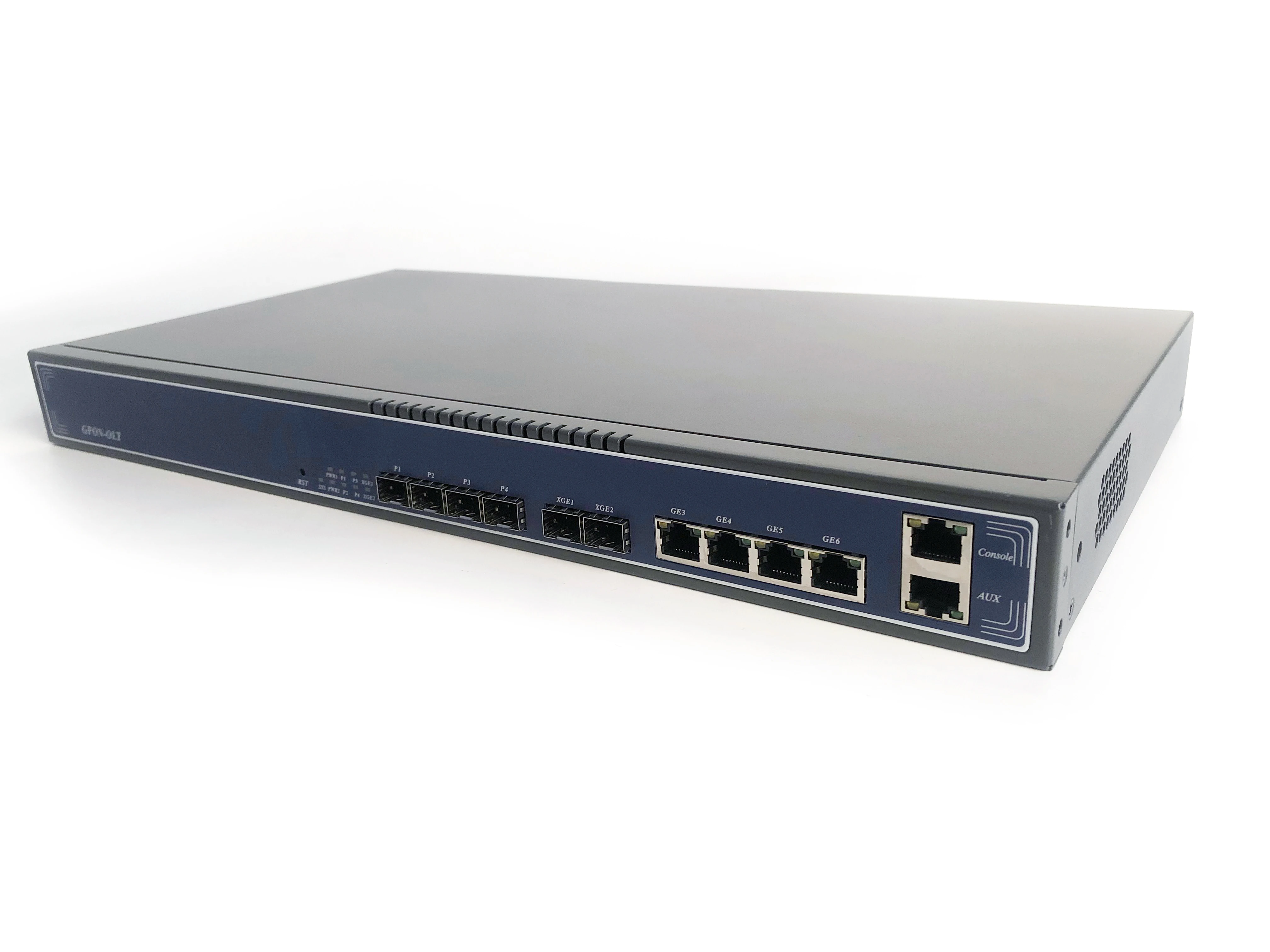

4pon gpon olt
4 sfp pon ports
2 1G/10G SFP/SFP+ uplink ports
2 1000M RJ45 uplink ports
1 console port, 1 AUX port
AC220V
Support WEB SNMP CLI management
Support other brands GPON XPON ONUs
Details Images
HA7304GF GPON OLT provides 4 GPON ports, 4*GE+2*GE(SFP)/10GE(SFP+) uplink ports. It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband multi-service access OLT equipment for service integrated network.
HA7304GF OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.
1U height 19 inch rack mount product with 4 PON ports, each port supports up to 128 ONUs, the whole device supports up to 512 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It can be deployed in compact room environment, and can also be used for “Triple-Play” VPN, IP Camera, Enterprise LAN and ICT applications..
HA7304GF OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.
1U height 19 inch rack mount product with 4 PON ports, each port supports up to 128 ONUs, the whole device supports up to 512 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It can be deployed in compact room environment, and can also be used for “Triple-Play” VPN, IP Camera, Enterprise LAN and ICT applications..
* 1U 19 inch standard chassis GPON OLT with 4PON ports
* Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements
* Friendly EMS/Web/Telnet/CLI management
* Support other brands GPON and XPON ONUs
* Support 4096 VLANs, port VLAN and protocol VLAN;
* Support storm control based on port;
* Support port isolation,port rate limitation;
* Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements
* Friendly EMS/Web/Telnet/CLI management
* Support other brands GPON and XPON ONUs
* Support 4096 VLANs, port VLAN and protocol VLAN;
* Support storm control based on port;
* Support port isolation,port rate limitation;
* Support static LACP;QoS based on port, VID, TOS and MAC address;
* Access control list;
* Access control list;
* Support IGMP snooping, 256 IP Multicast Groups,DHCP snooping
* Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
* Support power-off alarm function, easy for link problem detection;
* Support broadcasting storm resistance function;
* Support port isolation between different ports;
* Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
* Support power-off alarm function, easy for link problem detection;
* Support broadcasting storm resistance function;
* Support port isolation between different ports;
* Support ACL and SNMP to configure data packet filter flexibly;
* Support RSTP,IGMP Proxy;
* Support Dynamic Bandwidth Allocation (DBA)
* Support ONU auto-discovery/link detection/remote upgrade of software
* Support ONT automatically discovery, auto configuration
* Support RSTP,IGMP Proxy;
* Support Dynamic Bandwidth Allocation (DBA)
* Support ONU auto-discovery/link detection/remote upgrade of software
* Support ONT automatically discovery, auto configuration

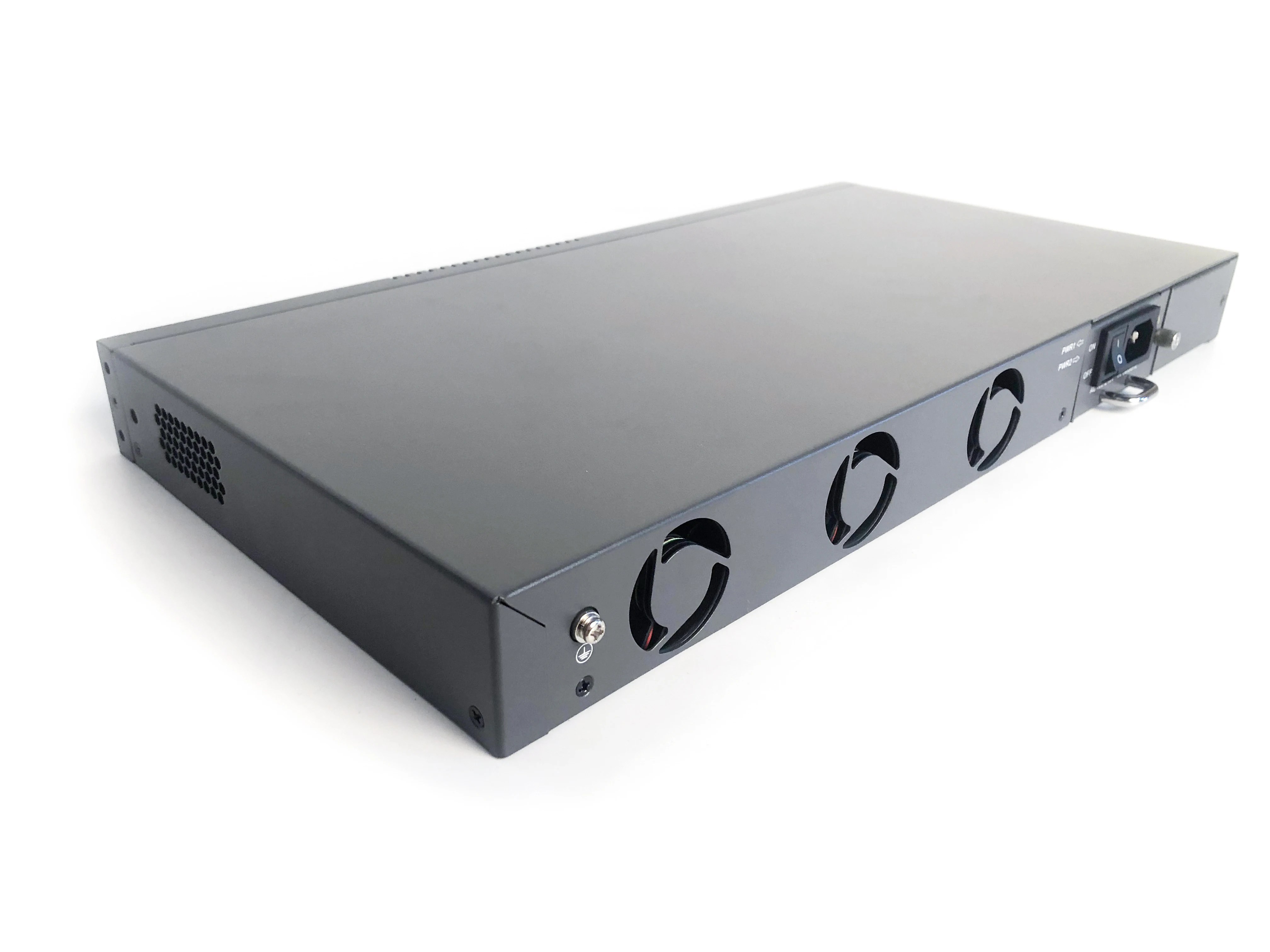

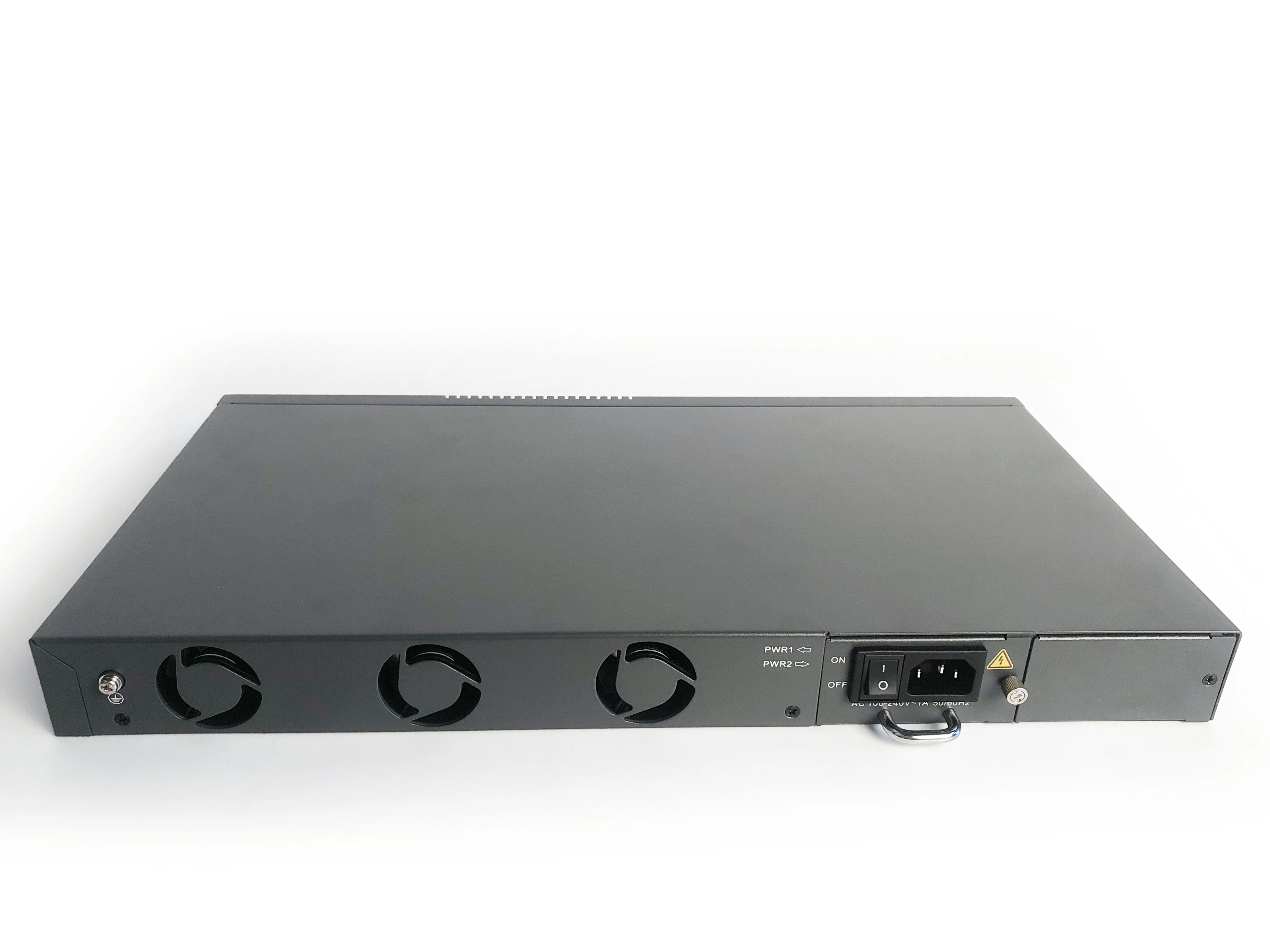

*Three Fan inside, better for heat dissapation
*AC220V power, 1 or 2 optional
Product Usage
Application
FOR FTTX USE.
Transmit IP signals from central office , through one core fiber cable, then splitter the signals to user side.
Each PON port support maximum 256 ONTs.
Transmission in 20km.
User end ONUs support different brands.
Related Products
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Company Introduction
FAQ
Похожие товары

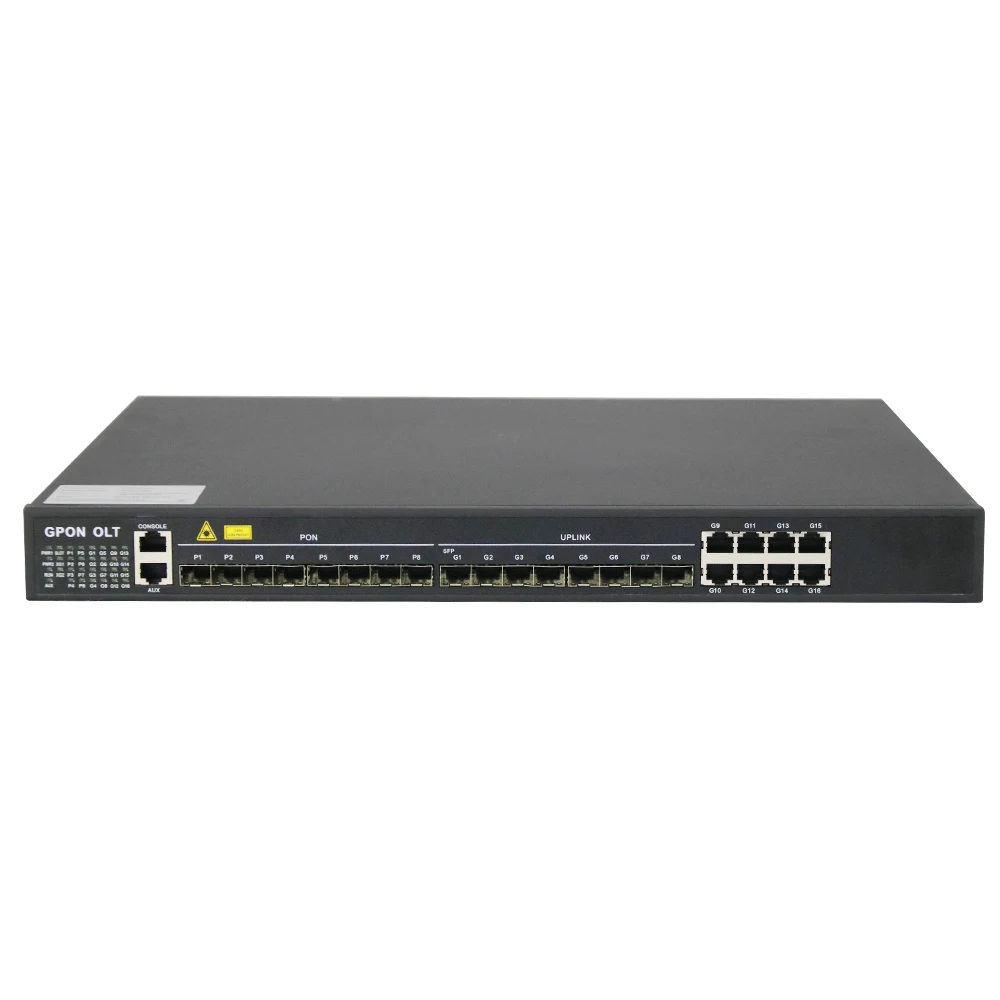

Адаптирован к ZTE FTTH mini fiberhome 8 pon port gpon OLT

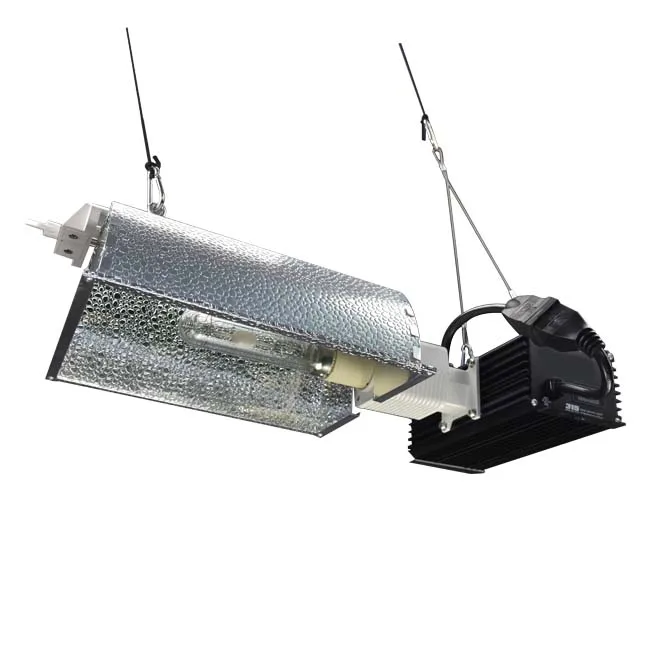

Завод 315 Вт полный спектр патент CMH светать светильник с PGZ18 разъем
130,00 $ - 150,00 $

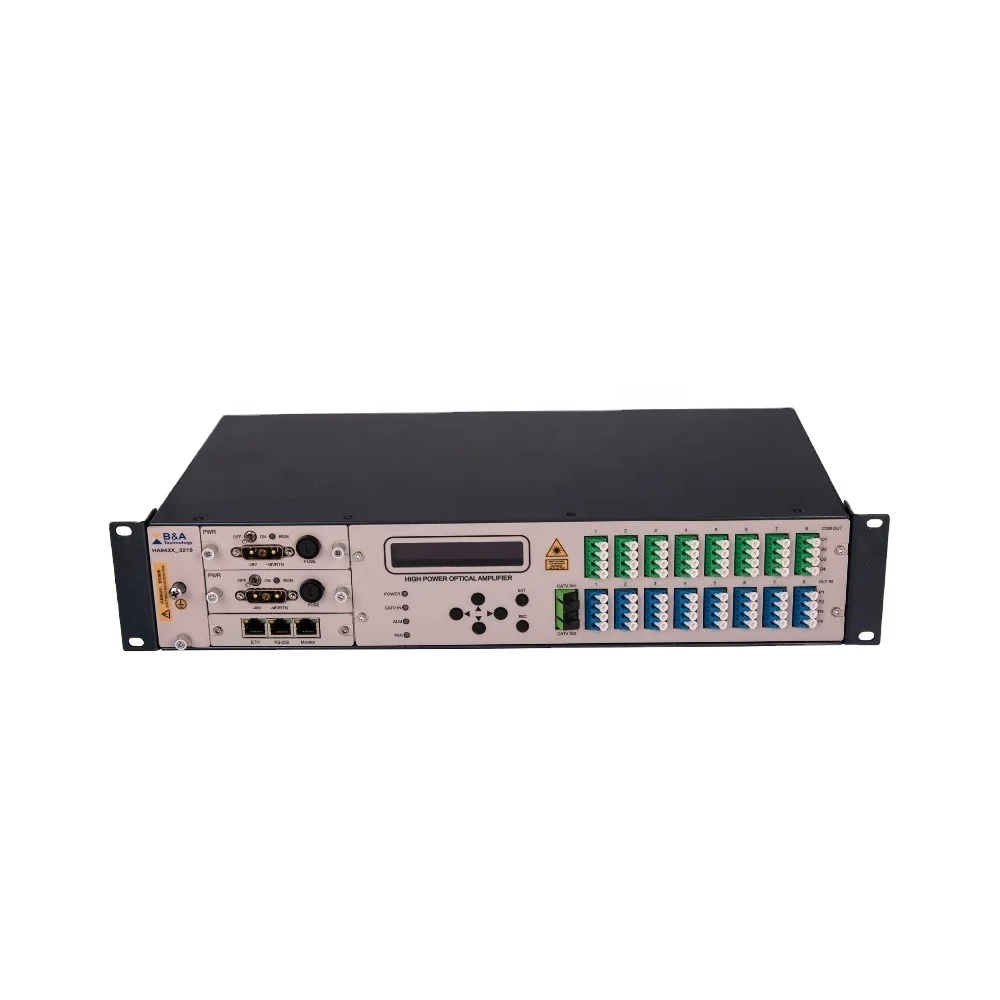

GPON многопортовое «EDFA комбайнер

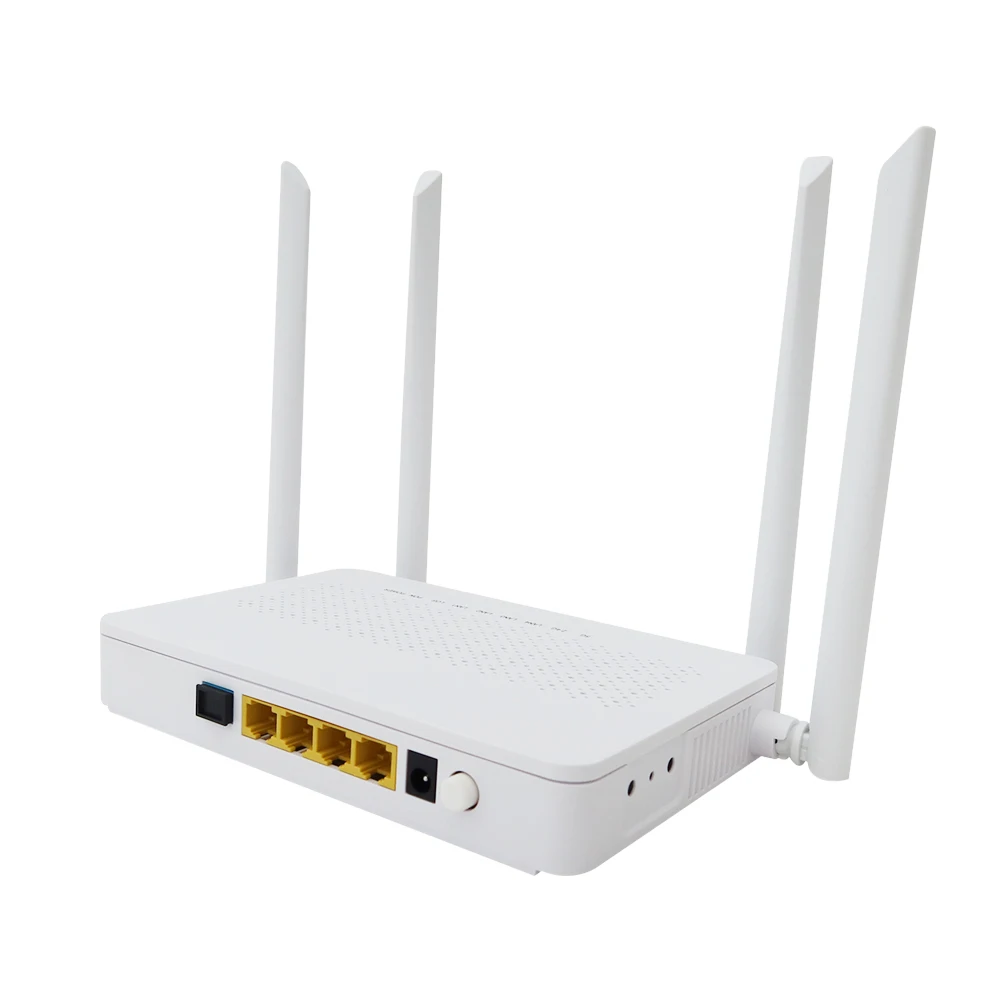

Лидер продаж, доступ с двумя режимами epon или gpon ont ftth 4 lan-порт 5g onu
Оригинальный Hw Гигабитный оптический Cat Hn8145v Gpon/epon двухчастотный 2,4g и 5g шлюз маршрутизация все-в-одном

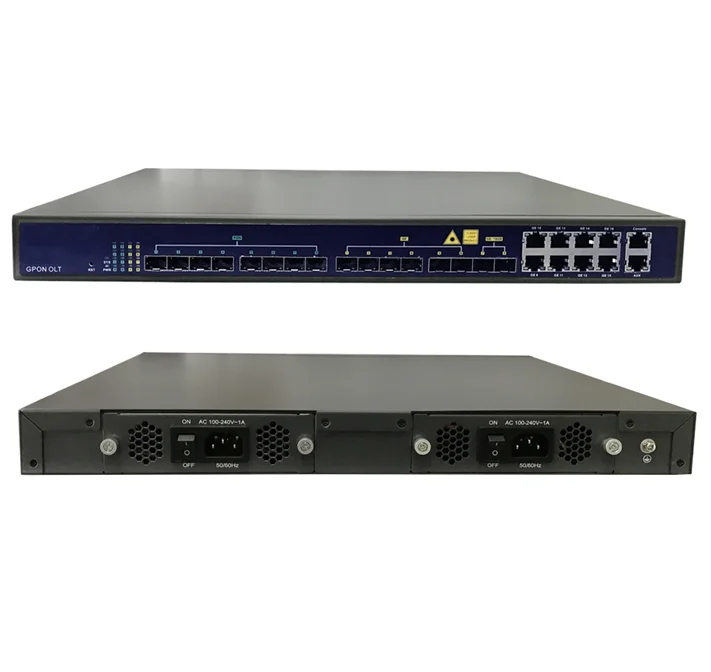

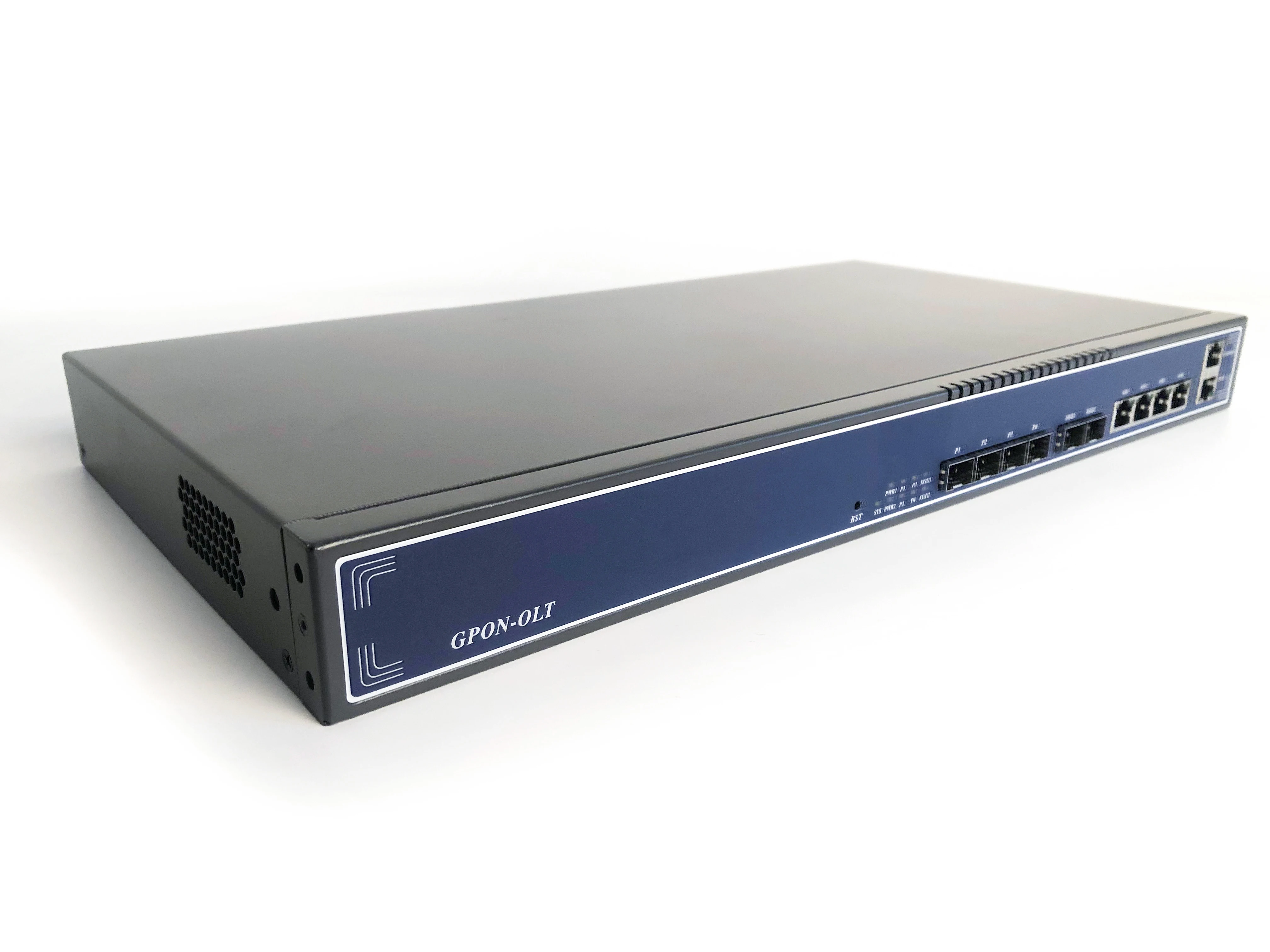

GPON OLT с 10G и GE uplink, поддерживает до 1024 ONU до 1:128 коэффициент сплиттера
