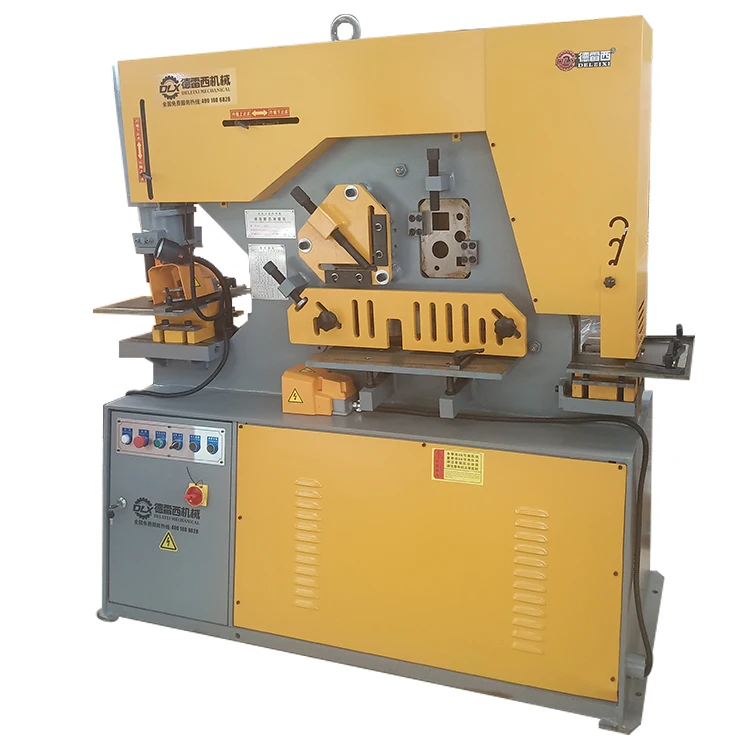

Q35Y 20 сверлильные станки с ЧПУ и пробивая машина гидравлическими трубками угловой режущий гибочный пресс
- Категория: >>>
- Поставщик: Changge Deleixi Machinery Equipment Co. Ltd.
Сохранить в закладки 1600240145388:
Описание и отзывы
Характеристики

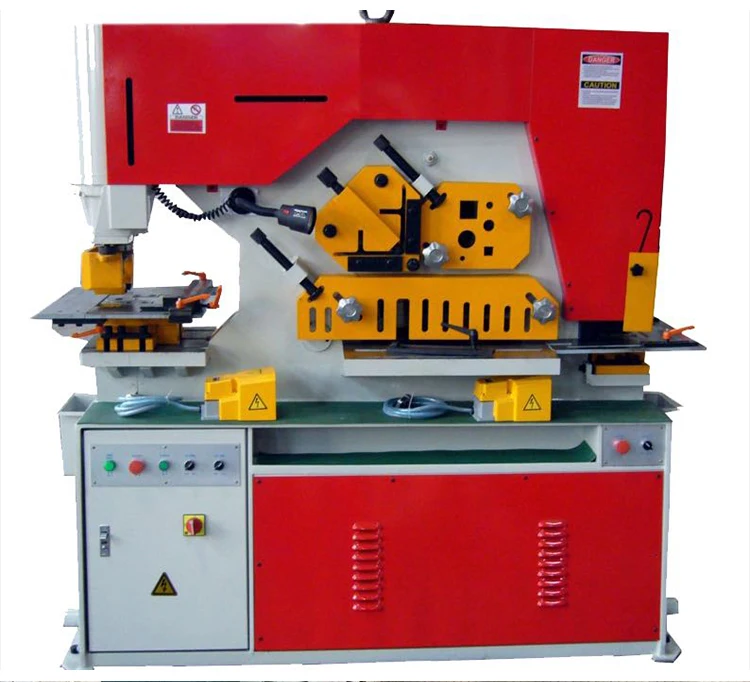

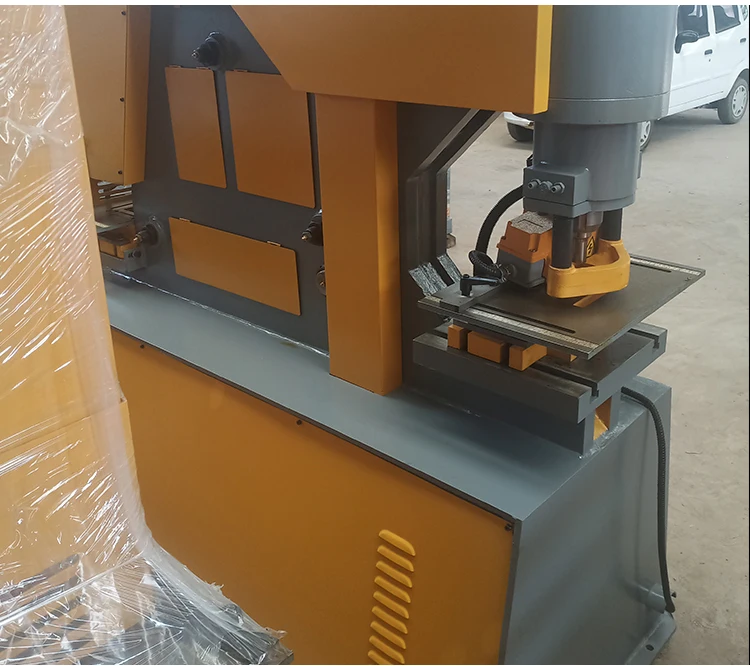

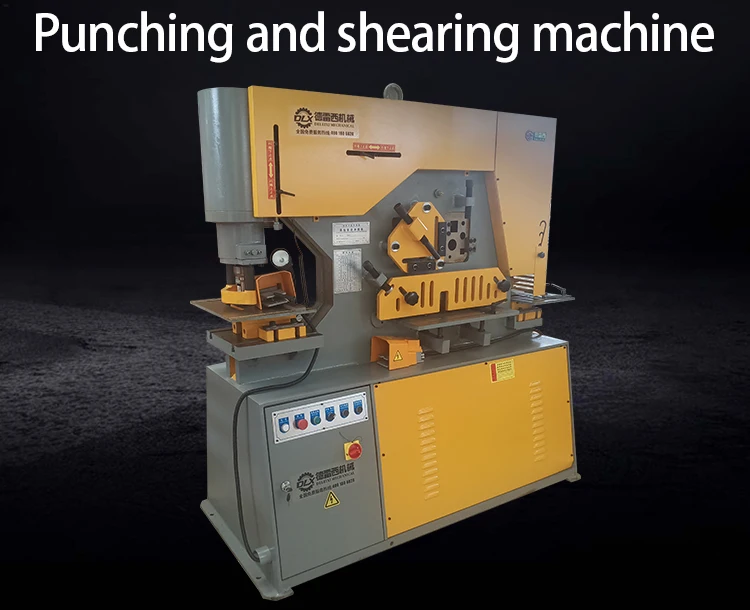

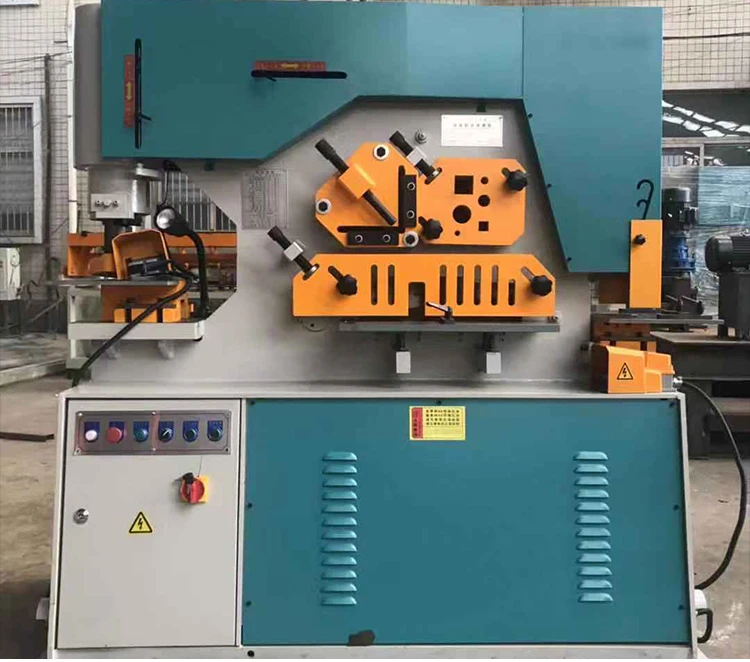

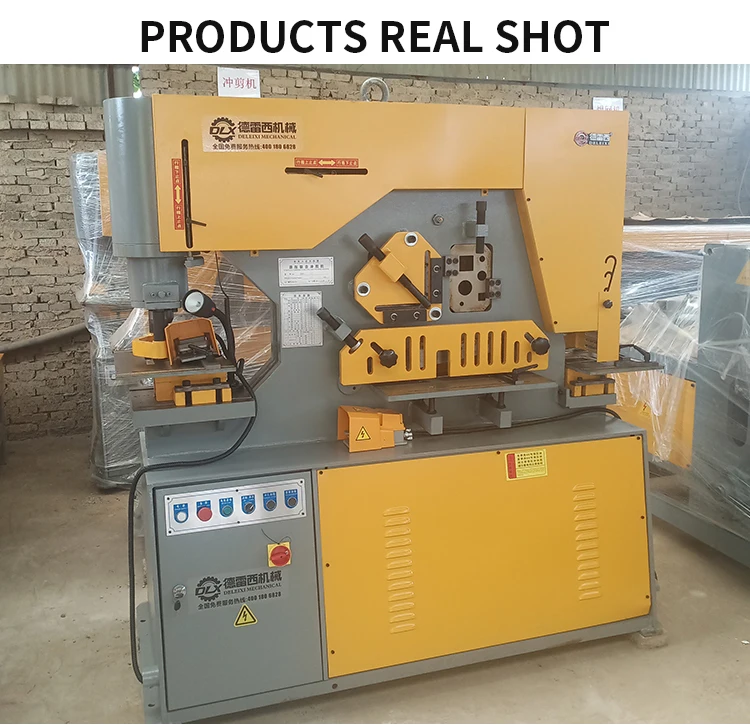

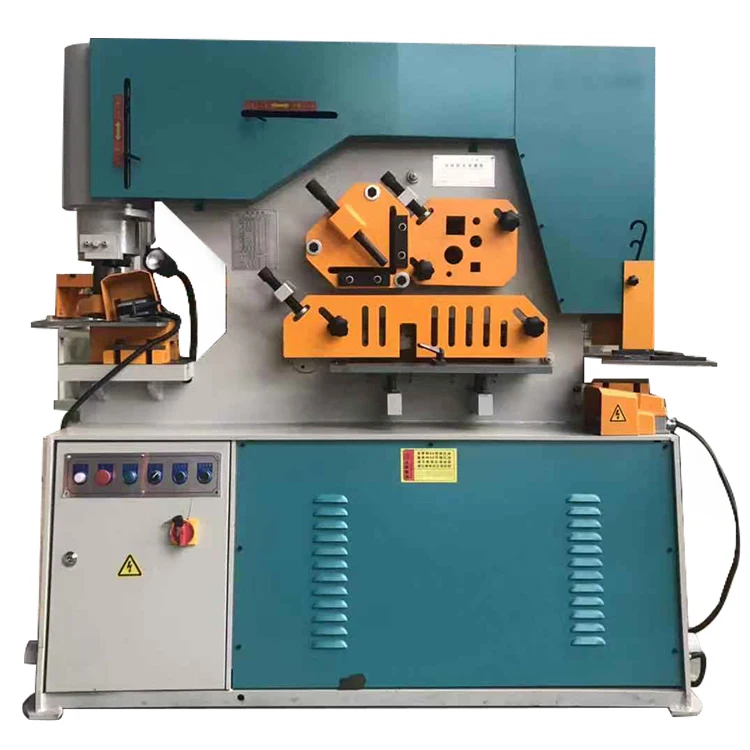

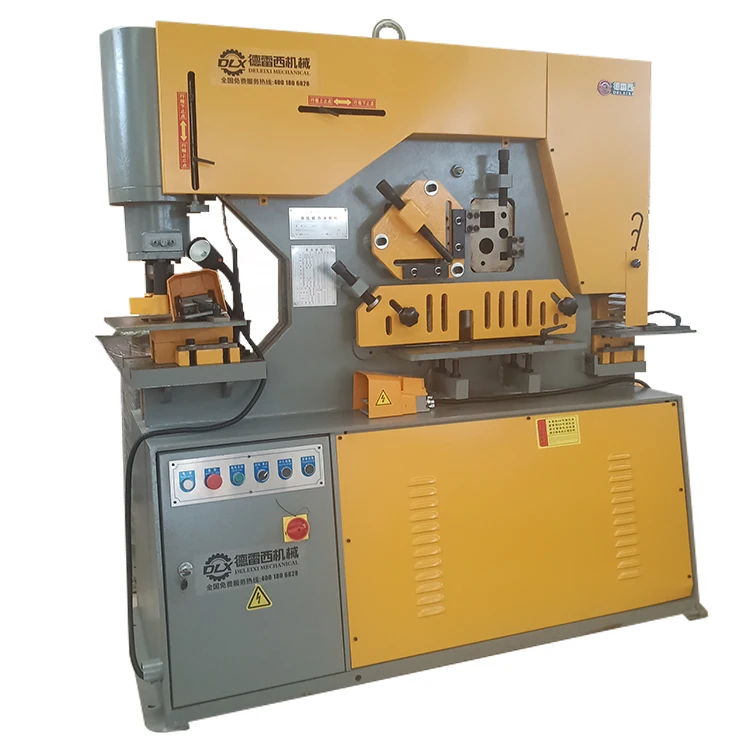

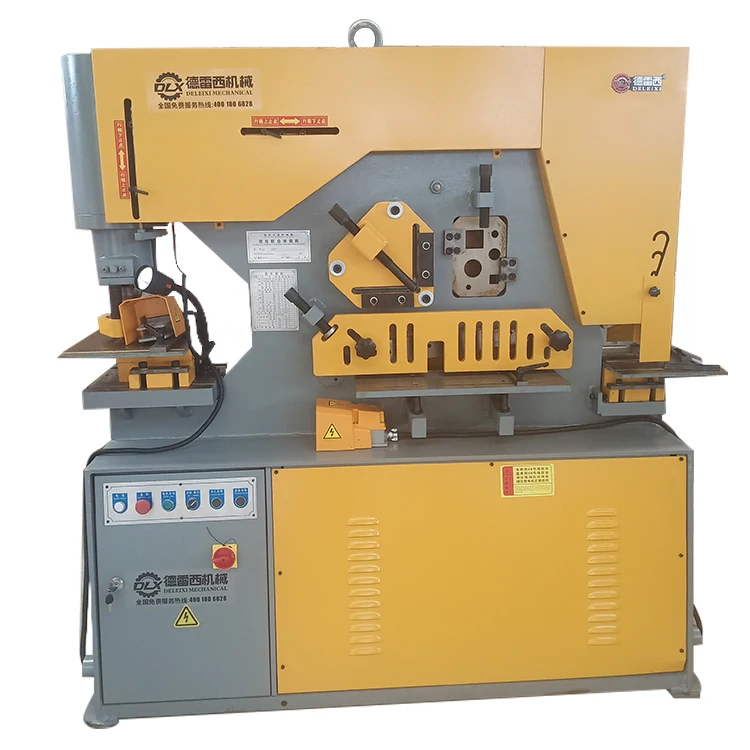

Q35Y-20 Hydraulic Shearing And Punching Machine Hydraulic Angle Cutting Ironworker Price
Product Description

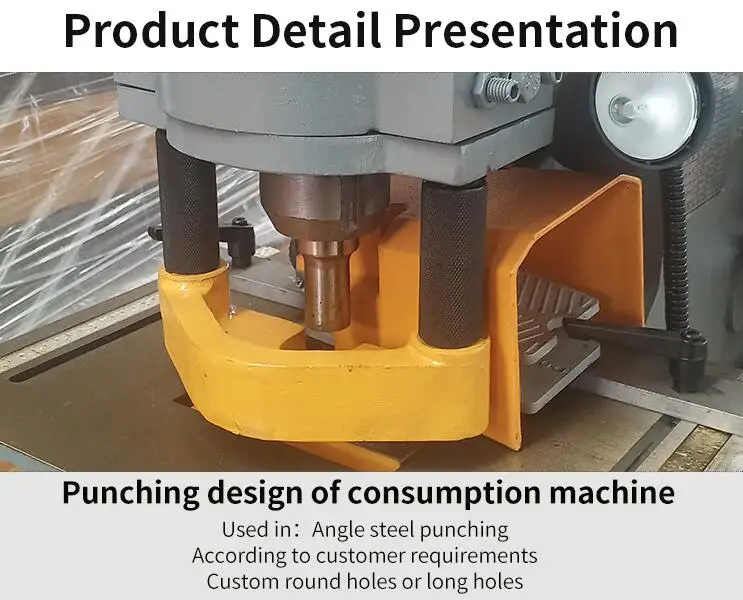

Industrial-grade hydraulic ironworker featuring multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.

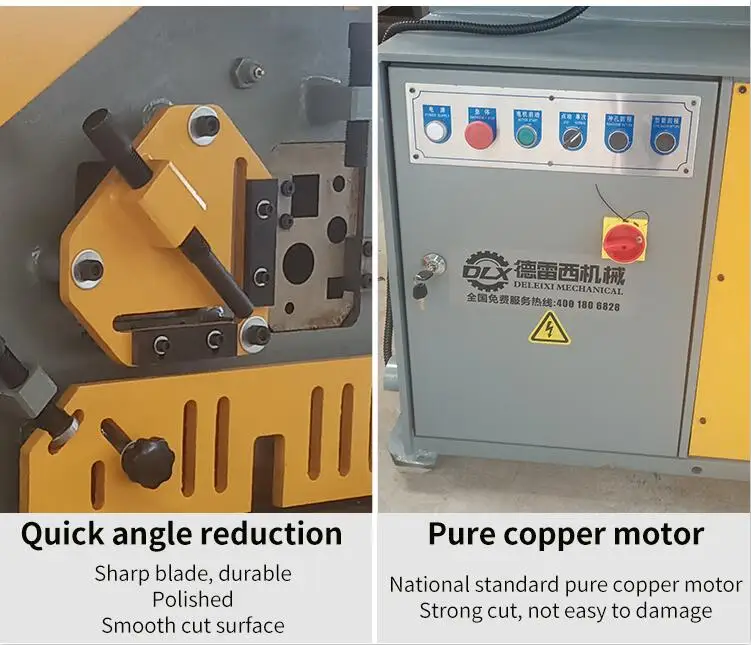

The machine comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more. With its multifunction, Q30Y series hydraulic ironworker is your first choice among the counterpart machine. Besides, all the components are of the highest quality in the matter of safety, function, capability and maintenance.
Our machine is designed via the most advanced technology and has the virtues of easy operation, low consumption and low maintenance cost.

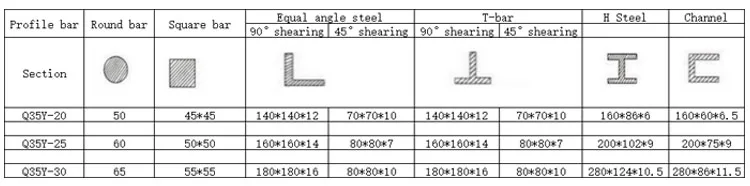

| Model | Q35Y-20 | Q35Y-20 | Q35Y-20 |
| Impulse force | 90 | 120 | 160 |
| Maximum cutting thickness (mm) | 20 | 25 | 30 |
| Sheet strength (Newton/mm²) | ≤450 | ≤450 | ≤450 |
| Shear angle | 8° | 8° | 8° |
| Shearing size in one stroke (thickness * width) (mm) | 16*250 8*400 | 16*250 8*400 | 16*250 8*400 |
| Slider stroke | 80 | 80 | 80 |
| Number of trips (times/min) | 12-28 | 12-28 | 12-28 |
| Throat depth (mm) | 355 | 400 | 600 |
| Punching thickness (mm) | 20 | 25 | 26 |
| Maximum punching diameter (mm) | 30 | 35 | 38 |
| Main motor power (kw) | 5.5 | 7.5 | 11 |
| Dimensions (L*W*H*) mm | 1640*800*1990 | 2355*960*2090 | 2680*1040*2300 |

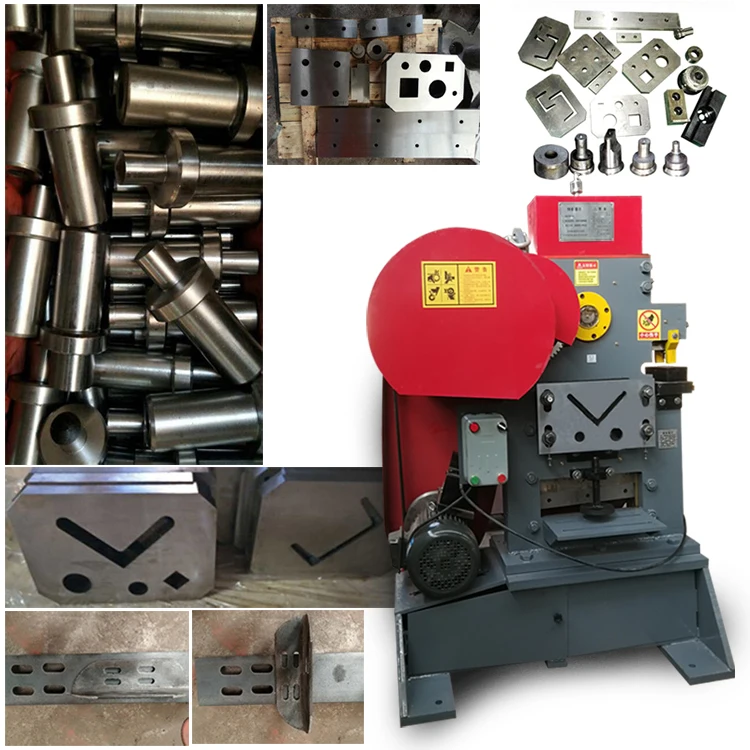

Optional tooling:
The automatic holding system can be chosen to set up in angle steel shearing and plate shearing work position. Additionally, the holders will fix the position of work piece in order to save time and improve working efficiency.
When the machine is working, you can read the temperature of oil through the monitoring screen. If the oil temperature goes higher than 55 degree which is the default configuration, the inside cooling system will run automatically to decrease oil temperature in order to protect hydraulic system.
The automatic holding system can be chosen to set up in angle steel shearing and plate shearing work position. Additionally, the holders will fix the position of work piece in order to save time and improve working efficiency.
When the machine is working, you can read the temperature of oil through the monitoring screen. If the oil temperature goes higher than 55 degree which is the default configuration, the inside cooling system will run automatically to decrease oil temperature in order to protect hydraulic system.
Packaging & Shipping
Packing and Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
Company Information
Changge Deleixi Machinery Equipment co. LTD is a manufacturer of processing machine our products include steel bar cutting machine,steel bar bending machine,straightening cutting machine,stirrup bending machine,plate compactor,tamping rammer ,trowel machine and so on, with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are very popular in Mid-east,Africa,European ,American .ect, they are widely used in building ,road,railway and other area.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
High Speed Automatic Electric Steel Bar Stirrup Bender/Steel Bar Bending Machine
Our Services
1.We have more than10 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM se
High Speed Automatic Electric Steel Bar Stirrup Bender/Steel Bar Bending Machine
rvice to meet all your requirements.
FAQ
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are
using.
3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be
requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the
order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for
shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
