Двухфазный прямоугольный лист из нержавеющей стали для опреснения морской
- Категория: Refrigeration & Heat Exchange Parts >>>
- Поставщик: Xiamen Openex Mechanical Technology Limited
Сохранить в закладки 1600251835398:
Описание и отзывы
Характеристики
Details Images
Products Description
Description | Dual-phase Stainless Steel Rectangular Tube Sheet for Sea Water Desalination |
Material | Dual-phase (Duplex) Stainless Steel |
Finish | Degreasing, Tarnishment |
External Size | Thickness 6-40mm |
Hole Shape | Round or as required |
Dual-phase Stainless Steel Rectangular Tube Sheet for Sea Water Desalination
A tube sheet (or tubeplate), is a flat plate with a number of small holes evenly distributed which are used to fix and support thin walled tubes in parallel. We have contracted to custom make a variety of tube sheets and baffle plates for heat exchangers, boilers, containers used in many industries like vaccine equipment, paper making, petro-chemical, water-treatment, new energy, etc. The bespoke tube sheets and baffle plates we have produced feature as below.
* Immense size with diameter up to 11900mm (11.9 meter)
* High precision, very narrow tolerance, fix the tubes tightly
* Deep boring possible up to 1100mm (1.1 meter)
* Complex hole shapes possible
* Multi machining processes adopted for different designs
* A variety of materials available, including Titanium/Zirconium Alloy, etc.
* Immense size with diameter up to 11900mm (11.9 meter)
* High precision, very narrow tolerance, fix the tubes tightly
* Deep boring possible up to 1100mm (1.1 meter)
* Complex hole shapes possible
* Multi machining processes adopted for different designs
* A variety of materials available, including Titanium/Zirconium Alloy, etc.
Baffle Plate
Tube Sheet for Air Conditioner

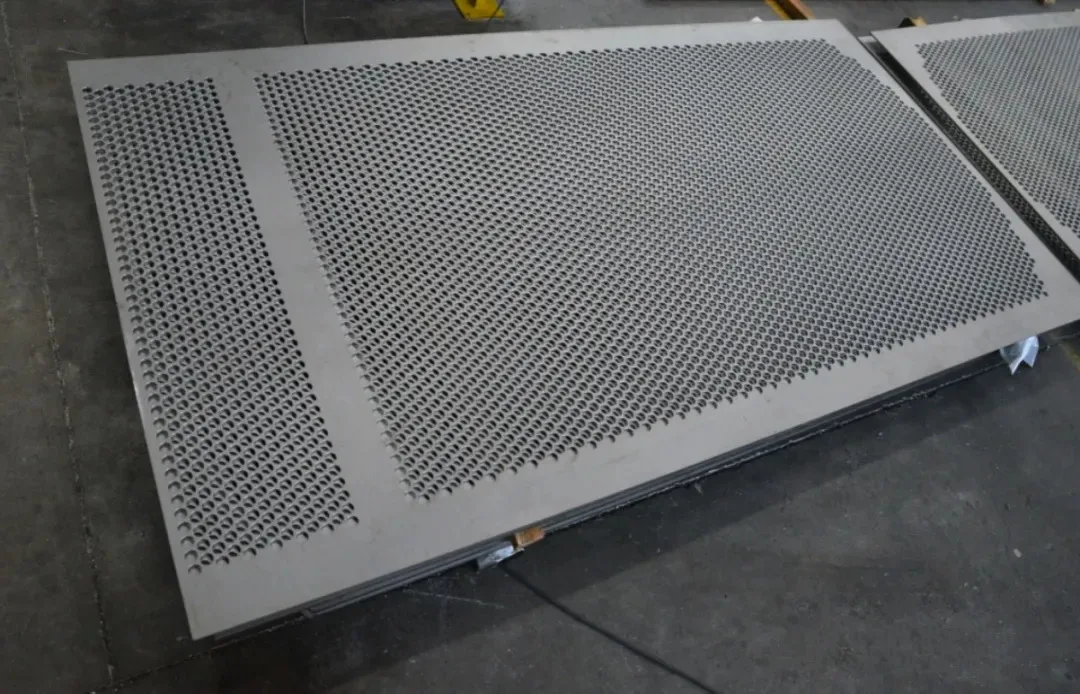

Large Rectangular Tube Sheet
Material Introduction
We provide a comprehensive range of custom cost effective baffle plates by precision metal services to customers around the globe. We can work with all the typical metal materials, such as carbon steel, stainless steel, or special materials like titanium, nickel, zirconium, etc.
Our Capabilities
Manufacturing Process
Our cost effective precision metal machining for tube sheets and baffle plates include planing, cutting, milling, drilling, grinding, and any other metal processing techniques. Usually, for a round tube sheet or baffle not very thick, we can get the workpiece from cutting the metal sheet. Equipped with all series of world-class CNC machine tools like: Germany Schiess Double-gantry boring and milling machine, Italy PAMA large boring mill, Japan Mitsubishi horizontal boring and milling machine, China WZ large vertical turning center, Openex have the ability to complete a variety of tube sheets with tight tolerances in a few days after receiving the orders.
Raw Material
Workpiece with the rough external dimensions
Turning
Machining by CNC vertical lathe
Vertical Hole Drilling
Hole drilling for small or medium size tube sheet
Horizontal Deep Hole Drilling
In case of very thick tube sheet with deep holes, we choose horizontal drilling.
Multi-spindle Drilling
To increase the productivity, we apply the multi-spindle drilling to very huge tube sheets.
Hole Chamfering
Chamfered holes make the tubes can be easily inserted.
Polishing
Make the inside of holes smooth.

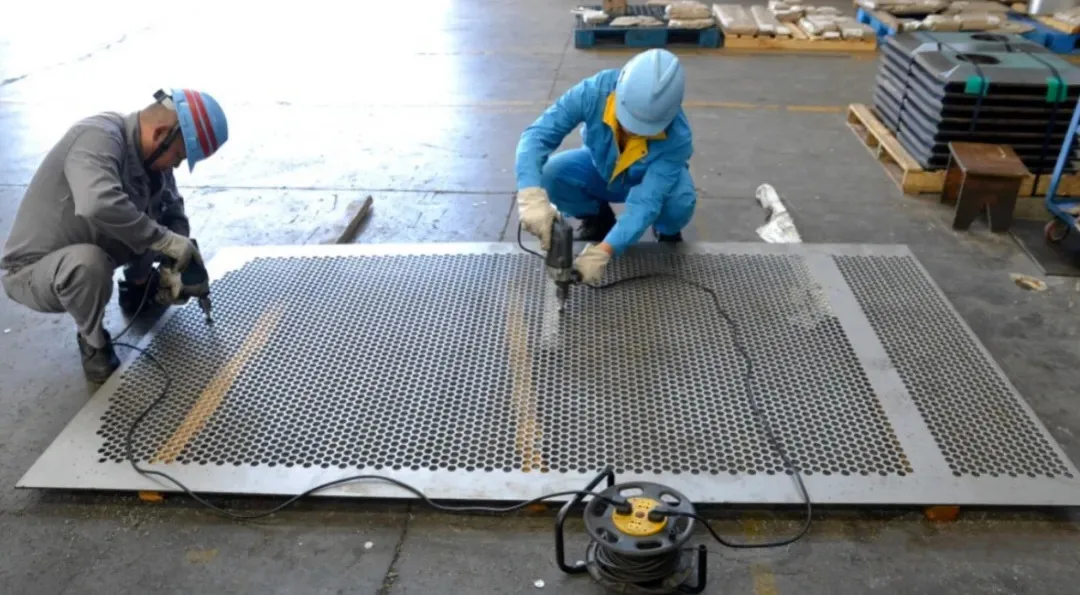

Polishing
Remove the burr at the edge of holes
Transporting
Extremely large tube sheet ready for shipping
Inside Packaging
Carefully packed to avoid scrath
Packaging
Wooden cases suitable for sea shipping
Quality Inspection
We have equipped our factory with the best inspection tools, like Leica AT901-LR laser tracker and different types of CMM test machines, which make our quality guaranteed. Being a one-station-shop company, we can handle all the other related processes like heat treatment, sand blasting, x-ray testing, etc.
Measuring Dimensions
The dimensions should be within the very narrow tolerances.
In-process Quality Inspection
Preventing the defects from happening in the first place.
Coordinate-Measuring Machines
Our Zeiss CMM can work on 7000x4000x3000mm with an accuracy of 0.43 micron (0.00043mm).
Case Study
Applications
We can manufacture a full range of tube sheets which are widely used in many different industries, some of which are listed below.
Petrochemical
Environment Protection
Power Generation
Why Choose Openex?
About Us
Openex Mechanical Technology Co., Ltd is one of very few companies that can provide comprehensive metalworking services to customers worldwide. Our services typically include machining, cost effective metal pressings and stamped parts precision metal and casting for metal parts, components, subassemblies, and complete assemblies, especially for large and medium size with high precision. We have a vast range of world-class machine tools and advanced inspecting tools, and they have been successfully providing services for more than 30 industrial giants listed among the Fortune 500. We use our knowledge and expertise to devise and employ solutions that exceed our customers’ expectations, and our wealth of industry experience allows us to offer suggestions to help customers optimize designs and find more efficient production procedures.
Certification
Certificates
We understand the importance of meticulous quality management and we have already passed certificates of ISO, CE, ASME, API, LR etc. Whatever your metalwork requirements are, no task is too large, no task is too complex for Openex. We pride ourselves on being one of the most professional and reliable suppliers, not just through quick delivery, but also creative capability to meet customer’s increasing diversified and specified demands in metalworking.
