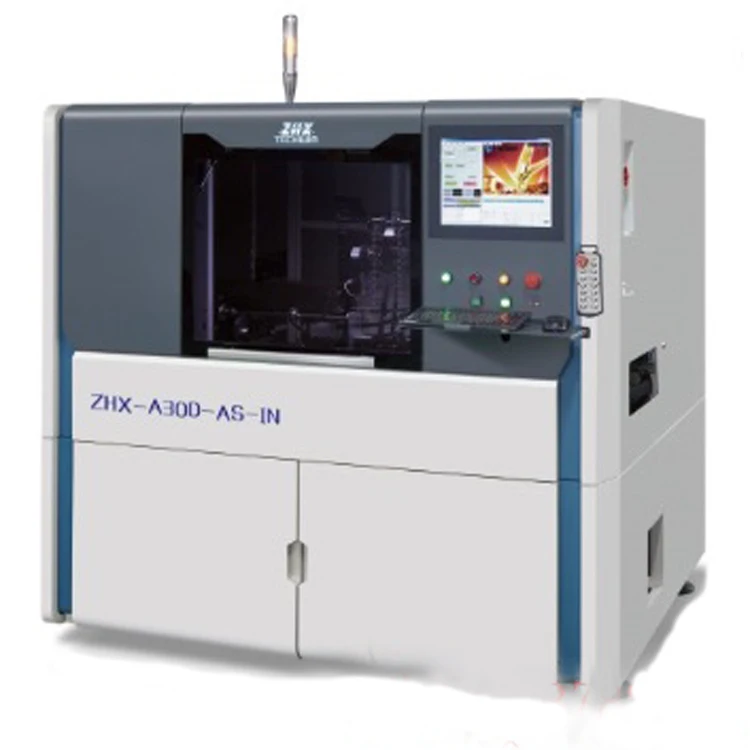

ZHX-A30C-AS Offline automatic horizontal plug-in machine

Theoretical speed: 24000 points/hour

– Insertion direction: 4 directions 0 degree, 90 degree, 180 degree, 270 degree

– Component span: 5.0mm~22.0mm

– Substrate size: minimum 50mm*50mm, maximum 450mm*450mm

– Substrate thickness: 0.79~2.36mm

– Component types: capacitors, transistors, diodes, resistors, inductors, fuses and other tape packaging materials

– Jumper wire (JW): independent conveying method. Tinned copper wire with a diameter of 0.5mm~0.7mm

– Insert bending length: 1.2-2.2mm (adjustable)

– Insertion bending angle: 0~35 degrees internal bending (adjustable)

– Number of feed stations: 20 stations

– Host size: L1750xW1450xH1700 mm

– Material station size: L2000xW1000xH1500 mm

– Host weight: about 1150kg

– Power supply: 220V, AC (single phase) 50/60Hz

– System protection: configure uninterruptible power supply (UPS)

– Power: 1.5KW (energy-saving type)

– Use air pressure: 0.6Mpa

– Air flow: 0.3 cubic meters per minute

– Environmental conditions: ambient temperature 5~25 degrees

– Machine noise: 60 decibels

– Hole position correction method: machine vision system, multi-positioning point correction

– Drive system: AC servo, AC motor

– Conveying mode: double-chain and double-servo motor drive

– Data input method: USB interface input (EXCEL file format)

– Control system: Chinese operation interface (WINDOWS system control platform) LCD display

– Control mode: fully automatic, semi-automatic, manual

– Workbench operation mode: clockwise and counterclockwise

– Way of boarding: manual boarding

– Programming mode: online manual programming
