Умный пылесос Ar002 Rccb Elcb Rcd однофазный выключатель на солнечной батарее 1P 2P 3P 4P

No.

Function

Technical Parameters

AC

DC

01

Operating Temperature

-25℃~+55℃

√

√

02

Storage Temperature

-40℃~+70℃

√

√

03

Action Time

Opening Time≤1S, Reclosing Time≤2S

√

√

04

Electrical Life

≥10000 times

√

√

05

Protection Class

IP20

√

√

06

Rated Voltage

/////

AC 220V/50Hz

DC 48V

07

Rated Current

6,10,16,32,40,50,63,80,100,125A

√

√

08

Overload Protection

Depends on matching circuit breaker characteristics

1.05≤In≤1.15

1.05≤In≤1.15

09

Short Circuit Protection

Depends on matching circuit breaker characteristics

C Type:5ln-10ln

C Type:5ln-10ln

10

Standby Power Consumption

<1.5VA

√

√

11

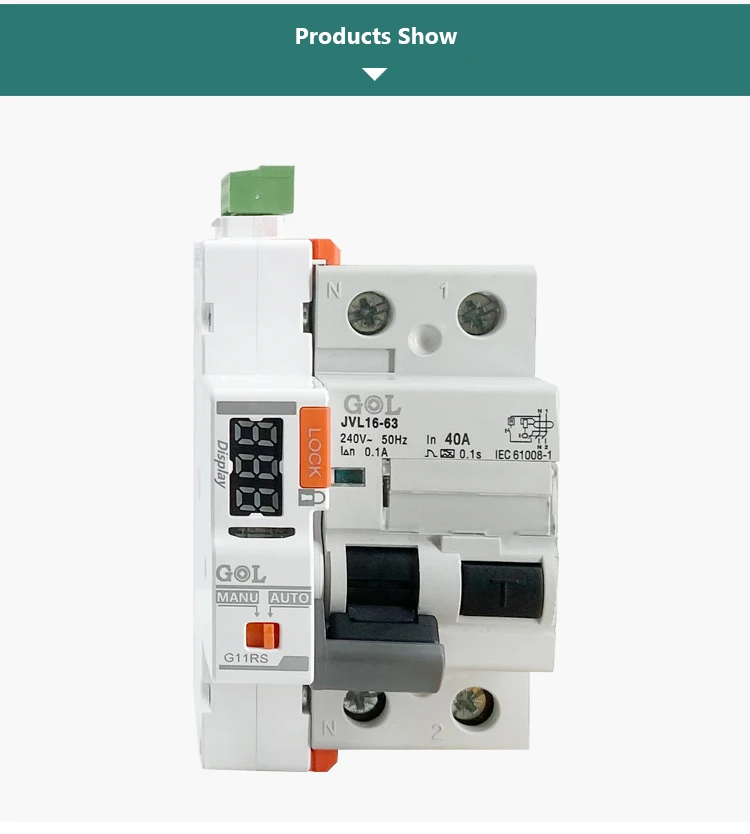

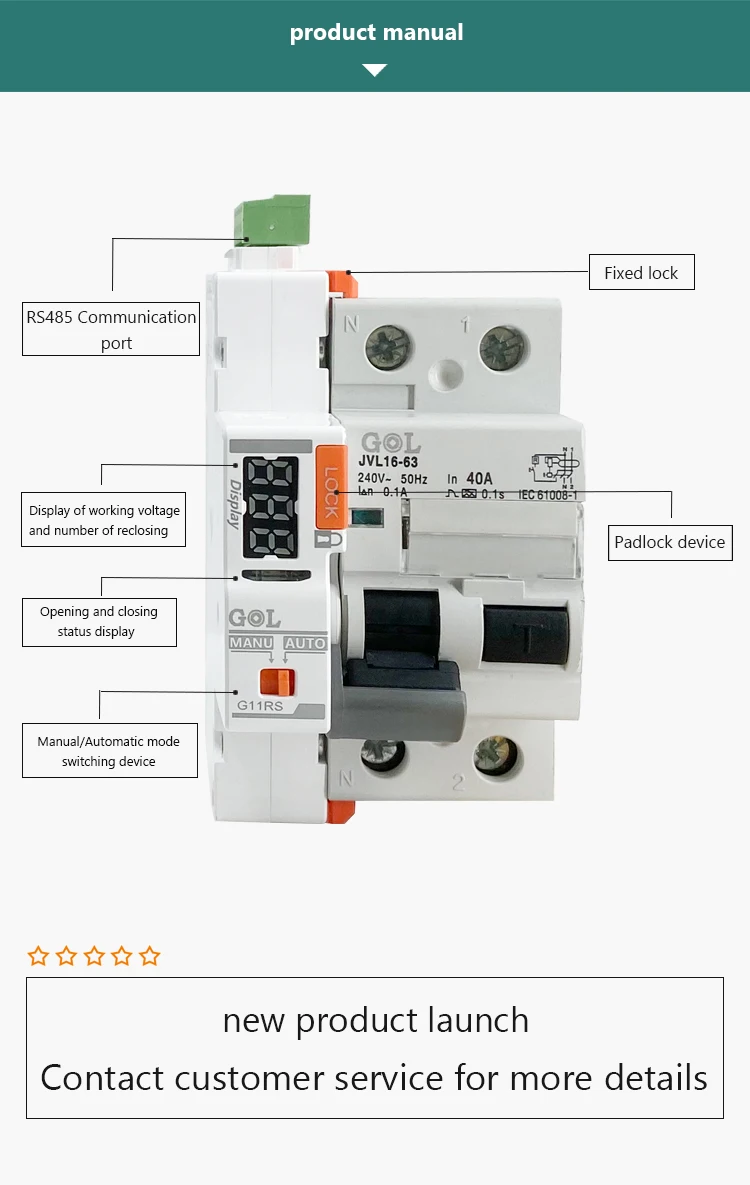

Indicator Light

Padlock (manual mode):-closing and opening is invalid-orange light is always on

Unlock (automatic mode):-closing and opening is invalid-red light flashes for 100ms (starting reset position return failure or closing and opening state detection failure)

- Opening – Red light is always on

- Opening – Red light flashes for 500ms(pre-reclosing state)

- Closing- Green light is always on

- Closing – Green light flashes for 500ms(auto reclosing-stabilizing)

√

√

12

Opening Time and Closing Time      Record

Record Storage Of Opening and Closing times

√

√

13

Automatic Reclosing

(Can choose to close)

The first interval is 1 minute, the second interval is 15 minutes, and the third interval is 15 minutes. The fourth interval does not reclose. After the automatic reclosing is stable for 1 minute, it returns to the first closing logic

√

√

14

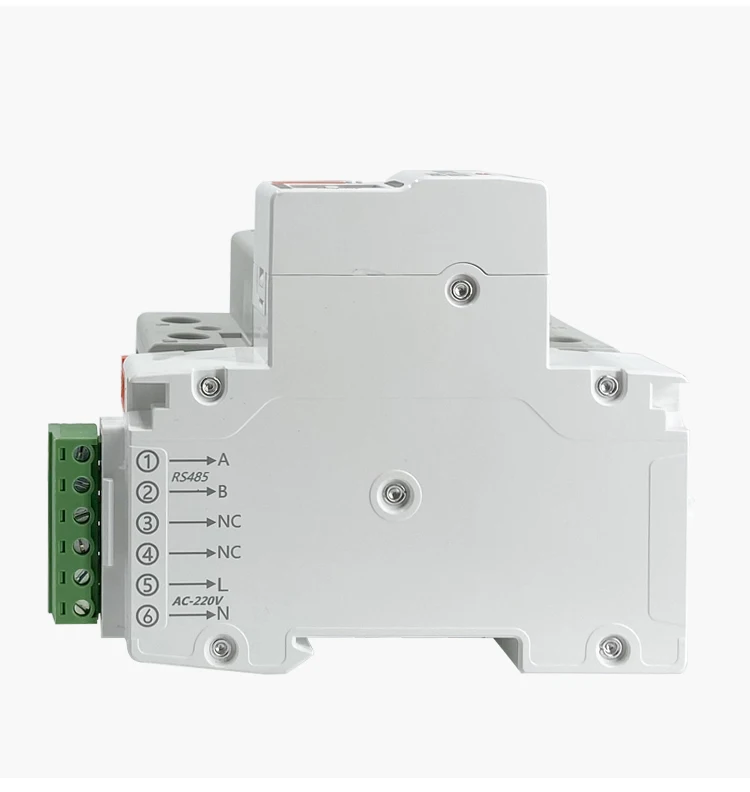

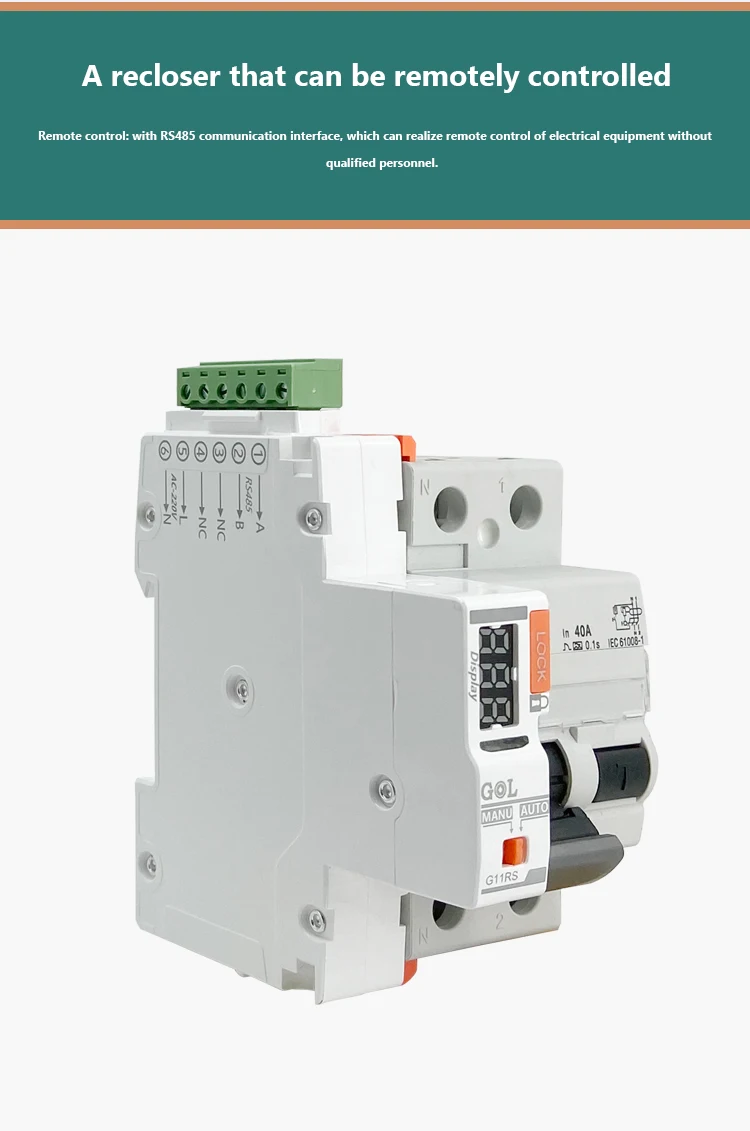

Communication Port

RS485,MODBUS Protocol

√

√

15

Timing control

Accuracy 1S (optional)

√

√

16

Operating Mode

Automatic/Manual/ Mechanical padlock

√

√

17

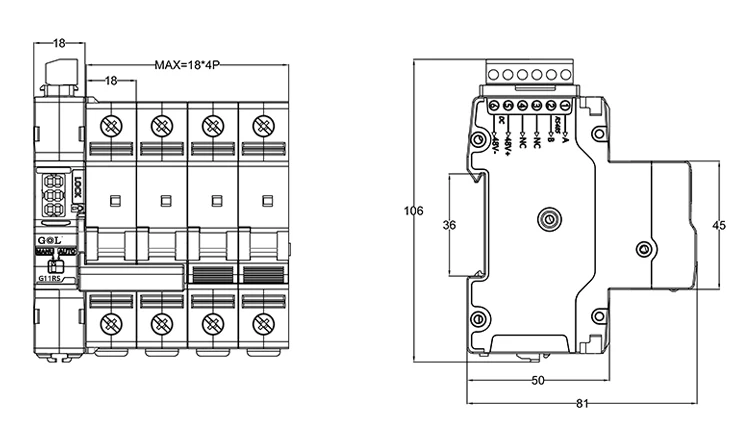

Product Size

(1+N)*18mm,N=Poles Number of compatible MCB

√

√
