20 л нагревательная мантия однослойный лабораторный вакуумный стеклянный
1 400,00 $ - 1 615,00 $

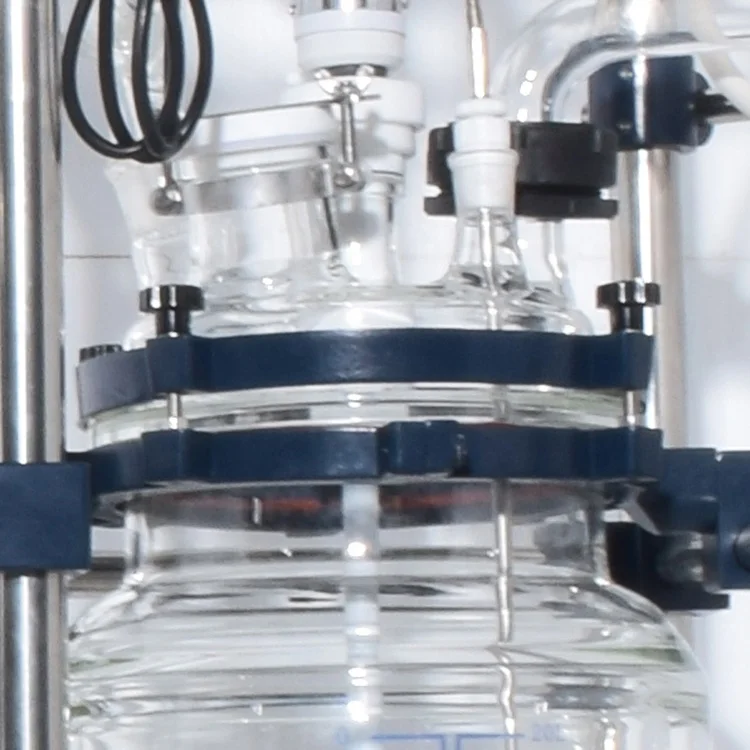

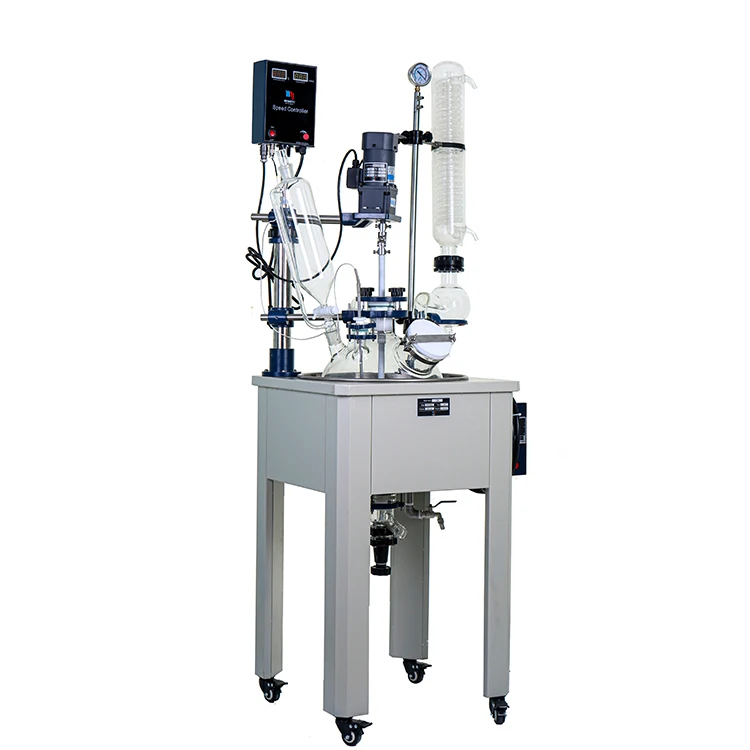

Оптовая продажа Высококачественный новый реакционный реактор из биодизельного жакетированного стекла 50
- Категория: >>>
- Поставщик: Zhengzhou Mingyi Instrument Equipment Co. Ltd.
Сохранить в закладки 1600270684916:
Описание и отзывы
Характеристики
Product Description
The series of reactor kettles is my company according to the actual requirements of customers and the standard production of new double glass reactor with cylindrical glass reactor body, which absorb the international and domestic advantages of similar products, while bold and innovative, not only easy to use (one can easily move, , And the structure of innovative and practical, beautiful appearance generous, leading domestic; for modern chemistry, fine chemicals, bio-pharmaceuticals, new materials, such as the synthesis of experimental and production of the ideal equipment. Specific specifications from 1L to 200L optional.
Double-layer glass reactor is a commonly used biochemical instrument, widely used in modern fine chemical, biopharmaceutical, scientific research experiment, medicine, aerospace, petroleum metallurgy and other industries.
Main Features of the Jacket Glass Reactor
1, The use of borosilicate glass (GG17 material), has excellent physical and chemical properties.
2, Speed mixing, smooth and reliable operation, torque, no spark.
3, PTFE components mechanical seal, proprietary technology, can maintain the market similar products, high vacuum (-0.095mpa or so), the leading domestic.
4, PTEE discharge valve, kettle body and lid are also customized according to customer requirements.
5, The reaction of the sandwich heating (cooling) solution can be completely removed after the reaction, no solution.
6, Regardless of refrigeration or heating, can be produced according to customer requirements matching products.
7, The overall structure of science, novel, practical, beautiful, leading domestic.
1, The use of borosilicate glass (GG17 material), has excellent physical and chemical properties.
2, Speed mixing, smooth and reliable operation, torque, no spark.
3, PTFE components mechanical seal, proprietary technology, can maintain the market similar products, high vacuum (-0.095mpa or so), the leading domestic.
4, PTEE discharge valve, kettle body and lid are also customized according to customer requirements.
5, The reaction of the sandwich heating (cooling) solution can be completely removed after the reaction, no solution.
6, Regardless of refrigeration or heating, can be produced according to customer requirements matching products.
7, The overall structure of science, novel, practical, beautiful, leading domestic.
Parameters | Name | Jacketed glass reactor |
Glass material | GG-17 | |

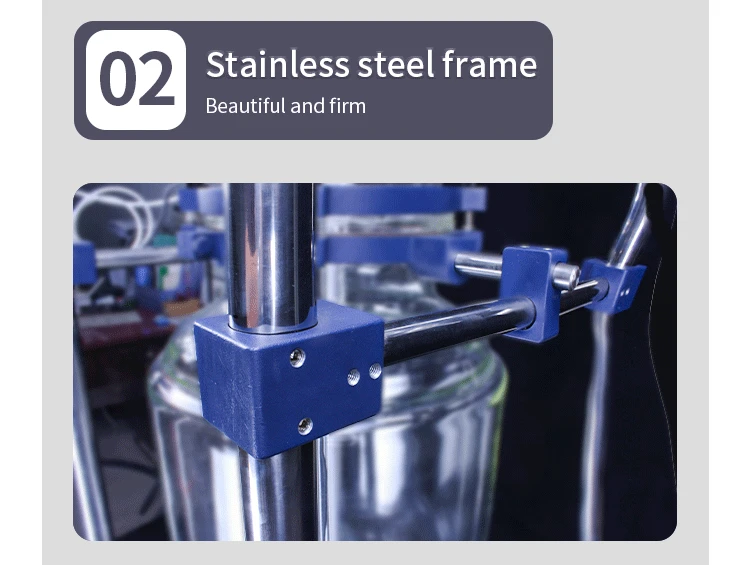

Structure material | Stainless steel | |
Volume | 100L | |
Jacketed volume | 18L | |
Flanged out of the oil circulation port | Low into, up out ￠35 flanged | |
Kettle lid bottle number | 6 | |
Ground clearance of the discharge opening | 450mm | |
Reactor body temp.range | -80-250C | |
Vacuum | 0.098Mpa | |
Stirring speed | 0-1400rpm | |
Stirring Shaft | 15mm | |
Mixing Power | 250W1/3 | |
Voltage(V/Hz) | 220V/50Hz | |
Size(mm*mm*mm) | 610*610*2500 | |
Packing size(mm*mm*mm) | 1900*700*870 | |
G.W.（KG） | 125 | |
Function | Speed mode | Electronic step-less |
Motor configuration | Low-energizing the motor, ratio 3: 1 | |
Speed Display | LCD digital display | |
Temperature display | PT100 Sensor Digital Display | |
Sealing method | ￠60 flange stirring port | |
Efficient vertical double re-flux condenser | 120*640mm | |
Reflux (distillation) unit | Reflux elbow with discharge switch, 50 # of milling | |

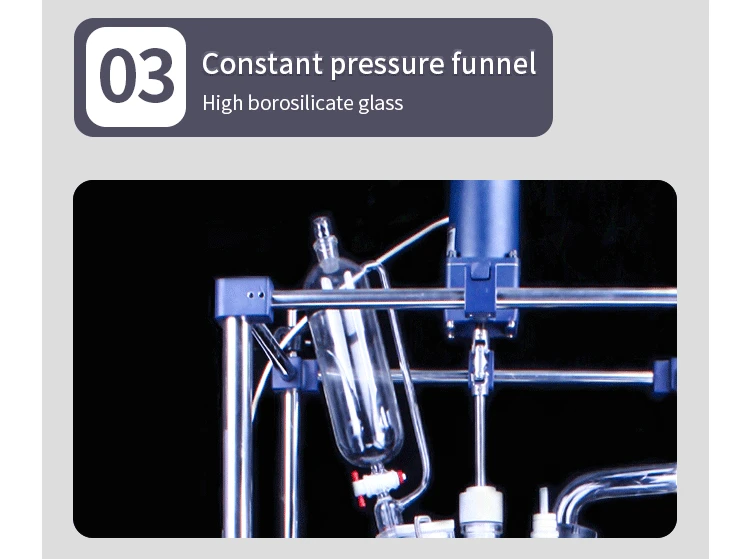

Dropping device | 2L 40# standard port | |
Pressure reducing device | 34# standard port valve | |
Temperature tube | 24# standard port | |
Solid addition | ￠80 flanged cover with tetrafluoroethylene | |

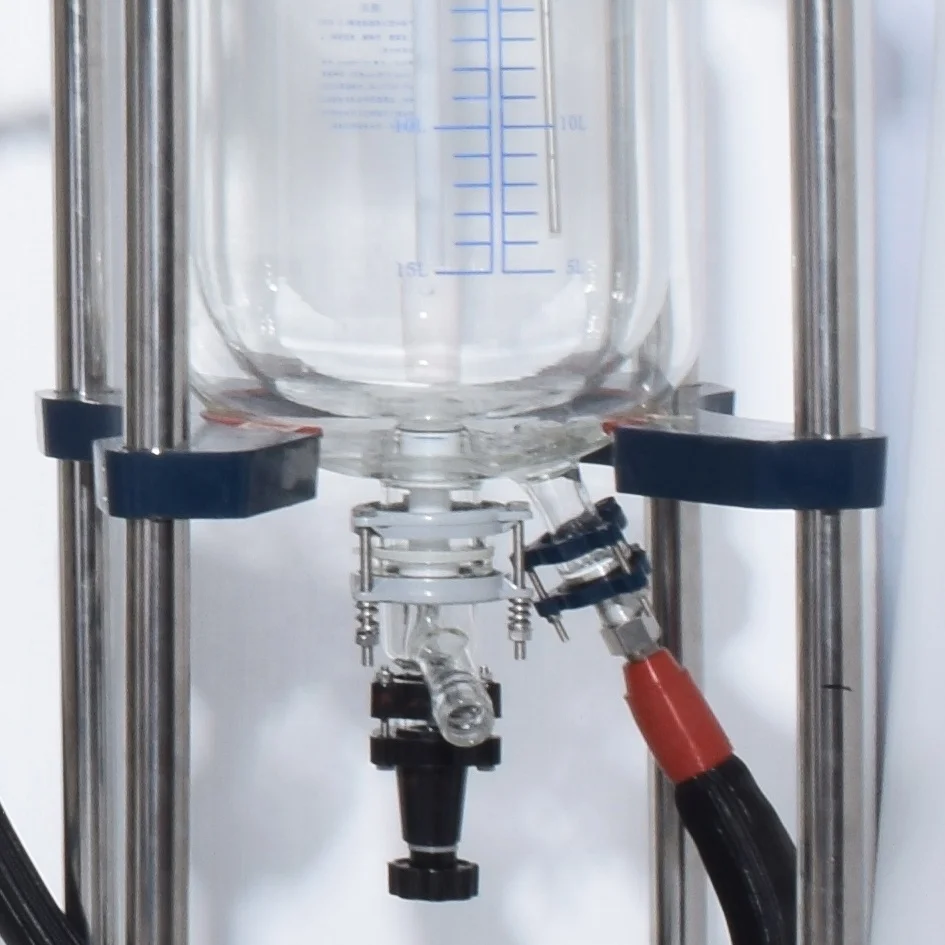

Discharge mode | Ramp glass material discharge valve, ¢ 80 flanged | |
Vacuum Display | Vacuum Table | |
Stirring Connection | Universal joints | |
Stir bar | Description of stainless steel rods, outsourcing tetrafluoroethylene |

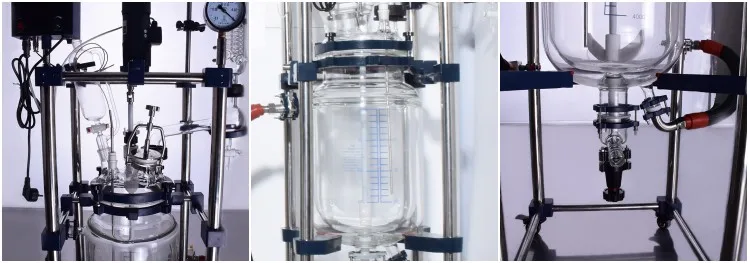

Product Details

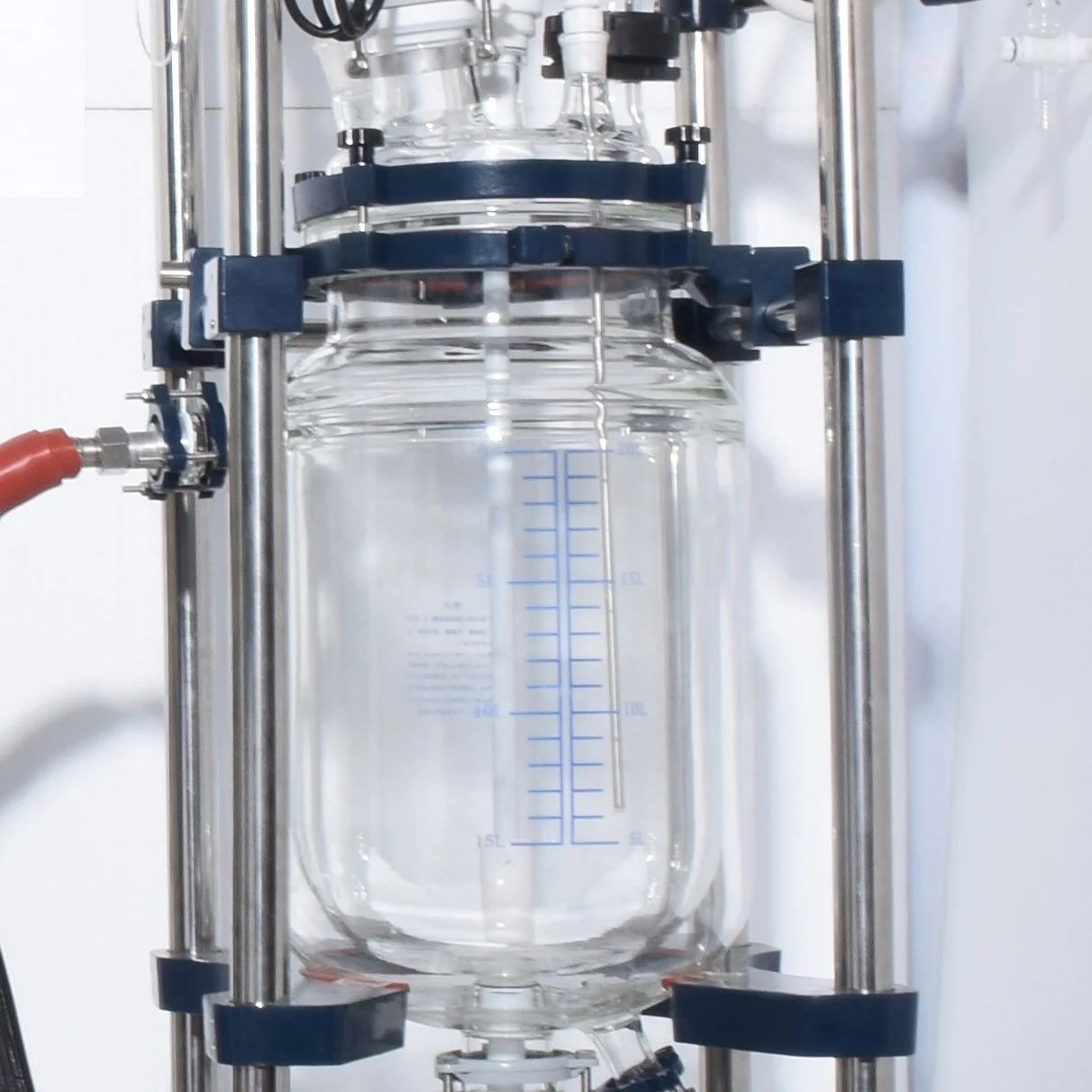

All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant .

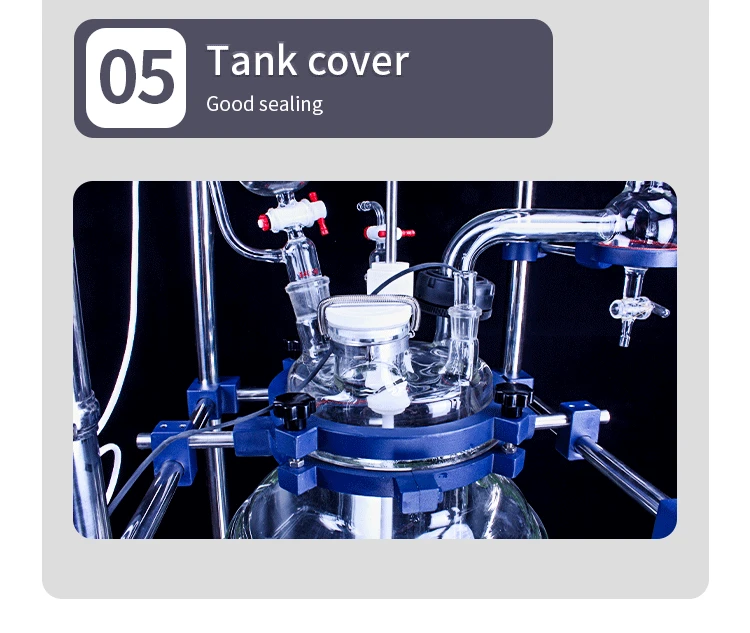

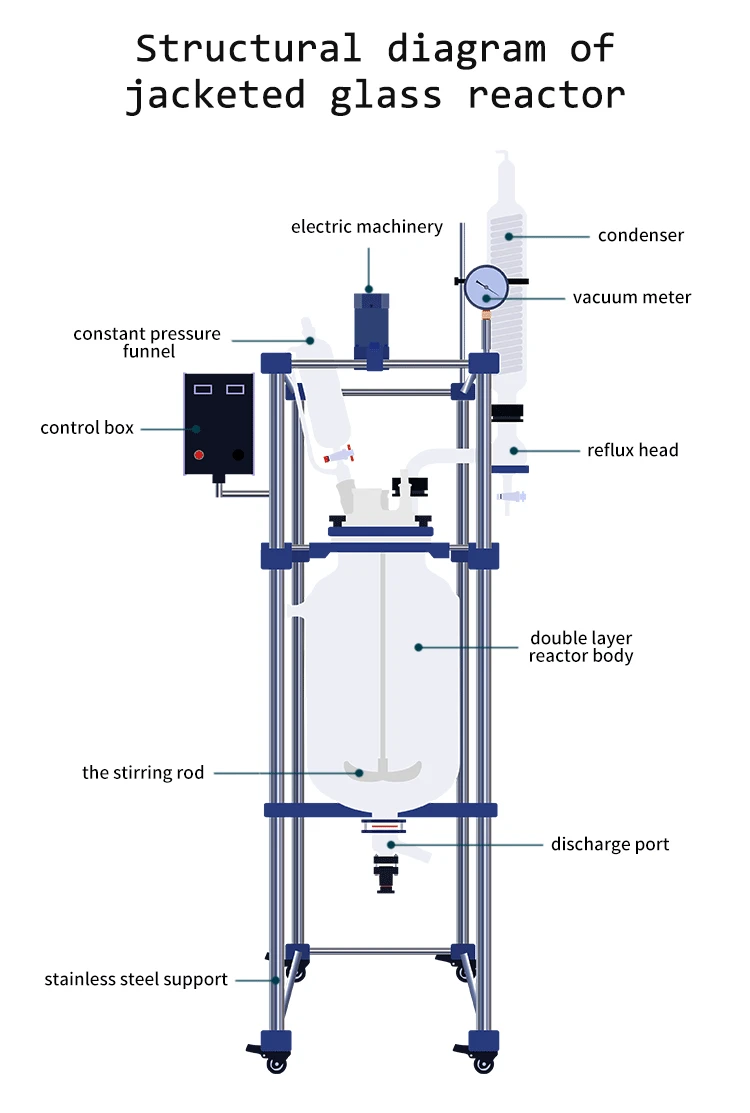

Multifunctional ports on the lid for feeding funnel, temperature probe, condenser, stirrer, material feeding port and vacuum port .
Large condenser cooling surface for exceptional condensation performance.
Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
There is a high quality thermo insulation jacket with viewing window and adjustable drawstrings to extend chiller life .
Multifunctional ports on the lid for feeding funnel, temperature probe, condenser, stirrer, material feeding port and vacuum port .
Large condenser cooling surface for exceptional condensation performance.
Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
There is a high quality thermo insulation jacket with viewing window and adjustable drawstrings to extend chiller life .

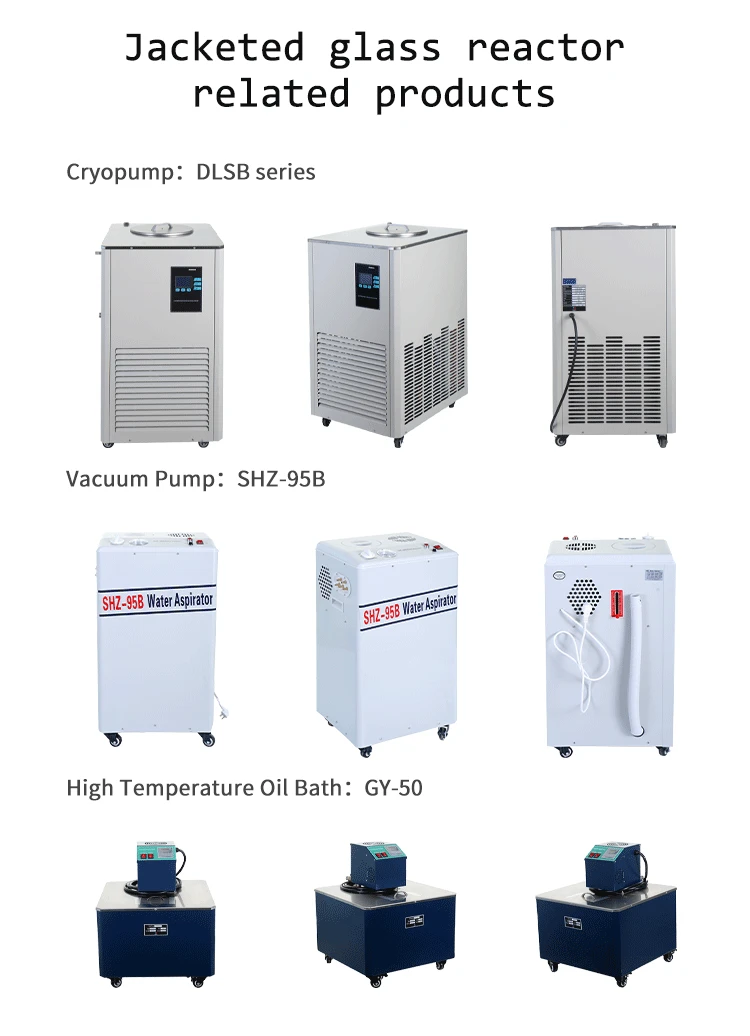

Accessory products

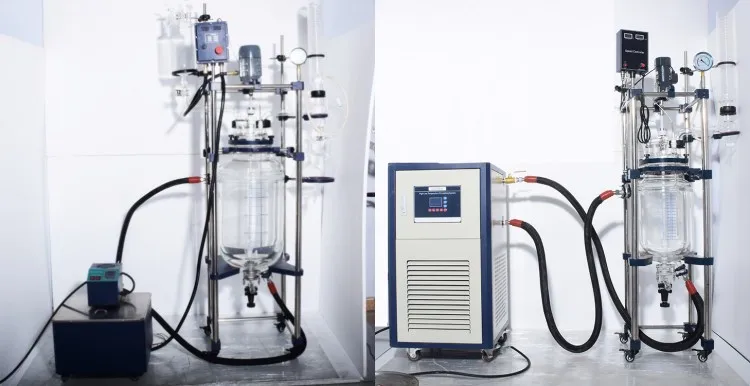

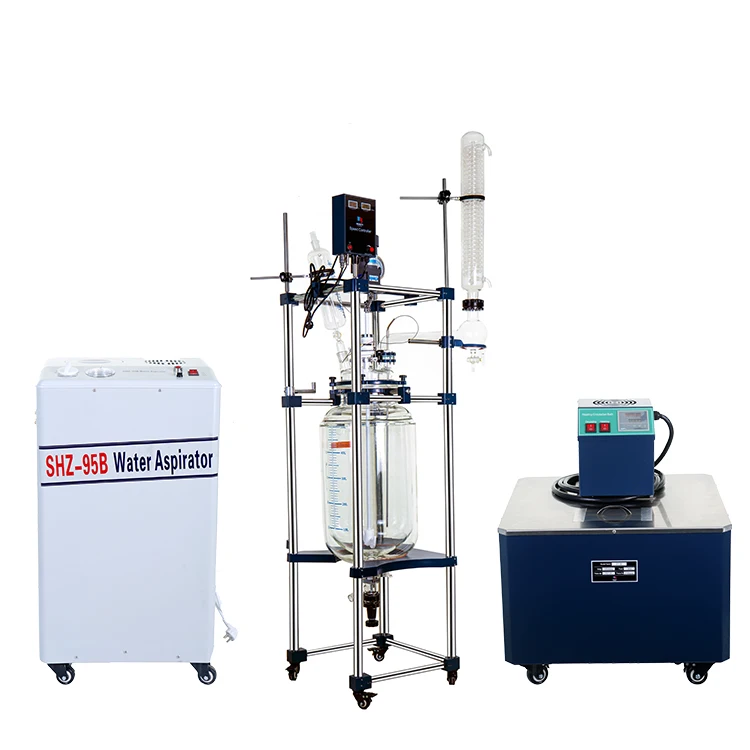

For glass reactor,we can offer the whole system with high temperature circulating oil bath,chiller and vacuum pump. Except this,also have explosion-proof optional and other machines that need to be used.
High temperature circulating oil bath:Used in reactor interlayer to do high temperature reaction.
Chiller:Used in reactor interlayer to do low temperature reaction,The condenser is cooled at low temperature.
For glass reactor,we can offer the whole system with high temperature circulating oil bath,chiller and vacuum pump. Except this,also have explosion-proof optional and other machines that need to be used.
High temperature circulating oil bath:Used in reactor interlayer to do high temperature reaction.
Chiller:Used in reactor interlayer to do low temperature reaction,The condenser is cooled at low temperature.

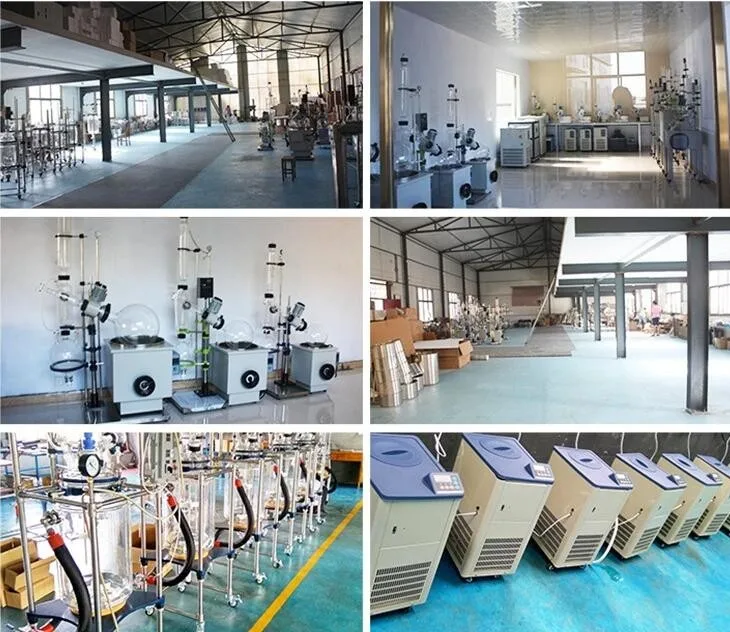

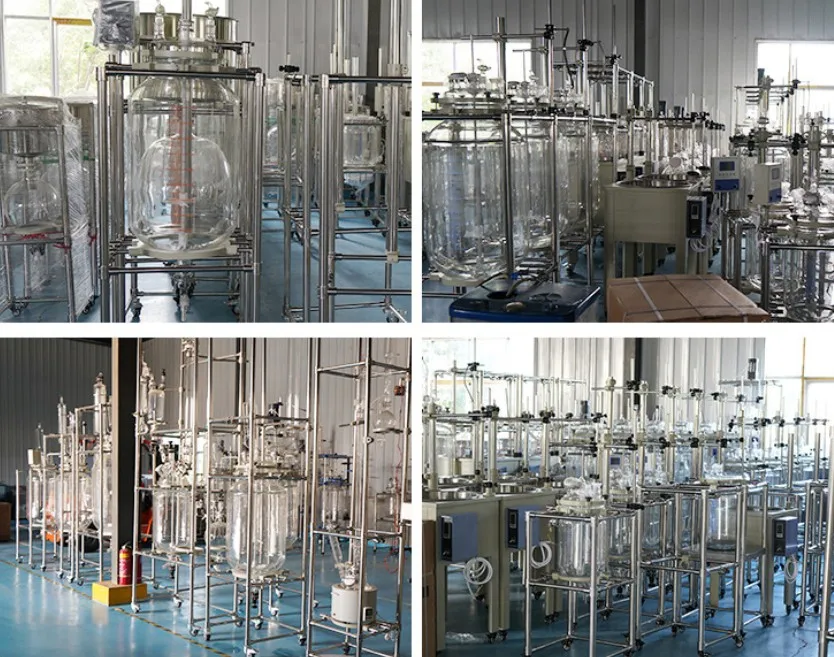

Company Profile
ZHENGZHOU MINGYI INSTRUMENT EQUIPMENT CO.,LTD is a major production and sales of laboratory equipment, life science equipment, glass equipment, medical equipment production and sales of one of the equipment company. The strength of the company, customers in products and consumers who enjoy a high reputation. The company operating the laboratory equipment, life science equipment, glass
equipment, medical equipment, the full range, reasonable prices, cost-effective. After long-term accumulation, the emphasis on credit, keep the contract to ensure product quality management principles, and now has a number of agents and retailers to establish a long-term and stable relations of cooperation, and won the trust of our customers.In response to the development of the era of globalization, we set up a special export company, serving the global market.
equipment, medical equipment, the full range, reasonable prices, cost-effective. After long-term accumulation, the emphasis on credit, keep the contract to ensure product quality management principles, and now has a number of agents and retailers to establish a long-term and stable relations of cooperation, and won the trust of our customers.In response to the development of the era of globalization, we set up a special export company, serving the global market.

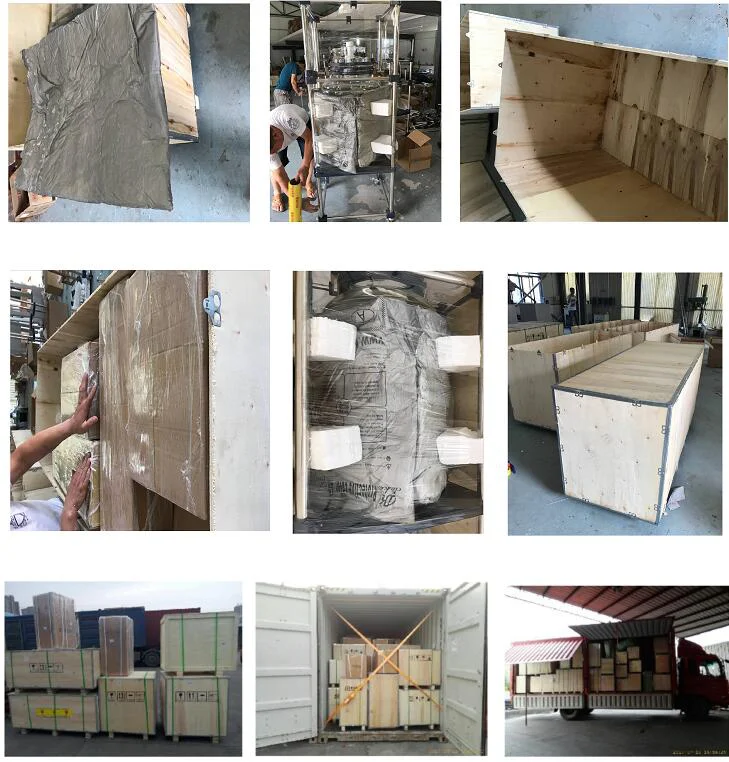

Packing & Delivery
