Specification
Our pressure reactor could service wide range of industrial company, like environmental protection in petroleum, chemical industry, medicine, dyes, mining and metallurgy, scientific research institutes, colleges (chemical, polymer, material engineering, organic and inorganic chemical). Pressure range 0.1-50MPa, volume range 0.1L-50,000L.
Reactor material could be Stainless Steel, Titanium, Nickel, Hastelloy, Monel, Inconel and other special materials …etc.
Reactor material could be Stainless Steel, Titanium, Nickel, Hastelloy, Monel, Inconel and other special materials …etc.

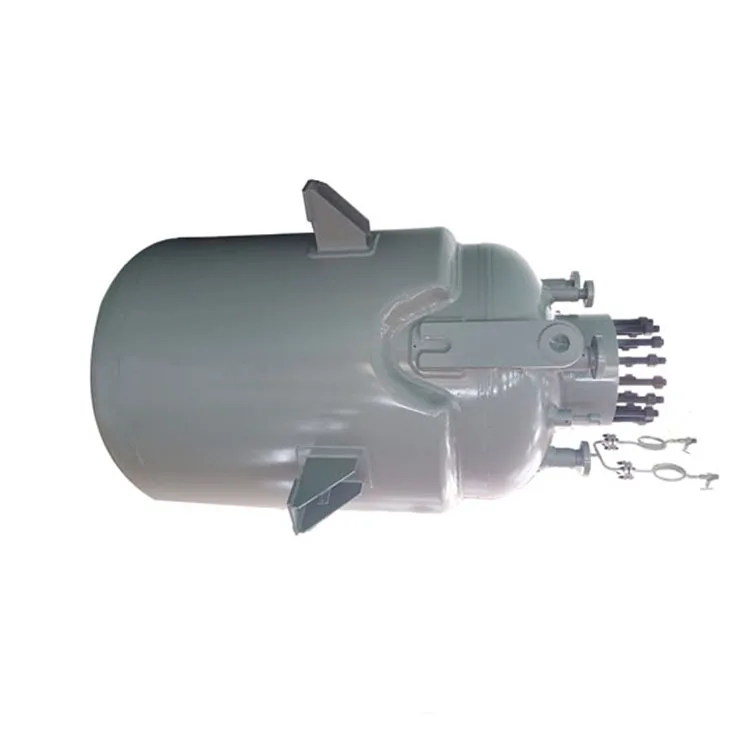

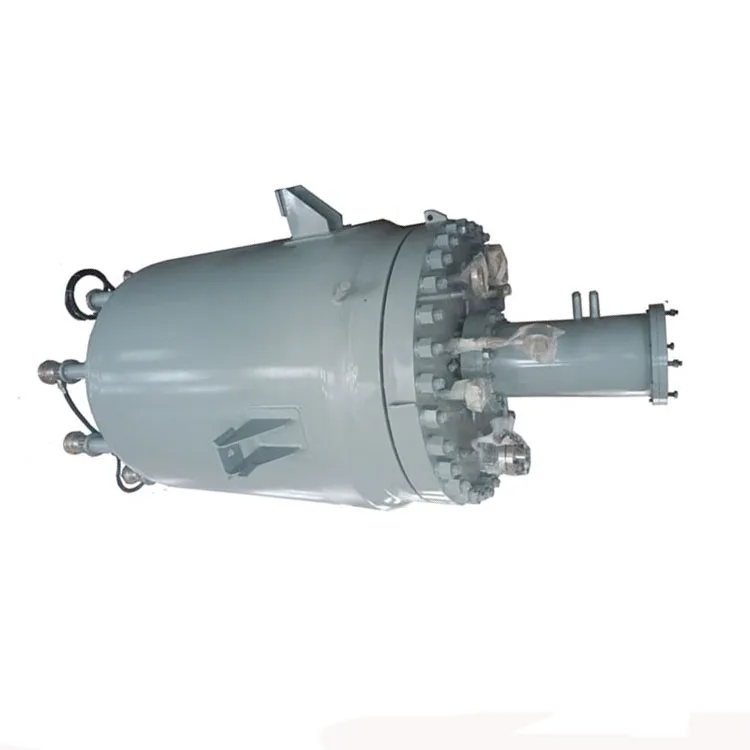

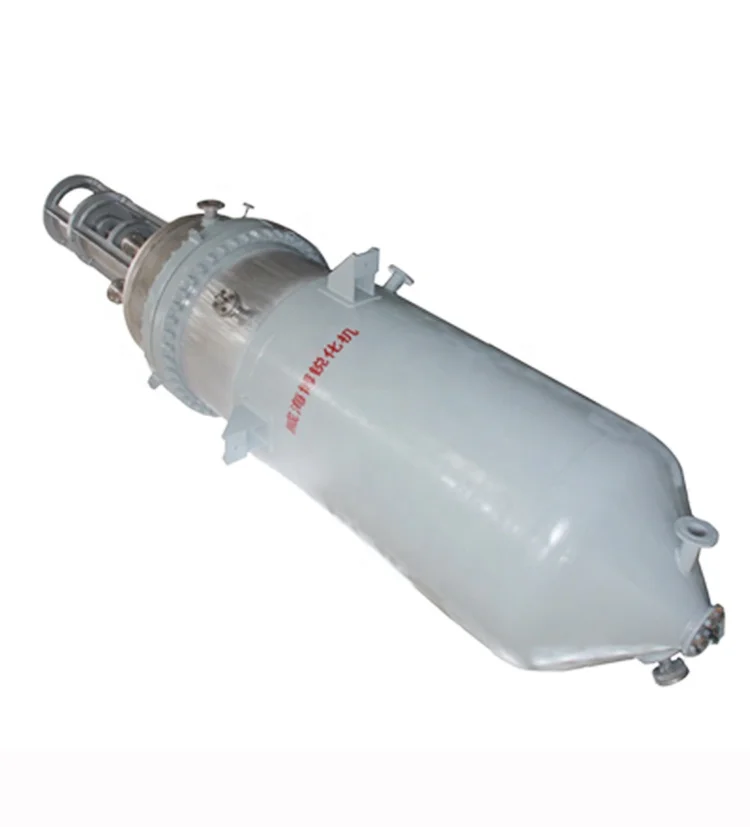

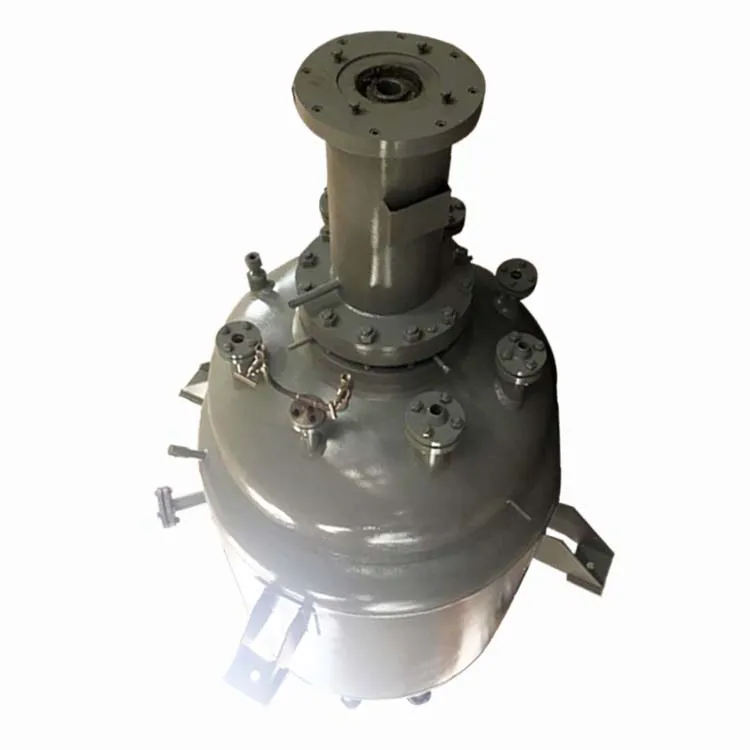

1M3 Industrial Chemical Horizontal Urea Catalytic Oxidation Reactor
NO. | Name | Parameter | ||||
1 | Capacity | 50L - 50000L | ||||
2 | Material | Stainless steel SUS304, SS316L, Titanium, Nickel, Zirconium, Hastelloy C-276, C22, B2, B3, Inconel 600, Inconel 625, Monel, Tantalum, cladding plate …etc. | ||||
3 | Design pressure | -0.01MPa ~ 50MPa | ||||
4 | Design temperature | -200℃ - 800℃ | ||||
5 | Stirrer rotation speed | 0-750rpm | ||||
6 | Motor power | 500w ~ 125 kw | ||||
7 | Sealing method | Magnetic seal, mechanical seal | ||||
8 | Heating method | Electric heating, Jacket circulating Thermo Oil or steam, far-infrared heating | ||||
9 | Agitator Options | Anchor, Impeller, Turbine, Peddle, Propeller, High speed disperser … etc. | ||||
10 | Others | Heat Exchanger/Condenser, raw material feeding tank, receiving tanks, vacuum system, heating system, cooling system, platform, valves ...etc. as option. | ||||
1M3 Industrial Chemical Horizontal Urea Catalytic Oxidation Reactor
Product Description
Installation Instructions
This kind of agitator is especially suitble for high viscosity products, solid products and powder products. Middle screw will convey the middle chemical up to top and spread to side, the ribbon will lift the chemical from the bottom to top, and mixing the side chemical.
Ribbon+Screw have better mixing effect.
The Ribbon also have the function of scraper.
Agitator
We can design the agitator or stirrer according to the process, also we can design the agitator according to customer's requirement, agitator like impeller, propeller, anchor, turbine, hydrogen agitator, srew, ribbon, paddle ...etc.
Heating and Cooling Method
Recommend Products
Company Profile
WEIHAI BORUI CHEMICAL MACHINERY CO., LTD. is a professional manufacturer of high-pressure reactor and other chemical equipment in China, the company's leading products are various kind of reactors like magneticallydriven high-pressure reactors, stainless steel reactors, non-ferrous metals reactors, and mechanically sealed reactors, we alsocan produce heat exchangers, towers, storage tanks, the materials of the reactors could be stainless steel, carbon steel, variouskind of alloy steel like Titanium, Nickel, Hastelloy, Monel, Inconel and other special materials …etc.
The company has plant area of 10,000m2, building area of 5,500m2, including two riveting workshops, one machining workshop, and two 2000m2 open-air material warehouses. There is a 60-square-meter non-destructive testing flaw detection room, and a 40-square-meter welding material level 1 and level 2 ware houses. The company has more than 50 various riveting and machining equipment, the maximum lifting capacity is 50T, the rolling capacity is 70mm, including 2 automatic welding machines, 1 set of tube plate automatic welding machine, 2.5M vertical lathe, 2 sets of mechanical polishing machine, 1 set of material detection spectrometer, 4sets of non-destructive testing equipment, 3 sets of 35MPa pressure testing machine, 1 set of 35MPa airtight testing machine.
We service for abroad market for many years, we have served customer from Slovakia, German, Ireland, Switzerland, Poland, Bulgaria, Russia, Czech, America, Canada, Australia, Brazil, Turkey, UAE,Israel, Oman, India, Thailand, Indonesia, South Korea, Pakistan, Hong Kong, Macao, Taiwan, Tunisia …etc.
Environmentally Friendly Production
Our products are produced in strict accordance with the environmental protection requirements stipulated by the country:
2. Unorganized waste gas: Unorganized waste gas meets the standard of GB 16297-1996 "Comprehensive Emission
3. Noise: The noise complies with the GB12348-2008 "Environmental Noise Emission Standards for Industrial Enterprises
1. Sewage: Sewage discharge meets the requirements of GB/T 31962-2015 "Sewage Discharge Urban Sewer Water
Quality Standard" Class 1B standard requirements
2. Unorganized waste gas: Unorganized waste gas meets the standard of GB 16297-1996 "Comprehensive Emission
Standard of Air Pollutants"
3. Noise: The noise complies with the GB12348-2008 "Environmental Noise Emission Standards for Industrial Enterprises
and Plant Boundaries" Category 2 standard requirements.
Work Shop
Ellipsoidal Head
Clad plate of of Ellipsoidal head
Φ3200mm, thickness (20+3)mm
Nickle and Q345R
Inside Coil
The inside coil could be single layer or double layer ... as the process requirement, material could be stainless steel or other alloy steel, nice polished
20m3 Clade Plate Reactor in Production
High Pressure Reactor normally use clade plate of Q345R carbon steel + stainless steel or alloy steel.
Two Oxygen Welding
40m3 Stainless Steel Reactor welding half-Pipe Jacket
Automatic Welding
40m3 Stainless Steel Reactor Top head and Bottom Head Welding
Argon-arc Welding
12m3 Zirconium Reactor welding
80m2 NDT Room
All the welded part should be inspected in NDT Room
Spectrograph
All the raw materials will need to be inspected by Spectrograph
Pressure Test
All the product will need to do hydrostatic test before delivery
Motor and Reducer
Customers can specify motor brand, like ABB, Siemens, Guomao ..etc.
Magnetic Seal
If presure higher than 1MPa, we suggest to use Magnetic Seal, becauese magnetic seal could be no leaking under high pressure.
Electric Control Cabinet
All Lab Equipmnent with Electric Control Cabinet. Industrial big volume reactor could have as requirement
Product Category
Lab Chemical Reactor
Successful Cases
—————————————————————————————————
We service wide range of industrial company, like environmental protection in petroleum,chemical industry, medicine, dyes, mining and metallurgy, scientific research institutes, colleges (chemical, polymer, material engineering, organic and inorganic chemical.
We can help customers to design the whole plant as the process requirement.
Packing & Delivery
We service for abroad market for many years, we have served customer from Slovakia,German, Ireland, Switzerland, Poland, Bulgaria, Russia, Czech, America, Canada, Australia, Brazil, Turkey, UAE, Israel,Oman, India, Thailand, Indonesia, South Korea, Pakistan, Hong Kong, Macao, Taiwan, Tunisia …etc.
All the equipment could delivery by ship or airplane as customer's wish.
