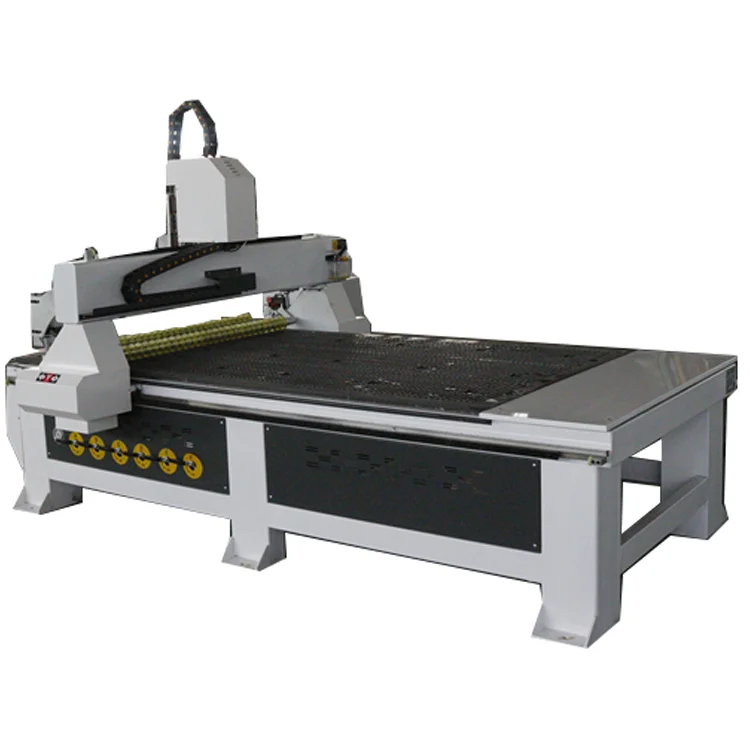

Woodworking cnc router for wood acrylic plywood MDF 1325 wood CNC router machine
Available machine tool machining sizes
atc cnc router automatic tool change automatic wood carving machine
1300x2500；1500x3000；2000x3000；2000x4000.
Main Features
★High temperature tempering treatment, welded steel tube T type machine bed and T type gantry, high rigidity, better bearing.
★Linear guide rail, ensuring the higher precision and long life time.
★China air or water cooling spindle, more powerful, low noise, not easy to break cutters.
★Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.
★Linear guide rail, ensuring the higher precision and long life time.
★China air or water cooling spindle, more powerful, low noise, not easy to break cutters.
★Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.
Specification
NO. | Description | Parameter | ||
1 | Working Area | 1300mm*2500mm*200mm | ||
2 | Positioning Accuracy (mm) | 0.02mm | ||
3 | Repeatability (X/Y/Z) (mm) | 0.01mm | ||
4 | Voltage | AC380V±10%/50~60Hz (220V is optional) | ||
5 | Linear rail | 20# linear guide rail for XYZ axes | ||
6 | Axes transmission | 2510 TBI Transmission | ||
7 | Spindle speed | 0-24000rpm/min | ||
8 | Spindle power | 4.5KW air cooling spindle | ||
9 | Inverter | BEST inverter | ||
10 | Motor | 86450B Stepper motor | ||
11 | Driver | YAKO-2D68 | ||
12 | Control System | NC Studio | ||
13 | Software | TYPE3/ARTCAM | ||
14 | Application | Wood Acrylic PVC Engraving Cutting | ||
15 | Dimension(L*W*H) | 3100*2100*1700mm | ||
16 | Net weight | 650KG | ||
17 | Packing size(L*W*H) | 3300*2200*1800mm | ||
18 | Gross weight | 1000KG | ||
Product details

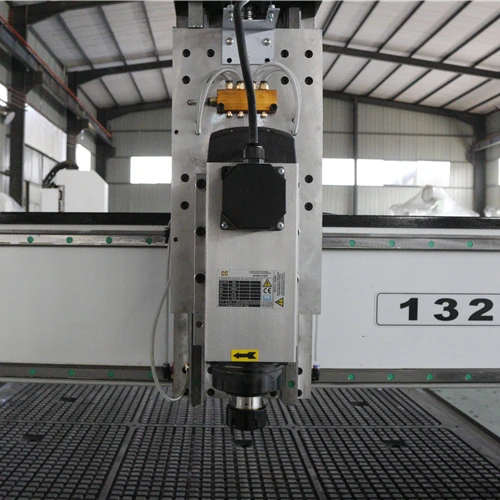

Air Cooling Spindle

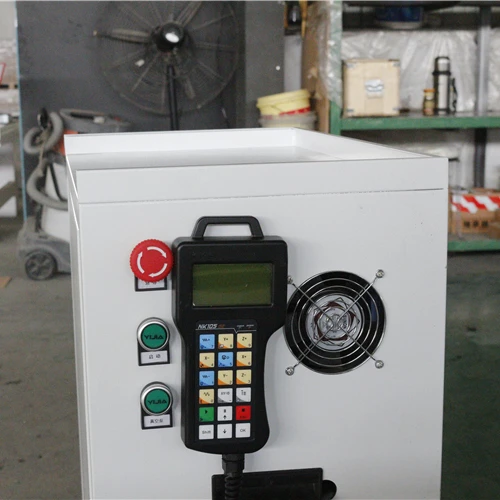

Cabinet box

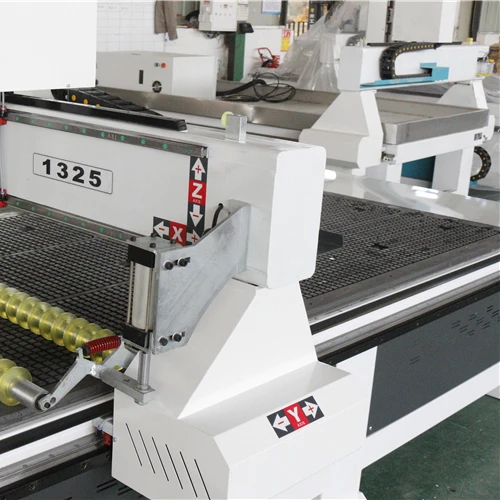

Press roller (Option)
Aluminium T-slot table
Side rail
Linear guide rail & helical rack
Drag chain
Auto Lubrication
Positioning cylinder (Option)
Tool setting device
Optional accessories
Water cooled spindle
A axis
DSP-Control system
Vacuum cleaner
Vacuum pump
Adsorption platform
APPLICATIONS
Applicable industies:Furniture,wood door,cabinet,mdf, Arts & Crafts,wood sculptures,3D relief Business Signs,aluminum and soon.with Atc tool magazine,can improve work efficiency.
Slotting
Cutting
Carving
Packing & Delivery
TRAINING AND USE
1. We will supply with the machine operation manua in English version for installing and operation.
2. Customers can come to our factory training
3. Our engineers can go to customer's factory training
2. Customers can come to our factory training
3. Our engineers can go to customer's factory training
WARRANTY AND AFTER SERVICE
1. 3 years with laser generator. if machine has any question exclusive of man-made damage, we can send you new parts for free with in warranty period.
2. We will supply after service 24 hours, customers can contact us any time.
3. When some problems can't be solved by
customers, our engineer can help.
2. We will supply after service 24 hours, customers can contact us any time.
3. When some problems can't be solved by
customers, our engineer can help.
machine is delivered by standardwooden case with protective cover.
About Us
Jinan ZCUT CNC Equipment Co., Ltd. was established in 2001, specializing in the production of woodworking engraving machine, Buddha engraving machine, jade engraving machine, three-dimensional engraving machine, plasma cutting machine, CNC machining lathe and other products. Our products are widely used in woodworking engraving industry, jade processing industry, Buddha image carving industry, three-dimensional sculpture technology, acrylic plastic molding industry, etc. The current production of CNC equipment products has seven series of more than 30 models. The annual production capacity is 2,000 units.
ENTERPRISE CERTIFICATION
FAQ
1.Q:This is the first time I buy the machine, is it easy to operate?
IMC:We can provide the operation manual or video for guiding. If it is hard for you
IMC:We can provide the operation manual or video for guiding. If it is hard for you
learning,we can also help you by "Team viewer"online, with telephone or Skype explain.
2.Q:ARE YOU TRADING COMPANY OR MANUFACTURER ?
IMC: We are factory.
3.Q:Can I visit your factory?
IMC:Yes! We greatly welcome customers to visit our factory!
4.Q:What is your MOQ?
IMC:Our MOQ is 1 set machine. We could send machine to your country port directly, please
IMC: We are factory.
3.Q:Can I visit your factory?
IMC:Yes! We greatly welcome customers to visit our factory!
4.Q:What is your MOQ?
IMC:Our MOQ is 1 set machine. We could send machine to your country port directly, please
tell us your port name. There will be best shipping freight and machine price send to
you.
