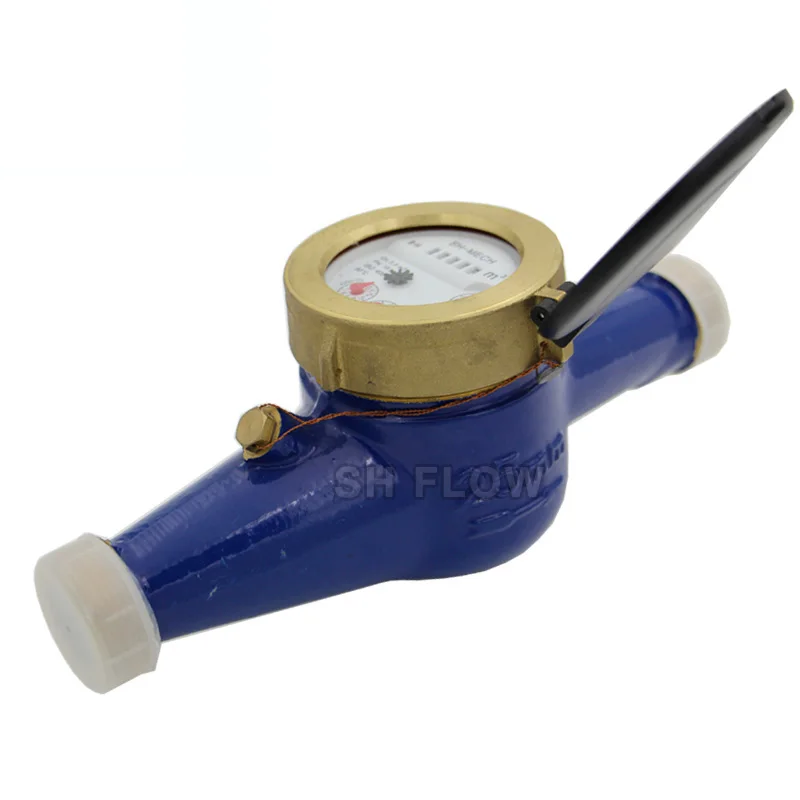

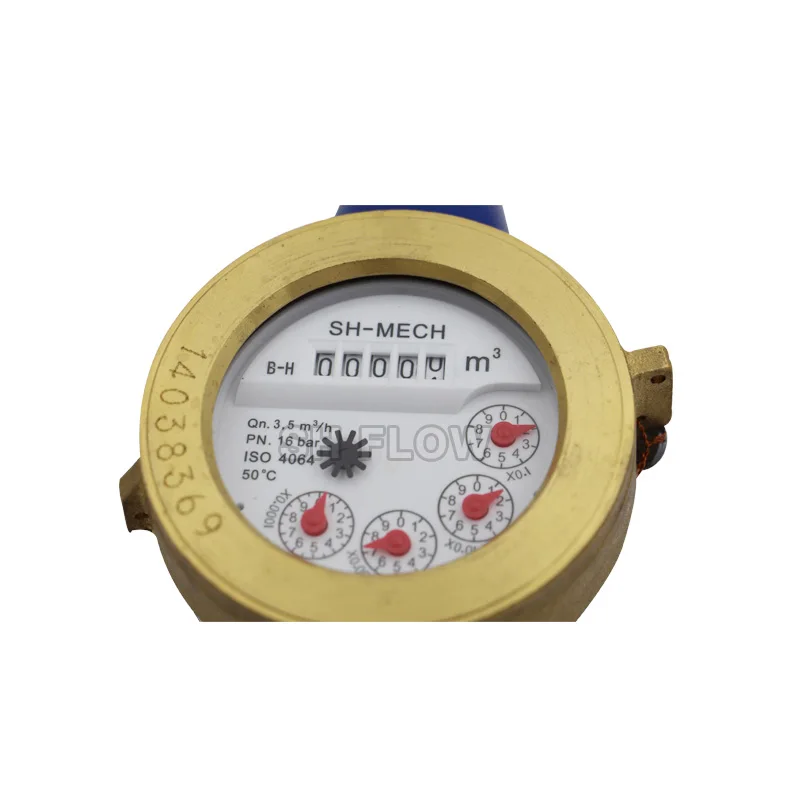

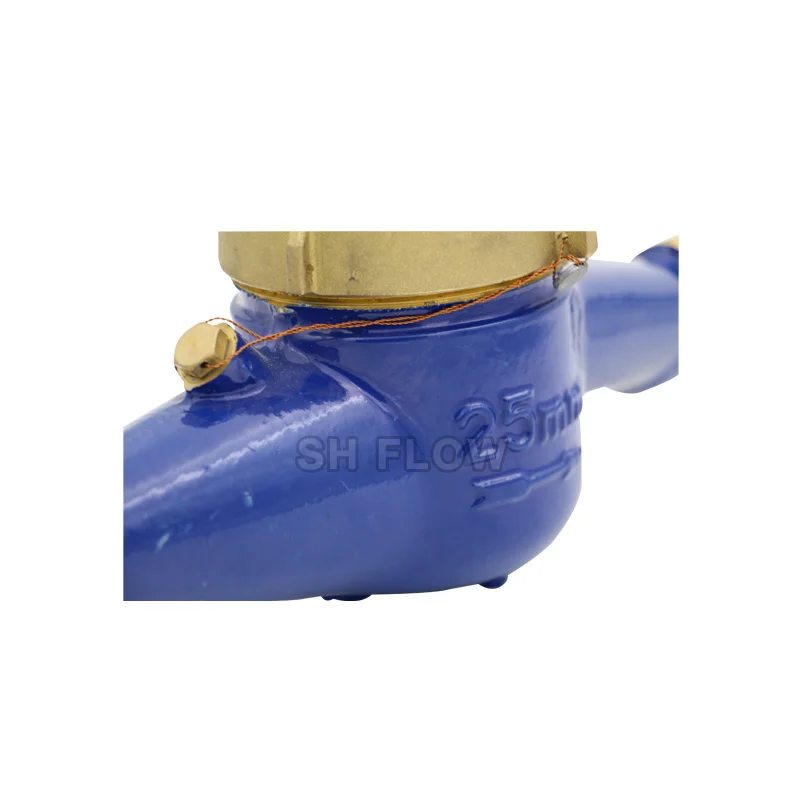

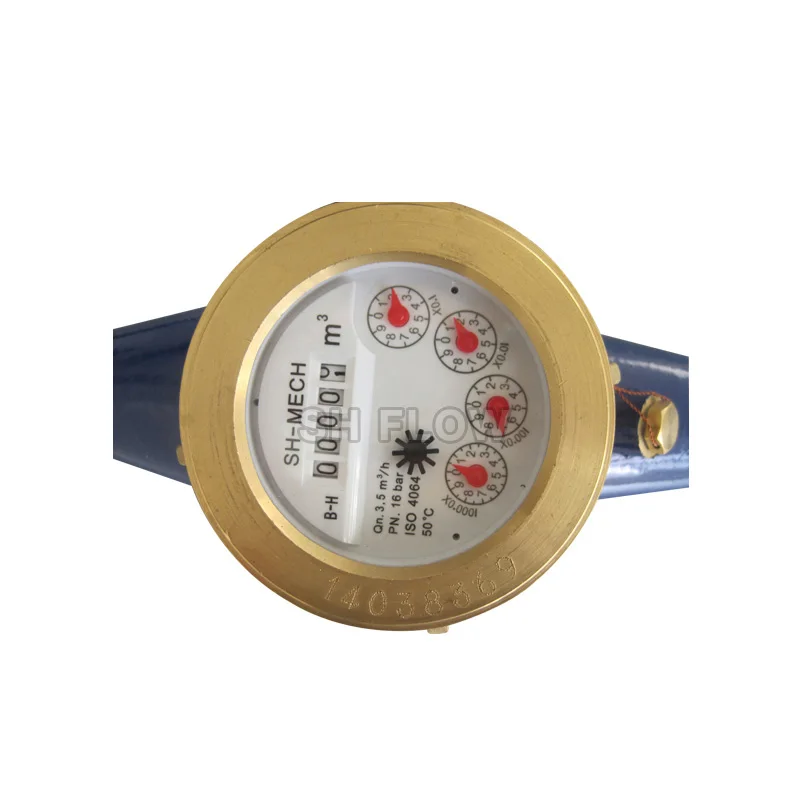

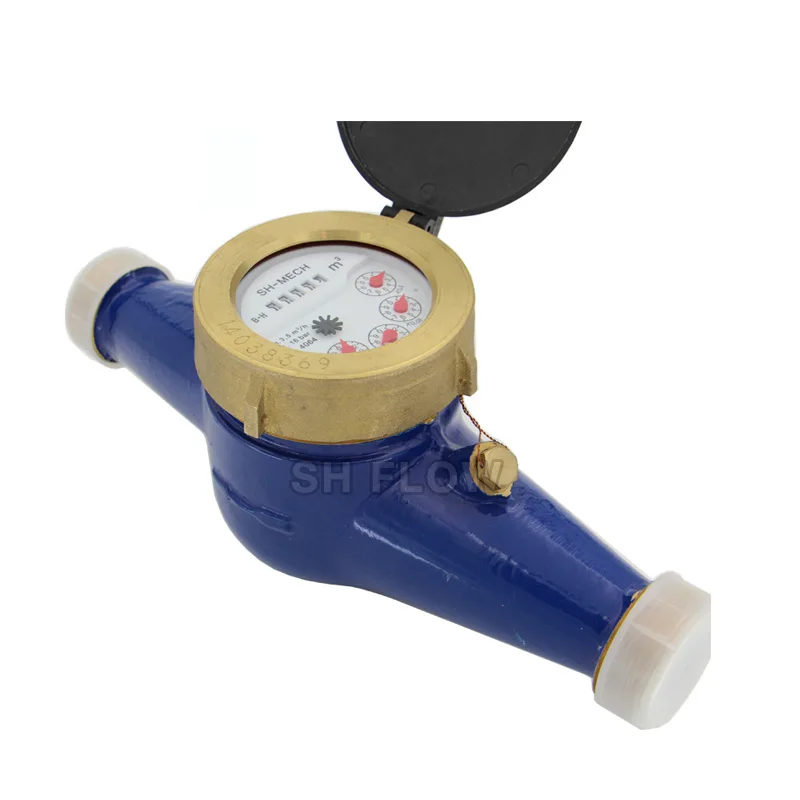

25 мм многоструйный сухой счетчик холодной воды Импульсный для дома
- Категория: >>>
- Поставщик: Xingtai Shanghong Flow Equipment Technology Co. Ltd.
Сохранить в закладки 1600292166519:
Описание и отзывы
Характеристики
Product show
Product details
Product parameter
DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 50 |
Size(inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2" |
Length(L) | 165/190 | 190 | 260 | 260 | 300 | 300 | 280 |
Width(W) | 98 | 98 | 103.5 | 103.5 | 125 | 125 | 160 |
Height(H) | 116 | 117 | 124 | 124 | 162 | 162 | 187.5 |
Connecting Thread D | G3/4B | G1B | G11/4B | G11/2B | G2B | G21/2B | Flange end |
Weight(kgs) | 1.65 | 1.79 | 1.85 | 2.68 | 5.25 | 7.25 |
Technical parameter
DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | |||||||
Size(inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | |||||||
Q4(l/h) | 3125 | 5000 | 7875 | 12500 | 20000 | 31250 | |||||||
Q3(l/h) | 2500 | 4000 | 3600 | 10000 | 16000 | 25000 | |||||||
R=80 | Q2(l/h) | 50 | 80 | 126 | 200 | 320 | 400 | ||||||
Q1(l/h) | 31.25 | 50 | 78.75 | 125 | 200 | 250 | |||||||
R=100 | Q2(l/h) | 40 | 64 | 100.8 | 160 | 256 | 400 | ||||||
Q1(l/h) | 25 | 40 | 63 | 100 | 160 | 250 | |||||||
R=125 | Q2(l/h) | 32 | 51.2 | 80.64 | 128 | 204.8 | 200 | ||||||
Q1(l/h) | 20 | 32 | 50.5 | 80 | 128 | ||||||||
R=160 | Q2(l/h) | 22.5 | 40 | 63 | 100 | 160 | 400 | ||||||
Q1(l/h) | 15.62 | 25 | 39.37 | 62.5 | 100 | 250 | |||||||
Max.Reading(m³) | 99,999 | 99,999 | 99,999 | 99,999 | 99,999 | 99,99 | |||||||
Min.Reading(Liter) | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | |||||||
Max.Pressure(Bar) | 16 | 16 | 16 | 16 | 16 | 16 | |||||||
Pressure Loss(P) | 63 | ||||||||||||
Max.Temperature | T=50/90 | ||||||||||||
Pulse Output Option | Vmax=24V | ||||||||||||
Imax=100mA | |||||||||||||
Pmax=2W | |||||||||||||
Product description
Application
Measuring the volume of cold (hot) water passing through the pipeline.
water meter is used for home or apartment
Features
Magnetic Drive, Lower transmission resistance.
Magnetic shield, for external magnetic field protection.
Sealed dry register ensures long time clear reading.
External regulating device.Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.
With high accuracy
For horizontal use
Accessories include Strainer, Rotary piston, Connection Widget, connector fitting
Optional Features
Register sealed type: Dry type; Semi-dry type; Super-dry type.
Accuracy: R=80/100/125/160/class b/class c.
Size: 15~50mm.
Cold / hot water.
Non return valve.
Reed switch option.
Several lengths and connections availavle on request.
Thread end type: BSP / NPT.
Materials: Plastic, brass,Brass interface,brass material
plastic Working pressure: PN10
brass Working pressure: PN16
Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display
Standards Compliance
Technical data conform to international standard ISO 4064.
Working Conditions
Water temperature: 0.1℃~50℃ for cold water meter;0.1℃~90℃ for hot water meter.
Water pressure: ≤1.6Mpa.
Measuring the volume of cold (hot) water passing through the pipeline.
water meter is used for home or apartment
Features
Magnetic Drive, Lower transmission resistance.
Magnetic shield, for external magnetic field protection.
Sealed dry register ensures long time clear reading.
External regulating device.Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.
With high accuracy
For horizontal use
Accessories include Strainer, Rotary piston, Connection Widget, connector fitting
Optional Features
Register sealed type: Dry type; Semi-dry type; Super-dry type.
Accuracy: R=80/100/125/160/class b/class c.
Size: 15~50mm.
Cold / hot water.
Non return valve.
Reed switch option.
Several lengths and connections availavle on request.
Thread end type: BSP / NPT.
Materials: Plastic, brass,Brass interface,brass material
plastic Working pressure: PN10
brass Working pressure: PN16
Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display
Standards Compliance
Technical data conform to international standard ISO 4064.
Working Conditions
Water temperature: 0.1℃~50℃ for cold water meter;0.1℃~90℃ for hot water meter.
Water pressure: ≤1.6Mpa.
Related Products
About us
You need a good solution for water metering---Catering all your needs
As the China’s professional manufacturer and distributorsince 2013, we have developed a comprehensive water meter range and a complete solution for the Commercial ,agriculture,Industrial and Domestic market on Mechanical type water meter and smart water meters. Moving with the changes in technology and precision metering has been the mission of the company since its genesis and we are adding metering that can support water sustainability using. Since 2017, we start the export smart water meters to the whole world, and hope more and more countries and region people can save the water with us together with the smart technology and system. Nowadays, SHMETERS have already become onethe main important exporter for water flow meters in China. We will provide your product to your hand in time and keep you informed of process with your order throughout the whole sales. From the strictly QC inspection to strictly cost control and five star quality services, we believe that you will have more solution on water metering.
Certificate
Package
FAQ
1.Warranty?
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date ofacceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the SHMETERS.
2. After-sales service
Instalation intructions, include software parts and water meters parts;
Support data butt to the third management system;
Installation supervision, commissioning ad training on site;
Keep long time follow up & services even beyond warranty time.
Instalation intructions, include software parts and water meters parts;
Support data butt to the third management system;
Installation supervision, commissioning ad training on site;
Keep long time follow up & services even beyond warranty time.
Похожие товары

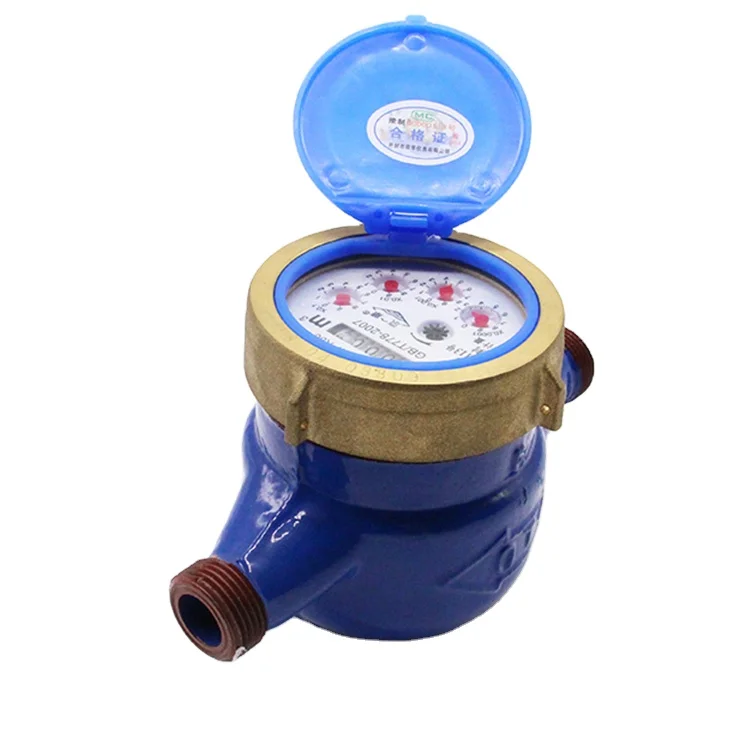

T3-1 через двухканальный сигнал оптом ультразвуковой водомер

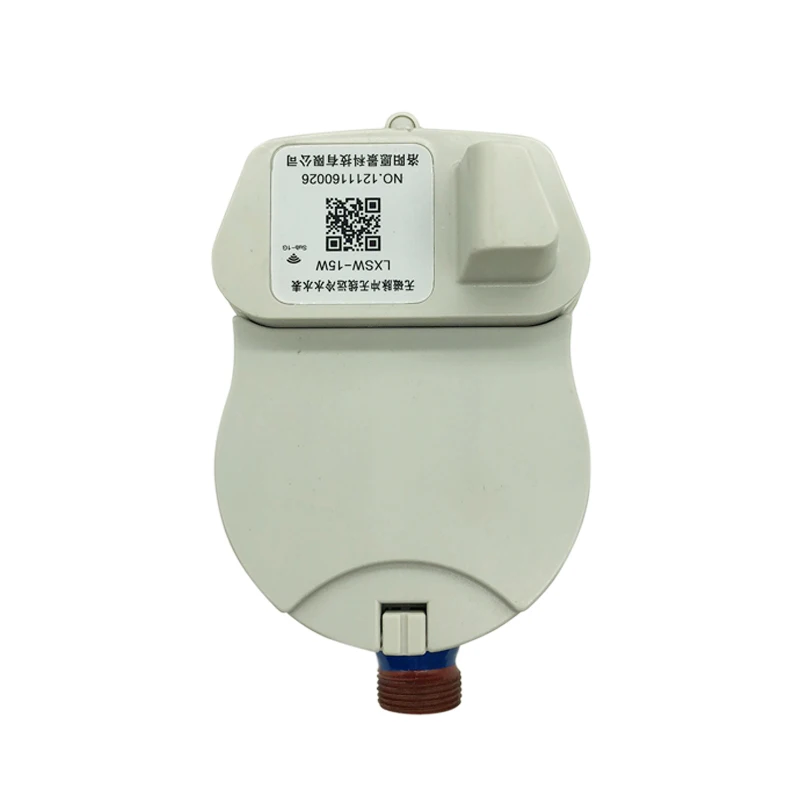

Белый пластиковый Беспроводной интеллектуальный пульт дистанционного считывания Itron модуль счетчика воды
Герконовый переключатель с импульсным выходом и длительным сроком службы, ультразвуковой измеритель воды с сенсорным экраном
460,00 $ - 470,00 $
Оптовая продажа кепки с высоким хвостом бейсболка Кепка логотипом на заказ Мужская умная
15,89 $ - 17,56 $
Счетчик воды machanical класса B, высокоточный Импульсный Измеритель для бытовых помещений

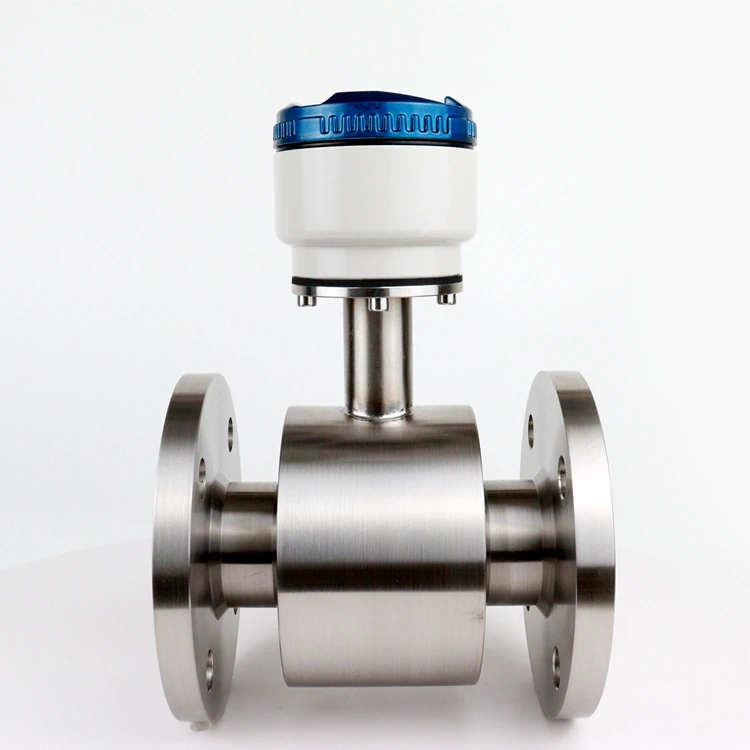

DN80 воды IP67 Сплит Электромагнитный расходомер 316L нержавеющая сталь электромагнитный расходомер воды
