Инвертор PowMr 5 ква кВт 48 в 230 В переменного тока 3 24 Voltronic VM III с зарядным устройством 80 А MPPT Solar PV гибридный солнечный инвертор
- Категория: >>>
- Поставщик: Shenzhen Hehejin Industrial Co. Ltd.
Сохранить в закладки 1600316974551:
Описание и отзывы
Характеристики
Product Description
Overview
This is a multi-function inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in a single package. The comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC or solar charging priority, and acceptable input voltage based on different applications.
This inverter can power various appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioners.
NOTE: This is a wide voltage Hybrid inverter, the voltage that starts to connect to the solar panel must be above 150V for the Hybrid inverter to work normally.
Features
（1）Pure sine wave inverter
（2）Configurable input voltage ranges for home appliances and personal computers via LCD control panel
（3）Configurable battery charging current based on applications via LCD control panel
（4）Configurable AC/Solar Charger priority via LCD control panel
（5）Compatible to utility mains or generator power
（6）Auto restart while AC is recovering
（7）Overload / Over temperature / short circuit protection
（8）Smart battery charger design for optimized battery performance
（9）Cold start function
（2）Configurable input voltage ranges for home appliances and personal computers via LCD control panel
（3）Configurable battery charging current based on applications via LCD control panel
（4）Configurable AC/Solar Charger priority via LCD control panel
（5）Compatible to utility mains or generator power
（6）Auto restart while AC is recovering
（7）Overload / Over temperature / short circuit protection
（8）Smart battery charger design for optimized battery performance
（9）Cold start function

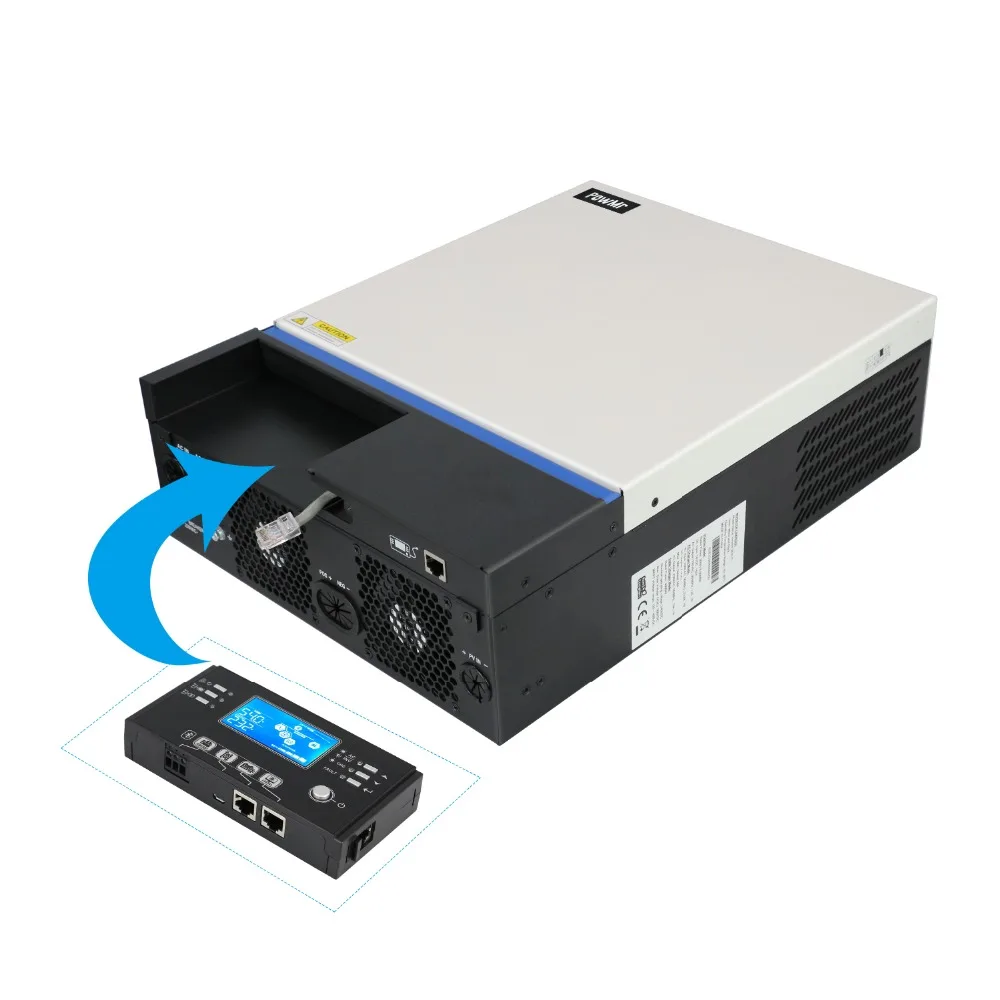

（10）Removable LCD control module
（11）Multiple communication ports for BMS (RS485, CAN-BUS, RS232)
（12）Built-in BLE for mobile monitoring (Requires App), OTG USB function, dusk filters
（13）Configurable AC/PV Output usage timer and prioritization
（11）Multiple communication ports for BMS (RS485, CAN-BUS, RS232)
（12）Built-in BLE for mobile monitoring (Requires App), OTG USB function, dusk filters
（13）Configurable AC/PV Output usage timer and prioritization
Basic System Architecture
The following illustration shows basic application for this unit. It also required the following devices to have a complete running system:
Generator or Utility mains.
PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
The following illustration shows basic application for this unit. It also required the following devices to have a complete running system:
Generator or Utility mains.
PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power various appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioners.
Note:
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
Specification
Inverter Model | POW-VM3K-III | POW-VM5K-III | ||||
Input voltage Waveform | Sinusoidal（Utility or generator） | |||||
Nominal Input Voltage | 230Vac | |||||
Max AC Input Voltage | 300Vac | |||||
Nominal Input Frequency | 50Hz/60Hz(Auto detection) | |||||
Output Short Circuit Protection | Circuit Breaker | |||||
Efficiency(Line Mode) | ﹥95%(Rated R load, battery full charged) | |||||
Transfer Time | 10ms typical (UPS); 20ms typical(Appliances) | |||||
Rated Output Power | 3KVA/3KW | 5KVA/5KW | ||||
Output Voltage Waveform | Pure Sine Wave | |||||
Output Voltage Regulation | 230Vac±5% | |||||
Peak Efficiency | 90% ~ 93% | |||||
Overload Protection | 5s@≧130% load;10s@105~130% load | |||||
Surge Capacity | 2*rated power for 5 seconds | |||||
Nominal DC Input Voltage | 24Vdc | 48Vdc | ||||
Cold Start Voltage | 23.0Vdc | 46.0Vdc | ||||
Utility Charging Mode | ||||||
Charge Algorithm | 3-Step | |||||
AC Charge Current（Max） | 40Amp（@V i/p=230Vac） | 60Amp（@V i/p=230Vac） | ||||
Bulk Charging Voltage | Flooded Battery | 29.2 | 58.4 | |||
AGM/GEL Battery | 28.2 | 56.4 | ||||
Floating Charging Voltage | 27Vdc | 54Vdc | ||||
MPPT Solar Charging Mode | ||||||
Max PV Array Power | 4000W | 5000W | ||||
Nominal PV Voltage | 240Vdc | 320Vdc | ||||
Start-up Voltage | 150Vdc±10Vdc | |||||
PV Array MPPT Voltage Range | 120~450Vdc | |||||
Max PV Array Open Circuit Voltage | 500Vdc | |||||
Max Charge Current (AC Charger plus solar charger) | 80Amp | |||||
Operating Temperature Range | -10℃ to 50℃ | |||||
Storage temperature | -10℃ to 60℃ | |||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||
Dimension(D*W*H),mm | 115*300*400mm | |||||
Net Weight,kg | 9kg | 10kg | ||||

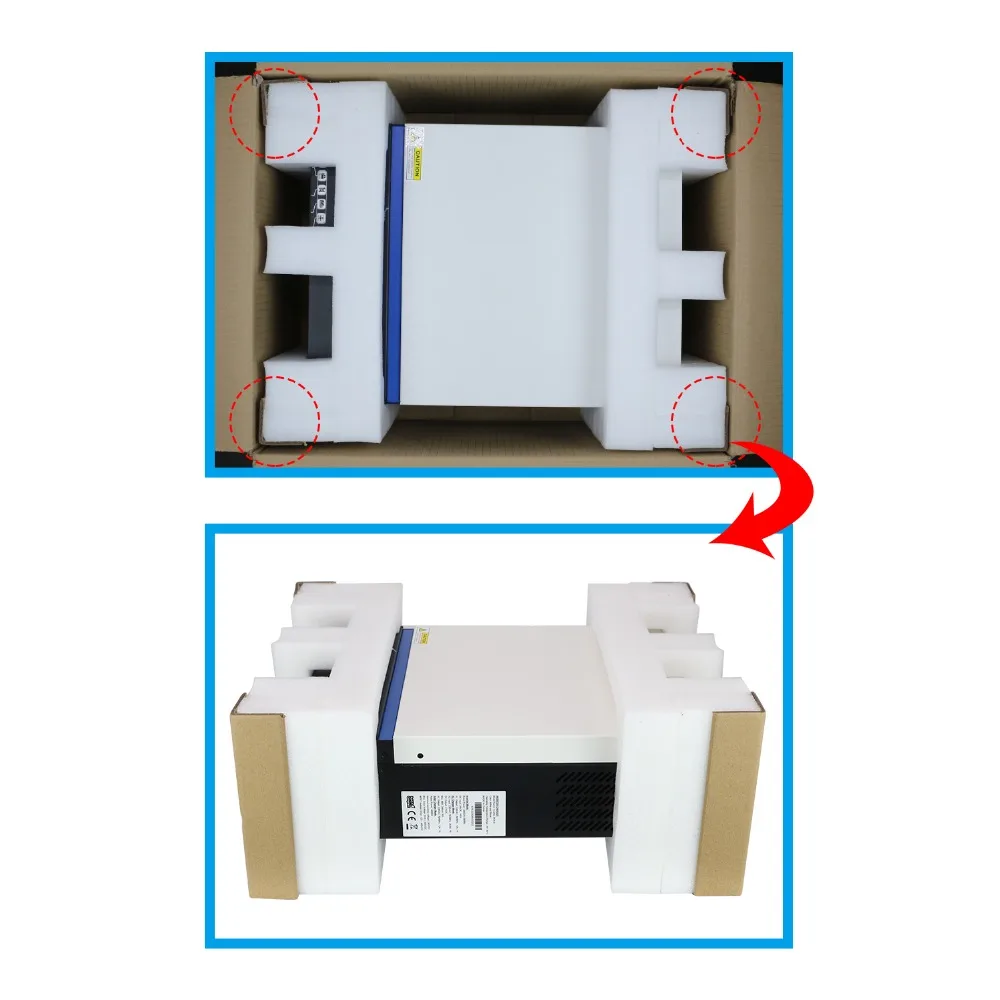

Packing & Delivery
FAQ
Q1. Would you accept to use our logo ?
A: All of our products are accepted to print your logo on the enclosure and package box, it depends on the amount, from 200pcs to 1000pcs.
A: All of our products are accepted to print your logo on the enclosure and package box, it depends on the amount, from 200pcs to 1000pcs.
Q2. We want to know month capacity.
A: 20000-30000PCS per Month.
A: 20000-30000PCS per Month.
Q3. Where is your main market?
A: Our main market, United States, European and Australia.
A: Our main market, United States, European and Australia.
Q4. What kind of certificate you have ?
A: CE certificates.
A: CE certificates.
Q5. How long of the warranty or guaranty?
A: 1 Year
A: 1 Year
Q6. How to pay for solar controller?
A: We accept paypal, western union, T/T. If you have any good payment, we also can accept.
A: We accept paypal, western union, T/T. If you have any good payment, we also can accept.
