Products Description

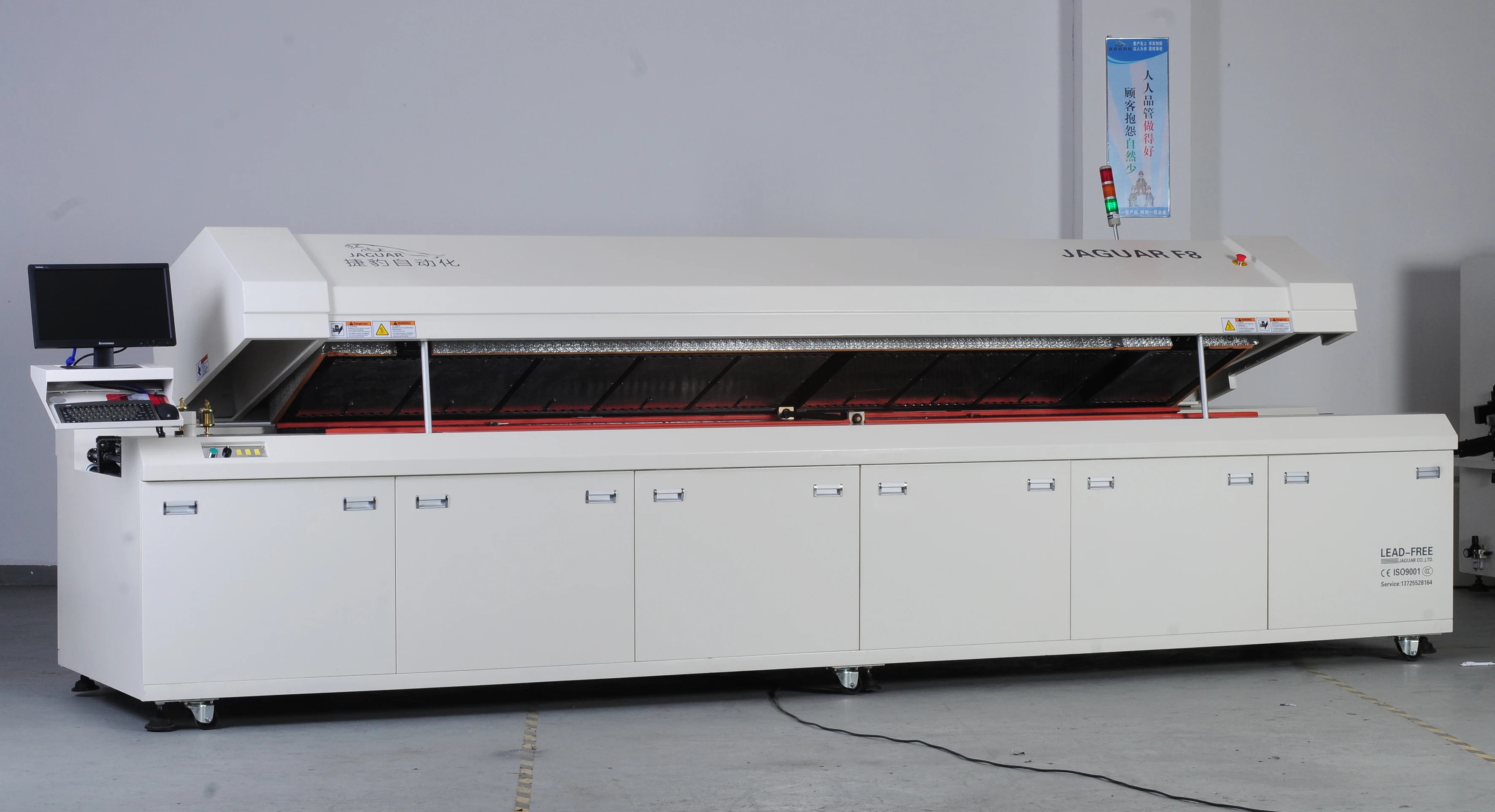

JAGUAR 8 Zones Lead-free Hot Air Reflow Oven F8
Introduction:
1. The brand computer and Siemens PLC intelligent control system, high precision temperature control is ± 1-2 ℃ (if the computer crash accident, it can realize off-line work, do not affect production) and to ensure that the control system is stable and reliable;
2. Windows XP operating interface with powerful and simple operation.

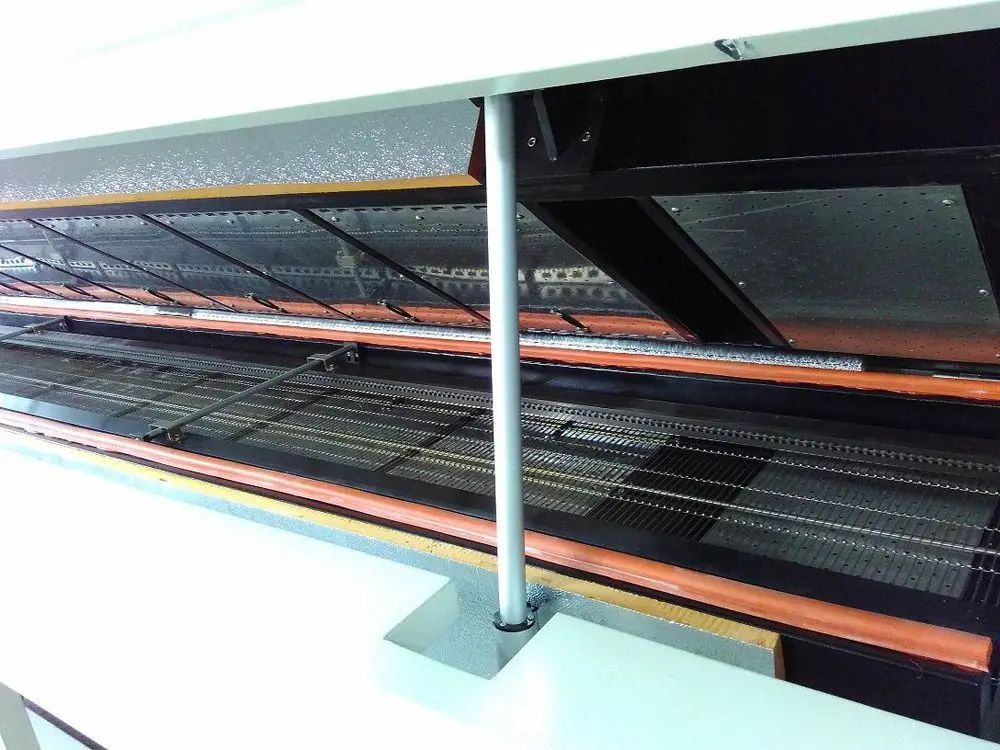

3.In order to ensure safety and reliability, the cylinder body can be lift up automatically.

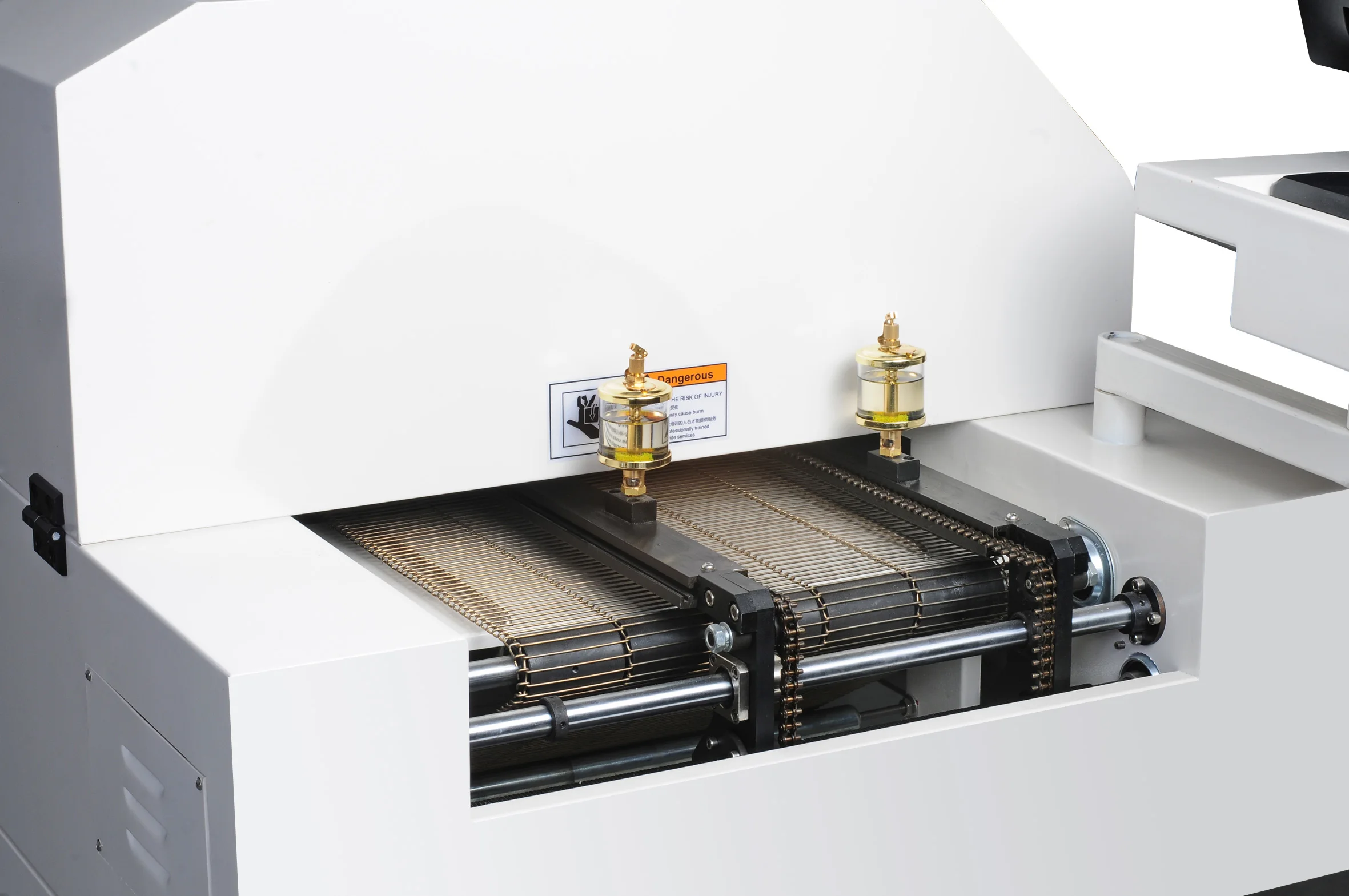

4. Device is equipped with mesh belt, transport smoothly, no shaking and no deformation, which ensure smooth PCB transport. Synchronous guide transmission mechanism and automatic SMT machine online connection ensure that guide adjustable wide precision and high service life.

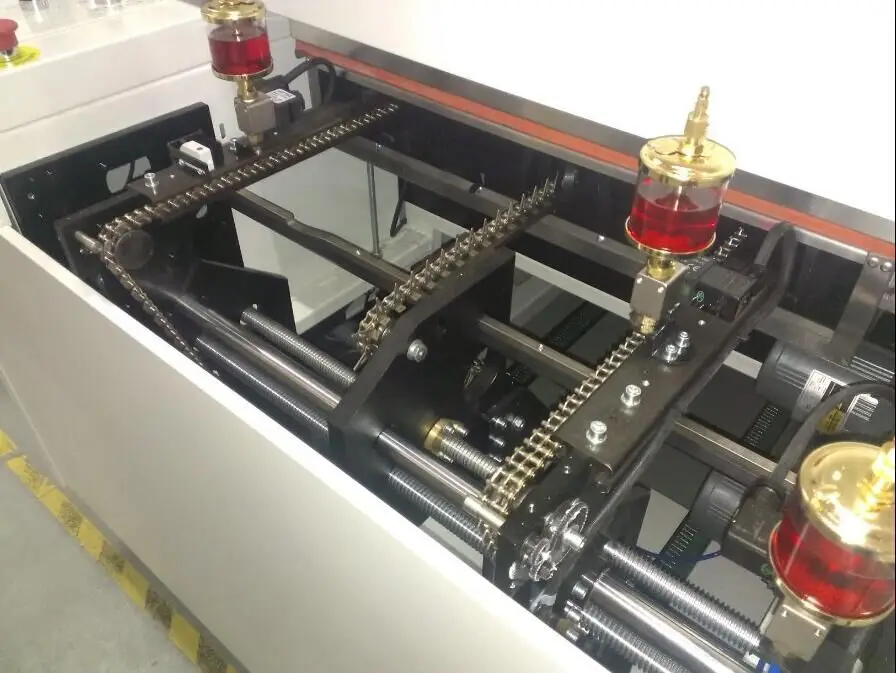

5. Automatic control lubrication system and automatic lubrication transmission chain.
6.All heating zone control by computer PID(upper temperature zone and lower temperature zone implementation independent temperature control, that means it can divide temperature area heat, in order to reduce starting power)
7. Net/chain transmission by computer to carry out the whole closed loop control, which can meet different kinds of PCB production at the same time.
8. With fault sound and light alarm function.
9. With leakage protector, ensure that the operating personnel and control system security.
10.The built-in UPS and automatic delay shutdown system guarantee return welder in power or overheat do not damaged PCB and the machine
11. The German ERSA world leading microcirculation heating mode, and the upper and lower independent air microcirculation system, temperature uniformity and thermal compensation high efficiency, high efficient supercharged accelerated air duct, greatly improve the circulating hot air flow, heat up temperature quickly (about twenty minutes), thermal compensation for high efficiency, high temperature welding and curing;
12. The upper and lower every temperature zone with independent temperature inductive sensor, real-time monitoring and compensation every temperature zone balance;
13. Have password administration of the operating system, to prevent the irrelevant personnel changes to the process parameters, operation records management traceability process parameters change process, improve the management convenient. For storing user existing temperature speed setting and Settings of the temperature curve, and can be used for all data and curve printing;
14. Integrated control window, the computer switch, test curve, print curve and data transmission are easily operation, humanized design. Equipped with three-channel temperature curve online testing system, may at any time to check welding objects by the actual temperature curve (without the other match temperature curve tester);

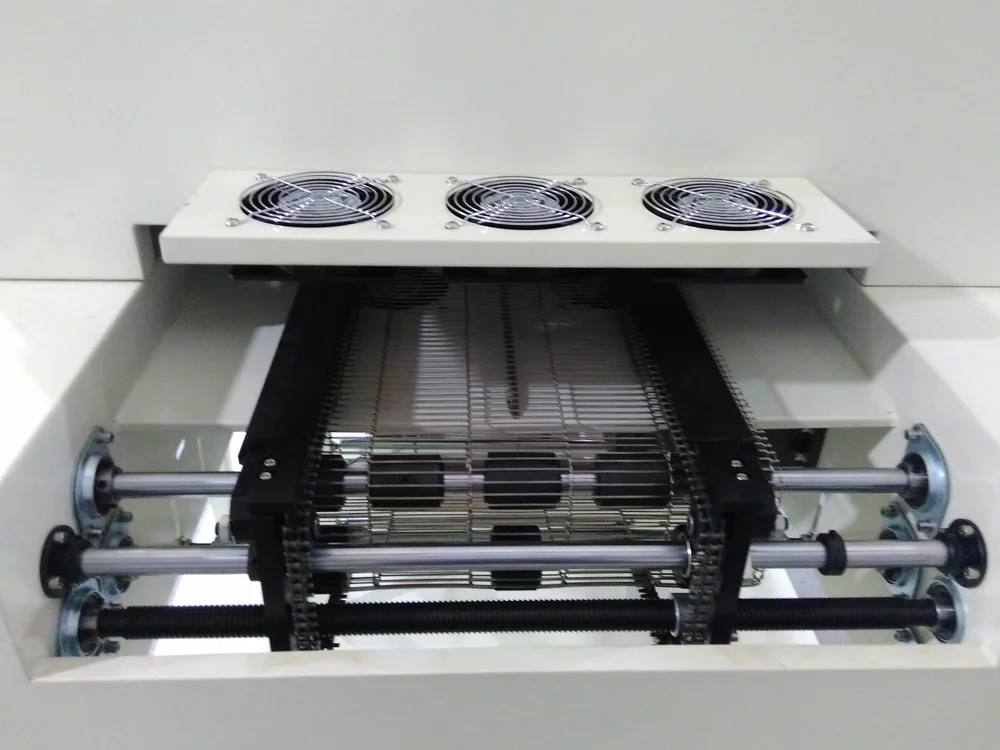

15. From international technology quick cooling system, use a magnifying glass type efficient rapid cooling, cooling speed can reach 3.5 ~ 6 ℃/ SEC, management is very convenient; The outer forced cooling device, ensure that spot crystal effect (Option selected items, the standard configuration for forced
1. The brand computer and Siemens PLC intelligent control system, high precision temperature control is ± 1-2 ℃ (if the computer crash accident, it can realize off-line work, do not affect production) and to ensure that the control system is stable and reliable;
2. Windows XP operating interface with powerful and simple operation.
3.In order to ensure safety and reliability, the cylinder body can be lift up automatically.
4. Device is equipped with mesh belt, transport smoothly, no shaking and no deformation, which ensure smooth PCB transport. Synchronous guide transmission mechanism and automatic SMT machine online connection ensure that guide adjustable wide precision and high service life.
5. Automatic control lubrication system and automatic lubrication transmission chain.
6.All heating zone control by computer PID(upper temperature zone and lower temperature zone implementation independent temperature control, that means it can divide temperature area heat, in order to reduce starting power)
7. Net/chain transmission by computer to carry out the whole closed loop control, which can meet different kinds of PCB production at the same time.
8. With fault sound and light alarm function.
9. With leakage protector, ensure that the operating personnel and control system security.
10.The built-in UPS and automatic delay shutdown system guarantee return welder in power or overheat do not damaged PCB and the machine
11. The German ERSA world leading microcirculation heating mode, and the upper and lower independent air microcirculation system, temperature uniformity and thermal compensation high efficiency, high efficient supercharged accelerated air duct, greatly improve the circulating hot air flow, heat up temperature quickly (about twenty minutes), thermal compensation for high efficiency, high temperature welding and curing;
12. The upper and lower every temperature zone with independent temperature inductive sensor, real-time monitoring and compensation every temperature zone balance;
13. Have password administration of the operating system, to prevent the irrelevant personnel changes to the process parameters, operation records management traceability process parameters change process, improve the management convenient. For storing user existing temperature speed setting and Settings of the temperature curve, and can be used for all data and curve printing;
14. Integrated control window, the computer switch, test curve, print curve and data transmission are easily operation, humanized design. Equipped with three-channel temperature curve online testing system, may at any time to check welding objects by the actual temperature curve (without the other match temperature curve tester);
15. From international technology quick cooling system, use a magnifying glass type efficient rapid cooling, cooling speed can reach 3.5 ~ 6 ℃/ SEC, management is very convenient; The outer forced cooling device, ensure that spot crystal effect (Option selected items, the standard configuration for forced
Product Paramenters
Model | JAGUAR F8 | ||
Heating System | Number of Heating Zone | Top 8 Bottom | |
Heating Passage | 3121mm | ||
Heating Style | Hot Air | ||
Number of Cooling Zone | Up 2 Bottom 2 | ||
Cooling Style | Forced Cooling air | ||
Conveyor System | Max. Width of PCB | 450mm | |
Mesh belt width | 500mm | ||
Conveyor Direction | L→R(or R→L) | ||
Process Height | 900±20mm | ||
Conveyor Type | Mesh and Chain | ||
Conveyor Speed | 0-1800mm/min | ||
Manual Lubrication | Standard | ||
Exhaust Volume | 10m³/min * 2 exhausts | ||
Fixed rail side | Front rail fixed(option: rear rail fixed) | ||
Product Clearance | Top 30mm and bottom 25mm | ||
Control system | Power Supply | 5line 3phase 380V 50/60Hz | |
Control System | Total Power Consumption | 46kw | |
Startup Consumption | 38kw | ||
Normal power consumption | 8KW | ||
Ramp Up Time | About 20 mins | ||
Temp. Setting Range | Room Temperature-300℃ | ||
Temp. Control Method | PID close loop control & SSR driving | ||
Temp. Control Precision | ±1℃ | ||
Temp. deviation on PCB | ±2℃ | ||
Data Storage | Process Data and Status Storage(80GB) | ||
Nozzle Plate | Aluminum Alloy Plate | ||
Abnormal Alarm | Abnormal temperature (extra-high/extra-low temperature) | ||
Board Dropped Alarm | Yellow-warming, Green-normal, Red-abnormal | ||
General | Dimension(L*W*H) | 5300*1320*1490mm | |
Weight | 2000KG | ||
Color | Computer Grey | ||
Details Images
Company Profile
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.
Why Choose Us
FAQ
1) This is the first time I use this kind of SMT wave soldering machine, is it easy to operate?
There is english manual or guide video that show you how to use SMT wave soldering machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If SMT wave soldering machine have any problem after I receive it, how can I do ?
Free parts send to you in SMT wave soldering machine warranty period.If the part is less than 0.5KG, we pay the postage.If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set SMT wave soldering machine, mixed order is also welcome.
4) How can I buy this SMT wave soldering machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
There is english manual or guide video that show you how to use SMT wave soldering machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If SMT wave soldering machine have any problem after I receive it, how can I do ?
Free parts send to you in SMT wave soldering machine warranty period.If the part is less than 0.5KG, we pay the postage.If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set SMT wave soldering machine, mixed order is also welcome.
4) How can I buy this SMT wave soldering machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
