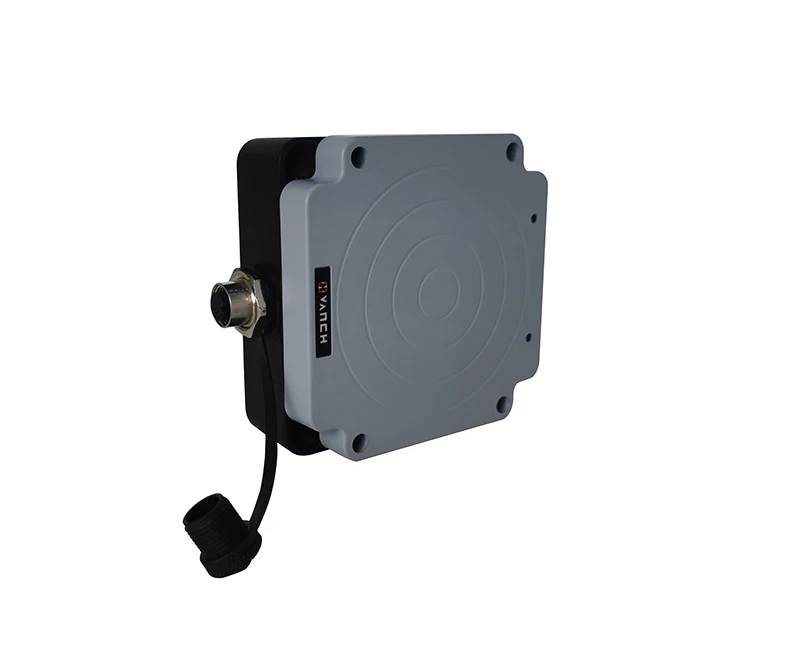

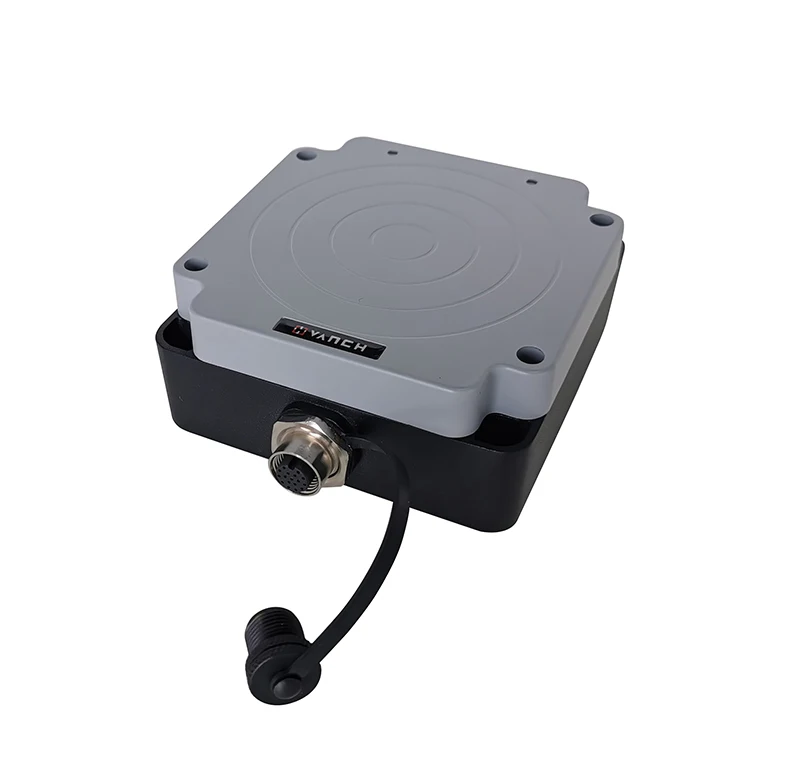

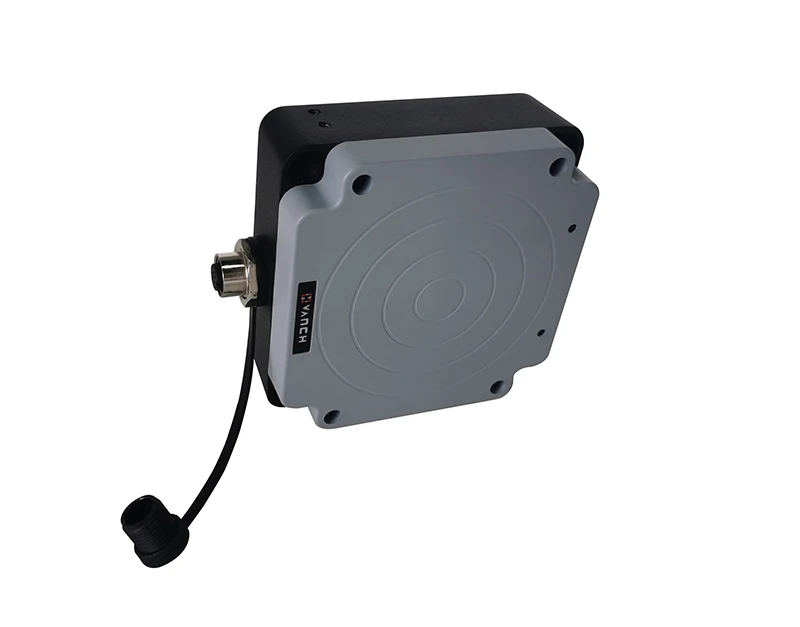

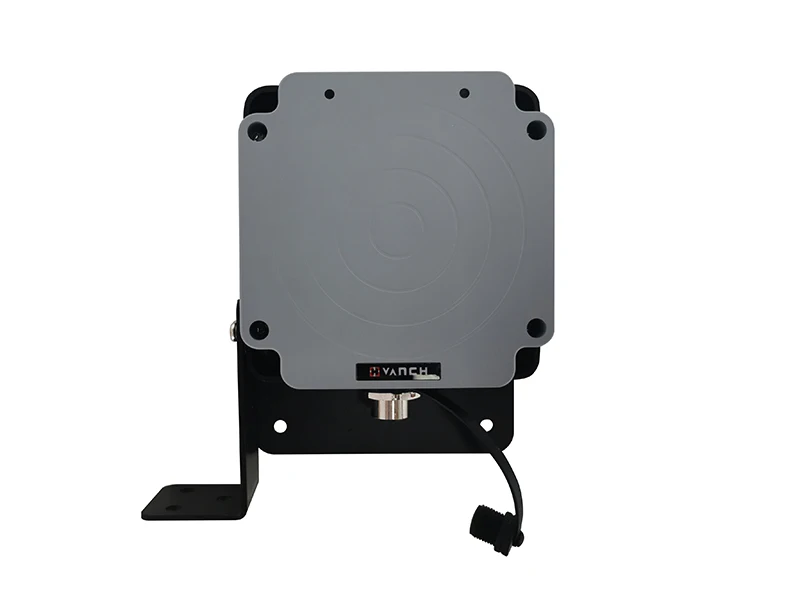

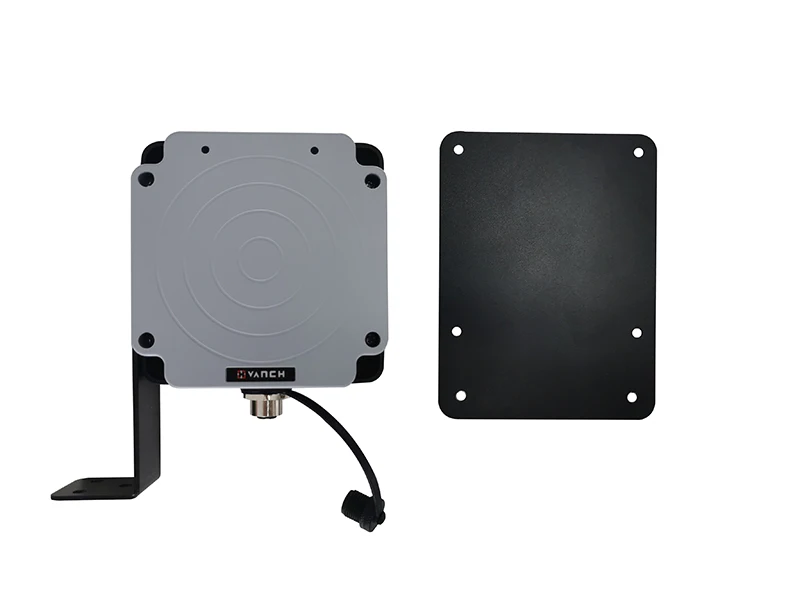

Горячая Распродажа Vanch водонепроницаемый Profinet POE IP67 промышленный Modbus RTU считыватель UHF RFID интегрированный для фабричной производственной линии

 (1) Adopt industrial design, sturdy and durable, and meet the harsh industrial production line environment;

(2) The RFID module uses South Korea’s PR9200 dedicated UHF RFID chip,

(3) Fully support electronic tags that comply with EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C standards;

(4) Working frequency 865-868MHZ, 902-928MHZ (can be adjusted according to the requirements of different countries or regions);

(5) Support VANCH VUP protocol, support ModbusTCP,  ModbusRTU protocol, support TCP/UDP protocol

(6) The card reading distance can be controlled between 30cm-200cm and can be set arbitrarily;

(7) Communication mode supports 10/100M Ethernet port communication, WiFi (optional), support 232/485 communication;

(8) Communication interface (GPIO logic control): using 2 outputs and 2 inputs for control;

(9) Power supply supports wide voltage 9V-24DCDC (3A) power supply;

(10) The RF output power is adjustable from 13 to 27dbm;

(11) The read/disk mode supports continuous (automatic), command, and trigger mode work; data reporting modes: buffer, timing, and instant mode

(12) Upgrade method:

1. Serial port upgrade;

2. Network port upgrade;

(13) The LED flashes to indicate the working status, and the buzzer sounds to facilitate the user to control the working status of the product.

(14) All communication interfaces are isolated and protected, and some key communication interfaces are lightning-proof and anti-static;

(15) Temperature protection: support temperature compensation function in extreme cold areas (optional);

(16) It is suitable for industrial fields such as production line, food processing automated production line, automated sorting system, parts assembly line, engineering forklift or mine engineering vehicle management.;

  Specifications

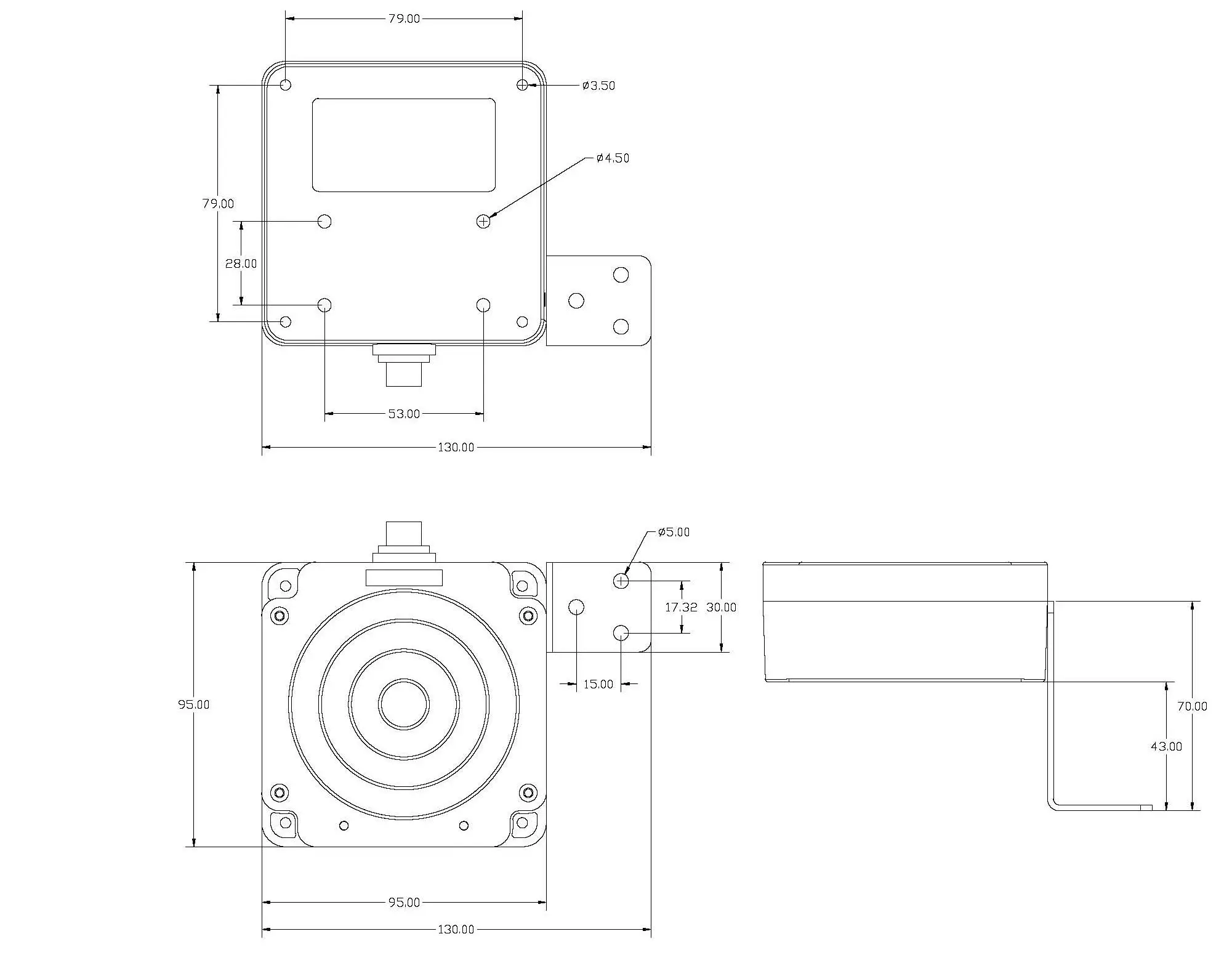

Product Dimension

1. Supply different kinds of UHF RFID reades,antennas, tags(protocol of EPC C1G2  and ISO-18000/6C 902-928MHZ 865-868MHZ and 2.45GHZ active RFID Products

2. Have our own R&D Department to customize RFID Products for you.

3. Assist you to design different kinds of industry RFID solution

4. Products are CE and FCC certified

Shenzhen Vanch Intelligent was established in2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.VANCH products were widely used in City Smart transportation, Electric power system, asset and logistics management, the world's top 500 enterprises, government and military and other fields

Certificate and Honors:

Our Showroom:

Trade Shows:

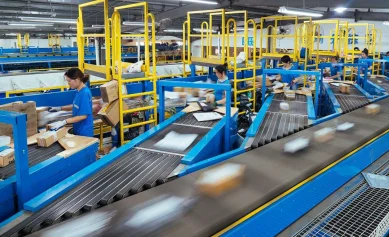

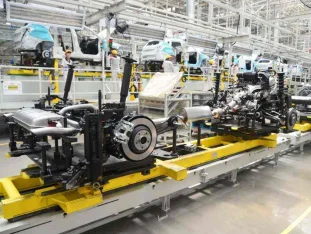

Our Applications:
