16 a amp Уровень 2 ev зарядное устройство smart wallbox портативное evse 10a 16a Тип 3 контакта cee

Сохранить в закладки 1600340653493:


Цена:288,00 $ - 316,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

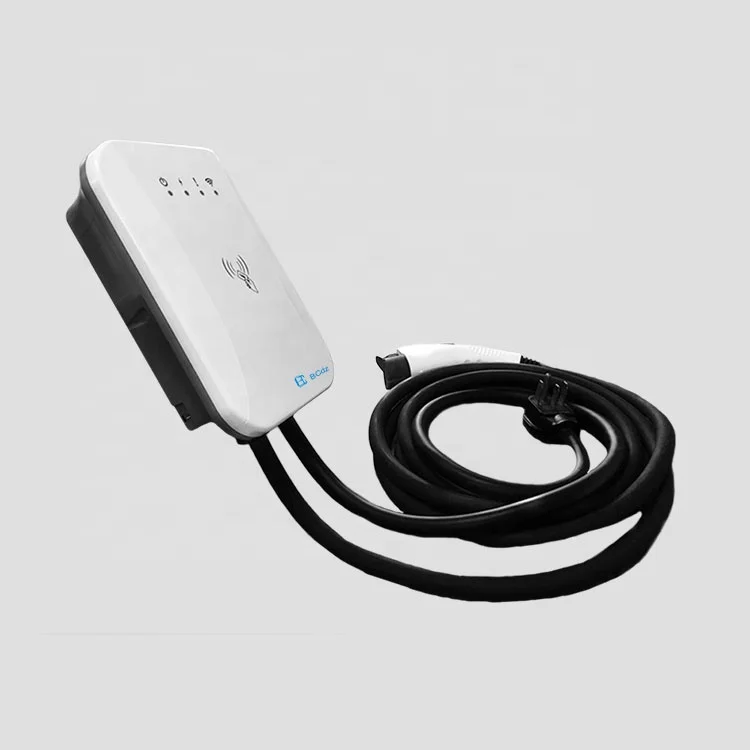

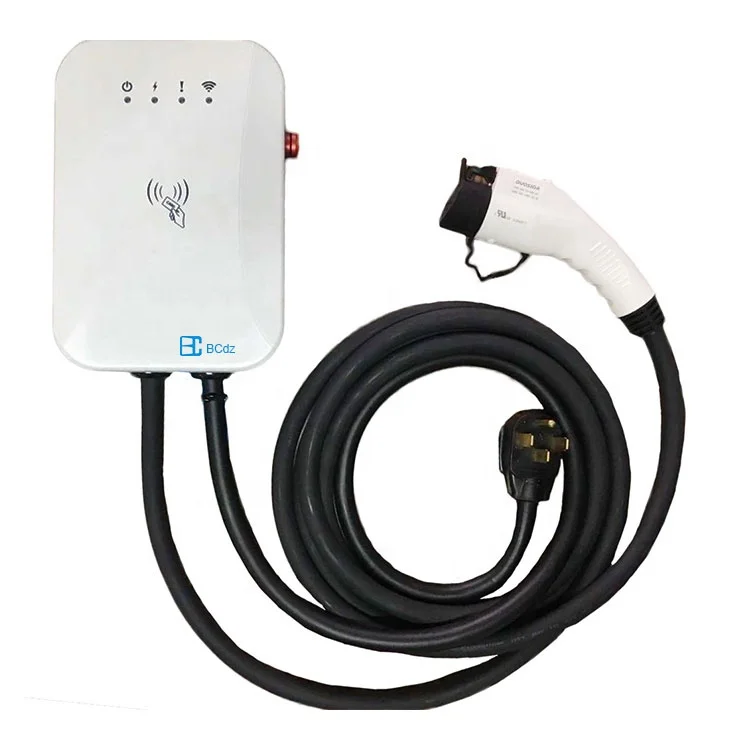

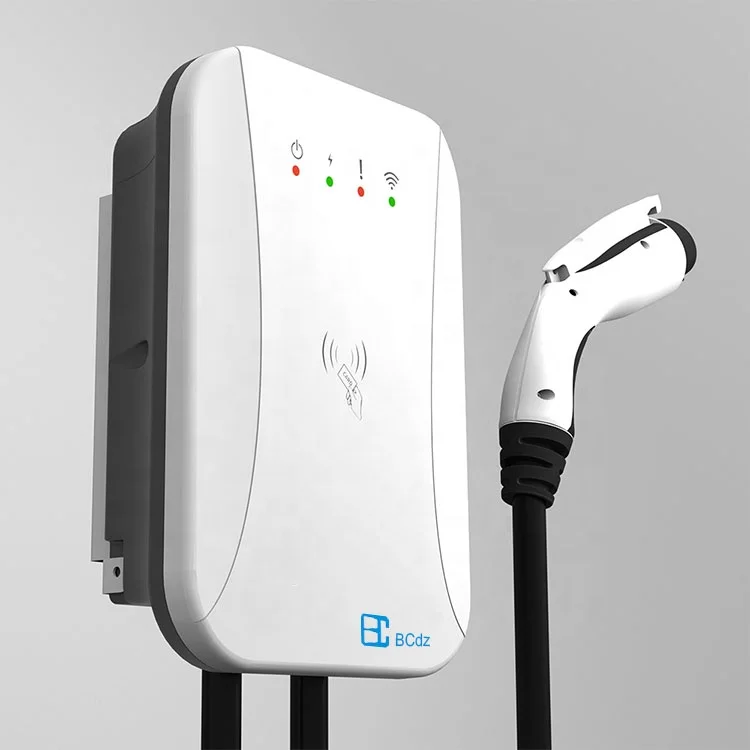

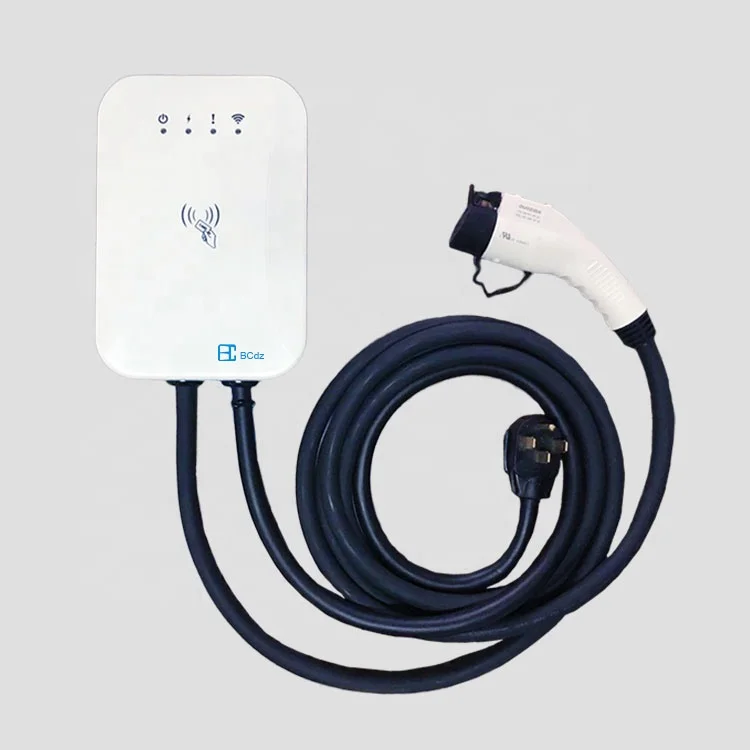

Wallbox Type 2 7kw AC Wall Mounted Box Charging Pile EV Charger




Specification


Wall mounted EV charger specification
US Standard
EU Standard
Charging Connector Type
SAE J1772 (Type 1)
IEC 62196-2 (Type 2)
AC Power Input Rating
AC Level 2, 240V
230V±15%
Frequency Rating
50/60 Hz
AC Power Output Rating
3.5kw/16A
7kw/32A
10kw/40A (US Standard optional)
User Interface & Control
Emergency Stop Button
Yes
Plug-and-Charging
Yes
RFID Card Charging
Yes
App Charging
Yes
Ethernet Interface
Yes
Wifi Function
Yes
OCPP Protocol
OCPP 1.6
Protection
Over Voltage Protection
Yes
Under Voltage Protection
Yes
Over Load Protection
Yes
Short Circuit Protection
Yes
Earth Leakage Protection
Yes
Ground Protection
Yes
Over-temp Protection
Yes
Surge Protection
Yes
RCD
Type A
Environmental
Storage Temperature
-40 ~ 75℃
Operating Temperature
-30 ~ 55℃
Operating Humidity
Up tp 95%, non-condensing
Altitude
≤2000m
Cooling Method
Natural Cooling
M3P Wallbox Mechanical
IP Code
IP65
Dimension(H×W×D,mm)
310×220×95
Weight
7kg
Charging Cable Length
5m or Customize
Enclosure Material
PC

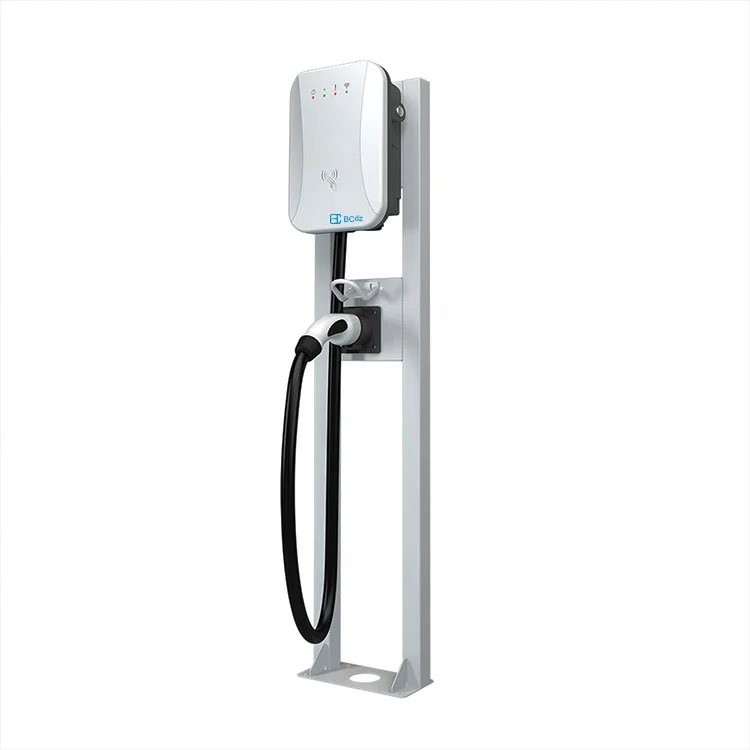

M3T Mounting Pole(Optional)
Dimension(H×W×D,mm)
1400×200×100
Weight
<8kg
Enclosure Material
Metal




Wellcom contact us for more details.
PS:customize service is provided.


Certifications


Cerdified by ISO9001:2008 | CE | ROHS | FCC | TUV
All products must pass the following inspection before leaving the factory:
1.Function test:
A.charging function control test,
B.communication function test,
C.insulation detection function test,
D.vehicle plug locking function test,
E.pre-charging function test
2、Charging output test:
A.four ui large constant power output test,
B.power control test,
C.low-voltage auxiliary power test,
D.output current response time test,
E.transmission out current stopping rate test,
F.efficiency test,
G.power factor test.
3, control guide test:
A.charging control state test,
B.charging connection control timing test,
C.control guide voltage limit test,
D.communication interruption test,
E.protection grounding continuity loss test,
F.connection detection signal disconnection test,
G.battery voltage and communication message does not match the test,
H.battery voltage exceeds the charger range test,
I.draw battery two protection function vehicle zu high allowable total voltage mismatch test,
J.charging demand is greater than Battery parameters test.




Company Profile


Established early in 2007,Our company is a professional enterprise engaged in R & D, production and processing of new energy vehicle harness, electric vehicle harness, charging pile harness, BMS harness and other products.
4 R & D personnel and 200 employees




FAQ


Q1: What is your terms of packing of EV Charging point?
A: We pack our EV Charging Point in cartons.

Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific
solutions for your requirements.

Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

If you can't find the exact product you need in the picture, welcome to contact us at any time, we will reply you as soon as
possible.
