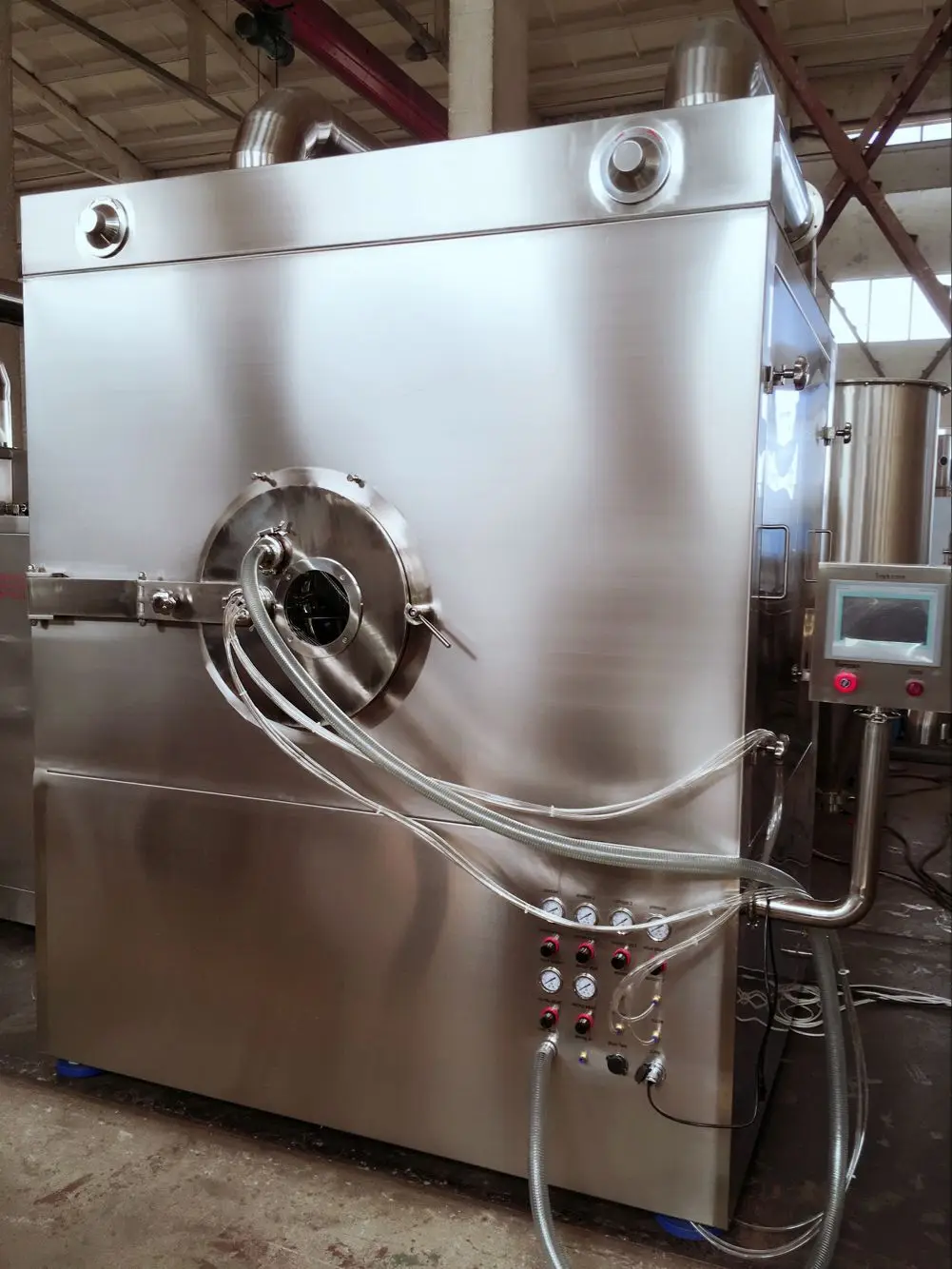

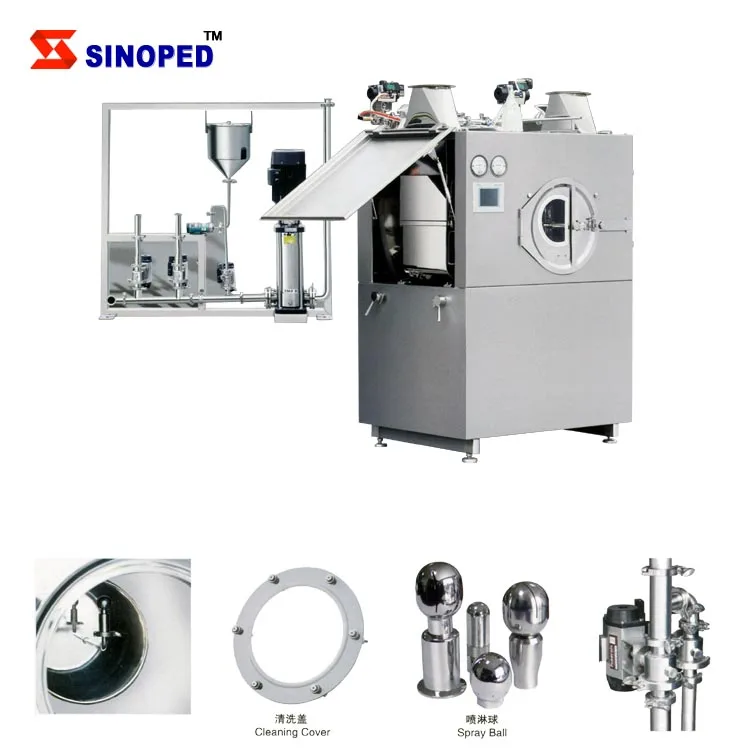

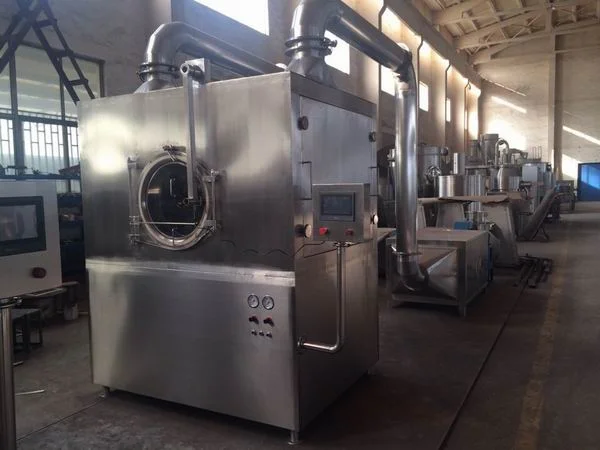

BG 80 высокопроизводительная машина для планшета пленочного покрытия машины

Сохранить в закладки 1600379678707:


Цена:19 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


The tablet coating machine is widely used for making tablets, sugar-coat pills, polishing and rolling food demanded by the pharmacy industry, chemical industry, foods, research institutes and hospitals. The sugar-coat tablets that are polished possess a bright appearance. The intact solidified coat formed after the surface sugar's crystallization can prevent the chip from oxidative deterioration, damping and volatilization, and cover the improper flavor of the chip.

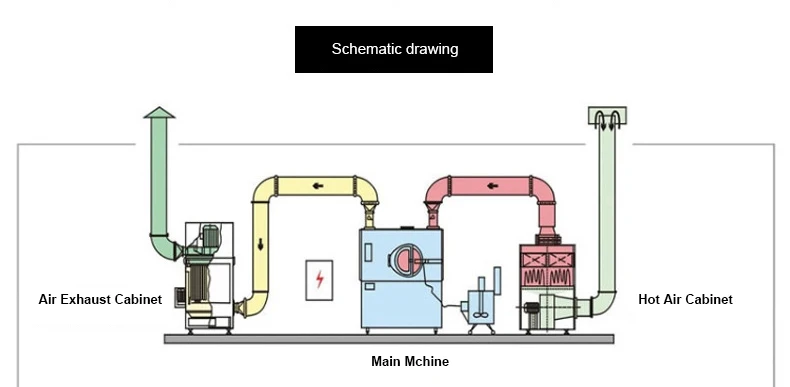

Able to be matched with frequency controller. Able to be matched with dust-removal system. It can be made to totally-enclosed type, served with airbrush system, and meets the GMP requirements.

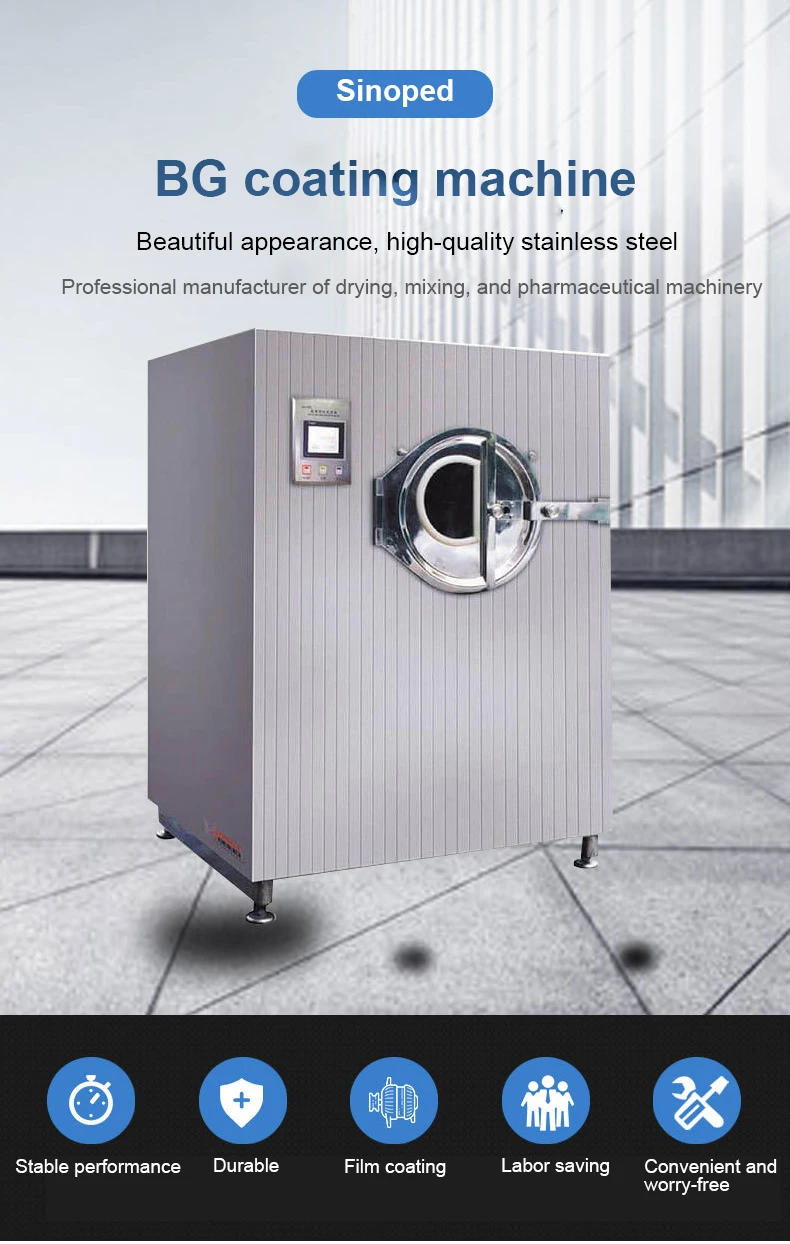

BG-Series Tablets Coating Machine
Model
BG-5H
BG-20H
BG-80H
Dia. of coating roller
300/380/480mm
520/580/680mm
680/750/930mm
capacity of coating roller
1-5KG
5-20KG
10-80KG
Rotational Speed
0-30r/min
1-25r/min
1-30r/min
Power of motor of air exhaust cabinet
1.1KW
2.2kw
3kw
Flow capacity of exhaust fan
2500m³/h
3517m³/h
5268m³/h
Flow capacity of hot air machine
504 m³/h
1200 m³/h
1685 m³/h
Temperature adjustment scope of hot air
~80℃
~80℃
~80℃
Power of motor of host machine
0.37KW
0.75KW
1.1KW
Outline dimension of host machine
1250X900X1700mm
1050x960x1800mm
1300x1315x2000mm
Weight of host machine
583KG
625+235KG
800+450+550KG


There will no further notification if the appearance or parameters of our products are modified. Thanks.

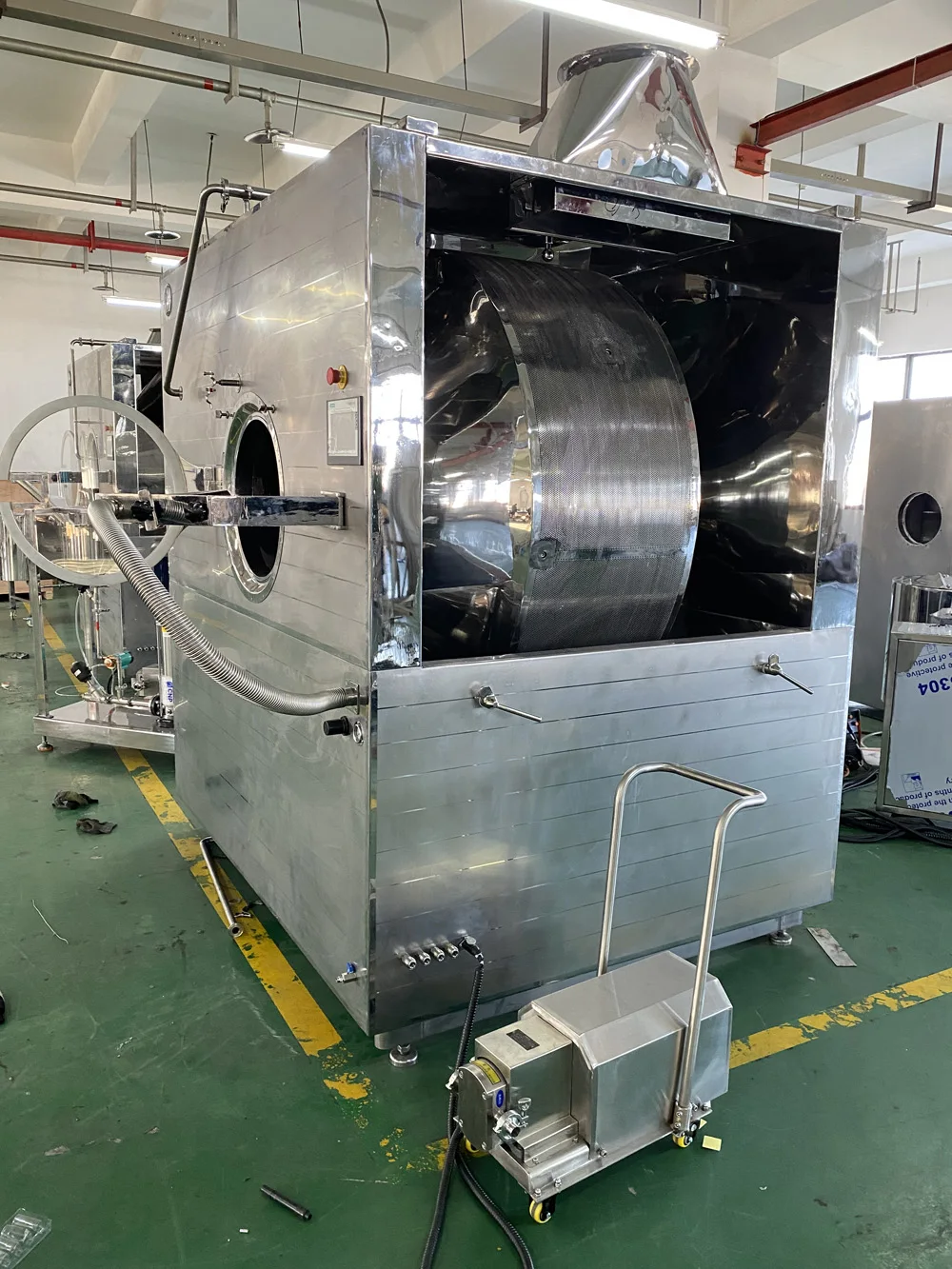

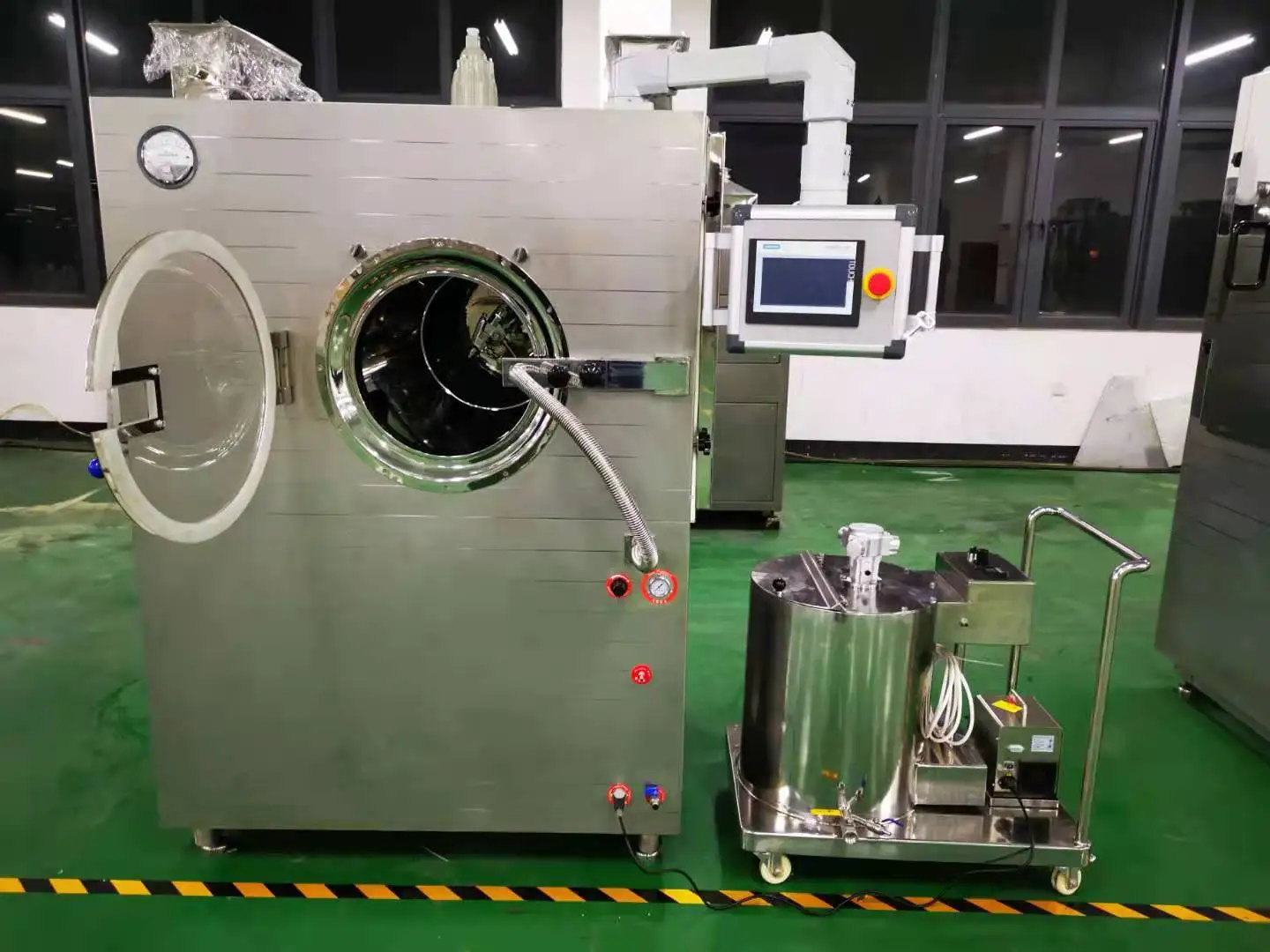

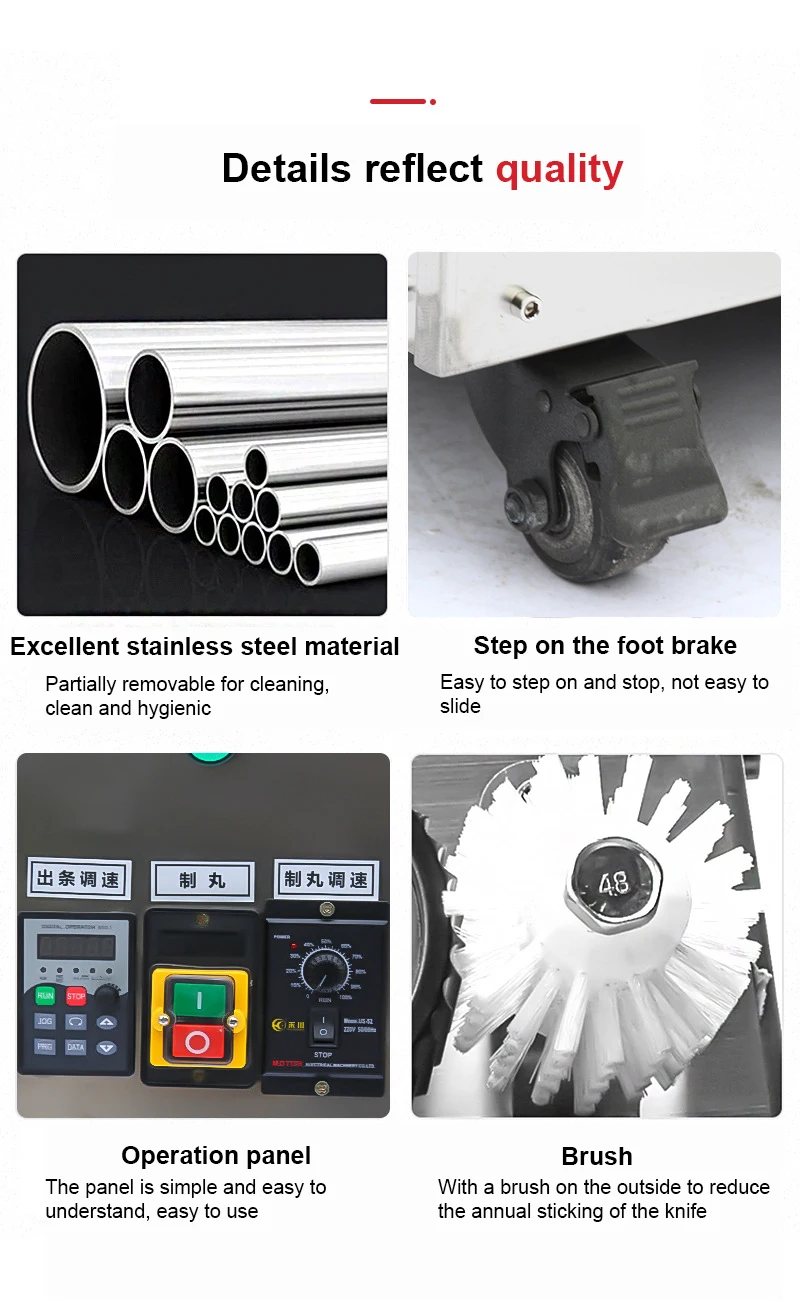

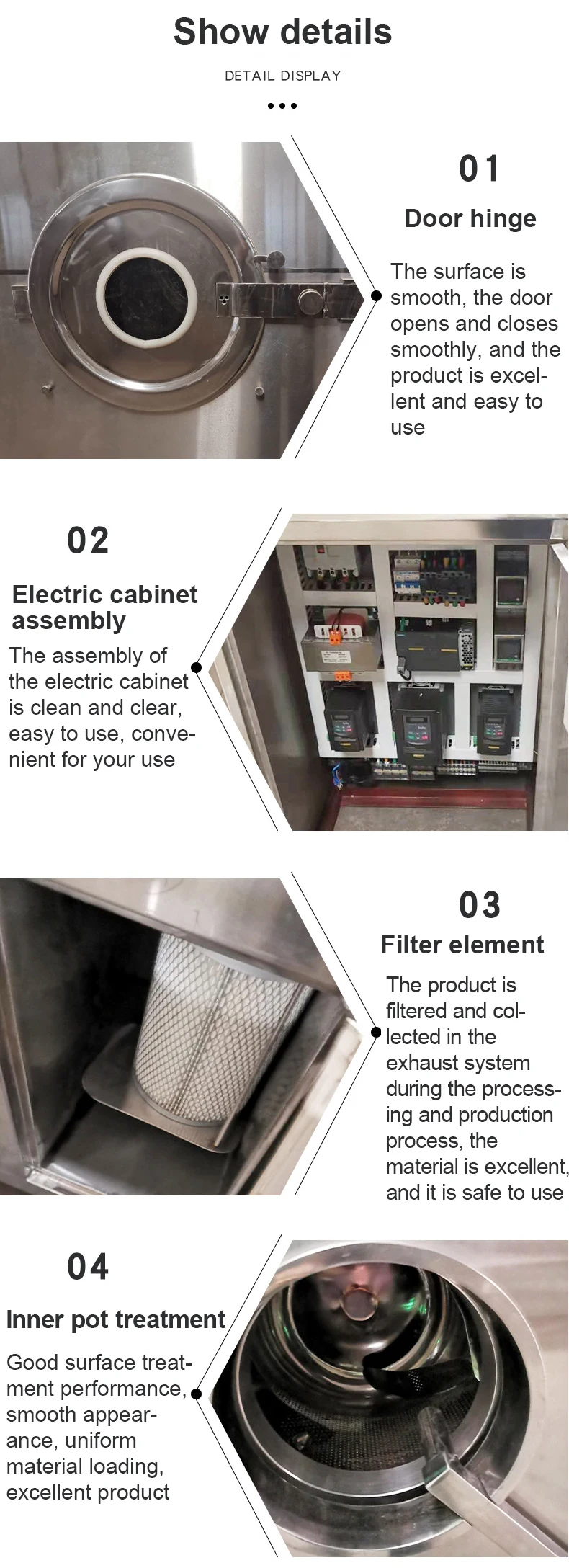

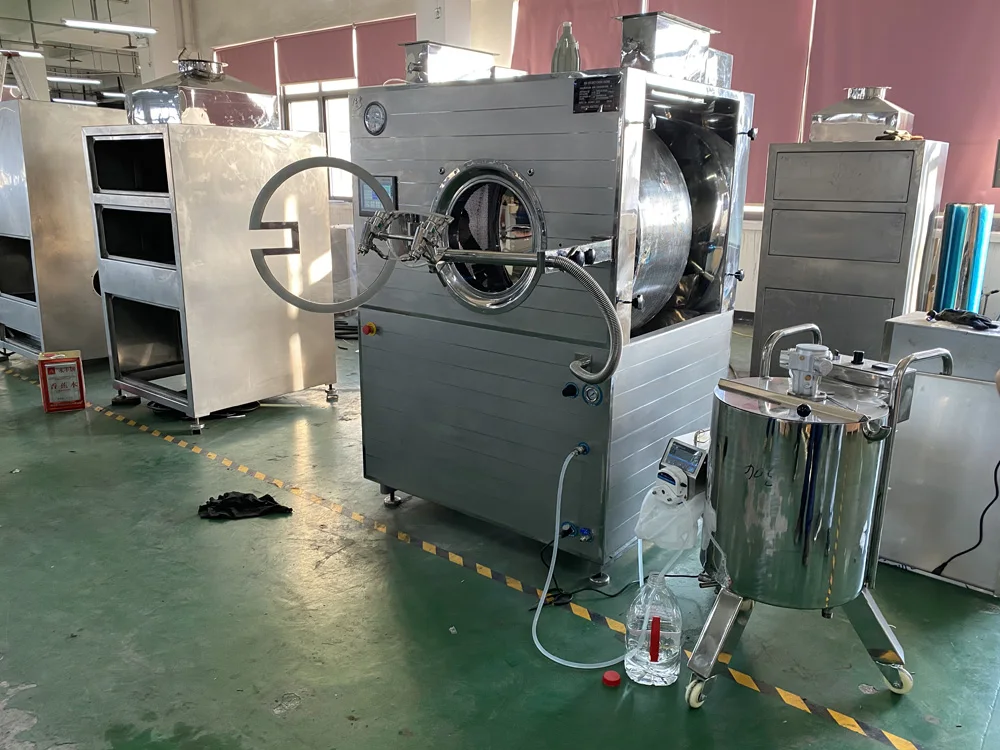

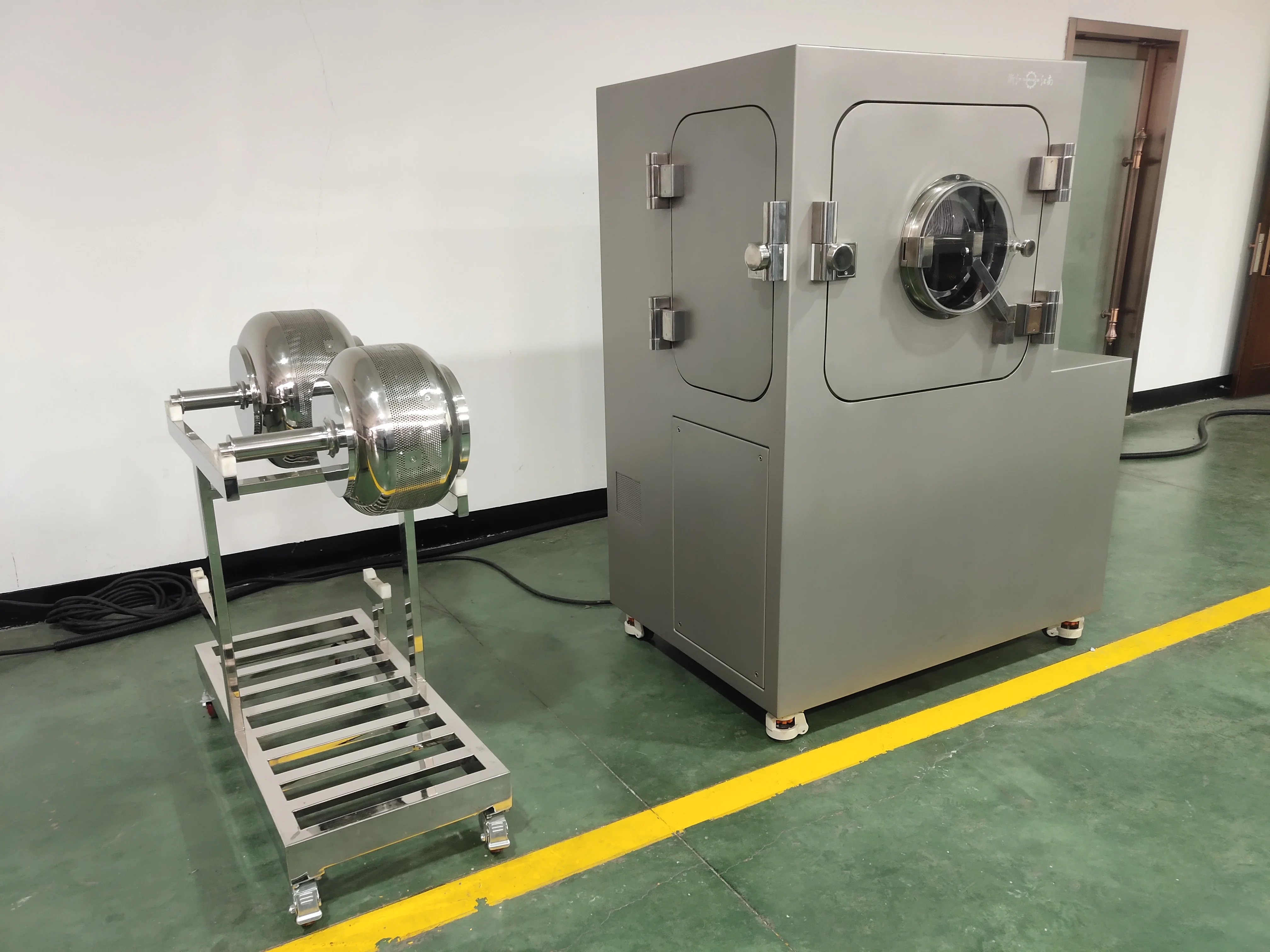

Detailed Images






Samples






seed coating in agriculture industry chocolate coat




pill tablet

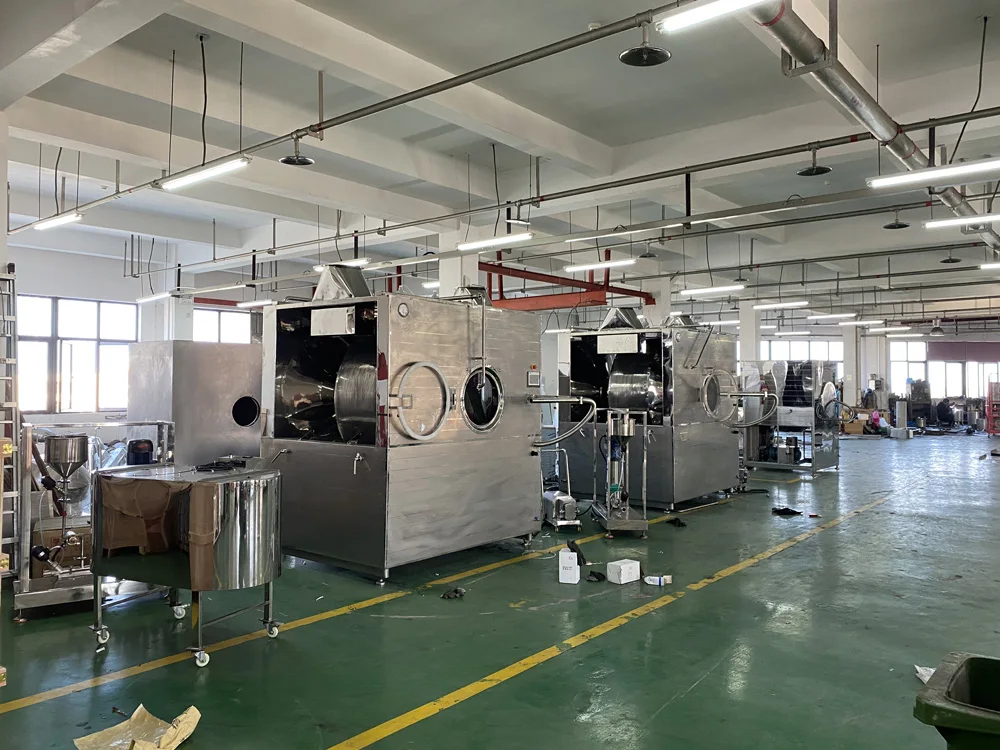

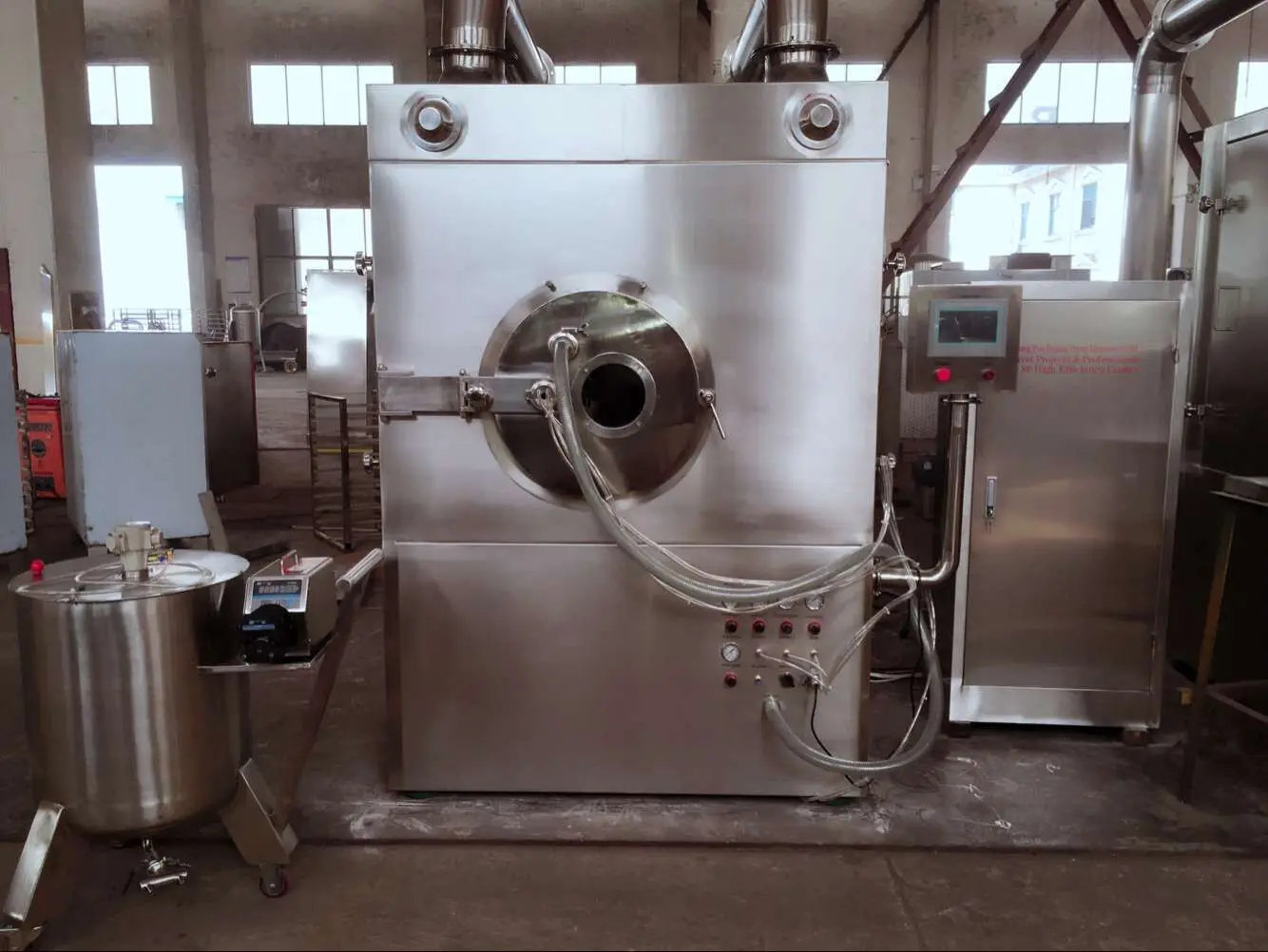

Workshop Environment

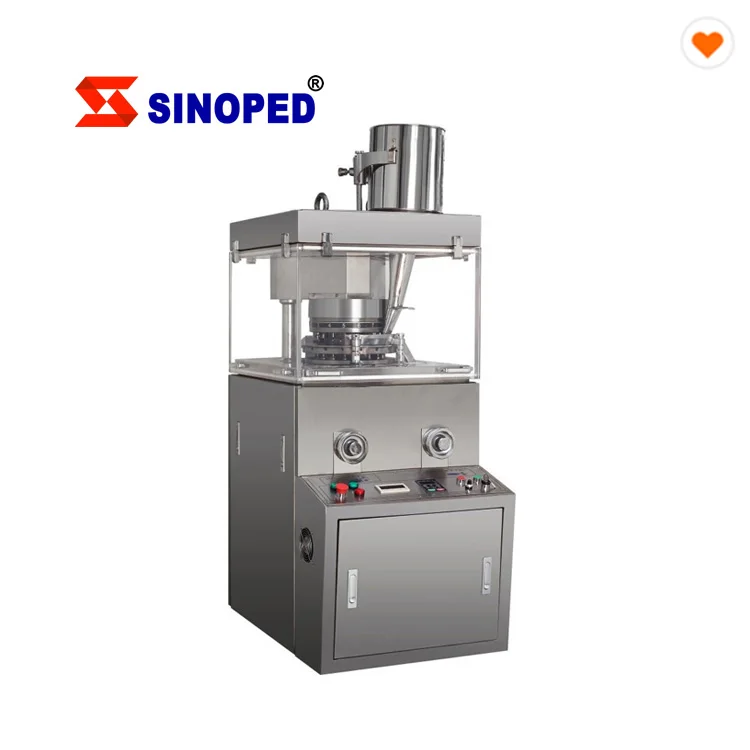

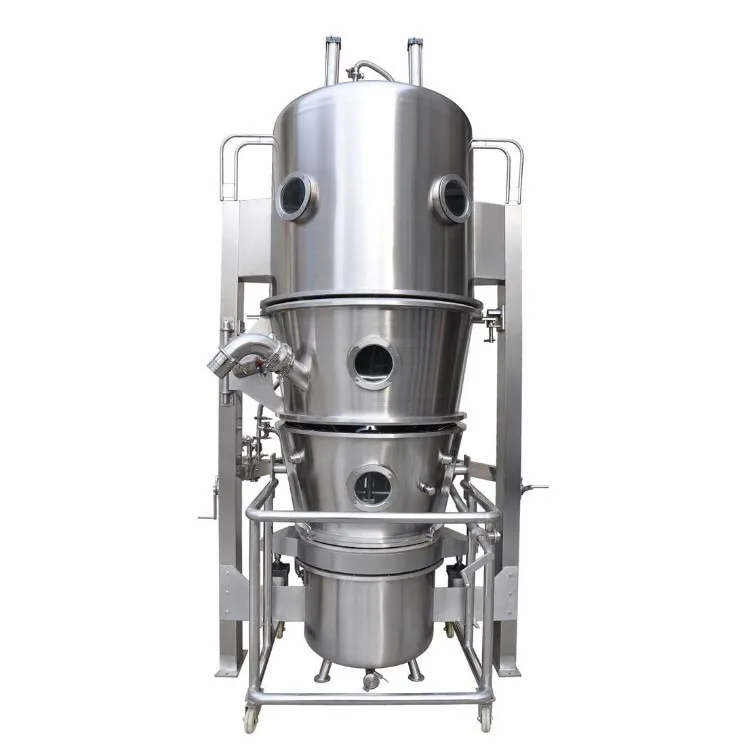

Other Products




Our Company




Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical machinery in China. It integrates development, manufacture, sales, after-sale services as a whole, being a professional supplier for dryer granulator, mixer, coater. Solid preparation machine, such as filling machine , capsule machine, tablet machine, packing machine and clean room turnkey project for pharmacy factories. All of machinery fully come up to G M P requirement.
Testified by the experience of long-term users, our products have very high stability and reliability, which have been sold to more than 20 regions, cities, and provinces around China and some foreign countries like Asian, European, American. Sinoped have established long-term business relations with many customers and some of them already cooperate as our agent in their countries.
For many years, we`re stick to the principle of "Customers First" taken the initiative to manage customers` demands, to develop and research high-quality pharmaceutical equipment, set up a perfect after-sale service system, and brought up the concept of" Star service" The pharmaceutical equipment is worth of your trust, Let`s join hands to co-develop a brilliant future in the 21st century full of opportunities! Brand from concentration——Our pursuit is to product the best cost-effective machines in China. In this 21-century full of opportunities and challenges, SINOPED will provide new equipment and more pragmatic spirit of innovation, cooperate with you and create brilliance!









Our Service & FAQ


One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.


1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer’s need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba’s trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba’s trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
