Hecan поверхностного монтажа машина вертикальная HC H4 автоматическая SMT производственная линия сборки печатных плат линии трафарет машины
- Категория: Electronics Production Machinery >>>
- Поставщик: Wenzhou Hecan Electronic Equipment Co. Ltd.
Сохранить в закладки 1600389032024:
Описание и отзывы
Характеристики
Product Introduction
Introduction
The machine H4 with the ball screw and Imported servo motor which is more stable and accurate than normal step motor, software designed and developed by our self. It is available in English. And we will keep updating it. Customers can get updated software regularly.
Machine is of high quality，with at least one-year warranty, lifetime maintenance
Machine is of high quality，with at least one-year warranty, lifetime maintenance
Feature

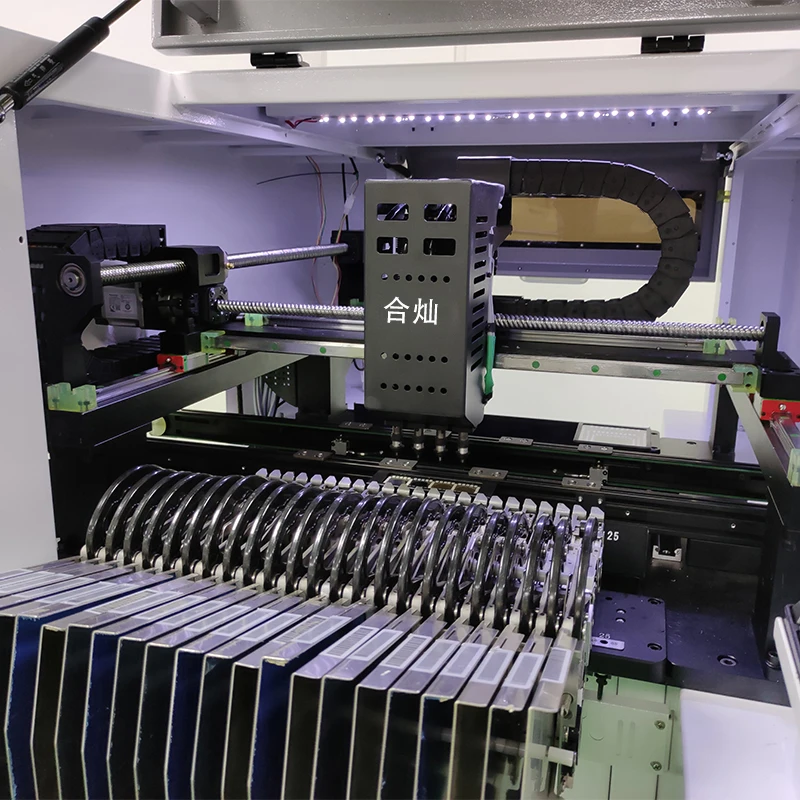

1. SMT pick and place machine with 50 feeders +4 heads adopts Imported servo motor to ensure it is stable and accuracy

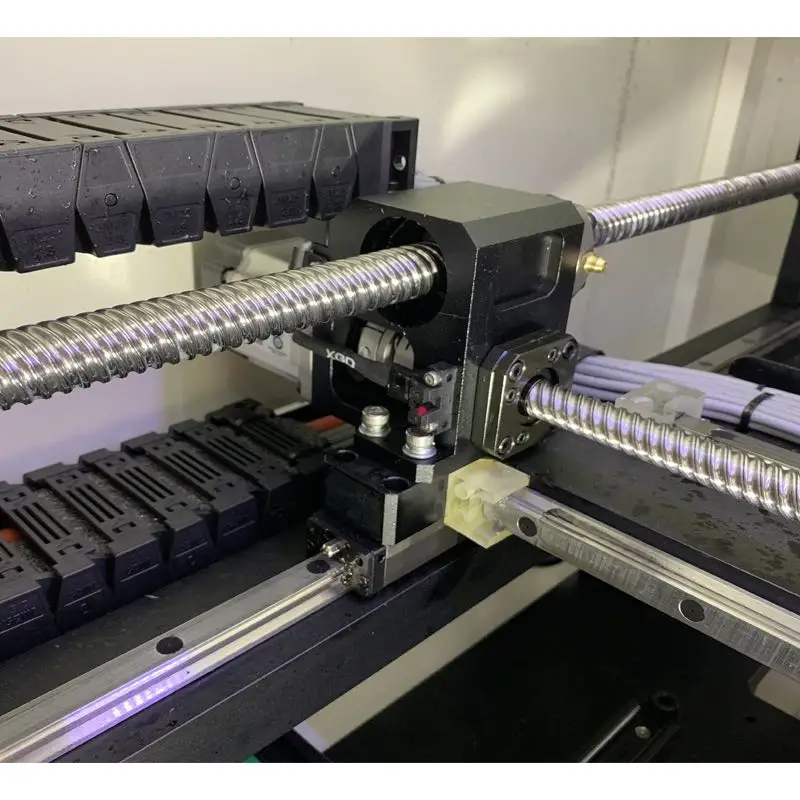

2. SMT pick and place machine uses imported Straight guide rail +screw Guide can get faster speed and more stable

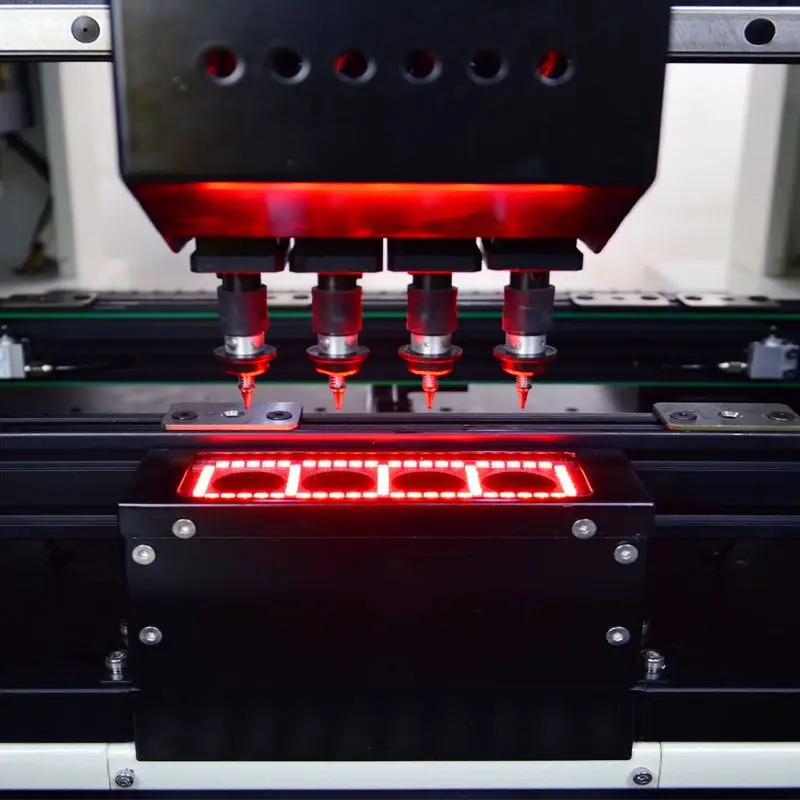

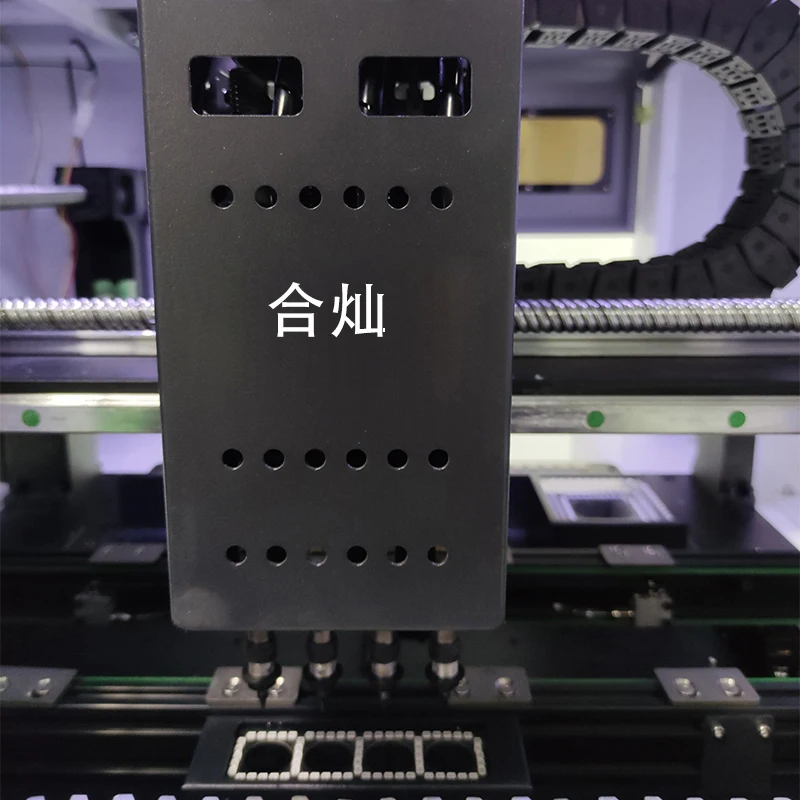

3. Four mounting heads work together, under 6 cameras inspection，come with 50 feeder positions will make machine working more
2. SMT pick and place machine uses imported Straight guide rail +screw Guide can get faster speed and more stable
3. Four mounting heads work together, under 6 cameras inspection，come with 50 feeder positions will make machine working more
Part List
1.Pick and place machine:1Set
2.IC fixed support:4Sets (four M5*8, four M5*16)
3.JUKI nozzle:12Pcs (502*2，503*3，504*4，505*2，506*1)
4.Calibration suction nozzle:4PCS
5.Power wire:1PC
6.Fixed foot:4PCS (Diameter 20mm)
7.The keyboard and mouse:1Set
8.Nozzle calibration ink-pad:1Box
9.lubricant:1PC
10.Chassis key:1PC
11.PC:1Set
12.17-inch liquid crystal display:1Set
2.IC fixed support:4Sets (four M5*8, four M5*16)
3.JUKI nozzle:12Pcs (502*2，503*3，504*4，505*2，506*1)
4.Calibration suction nozzle:4PCS
5.Power wire:1PC
6.Fixed foot:4PCS (Diameter 20mm)
7.The keyboard and mouse:1Set
8.Nozzle calibration ink-pad:1Box
9.lubricant:1PC
10.Chassis key:1PC
11.PC:1Set
12.17-inch liquid crystal display:1Set
Specification | ||
Model | H4 | |
Number of placement heads | 4(High accuracy) | |
Number of calibrated cameras | 6 Mark camera------------------1 Fast recognition camera--4 High-precision camera----1 | |
Number of feeder positions: | 50/44(can be selected) | |
Number of trays | Support up to 48 non- feeder devices, each material can specify its coordinates within the mounting range, and further expand the single-machine order receiving capability from the practical aspect | |
Maximum mounting speed | 7000CPH | |
Avenge mounting speed | 6000CPH | |
Combination mounting speed | 5000CPH | |
Mounting accuracy range | 0201-40 * 40mm pin pitch 0.3mm chip (In the case of optional support for electric feeder, stable placement of trapezoidal LED lamp beads in 0603 package, 0402, 0201) | |
PCB entry mode | Left-in and right-out automatically enter the board, support the connection function of left and right equipment | |
Repetition positioning accuracy | 0.01mm | |
Nozzle buffer range | 4.5mm | |
Maximum moving range of Z axis | 20mm | |
Maximum height for components | 7 mm(can be customized to 20mm) | |
Maximum PCB circuit board size | 350×190mm(If it is changed to 44-bit feeder, it can be 350mm×280mm) | |
Drive motor | AC servo motor | |
Guide rail | Linear guide rail | |
Drive mode | Ball screw | |
Suction nozzle vacuum source | High-speed vacuum generator with vacuum release function | |
Average power | 600W | |
Power supply | 220/110V 50/60Hz | |
Ensure the normal operation of the equipment. Compressed air pressure range | 0.5-0.6Mpa | |
Minimum exhaust volume of air supply source | 80-120L / min, volume above 50L | |
Air source quality requirements | Oil water filter; ≥50L,dust filter and air pressure stabilizer etc | |
The trachea requires | An outer diameter of 10 mm and a material of PU | |
Weight (Desk /Vertical) | 210/280KG | |
Dimensions (Desk machine) | 114*90*90CM | |
Dimensions (Vertical machine ) | 140*90*134CM | |
CE ARRPOVED
FAQ
Q: How is the training?
A: After buying our machines, we will support all kinds of training （training video +user manual +online training etc.）
Q:Is it hard to use these machines?
A: No, not hard at all. For our previous clients, about 2 days’ training will make them operate the machines easily
Q:Is there any certificate for machine?
A: All of our machines with CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q: The Warranty of the machine?
A:AT least One year, then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
Q:Are machines can meet software update?
A:YES, we will update machine regularly
Q：What kind of maintenance is needed?
A: Add lubricating oil to the guide rail, let the water drain away which from the oil-water separator, and clean the nozzle (we will support this oil)
A: After buying our machines, we will support all kinds of training （training video +user manual +online training etc.）
Q:Is it hard to use these machines?
A: No, not hard at all. For our previous clients, about 2 days’ training will make them operate the machines easily
Q:Is there any certificate for machine?
A: All of our machines with CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q: The Warranty of the machine?
A:AT least One year, then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
Q:Are machines can meet software update?
A:YES, we will update machine regularly
Q：What kind of maintenance is needed?
A: Add lubricating oil to the guide rail, let the water drain away which from the oil-water separator, and clean the nozzle (we will support this oil)
Service
If you wanna know more, feel free to contact me directly
Mail/Skype：smtmachines@hcpnp.com
Tel/Wechat/WhatsApp：+8618367786556/+8615858886852
Mail/Skype：smtmachines@hcpnp.com
Tel/Wechat/WhatsApp：+8618367786556/+8615858886852
