Оптовая продажа высокое качество Лидер продаж металлическая плавильная печь грузоподъемностью 500 кг для алюминия
- Категория: >>>
- Поставщик: Wuxi Wondery Industry Equipment Co. Ltd.
Сохранить в закладки 1600426478573:
Описание и отзывы
Характеристики

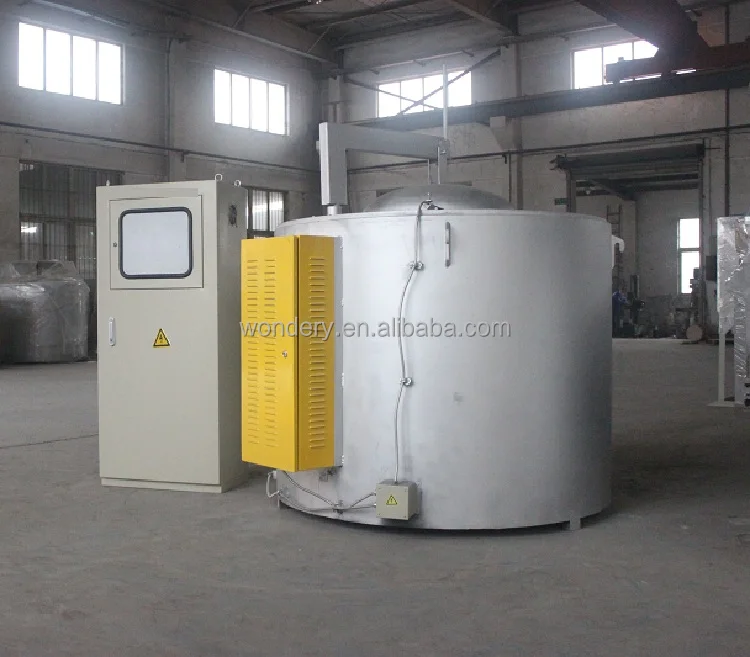

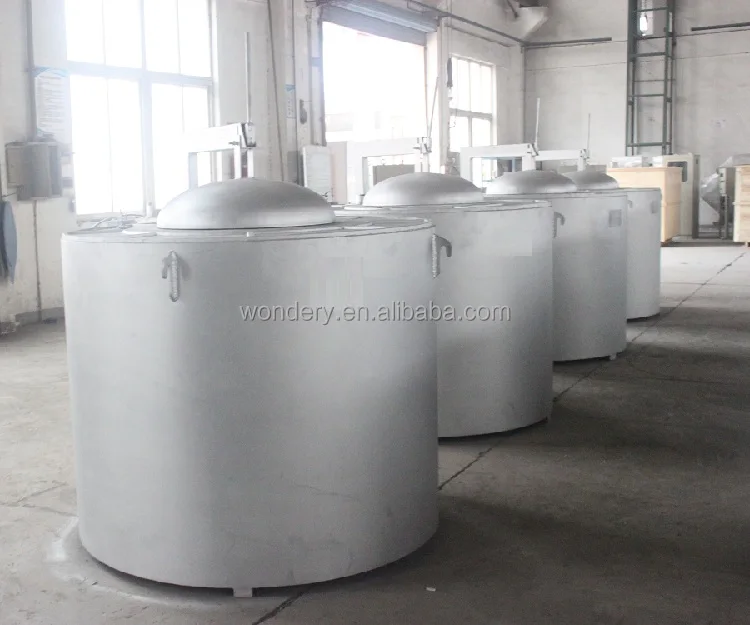

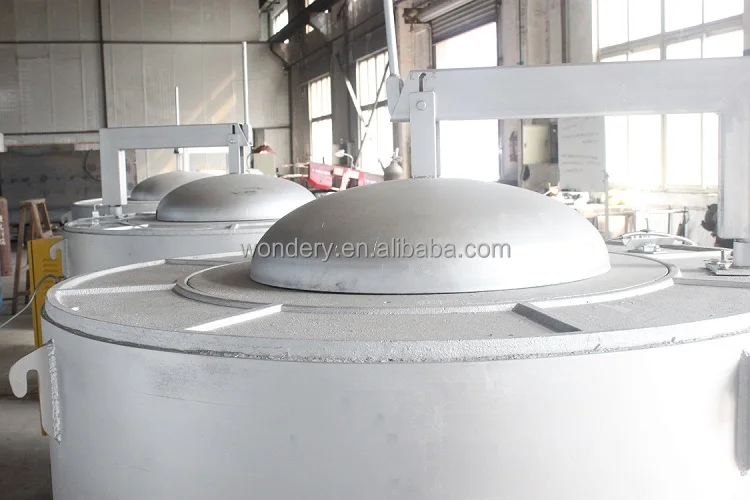

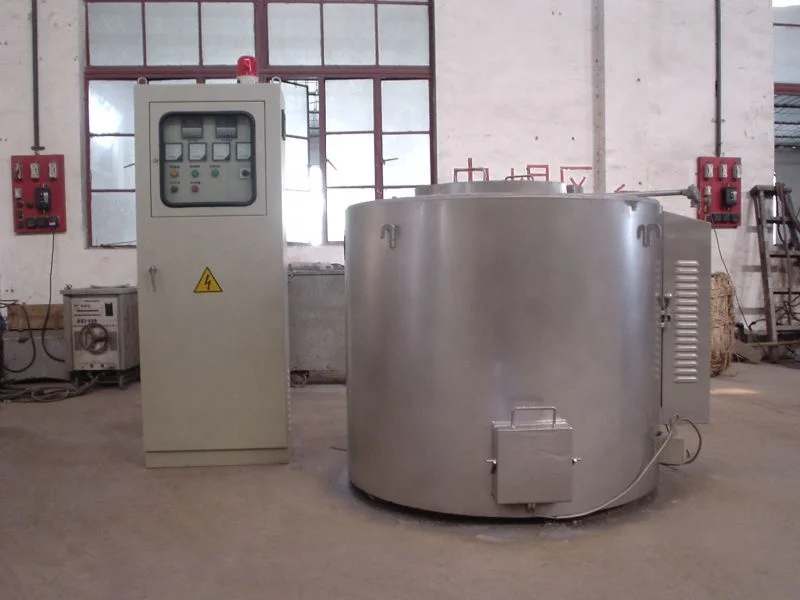

Wholesale High Quality Hot Selling 500kg Capacity Metal Smelting Furnace For Aluminum
Application
The electrical power melting furnace is used for melting ferrous metal and alloy of low melting point. The melting furnace consists of the following three parts: furnace body, electrical heating and control system.
metal smelting furnacemetal smelting furnacemetal smelting furnace
SPECIFICATIONS FOR 500KG Stationary Electrical Power Metal Smelting Furnace For Aluminum | ||||
Rated Power | KW | 75 | ||
Rated Voltage | V | 380 | ||
Connection Method | Y | |||
Max Temperature | ℃ | 850 | ||
Working Temperature | ℃ | 0-800 | ||
Frequency | Hz | 50 | ||
Phases | 3 | |||
Temperature rising time for empty furnace | h | ≤3 | ||
Melting rate | Kg/h | 150-200 | ||
Temperature stability | ℃ | ±3 | ||
Crucible Size | Vesuvius brand | OD:780mm*H755mm | ||
Main Features
1) The furnace lining is composed of the superlight refractory bricks and the ceramic fiber material, which has a good heat preservation effect. The wall temperature rise is ≤ 40℃.
2) The furnace adopts the high temperature alloy strips or resistance wires as heating element with a long service life.
3) The furnace adopts the Taiwan brand temperature controller with PID control. The temperature control accuracy reaches ±5℃.
4) The furnace is equipped with one thermal couple protected by the silicon nitride outer pipe, and this thermal couple could directly measure the aluminum liquid.
5) The furnace adopts European brand graphite crucible, which has a good thermal conductivity, a long life, and no iron hyperplasia.
6) The furnace is equipped with liquid leak alarm, over-temperature alarm and other functions to ensure the safety of equipment and operation.
Model Table
Model | Melting Pool Capacity (kg) | Melting Rate | Rated Power (KW) | Overall Dimension (mm) OD* Height |
WR-RBY-100 | 100 | 40 | 36 | Φ 1200*900 |
WR-RBY-150 | 150 | 50 | 36 | Φ 1220*920 |
WR-RBY-250 | 250 | 80 | 45 | Φ 1280*950 |
WR-RBY-300 | 300 | 100 | 60 | Φ 1280*1050 |
WR-RBY-500 | 500 | 150 | 80 | Φ 1480*1150 |
WR-RBY-600 | 600 | 160 | 90 | Φ 1480*1200 |
WR-RBY-800 | 800 | 200 | 120 | Φ 1580*1420 |
WR-RBY-1000 | 1000 | 300 | 150 | Φ 1580*1570 |
WUXI WONDERY TRADING CO., LTD. is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
1. What is the power supply of the industrial furnace?
The power supply of industrial furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
Похожие товары

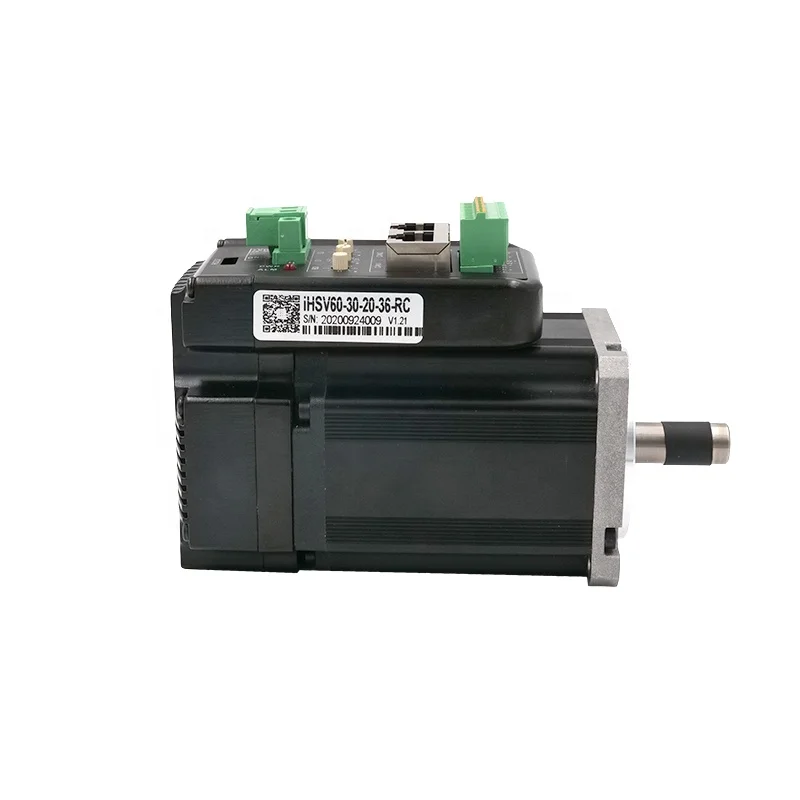

IHSV60-30-20-36-RC трехфазный 36 В, 200 Вт, встроенный двигатель переменного тока Nema24, Серводвигатель полевого автобуса для ЧПУ
132,00 $ - 154,00 $
Дизайн Ibiza расширяемый обеденный стол бестселлер стильный продукт Современная Высококачественная мебель для

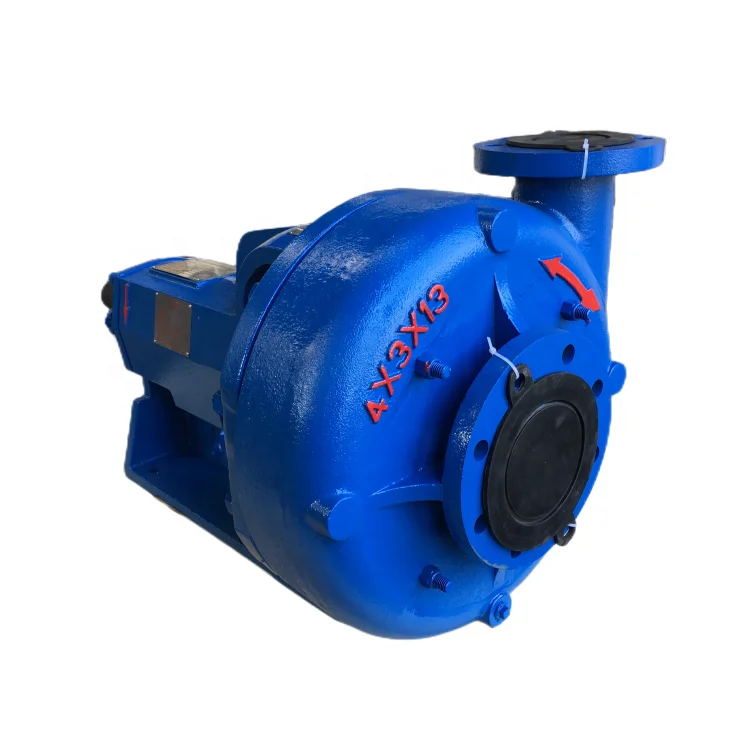

Центробежный насос Magnum Для песчаного грязевого песка

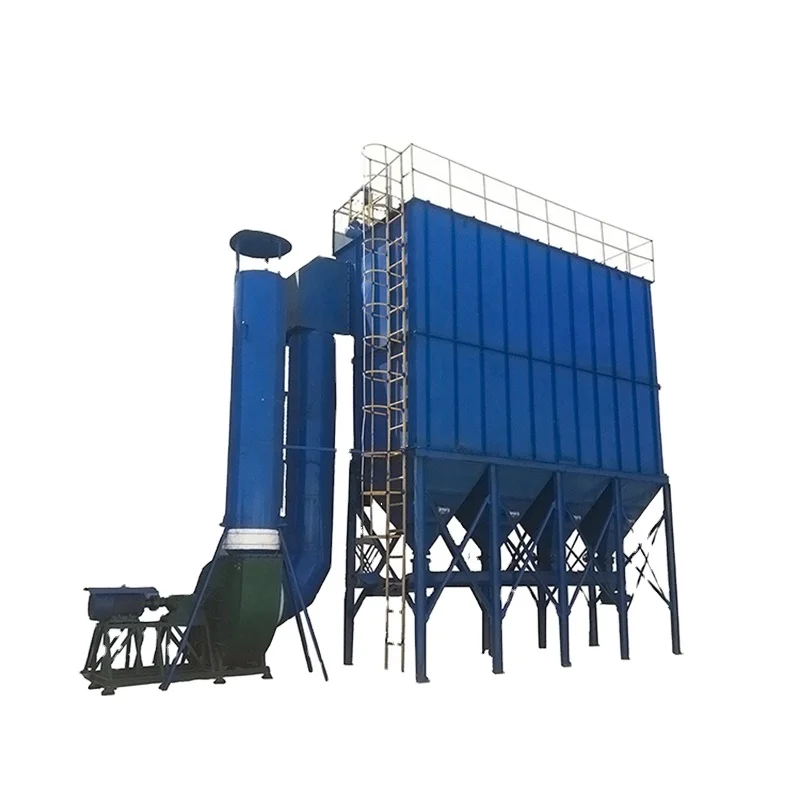

Система аспирации для пылеулавливания пыли, промышленный пылесборник, мешок, фильтры в цементной промышленности, завод из Китая
12 890,00 $

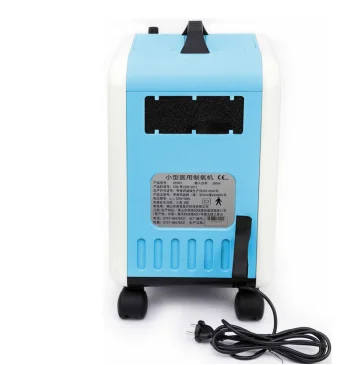

Китай, хорошая цена, мобильный Электрический домашний концентратор кислорода
350,00 $ - 360,00 $

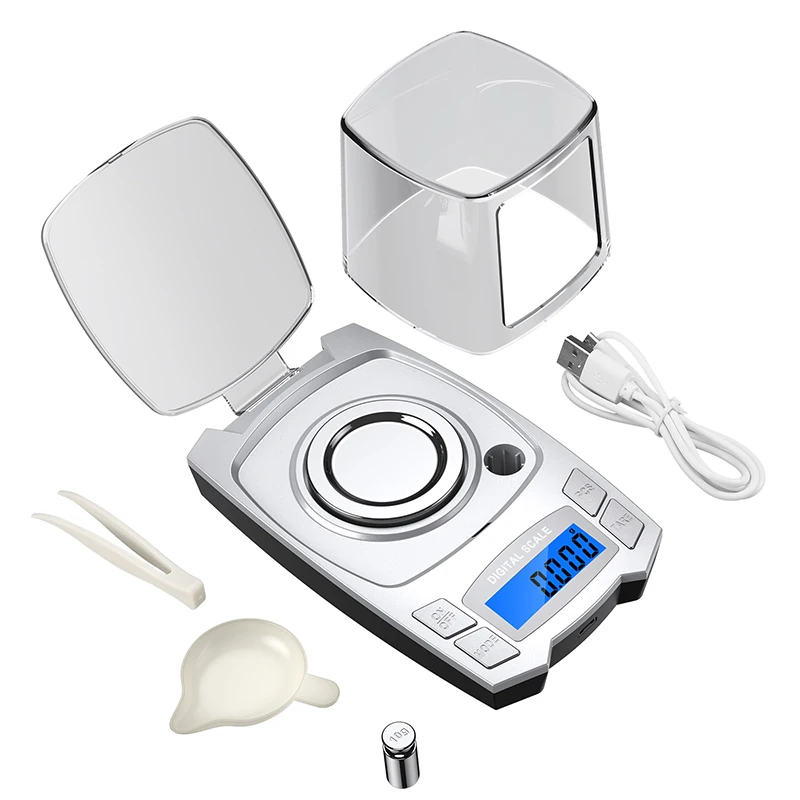

Электронные весы для ювелирных изделий, 50 г/100 г x 0,001 г
