Машина для стыковой сварки серии UN1Q ленточная пила машина
149 580,92 ₽
UN1 Эксцентриковая педаль медный стержень медная проволока и алюминиевая стыковой сварки
- Категория: >>>
- Поставщик: Shanghai Lucosy Technology Co. Ltd.
Сохранить в закладки 1600427536513:
Описание и отзывы
Характеристики
Product Overview
UN1 Eccentric Pedal Copper Rod Copper Wire And Aluminum Wire Butt Welder

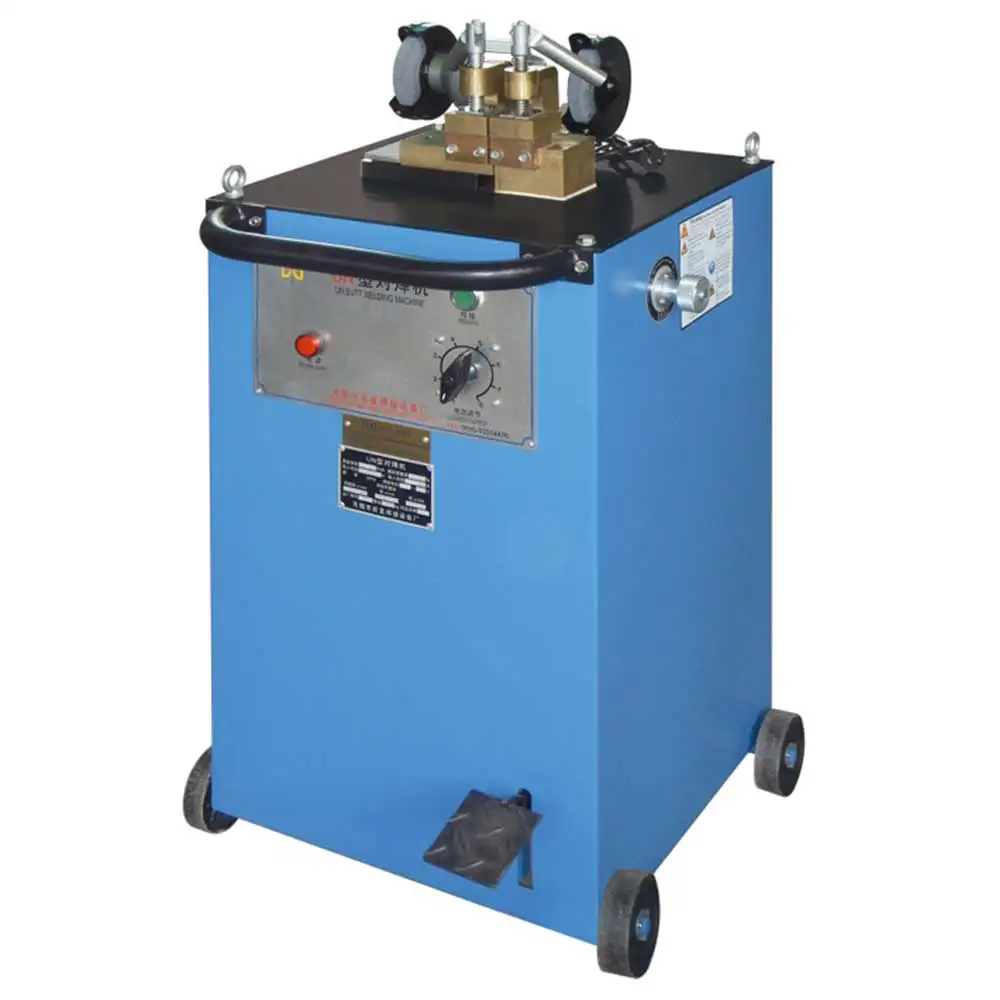

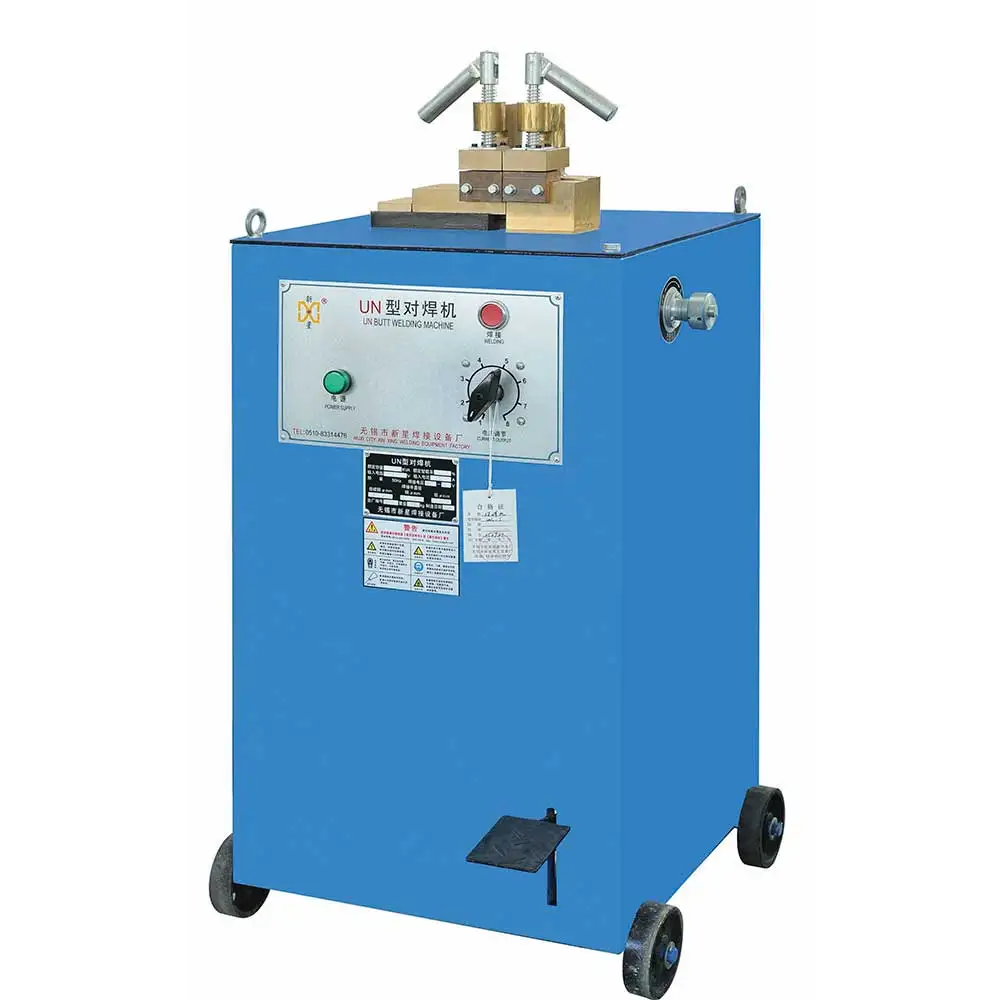

- UN1 butt welding machine is a single-phase AC resistance butt welding machine. The output power is adjusted by changing the input voltage of the transformer. The machine is spring pressurized, and the controller controls the welding current time. The butt welding machine can butt with various conventional metals, such as common ferrous metals, ordinary steel wire, stainless steel wire, galvanized steel wire, copper wire, aluminum wire and other non-ferrous metals, and even titanium alloy wire. This machine has the advantages of simple structure, convenient operation and maintenance. It is suitable for wire drawing, cable and metal wire production.
- UN3 series welders are applicable to the abutting joint with the steel, iron, copper and aluminum wires.
- UN3 series welders are applicable to the abutting joint with the steel, iron, copper and aluminum wires.
FEATURES AT A GLANCE
The machine is composed of box, head, transformer and controller.
Box: welded by angle steel and plate. The front is equipped with aluminum oxide panel, and the back door can be opened. There are wheels at the bottom for easy movement, and two rear wheels with brakes.

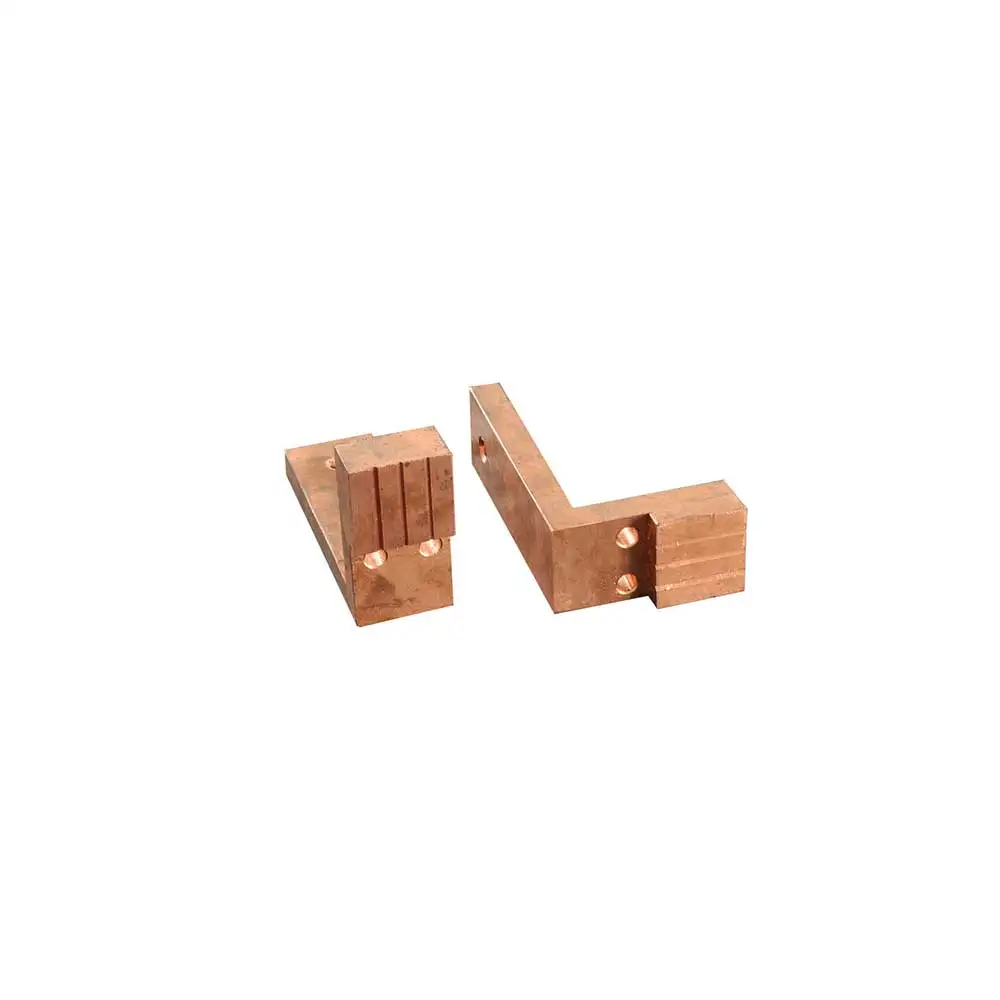

Machine head: transfer machine head, static machine head. When stepping on the foot, the movable electrode will open to the left. Press the pressure bar down. The electrode holder clamps the weldment in the electrode. Release the spring whip of the pedal and pressure the weldment.
Welding transformer: input voltage is regulated by thyristor.
Controller: control welding size and welding time.
PRODUCT SPECIFICATIONS
Model | Rated power (KVA) | Input current (A) | Duty Cycle (%) | Welding Diameter(mm) | ||||
Low-Carbon steel | Aluminium | Copper | ||||||
UN1-5 | 5 | 13.2 | 15 | 1.5-6.0 | 1.5-5.0 | 1.5-4.0 | ||
UN1-10 | 10 | 26.3 | 20 | 3.0-8.0 | 2.5-6.0 | 2.5-5.0 | ||
UN1-16 | 16 | 42.1 | 20 | 4.0-10 | 3.0-7.0 | 3.0-6.0 | ||
UN1-25 | 25 | 65.8 | 20 | 6.0-12 | 4.0-10 | 4.0-8.0 | ||
UN3-3 | 3 | 7.9 | 15 | 1.0-4.0 | 1.0-3.0 | 1.0-2.5 | ||
UN3-5 | 5 | 13.2 | 15 | 1.5-6.0 | 1.5-5.0 | 1.5-4.0 | ||
UN3-10 | 10 | 26.3 | 15 | 3.0-8.0 | 2.5-6.0 | 2.5-5.0 | ||
Welding Samples
Rebar

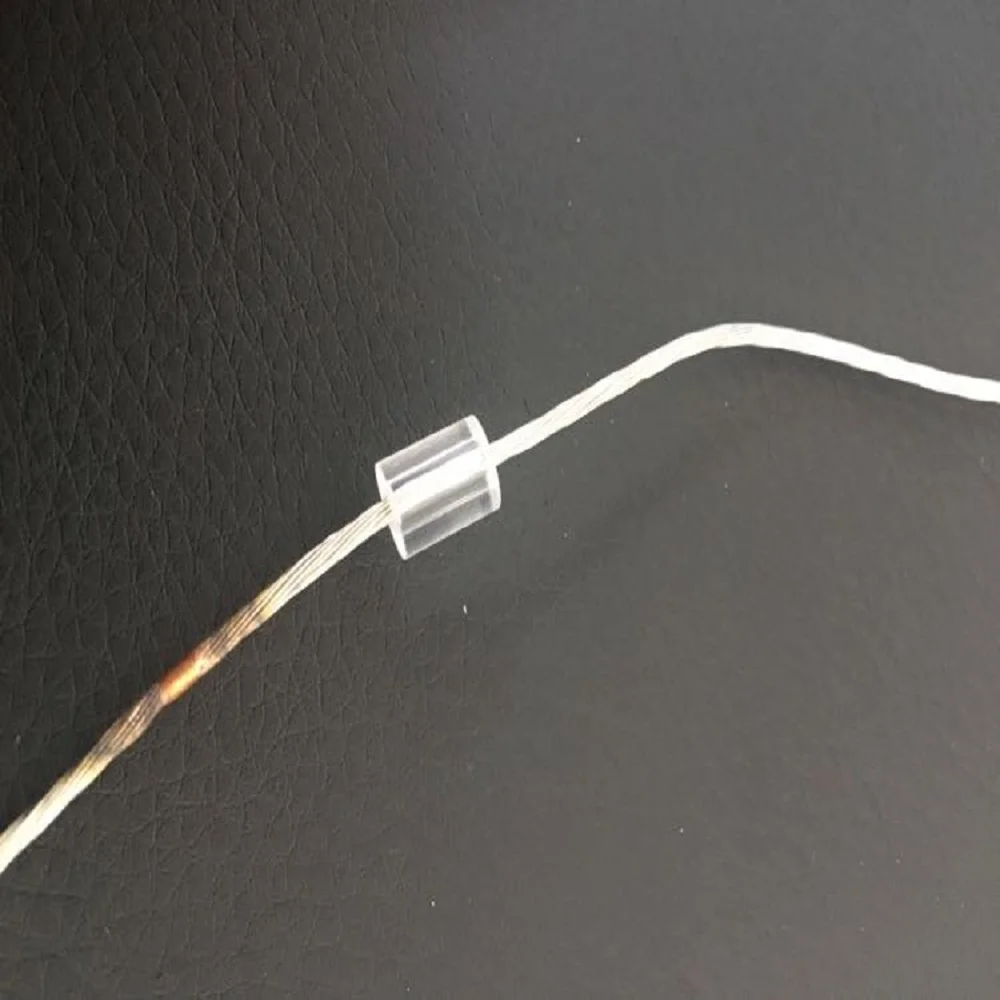

Cable
Tube
Successful Project
Project in India
Project in Malaysia
Project in Brazil
Company Profile
Lucosy technology develop and produce spot welder controller and spot welding machine since 2012, we're top 3 of suppliers in China. Spot welders, MFDC welder, variable frequency AC welder, butt welders, seam welders, gun welders, 3 phase welders, micro welders, special application machines are offered here. Our products are widely used in electrical production, auto parts manufacturing, battery production, metal splicing and other fields.With advanced technology, excellent management philosophy, high-quality products, and constantly develop and grow, widely praised by the industry and users.
Based on our professional engineer team, rich experience and latest technical, we specialize in fitting your welding requirements to the proper welding equipment.
Based on our professional engineer team, rich experience and latest technical, we specialize in fitting your welding requirements to the proper welding equipment.
Exhibition
Our Factory
Our Exhibition
FAQ
1. Are you a trading company or a manufacturer?
We have our own factories, which are located in Shanghai and Jiangsu.
2. Can I get some samples?
Yes, after price and order confirmed, you can require for samples. We are glad to offer you samples.
3. Can you try welding our work piece?
Yes, of course. Before the formal contract is signed, when we get your samples, we will weld and take videos and photos for you.
4. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management, WhatsApp, or call us directly.
5. How long is your delivery time?
Usually 45 days. If you need emergency services, please notify us before submitting your order.
6. How about your after-sales service and warranty?
During the warranty period (one year), we will provide spare parts to you free of charge. And provide technical consultants at any time. For Rich OEM Experience, We can provide professional solutions for customers.
Click Send Get The Latest Quotation Now!
We have our own factories, which are located in Shanghai and Jiangsu.
2. Can I get some samples?
Yes, after price and order confirmed, you can require for samples. We are glad to offer you samples.
3. Can you try welding our work piece?
Yes, of course. Before the formal contract is signed, when we get your samples, we will weld and take videos and photos for you.
4. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management, WhatsApp, or call us directly.
5. How long is your delivery time?
Usually 45 days. If you need emergency services, please notify us before submitting your order.
6. How about your after-sales service and warranty?
During the warranty period (one year), we will provide spare parts to you free of charge. And provide technical consultants at any time. For Rich OEM Experience, We can provide professional solutions for customers.
Click Send Get The Latest Quotation Now!
Похожие товары
Сварочная машина для сварки с несколькими углами 630-1200 мм ММ Tech Pe
108 708,95 ₽ - 113 146,05 ₽
200 мм термоплавкая сварочная машина для PE PPR труб
87 503,19 ₽ - 96 858,88 ₽

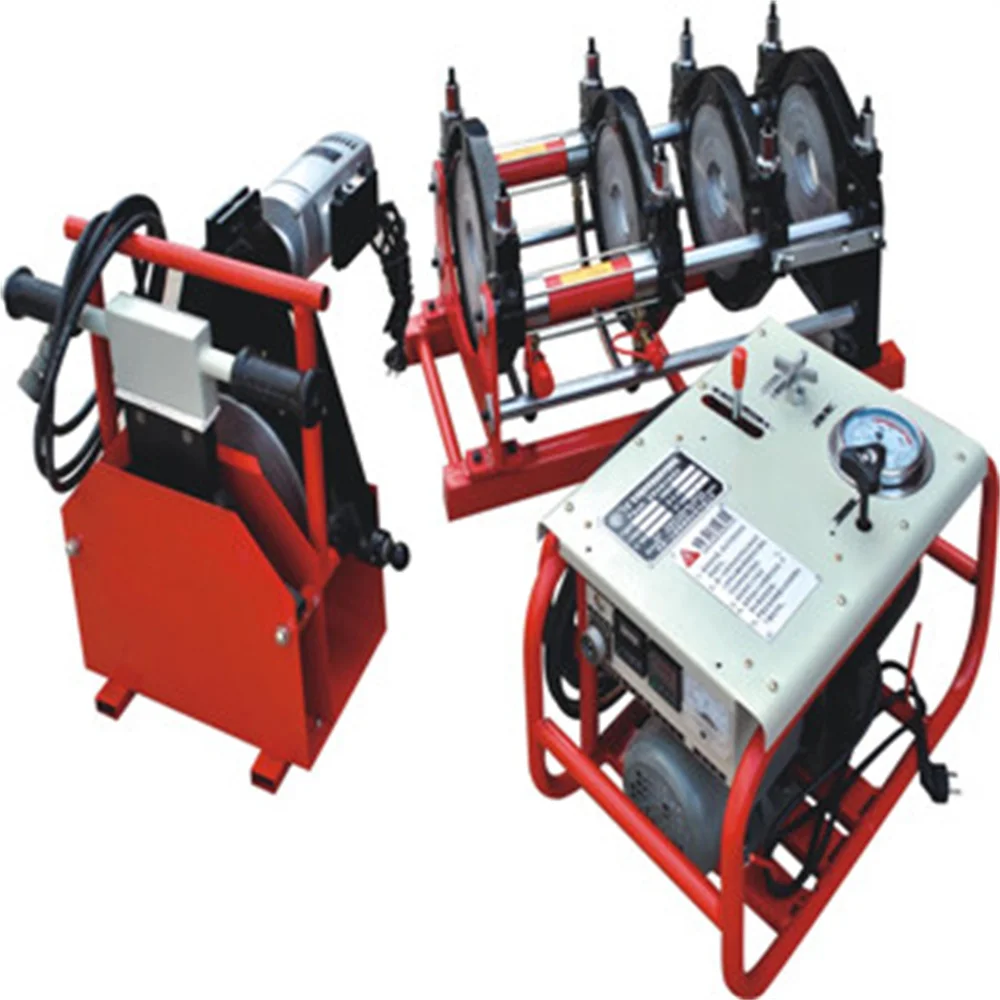

160 мм pe трубы стыковой сварки машина Ручное Оборудование
Сварочный аппарат производитель сварочный портативный 5 в 1
2 476,51 ₽ - 2 773,69 ₽

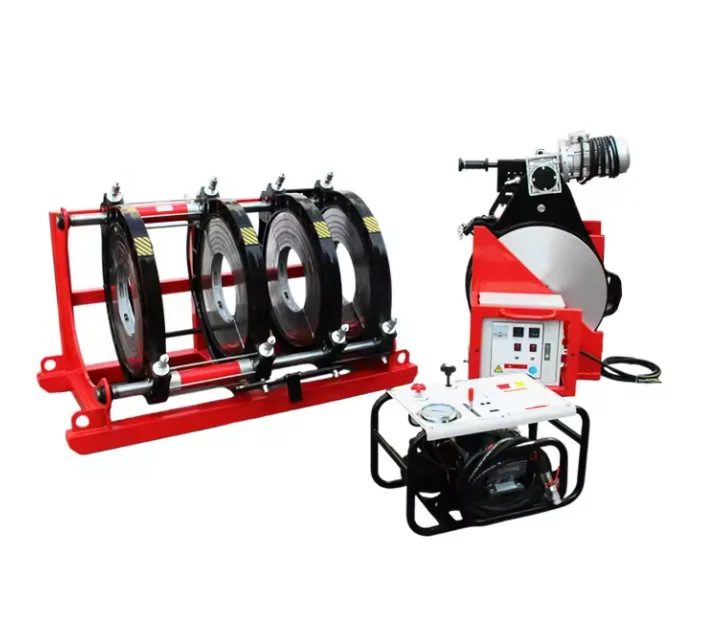

Аппарат для горячего расплава пластиковых труб от 90 мм до 315 гидравлический аппарат стыковой сварки Hdpe
80 899,18 ₽

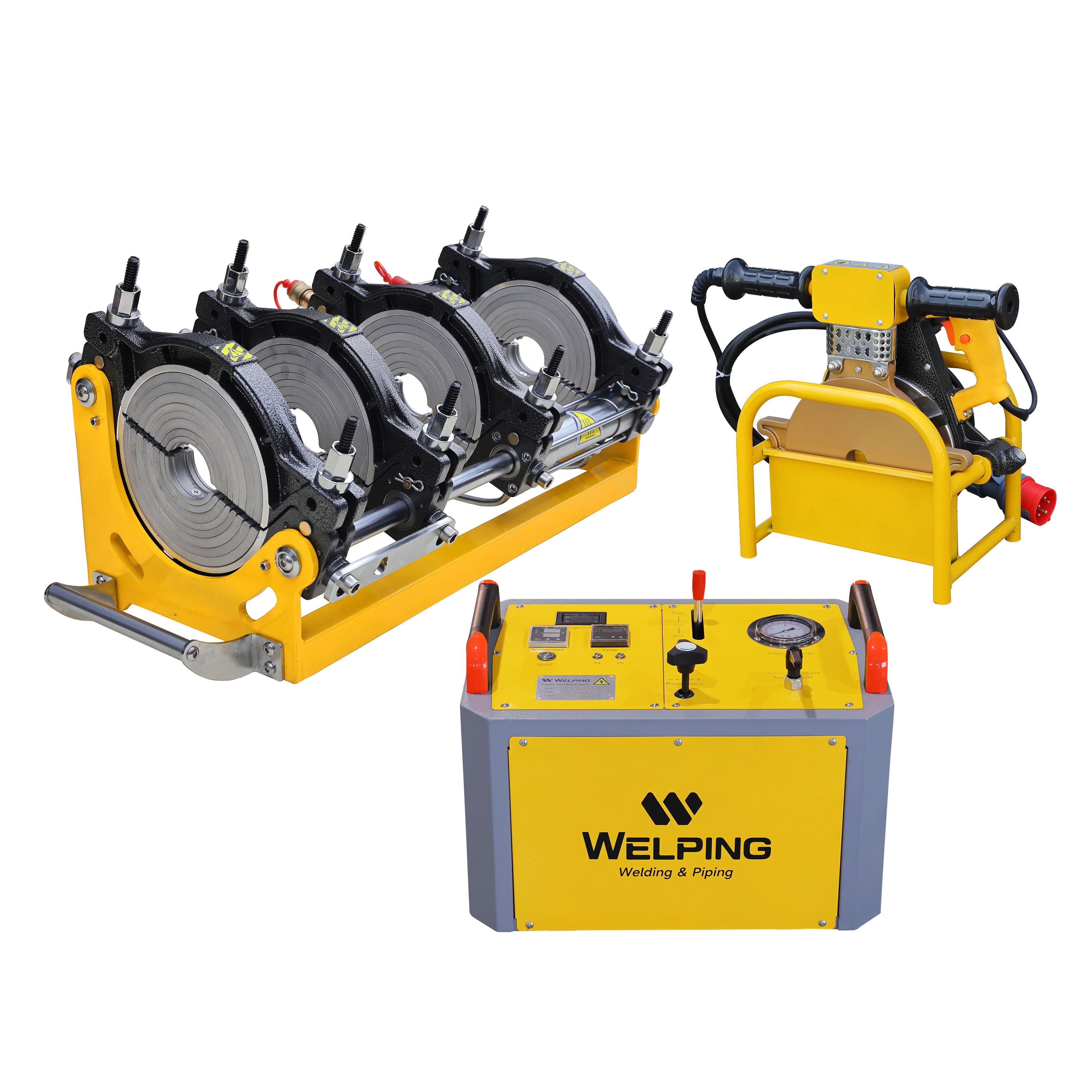

200 мм hdpe pe трубы ручной стыковой сварки машина
