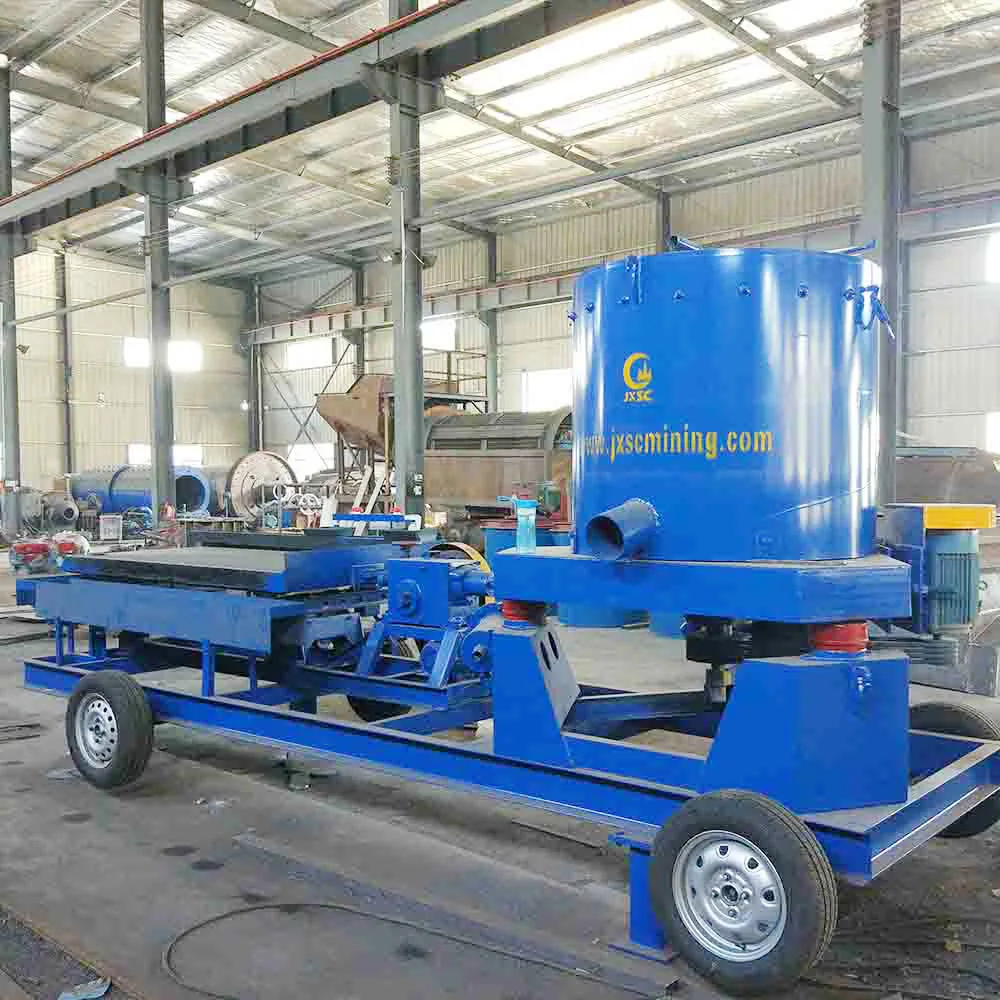

3-5TPH JXSC завод мобильный Тип золотой центробежный сепаратор Золотой концентратор дешевая цена STLB 30
611 672,72 ₽ - 1 741 338,54 ₽
Оборудование для добычи золота меди камня мокрого сковороды aftrica распродажа
- Категория: >>>
- Поставщик: Henan Nestor Mechinery Co. Ltd.
Сохранить в закладки 1600428082340:
Описание и отзывы
Характеристики
Stocks are available within 20 sets!!!!!!!!!
Whatsapp & Wechat: +8615238367461
Product Description

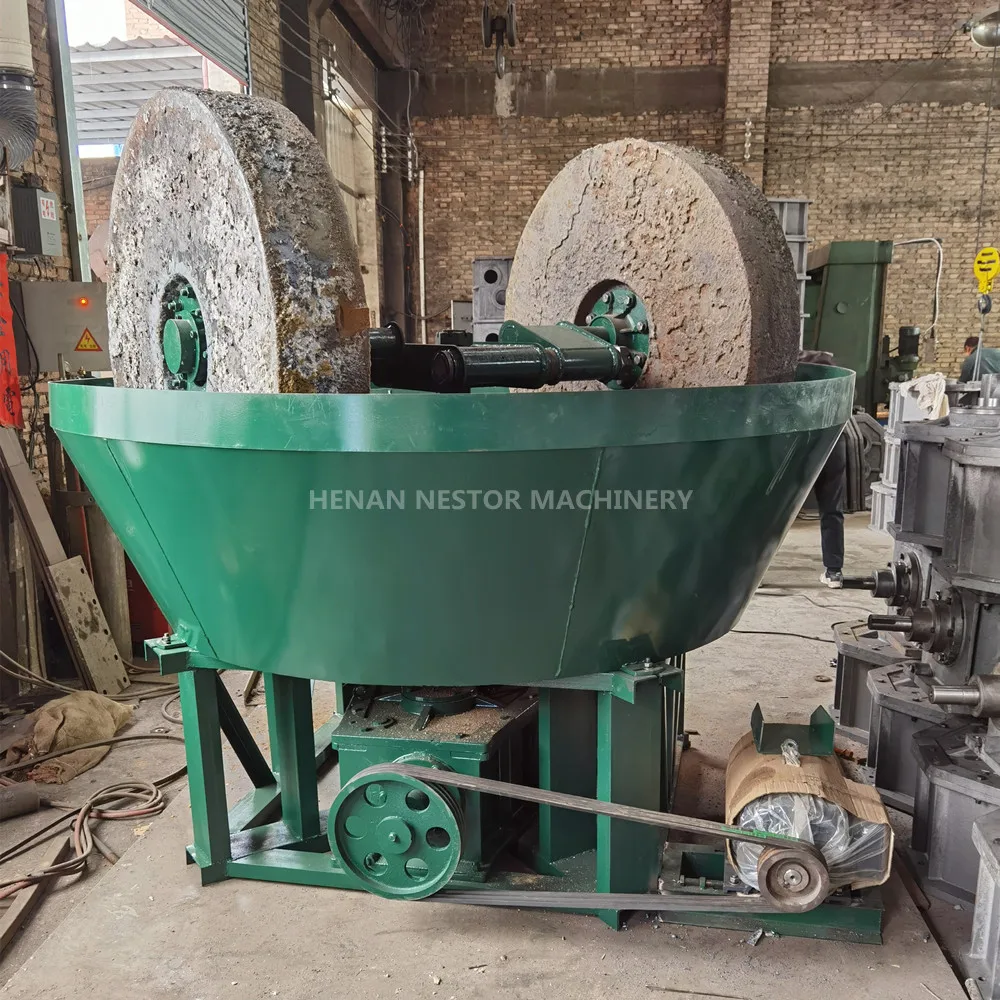

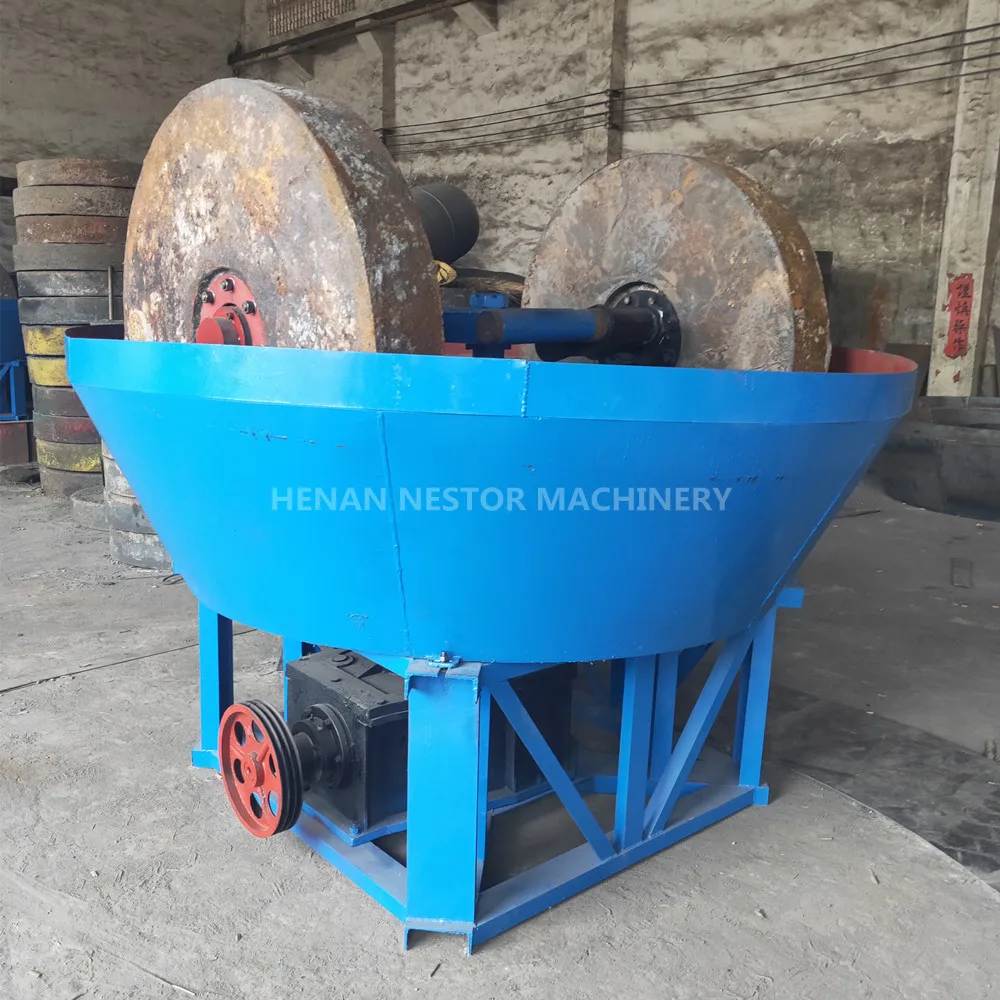

INTRODUCTION OF WET PAN MILL
The wet pan mill is also named wet grinding machine. According to the different operation methods, it is divided into gold mill,amalgamation mill, iron mill, and electric mill; According to the different structure, it is divided into wheel mill, double roller mill, and three roller mill. It is used for the grinding, separation and processing operations of gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin and other minerals, as well as the grinding, separation and processing operations of rare and precious metals gold and silver.
WORKING PRINCIPLE
1.When inputting gold sand into the rolling drum, the rollers compress the sand over and over into tiny particles.
2.Please put in 5 kg mercury at first, the mercury can absorb the gold or other metals.
3.At last, use a high-density red cloth to wrap mercury up.
4.Then squeeze it, the mercury will be pressed out and pure gold stayed.
5.As to the large capacity, we can use mercury shaking machine and mercury steamer to replace the manual work.
2.Please put in 5 kg mercury at first, the mercury can absorb the gold or other metals.
3.At last, use a high-density red cloth to wrap mercury up.
4.Then squeeze it, the mercury will be pressed out and pure gold stayed.
5.As to the large capacity, we can use mercury shaking machine and mercury steamer to replace the manual work.
USE AND MAINTENANCE
1. The raw materials shouldn’t begin to be put into the machine before the gold selecting wet pan mill running normally.
2. The raw materials are not allowed to be left in the machine. Suppose the machine is stopped while during operation, the
residual materials should be cleared immediately, and then the gold selecting wet pan mill can be started again.
3. The raw materials should be put into the machine uniformly. It's better to use feeding equipments together with gold selecting wet pan mills.
4. The bearing part should be applied with butter regularly.
5. Every bolt should be checked regularly to avoid flexibility.
6. The bearing should be changed in time if it is damaged to avoid ruining other parts.
7. While the machine is running, if there were abnormal noise, or the temperature was too high, or the motor current was too high, or other unappreciated cases, the gold selecting wet pan mill should be stopped immediately.
8. The V-belt should be removed while examining and repairing the machine for your safety.
2. The raw materials are not allowed to be left in the machine. Suppose the machine is stopped while during operation, the
residual materials should be cleared immediately, and then the gold selecting wet pan mill can be started again.
3. The raw materials should be put into the machine uniformly. It's better to use feeding equipments together with gold selecting wet pan mills.
4. The bearing part should be applied with butter regularly.
5. Every bolt should be checked regularly to avoid flexibility.
6. The bearing should be changed in time if it is damaged to avoid ruining other parts.
7. While the machine is running, if there were abnormal noise, or the temperature was too high, or the motor current was too high, or other unappreciated cases, the gold selecting wet pan mill should be stopped immediately.
8. The V-belt should be removed while examining and repairing the machine for your safety.
Details Images
Model | Specification(mm) | Feed particle size(mm) | Rotating speeding(r/min) | power(kw) | Weight(t) |
1600 | 1600*400*200*500±20 | <30 | 20~22 | 30 | 14.5 |
1500 | 1500*350*150*460±20 | <30 | 20~22 | 22 | 12.3 |
1500 | 1500*300*150*420±20 | <30 | 20~22 | 22 | 11.3 |
1400 | 1400*250*150*350±20 | <30 | 16-18 | 18.5 | 8.5 |
1300 | 1300*250*150*350±20 | <30 | 21-23 | 15 | 7.5 |
1200 | 1200*200*80*250±20 | <30 | 23-25 | 7.5 | 5.5 |
1100 | 1100*200*80*250±20 | <30 | 23-25 | 7.5 | 4 |
1000 | 1000*200*80*250±20 | <30 | 13-15 | 5.5 | 4.5 |

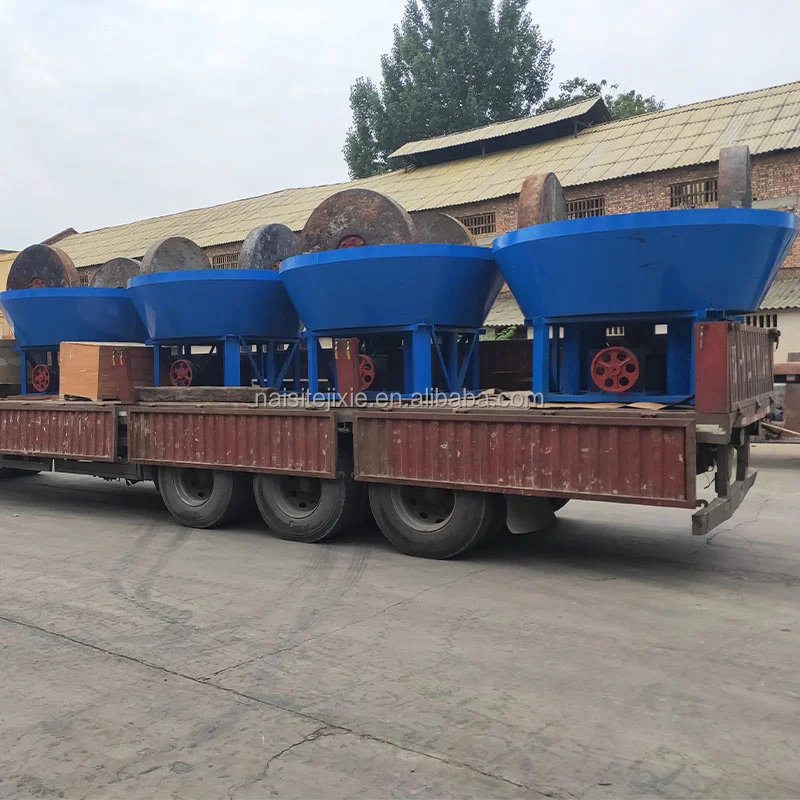

Packing & Delivery
Packing:
A 20" GP can load 5 sets of model 1200 or below 1200 size models. We can make different packaging according to different machine with international export standard container, wooden box.We can also pack as customer's requirement.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 5 to 10 working days.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 5 to 10 working days.
WORKING SITE
Related Products
GOLD CONCENTRATOR
SHAKING TABLE
BALL MILL
JAW CRUSHER
.
HAMMER MILL
GOLD MINING CARPET
Company Profile
Henan NESTOR Machinery CO., LTD
Henan Nestor Machinery Equipment Co , Ltd. ,founded in 1980. It is located in the West Development Zone of Gongyi city with convenient, transportation, well-equipped enterprises, high-quality employees. Our factory is engaged in mineral processing equipment research, design, production for forty years. Our products are exported all over the world.We produce various types of ball mills, crushers, wet mills, magnetic separators, classifiers, flotation machines and other
mineral processing equipment, mainly used for gold, silver, lead, zinc, iron, molybdenum, antimony and other ore selection. We also produce Impact crusher, Hydraulic cone crusher, Heavy hammer crusher, Rotary crusher, Compound crusher, Double shaft shredder, Mobile crushing station, Ball mill, Sand-making and sand-washing equipment, fine sand recycling machine, belt conveyor, vibrating screen, dryer, rotary kiln, cement brick machine, etc. . And we also undertake the complete set of stone sand production lines, mineral processing production lines and mineral separation production line. Our products are qualified by State Mine Machinery Quality Supervision and Inspection Center.
Customer Visit
FAQ
Q1: Are you fatory or trade company?
A1: We are factory in China .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A3.Our senior engineer will supply installation and training service on-line or on-site .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China.
Q5: What about after -sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us, leave your whatsapp and email , our sales manager will contact you within 1 hours.
A1: We are factory in China .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A3.Our senior engineer will supply installation and training service on-line or on-site .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China.
Q5: What about after -sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us, leave your whatsapp and email , our sales manager will contact you within 1 hours.
Contact Us
Похожие товары

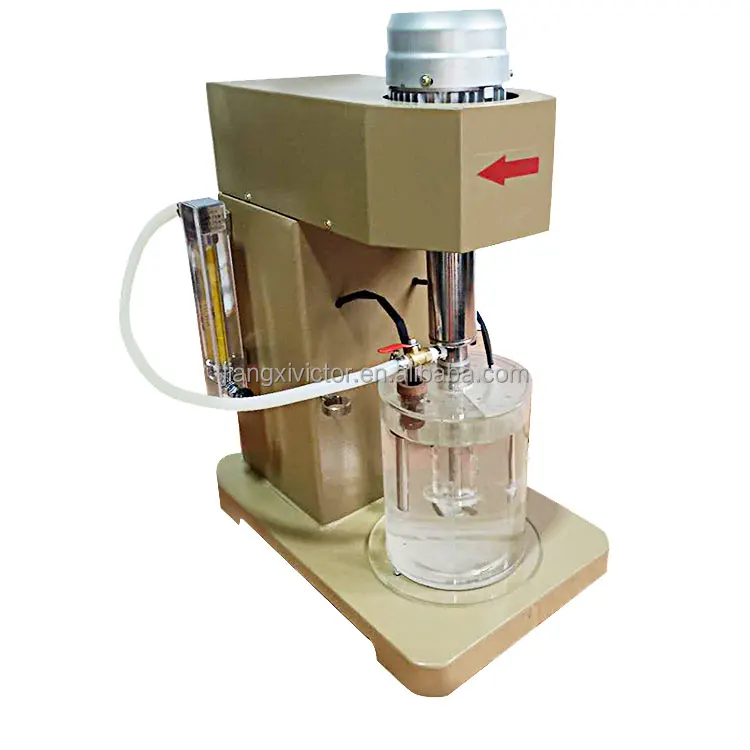

Лабораторный смеситель для выщелачивания с регулируемым нагревом двухколесный выщелачивающий резервуар XJT акриловой ячейкой 1 5/3/5 л
141 070,47 ₽ - 145 478,92 ₽

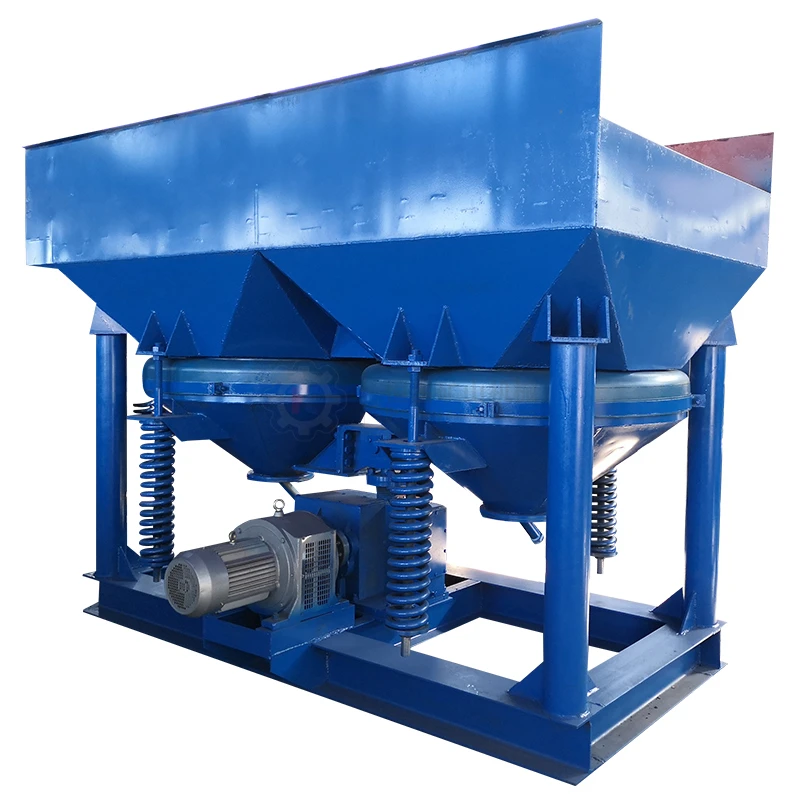

Оборудование для добычи золота минеральный сепаратор Гравитационный концентратор двойной диафрагменный Алмазный с двойным ковшом
451 866,33 ₽ - 495 950,85 ₽

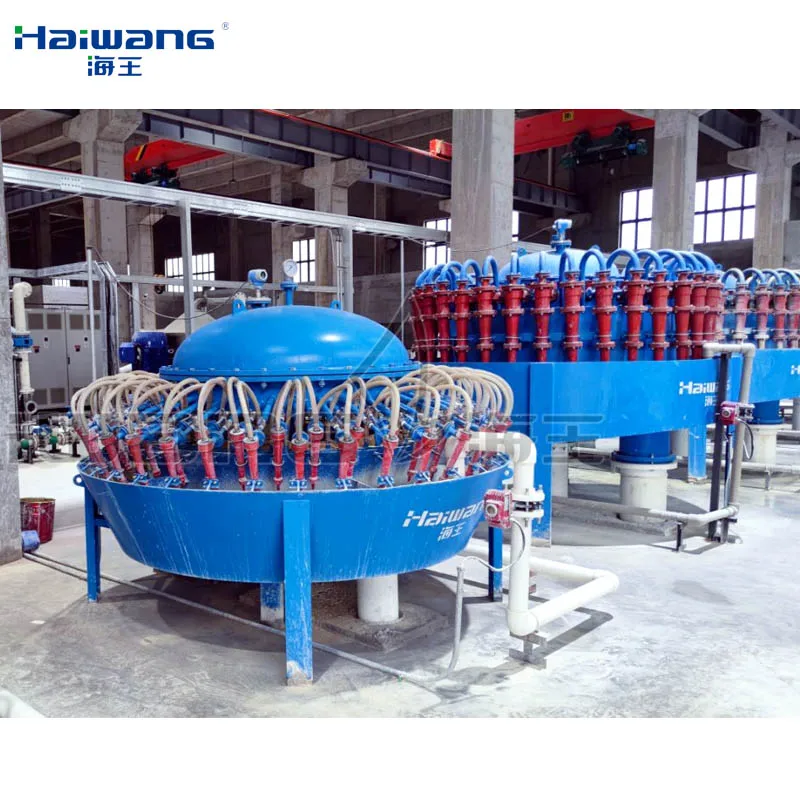

Гидроциклонный сепаратор Профессиональный гидроциклонный кластер для каолиновой руды
99 079,96 ₽

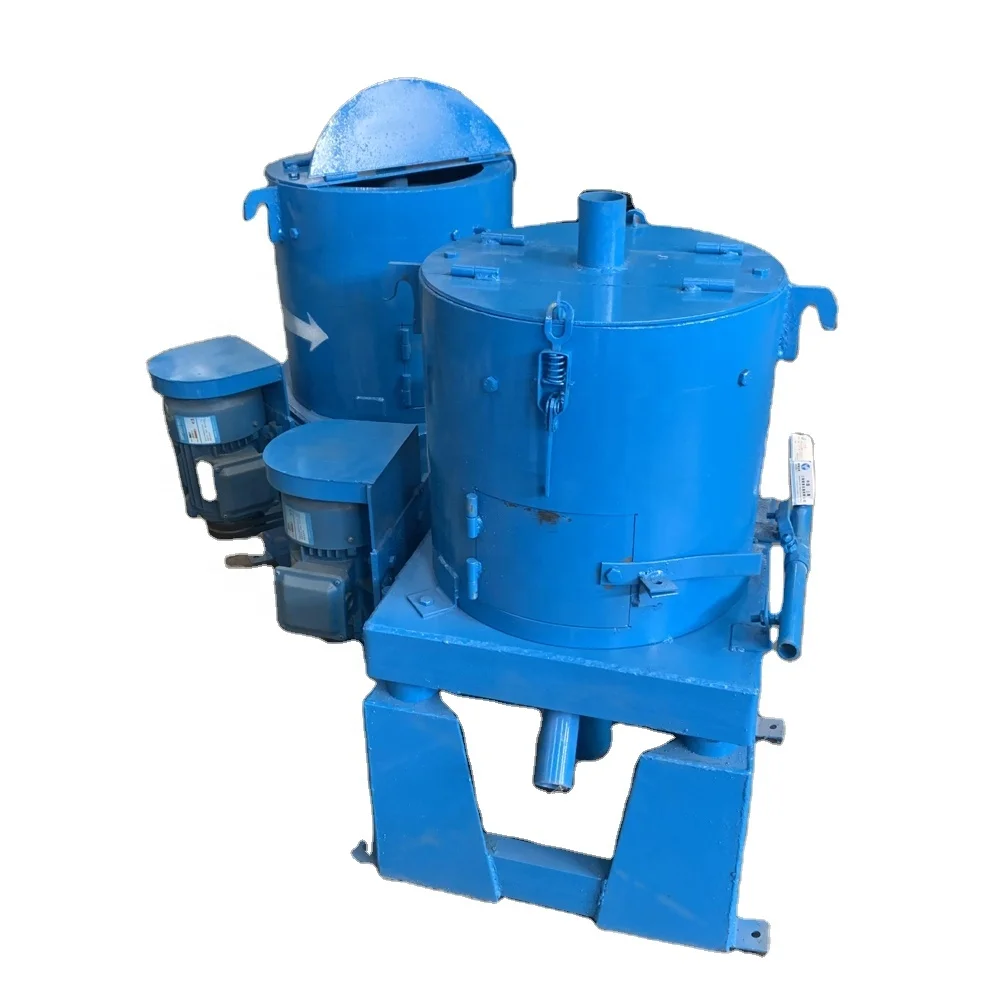

Центробежный сепаратор центрифужного оборудования гравитационного разделения в водной рубашке
319 612,77 ₽ - 330 633,90 ₽

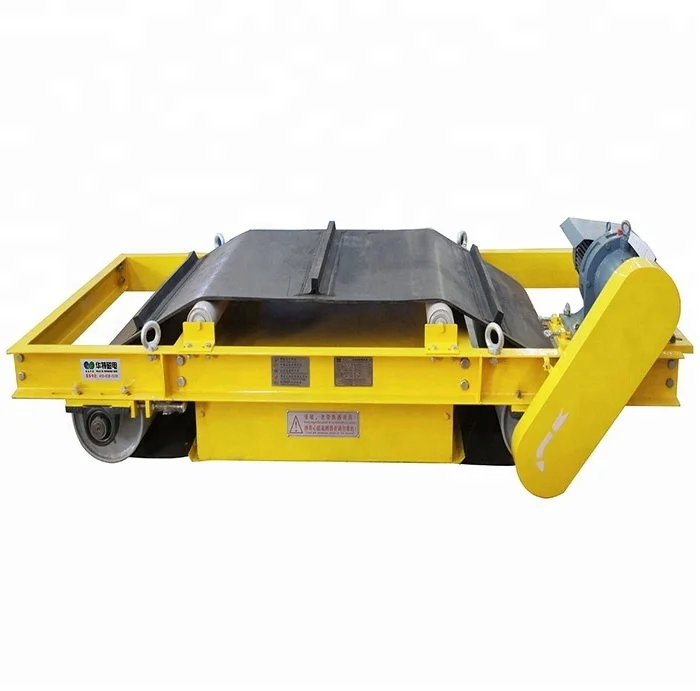

Серия RCYD самоочищающийся постоянный магнитный сепаратор
220 422,60 ₽

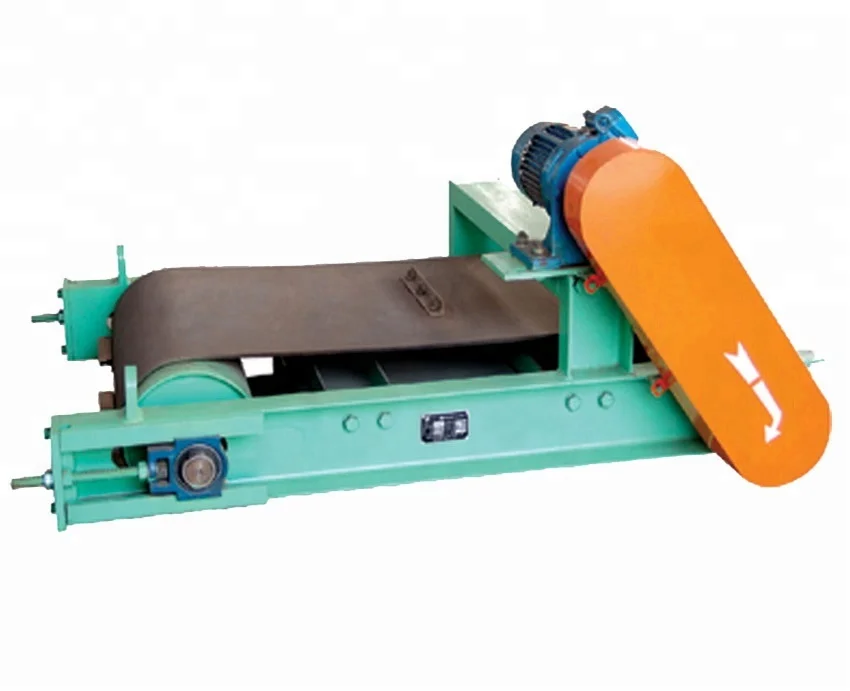

Самоочистки постоянный магнитный сепаратор для переработки
