Экстракторы Cannibas экстракция пилотное оборудование промышленный экстрактор центрифуга для холодного этанола

All plants, such as cannabis, produce an essential oil, in order too access its oil, usually solvent is utilized to separate the oil from other plant matter, like ethanol AKA alcohol, SZ series jacket centrifuge combines close-loop, solvent extraction with mechanical centrifugation ensuring a high-purity, consistent extraction, this extraction technology can target specific plant compounds through programmable sequencey which is PLC control, operating program has been set up. you can control the speed and time of rotation. effectively isolating the desired separation.

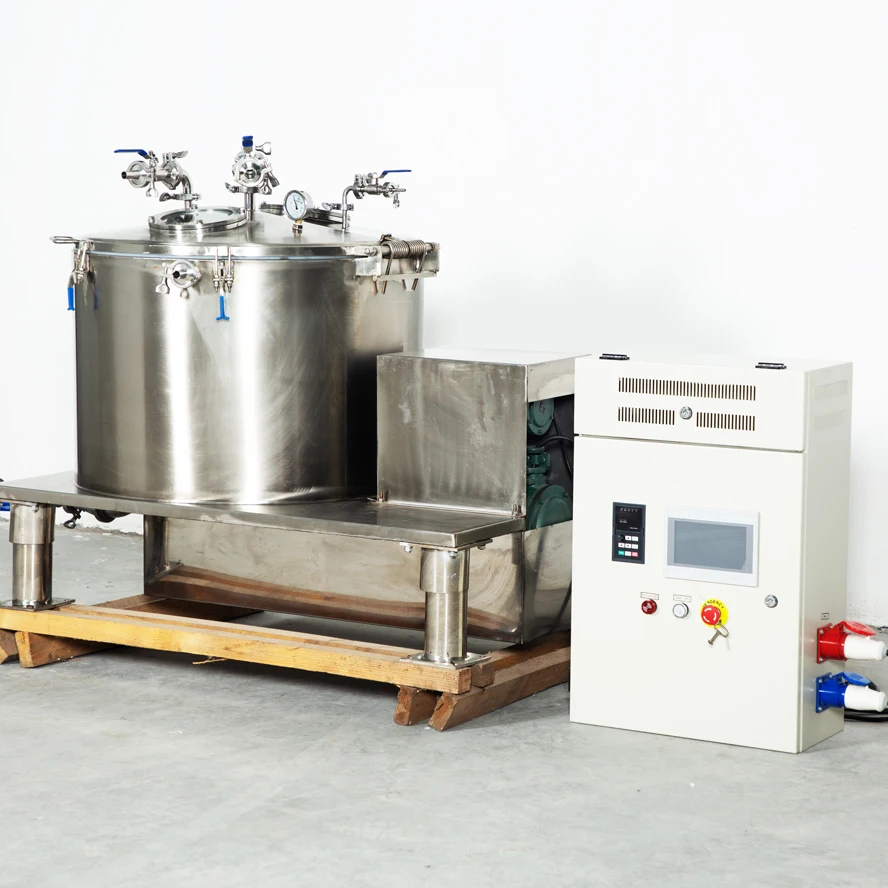

SZ-600 Pilot Equipment Industriele Extractor Cold Ethanol Centrifuge:

Easy to Operation

Ever run a washing machine to do laundry. you are almost becoming an operator of this centrifuge Utility platform, put your biomass in the bag filter (with different mesh #100, #80, #70, #40, #30 etc.), lock the lid, and start running.

Explosion Proof is Optional

If your solvent is dangerous, like pentane, we can replace all the gasket with ptfe, and the control cabinet can be placed in another room, we also can make it with explosion proof type, or both. safety first.

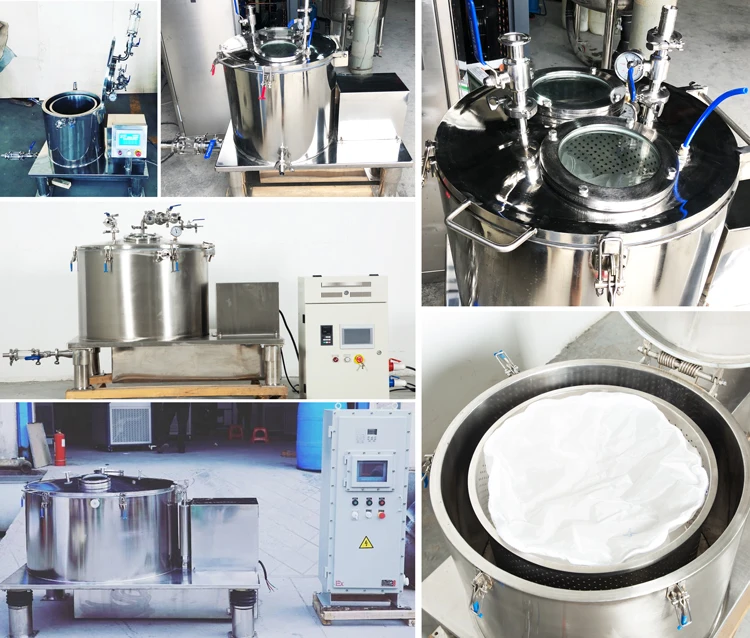

Different Models of Pilot Industriele Extractor Cold Ethanol Centrifuge:

To Know About More Machines about Extraction:                     Various Solvent Chillers:

solvent extraction can be done under either warm, cold or room temperature depending on your desired end-product, but cold extraction is better suited for producing concentrate distillates and isolates because it does not extract some water soluble compounds like chlorophyll as easily.

Some Models of Recirculating Chiller:

#  Explosion proof is optional. Water-cooling type is optional.

#  Heater and Chiller Combo. it can heat up to 200C (Customize 300C)

#  Adopt plate-heat exchanger instead of the bath coil, get higher cooling efficiency.

SS Jacket Tank Can Max 1000L (could pre-cooling if will):

Evaporation & Distillation

Rotovap Rotary Evaporator with Optional Dual Condenser and Receivers, Cover, Shelf

SS Molecular Distillation & Wiped Film Evaporator & Falling Film Evaporator

Q: Do you have any solution for filtration? Do you have a solution to put liquid directly from sz to rotary evaporator?

A: Yeah. we have some thoughts. if you order our centrifuge, we can figure it our with extra pump, vacuum filter or multi-stage filter system.

 Henan Touch Science Instruments Co.Ltd
