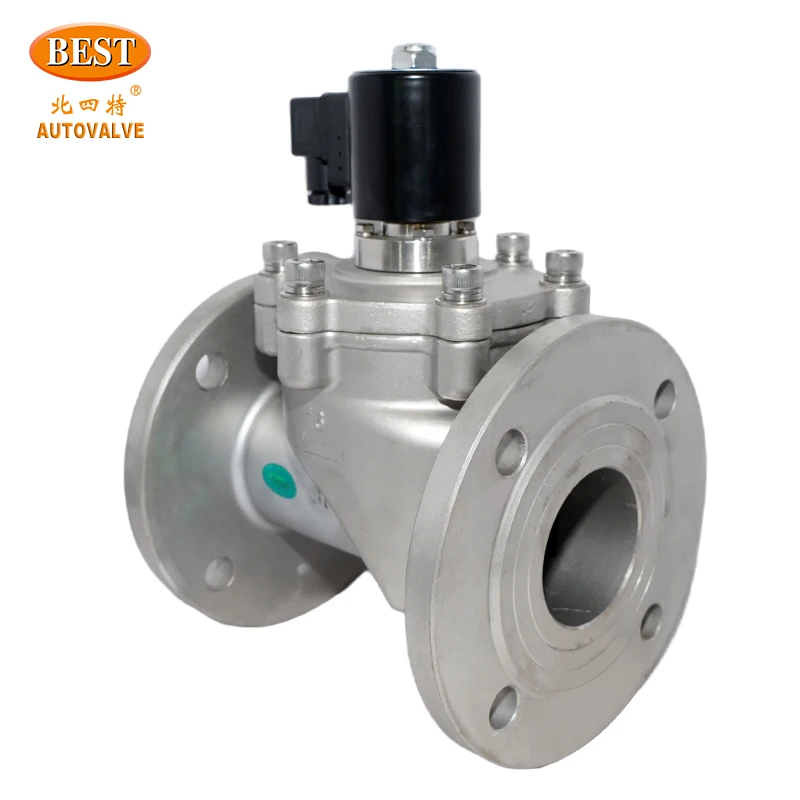

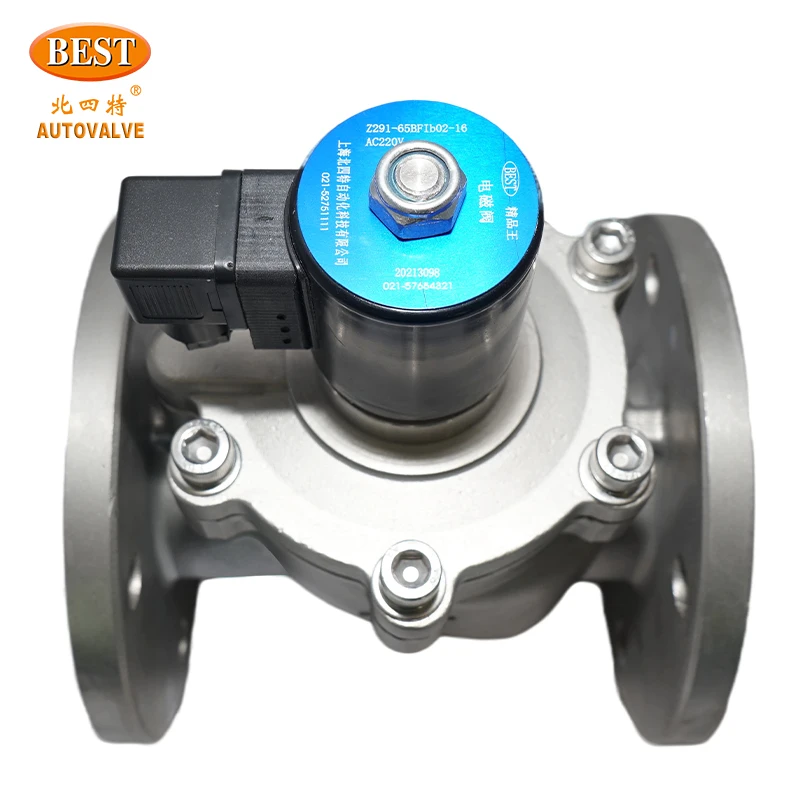

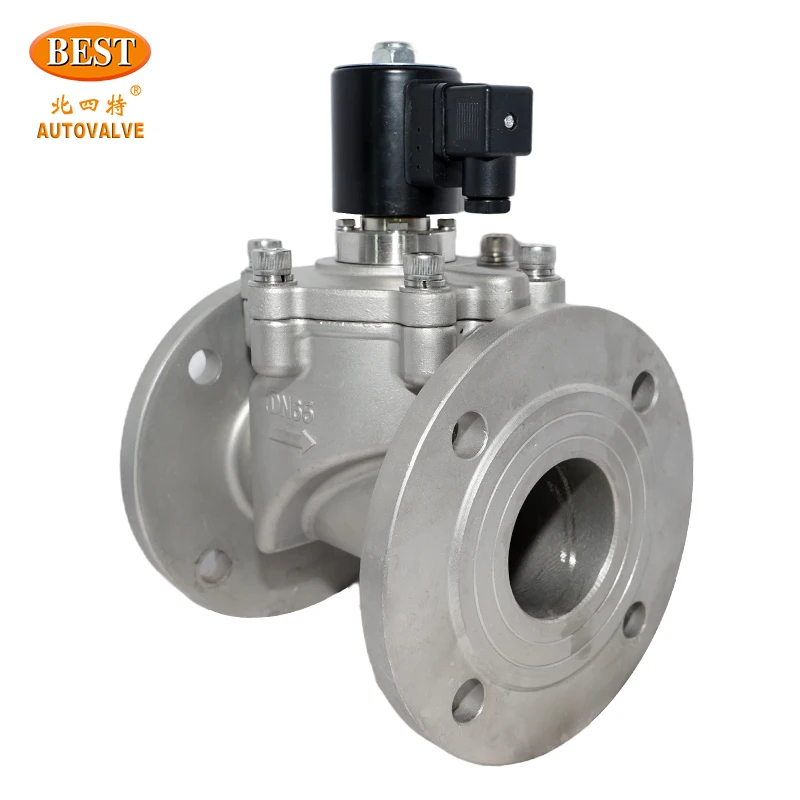

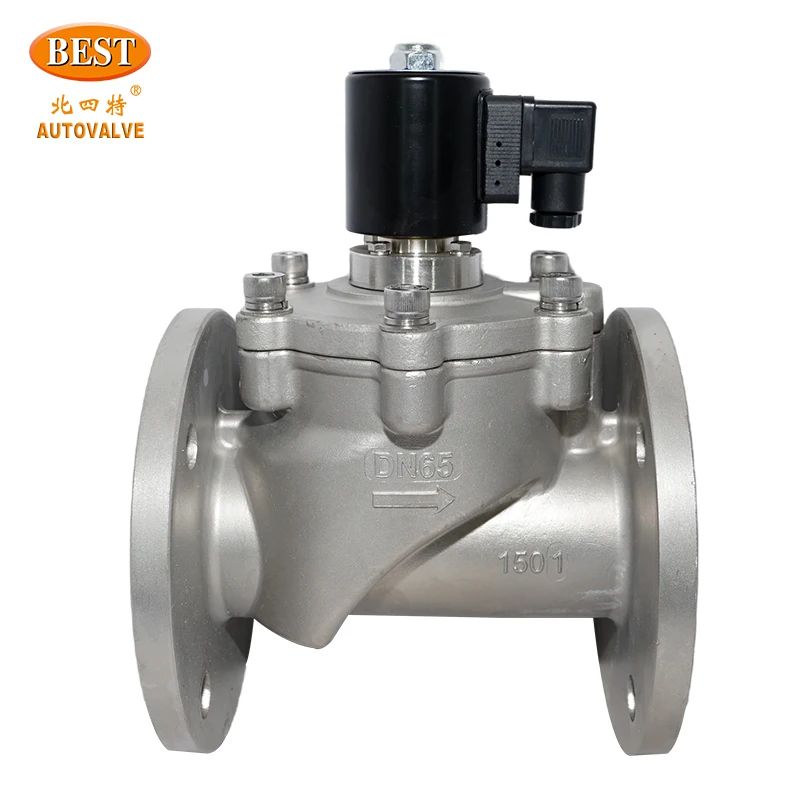

Клапаны CE ISO Z291 фланец из углеродистой стали нержавеющей 2 способа 16 бар 25 40 110 В 24 220 переменного тока электромагнитный клапан для водяного газа
- Категория: Valves >>>
- Поставщик: Shanghai Best Automation Technology Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1600429857819:
Описание и отзывы
Характеристики
VR
Product Overview
Manufacturer | Item | Size | Place of Origin |
BEST | Solenoid Valve | DN10~300 | Shanghai,China |
Key Specifications/Special Features:
01.Exported type, used for Aerospace and as auxiliary parts
02.Nominal diameter:normal---DN10~300, special---DN350~1100
03.Max. pressure tolerance:normal---16kgf/cm2, special---25, 40kgf/cm2
04.Valve position type:normally closed
05.Valve body material:cast steel WCB(code:C)---limited for DN25~300 only
SS304(code:B), SS316(code:R)
06.Applicable medium:gas, liquid, steam, oil, etc.
07.Kinematic viscosity value of applicable medium:≤50CSt(mm2/s)
08.Ambient temperature:-15~75℃
09.The valve with pilot structure can be mounted at any angle,
keep coil vertically upward＆installed horizontally which may extend life span; if vertical installation is needed, notes shall be given when to order
10.Sealing material:Ib---NBR(code:N), Ⅱe---EPDM(code:E)
Ⅲc---VITON(code:V), Va---PTFE(code:P)
11.Leakage:Ib, Ⅱe, Ⅲc:0ml/min; Va:normal temp. medium---1.5ml/min, steam---0.1ml/min, which are not accurate values
12.Normal voltage:AC220/AC230/AC240V 50/60Hz, DC24V, allowable tolerance ±10%, customization accepted
13.Electric connection:normal---standard cable box, explosion-proof---normal lead wire(standard length is 1.5m,
the electric connection has conventional G1/2" external thread, and other threads can be customized), special cable box
Note: the color lines are ground lines and the rest are power lines
14.Explosion-proof type can be equipped, explosion-proof mark ExdⅡCT5 Gb(Certificate No.:SYEx18.0960X)
02.Nominal diameter:normal---DN10~300, special---DN350~1100
03.Max. pressure tolerance:normal---16kgf/cm2, special---25, 40kgf/cm2
04.Valve position type:normally closed
05.Valve body material:cast steel WCB(code:C)---limited for DN25~300 only
SS304(code:B), SS316(code:R)
06.Applicable medium:gas, liquid, steam, oil, etc.
07.Kinematic viscosity value of applicable medium:≤50CSt(mm2/s)
08.Ambient temperature:-15~75℃
09.The valve with pilot structure can be mounted at any angle,
keep coil vertically upward＆installed horizontally which may extend life span; if vertical installation is needed, notes shall be given when to order
10.Sealing material:Ib---NBR(code:N), Ⅱe---EPDM(code:E)
Ⅲc---VITON(code:V), Va---PTFE(code:P)
11.Leakage:Ib, Ⅱe, Ⅲc:0ml/min; Va:normal temp. medium---1.5ml/min, steam---0.1ml/min, which are not accurate values
12.Normal voltage:AC220/AC230/AC240V 50/60Hz, DC24V, allowable tolerance ±10%, customization accepted
13.Electric connection:normal---standard cable box, explosion-proof---normal lead wire(standard length is 1.5m,
the electric connection has conventional G1/2" external thread, and other threads can be customized), special cable box
Note: the color lines are ground lines and the rest are power lines
14.Explosion-proof type can be equipped, explosion-proof mark ExdⅡCT5 Gb(Certificate No.:SYEx18.0960X)
Products Description
SALES AND SERVICE NETWORK
Company Profile
Company Introduction
Year of Incorporation: 2003
BEST’s Market: Overseas and domestic
BEST’s Sales Methods: ODM, OEM, through licensed agents
Research and Development Team: 15 Research and design specialists
Sales Network: More than 20 countries including the US, CanadaGermany, the UK, the Netherlands, Italy, Ukraine, Dubai, and Japan
Certificates: IS09001-2015 certified
Company Strength
With the concept of ‘be humane first; win the war by comprehensive strength’, BEST people put pioneered technology, elaborate crafts, product quality and customers' benefit first, and it develops during practice to be better, more professional and more economic!
Customer case
Our products are widely used in all walks of life and have been unanimously recognized by customers
World Expo 2010 Shanghai
High-speed rail application
Ship and warship application
Powder tanker/vehicle
New type fuel boiler
Textile machinery industry
Conveying equipment/automatic storage industry
Office automation industry
Medical chemical industry
Rubber machinery/machine tool industry
Solar industry
Other equipment manufacturing industries
Honors and Qualifications
In 2020, our company was rated as one of the top ten honest enterprises by the government
CE Certificate
CE Certificate
CE Certificate
Business License
Certificate of Honor
Trademark Registration Certificate
Certification of ISO9001
Quality Management System
Quality Management System
Production License of Special
Equipment for Safety Valve
Equipment for Safety Valve
Production License of Special
Equipment for Ordinary Valve
Equipment for Ordinary Valve
Method of payment
FAQ
• Standard payment terms:pay50% deposit in advance. 50% balance before shipment.
• Online trade assurance order,all is up to you.
• More payment terms could be provided
(T/T,PAYPAL,WESTERN UNION,MoneyGram).
• Online trade assurance order,all is up to you.
• More payment terms could be provided
(T/T,PAYPAL,WESTERN UNION,MoneyGram).
We are manufacturer, we have produced valves for more than 20 years. So we have competitive price. OEM ODM OBM are optional.
2. What's your payment terms?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3. What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1 piece. We also can provide the samples.
4. What about the delivery time?
Sample needs about 3 working days, for large order, delivery time will be according to your quantity.
5. Would you have a discount if l have a large order?
A:Yes. We could offer different discount according to your order quantity.
6. Where is the factory located?
Welcome to visit our factory in Shanghai.
Contact:
SHANGHAI BEST AUTOMATION TECHNOLOGY Co.,Ltd.
Address:8th Floor, Oriental Auto Parts City 3rd New Office Building, No.35, Dingbian Road, Jiading District, Shanghai, China
Email :pollyanna(at)bestautovalve.com / sale01(at)bestautovalve.com Pollyanna
Address:8th Floor, Oriental Auto Parts City 3rd New Office Building, No.35, Dingbian Road, Jiading District, Shanghai, China
Email :pollyanna(at)bestautovalve.com / sale01(at)bestautovalve.com Pollyanna
Похожие товары

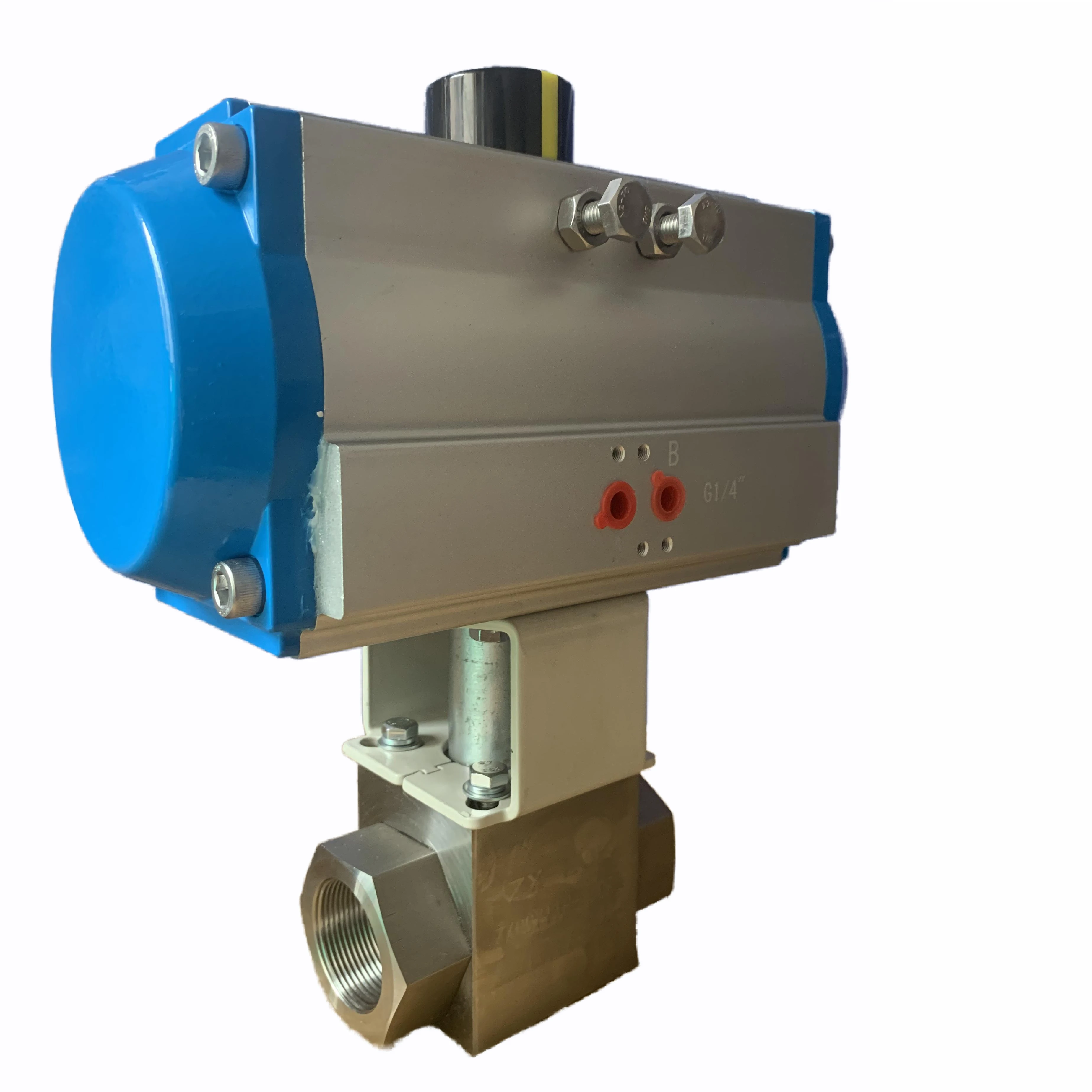

DN50 40Mpa кованые из нержавеющей стали 316 5000 фунтов/кв. дюйм высокое давление Гидравлический пневматический привод с 2 Путевым ПВХ шаровой клапан с пневматическим приводом
54 095,38-55 982,43 ₽
V3068-T03-NC Электрический обратный клапан Taiwan Xinhong HYDRAMAX оригинальный V3068-T04-NC
Ansi/SMS/iso санитарно сварки и клапан потока
Гидравлический регулирующий клапан BS EN чугунный фланцевый редуктор давления dn100 из ковкого чугуна PN16 для системы водоснабжения
Pntek пластиковых продуктов таких как 1/2 дюймов 2 Way One предметов с рисунками «бабочка» и «Зеленый тела красный ложки длинной ручкой компактный UPVC/шаровой кран из ПВХ
0,15-0,20 $
200X корпус из ковкого чугуна редукционный клапан управления давлением воды
220,00 $

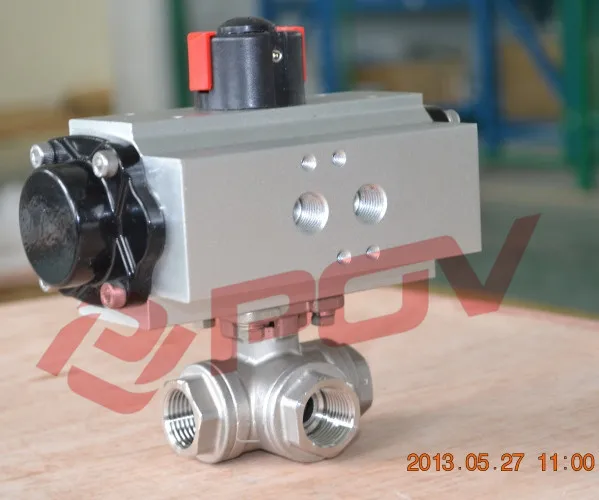

Пневматический поток 1 ' из нержавеющей стали мини-мяч клапан
