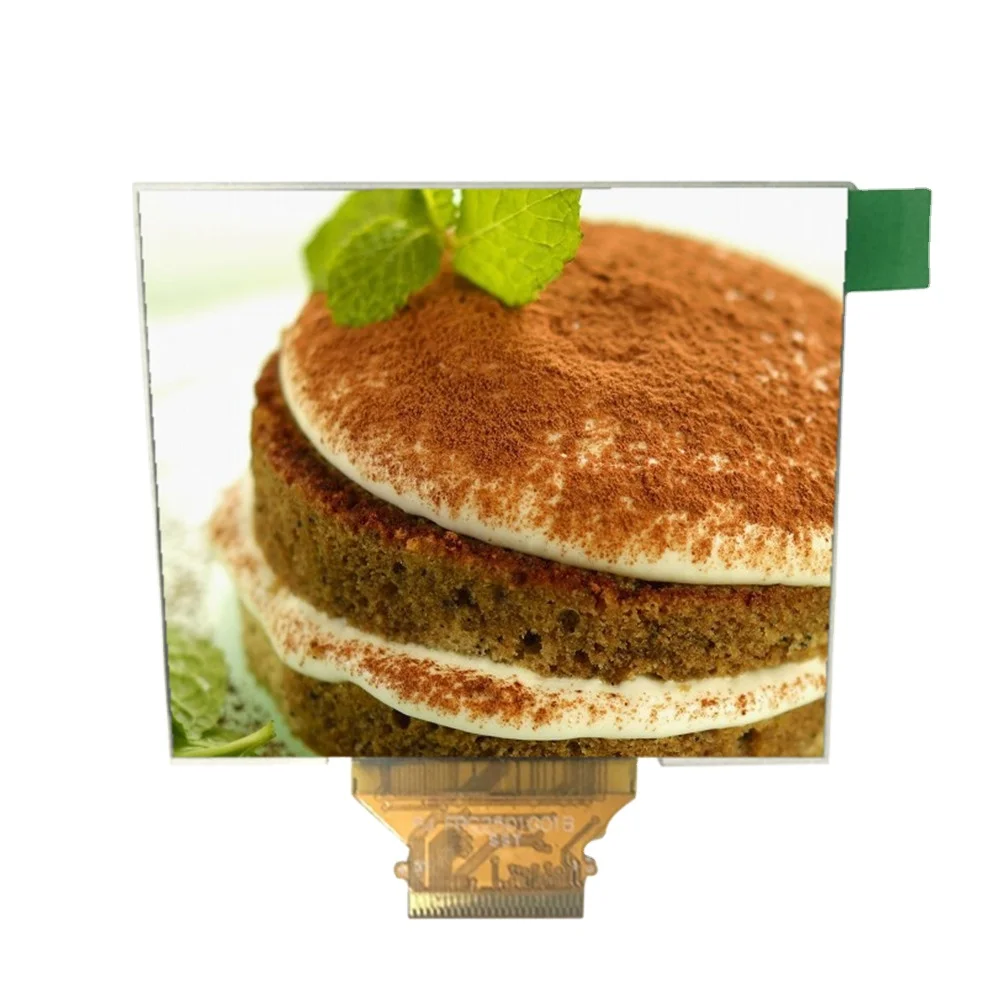

RGB LCD 2 5/2 6 дюйма TFT LCM
5,60 $ - 8,00 $
Прямая поставка с завода пленка голубым селективным покрытием для солнечных коллекторов плоской пластиной
- Категория: >>>
- Поставщик: Shandong Feitian New Energy Co. Ltd.
Сохранить в закладки 1600434007985:
Описание и отзывы
Характеристики
Product Description
Selective absorb blue titanium coating can greatly improve the efficiency of the solar collection efficiency and utilization of
the solar collector, within the scope of the solar spectrum with high absorption ratio, at the same time in the infrared spectral range thermal emission ratio as low as possible.
Product process using magnetron sputtering deposition technology, can achieve a higher absorption rate and low emissivity, environment protection without pollution during preparation, at present the coating technology in the field of field application is very mature.
Specification
Name | High efficient solar selective absorb blue coating |
Thickness(mm) | Aluminum 0.3mm, Aluminum 0.4mm |
Width(mm) | 500mm,760mm,780mm,960mm,980mm,1000mm, 1250mm |
Length (mm) | Coil material or specified length |
Absorb rate & emissivity | 93%-96% & 4%-6% |
Thickness of Coating | 200NM |
Technology | Magnetron Sputtering |
Working Theory | Absorbs sunlight and converts it into heat, |
Application | Solar water heater, Air collector, Heat pipe solar collector ,or other new field of solar thermal system |
Product Details
Application case:
Solar selective absorption coating is widely used, and the conventional application is the heat absorption part of the flat plate solar collector, which can also be used as the heat absorption part of the large heat pipe, air energy collector etc.
Currently, the most commonly used specifications are thickness of Al 0.3 mm & Al0.4mm, width is less than 1250mm. The coil materials are supplied.
Blue coating film there is 0.3&0.4mm, besides, we have black coatings too.

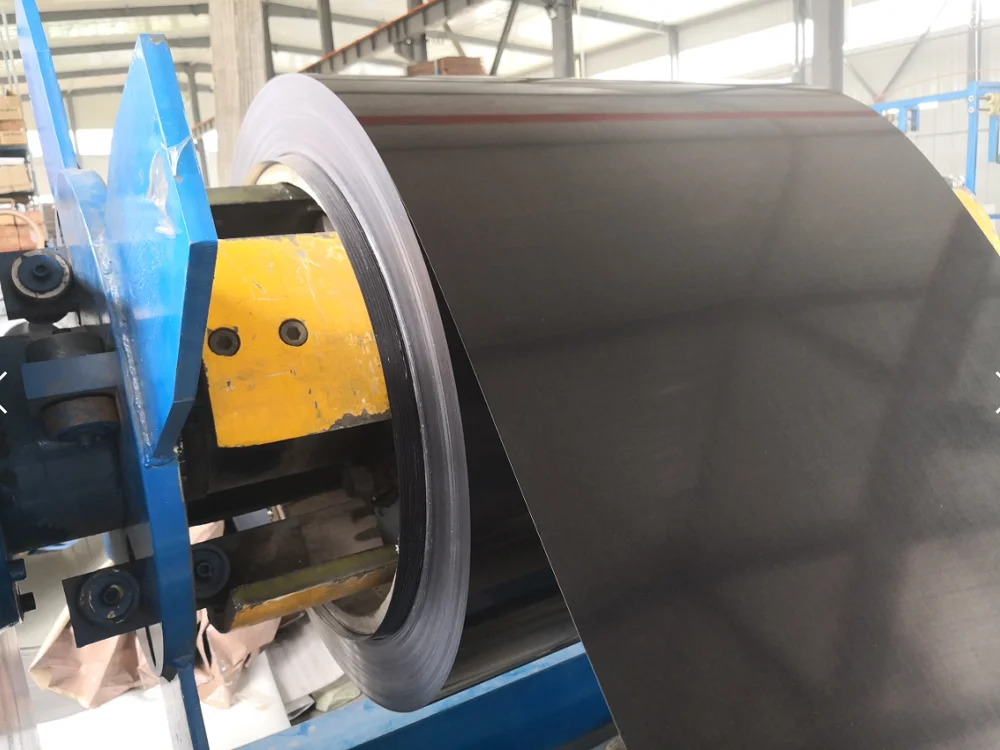

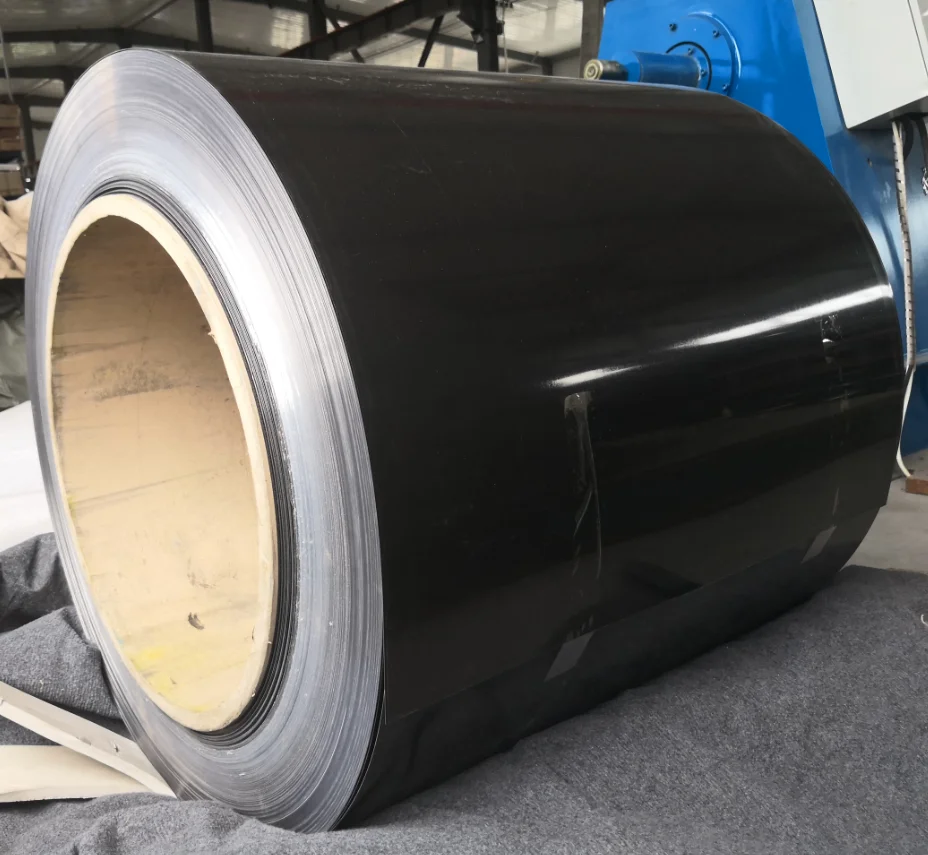

We can produce into coils or sheet according to your requirements.
Heat absorption film, blue film & black film, sufficient raw materials

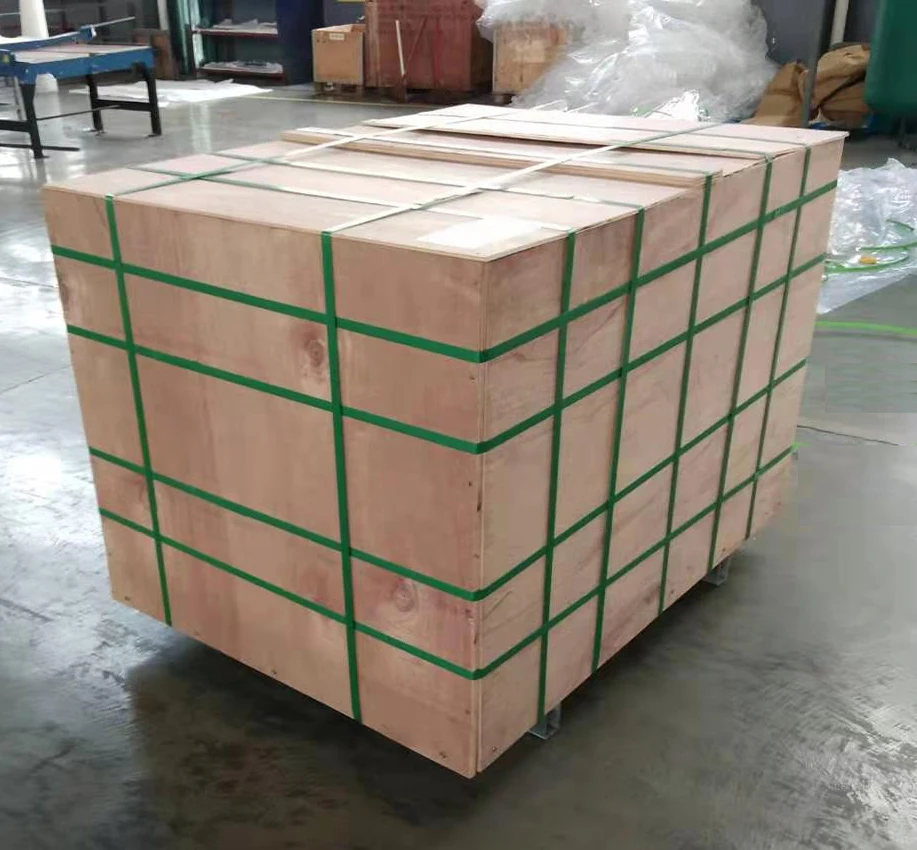

Package: wooden case
Use Case
Multiple flat plate collectors form a heat collection array.Provide plenty of hot water for hotels, hospitals and schools.
The flat plate collector is matched with a water tank and bracket to form a solar water heater for use.
It consists of thousands of flat plate collectors.To provide winter heating for the whole city
Professional Production Line
Company Profile
Shandong Feitian New Energy Co., Ltd
Shandong Feitian New Energy Co., Ltd., located in Dezhou, Shandong, is an innovative enterprise focusing on the field of solar thermal application. With a number of independent intellectual property rights of the core technology, has been committed to the development, manufacturing and sales of solar thermal products and equipment.
In 2002, Feitian was established. Relying on the strong technical background, it entered the solar thermal field. In the same year, it successfully developed the solar engineering integrated tank and produced a special production line for the industry, and the products were highly recognized by the industry leaders.In the field of solar thermal energy, Feitian New Energy was established in April 2018 with positive innovation, tenacious enthusiasm and breakthrough development. Feitian provides customers high quality products and services for its own responsibility, over the years to forge their own management team, establish a scientific and perfect management system. In 2010, the company passed the ISO9000 quality management system certification, and all kinds of products passed the inspection of national quality testing institutions. Good corporate reputation, excellent product quality and excellent service to win customers widely recognized. Feitian never stops exploring the pace, the old and new kinetic energy conversion, new power, new engine, takeoff light heat Chinese dream!
FAQ
1. Is your company a trading company or factory?
We have own factory. Welcome to visit our factory.
2. What is your Delivery Time?
LCL order/Sample order:10days. Full container order:14days.
LCL order/Sample order:10days. Full container order:14days.
3. Can you do make with my brand ?
Yes,OEM&ODM order are both welcome and accept.
4. What is your MOQ?
1 set.
5. What is your Packing?
LCL order/Sample order in woden case. Full container order in high quality export carton.
6. What is your FOB Port?
We accept FOB Qingdao , Shanghai ,Tianjin etc.
7. What is your Monthly Production Capacity?
30000PCS.
Похожие товары
Низкая цена и высокая эффективность солнечных тепловых водонагревателей, гироскутеров, поглотитель солнечных батарей для солнечного коллектора
50,00 $ - 60,00 $

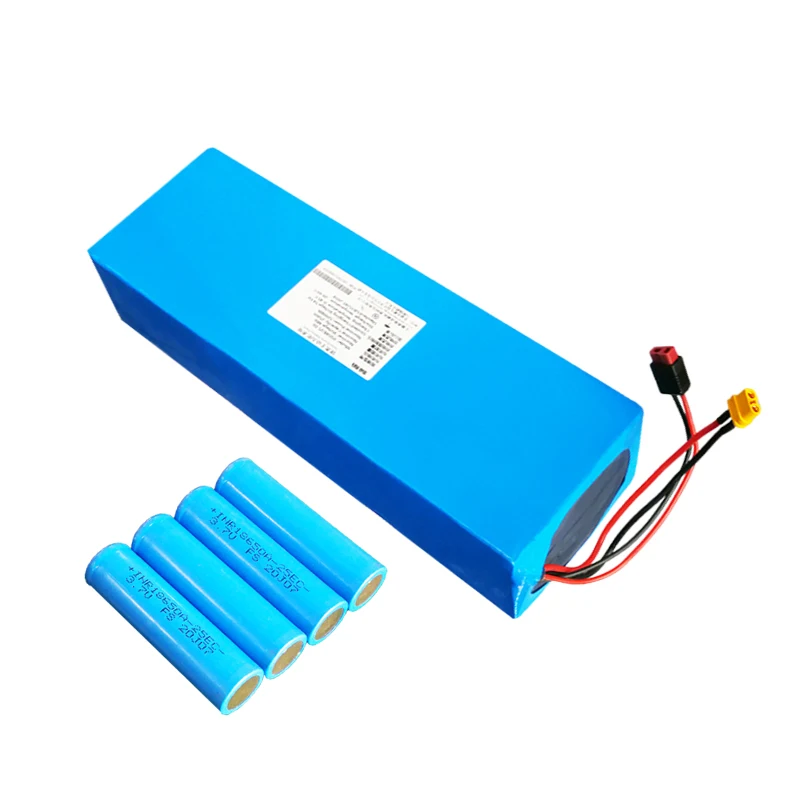

Заводская цена, литий-ионный аккумулятор глубокого цикла 18650 1300 мАч 3,7 в
40,00 $ - 50,00 $

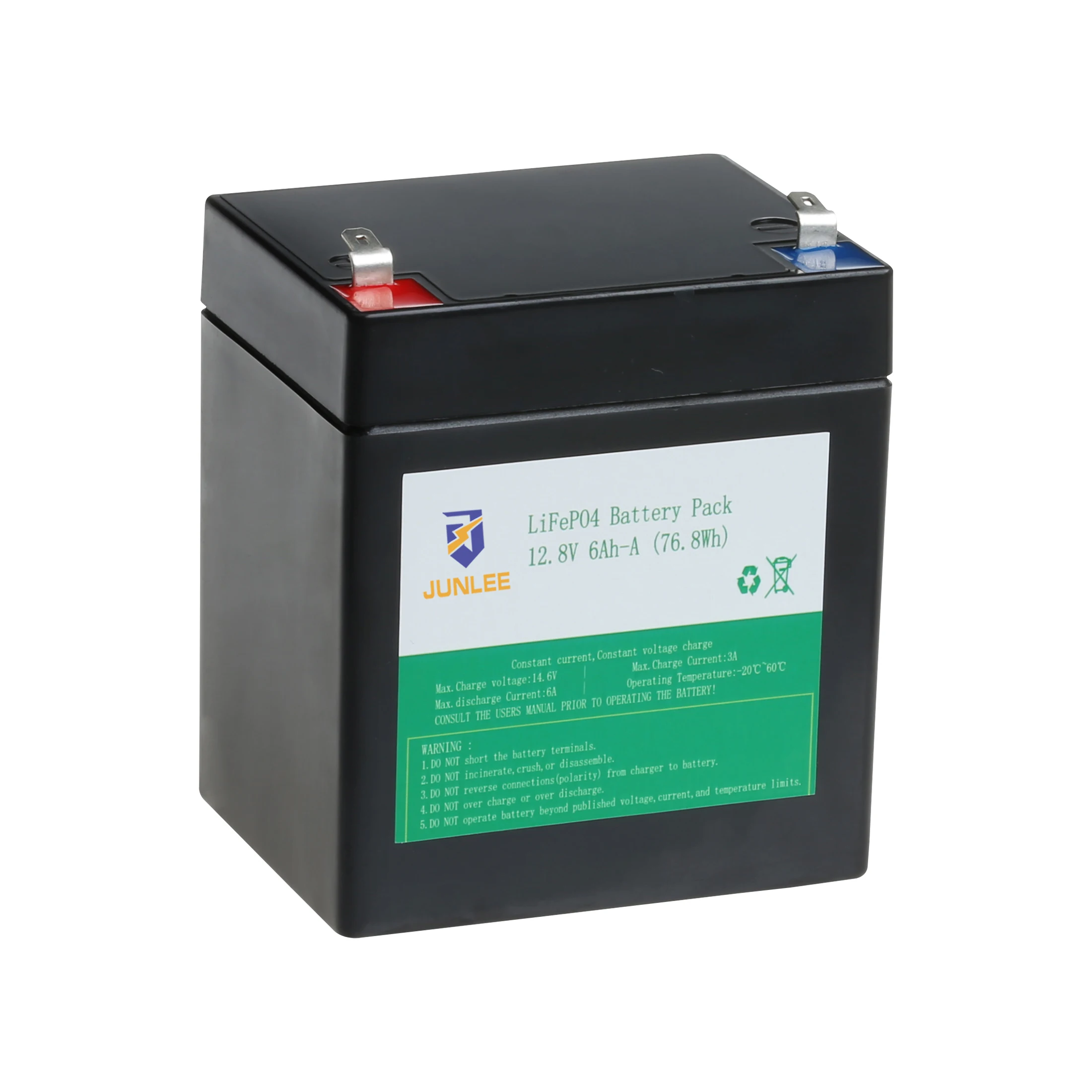

Малая емкость 12,8 В 6 Ач lto призматический аккумулятор для игрушек/электроинструментов
9,20 $ - 10,00 $

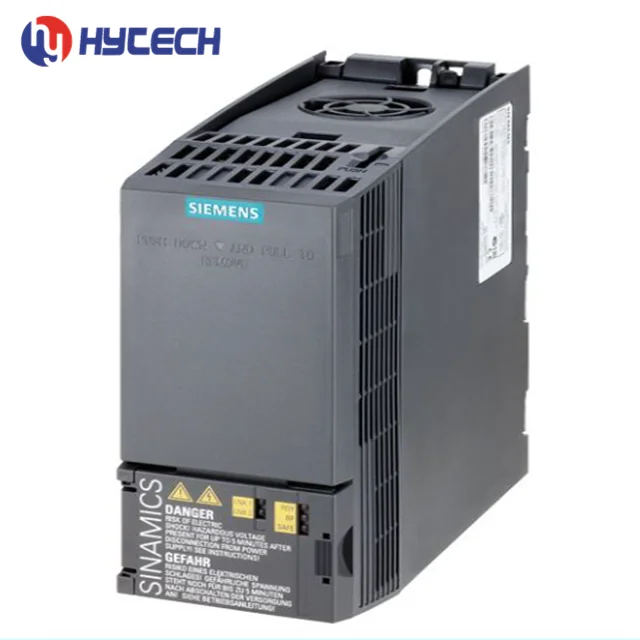

hytech siemens 15KW converter Inverter frequency converter vfd Sinamics G120C PN, 6SL3210-1KE23-2UF1 vfd
