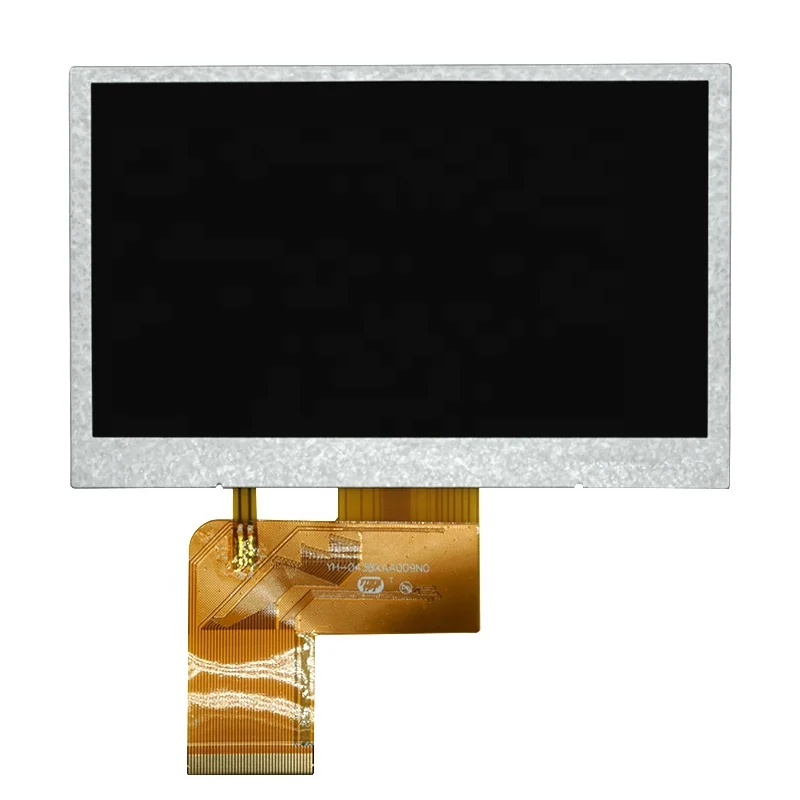

Разрешение 480*272 RGB интерфейс SPI ЖК дисплей 4 3 дюйма IPS TFT ЖК экран fpr 3D принтер или авто
- Категория: >>>
- Поставщик: Shenzhen Rongjiayi Technology Co. Ltd.
Сохранить в закладки 1600436973349:
Описание и отзывы
Характеристики
Specification

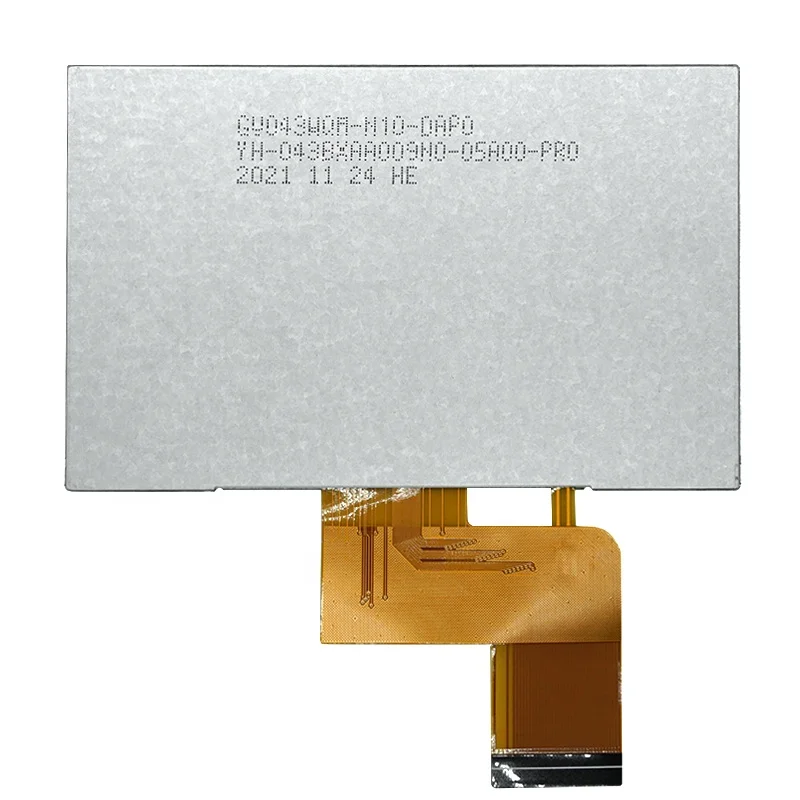

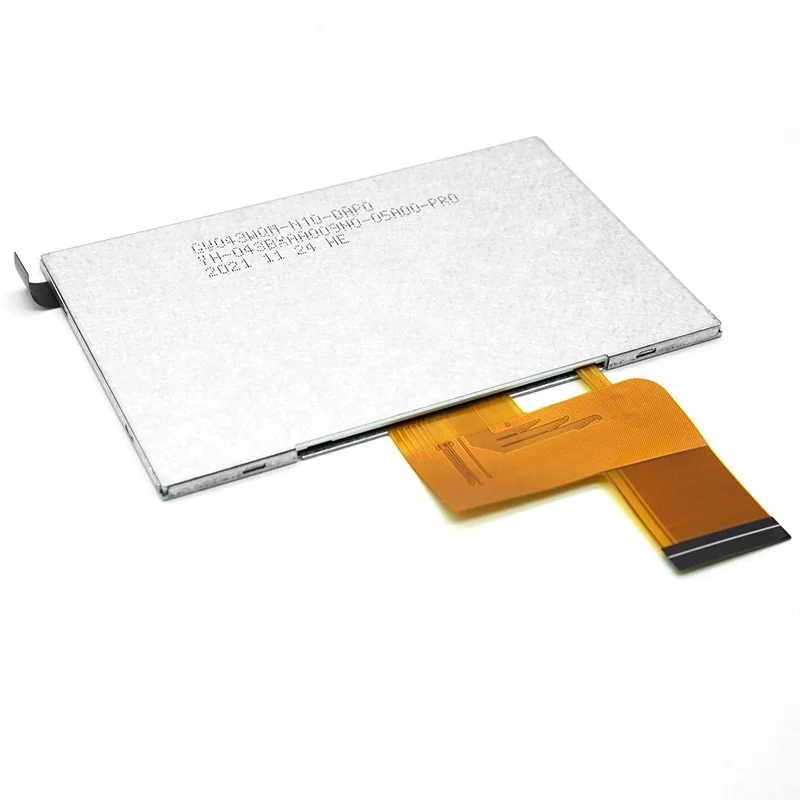

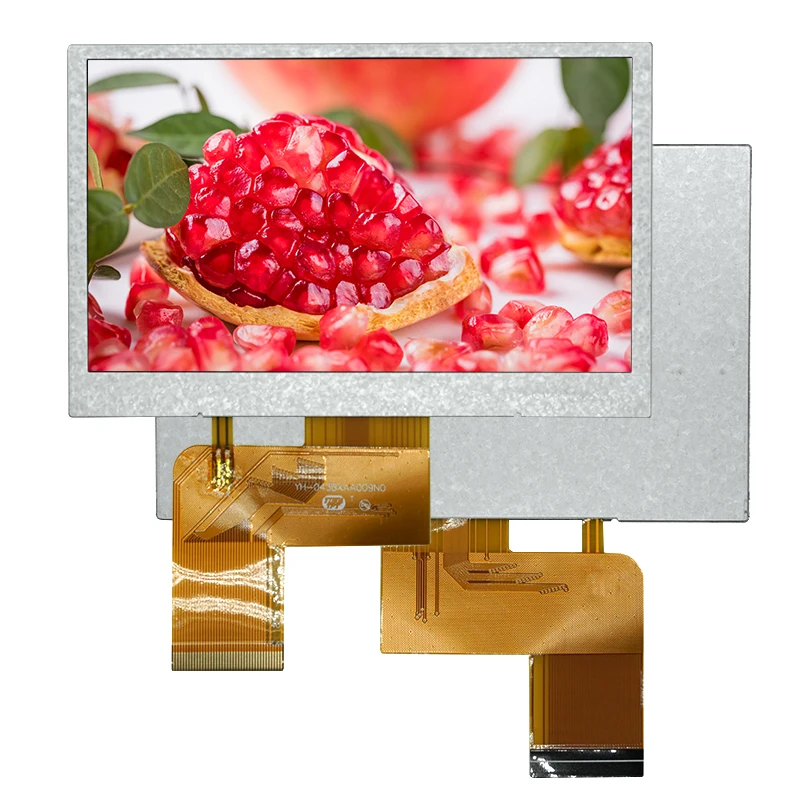

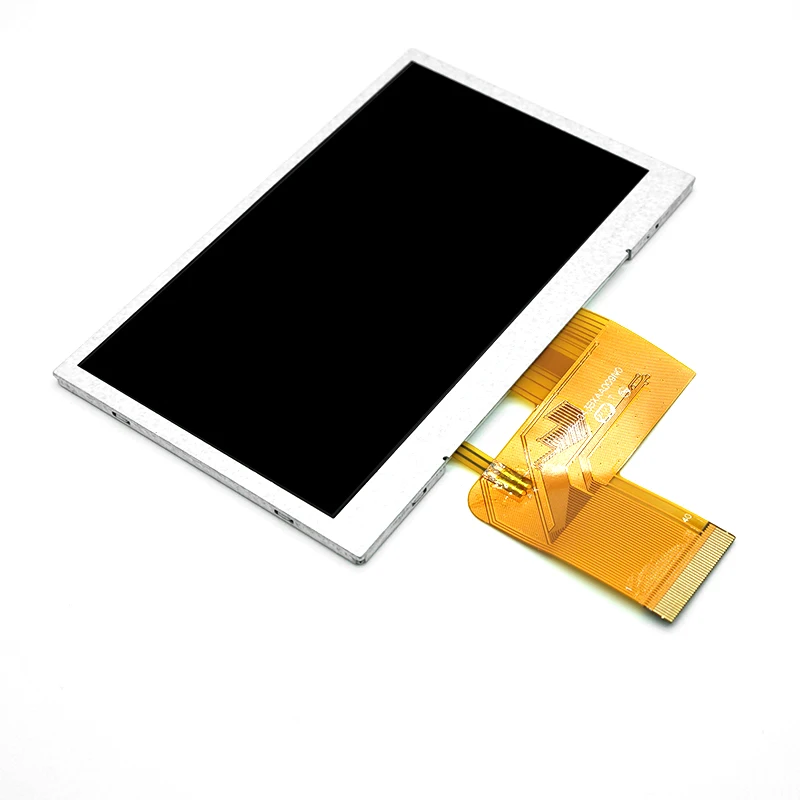

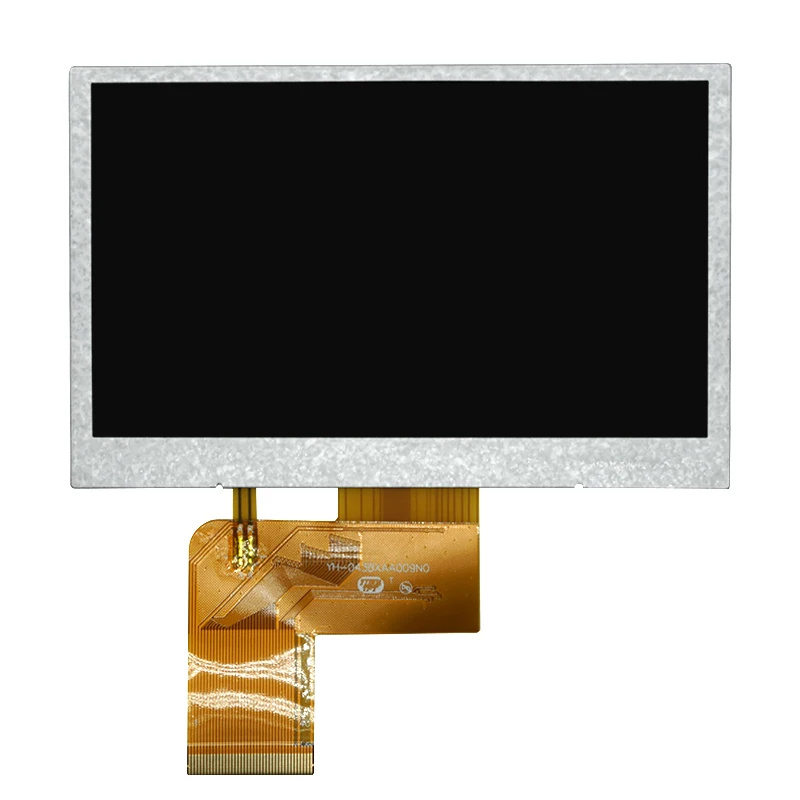

480*272 resolution RGB SPI Interface 4.3 inch LCD Module display IPS TFT LCD screen fpr 3D Printer or AUTO
screen size | 4.3 INCH |
Number of Pixels | 480*272 |
Active Area | 95.04(H)*53.856(V) |
Module Size | 100.16(H)*61.856(V)*1.256(D) |
Display mode | ADS Normally Black |
Pixel Pitch (Sub Pixel) | 0.198 (H) × 0.198 (V) |
Display Colors | 16.7 M |
Pixel Arrangement | RGB Vertical stripe |
Dimensional outline | 100.16 (H) × 61.856(V) × 1.256(D) typ |
Interface | RGB/SPI |
Operating Ambient Temperature | -30—+85 ºC |
Storage temperature | -30— +85 ºC |
Pin connection | 40pin |
Contrast ration | 1000:1 |
GV043WQB-N10-8HP0 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 4.28 inch diagonally measured active area with XGA resolutions (1024 horizontal by 768 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7 M colors.
1: SPI/RGB interface
2: RoHS Compliant
Application
1: Industry application
2: 3D printer application3: Office automatic
Details Images
Customization
Application
Product packaging
Certifications
Company Profile
FAQ
Q1: What the advantage of your company?
A1: We are a high-tech manufacturer, which provide one-stop LCD solution, in the technology side, We pursue the continuous update and development of LCD technology, and have obtained a number of technology patent-certificates.
We offer OEM, ODM, welcome to discuss any new item with us.
Q2: What is the products application?
A2: The products can be widely applied to the fields of HMI, Handheld Terminals, Medical Equipment, Instruments and Apparatus, Smart Home Equipment, Shopping Machine, Vehicle Display and AOI, etc.
A2: The products can be widely applied to the fields of HMI, Handheld Terminals, Medical Equipment, Instruments and Apparatus, Smart Home Equipment, Shopping Machine, Vehicle Display and AOI, etc.
Q3: Which items can be customized?
A3: LCD module size, FPC, interface， Brightness, Logo, Resolution, etc.
A3: LCD module size, FPC, interface， Brightness, Logo, Resolution, etc.
Q4:How to control the quality of products?
A4: We a professional QC team, and all products are 100% inspected before shipment.
A4: We a professional QC team, and all products are 100% inspected before shipment.
Q5:How long of the deliver time?
A5: Our stocks are mainly raw materials or semi-finished(LCD module), usually after payment, we will send it within 3 days, if you need custom and buy large quantity, the delivery time about 4-7 weeks after you confirm the sample.
A5: Our stocks are mainly raw materials or semi-finished(LCD module), usually after payment, we will send it within 3 days, if you need custom and buy large quantity, the delivery time about 4-7 weeks after you confirm the sample.
Q6: How about payment terms?
A6: Stock item and sample 100% payment on Alibaba, and we send fast; Bulk production 30% deposit, 70% before shipment.
We accept Alibaba payment, Credit card, TT, L/C, and so on.
A6: Stock item and sample 100% payment on Alibaba, and we send fast; Bulk production 30% deposit, 70% before shipment.
We accept Alibaba payment, Credit card, TT, L/C, and so on.
Q7: What kind of packaging? The transport process will not be damaged?
A7: Sample package with PP bag and carton box, Bulk production package with PP bag +Foam + Carton box + Wooden frame, all packages are protected by outer box and strapping to ensure the safety of material transportation.
A7: Sample package with PP bag and carton box, Bulk production package with PP bag +Foam + Carton box + Wooden frame, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q8: What about the warranty you offer?
A8: We provide 12 months warranty & tested products.
There is no warranty if :
(1). Man-made damage;
(2). Not our company's product.
A8: We provide 12 months warranty & tested products.
There is no warranty if :
(1). Man-made damage;
(2). Not our company's product.
Q9: What is your delivery method?
A9: Shipping by DHL/ UPS / FEDEX/TNT , or ship TO your agent, bulk production will shipping by sea.
A9: Shipping by DHL/ UPS / FEDEX/TNT , or ship TO your agent, bulk production will shipping by sea.
