Guangzhou CNC система шлифовального станка контроллер GSK 986G/GSK
- Категория: >>>
- Поставщик: Shenzhen Denver Servo Technology Co. Ltd.
Сохранить в закладки 1600437791821:
Описание и отзывы
Характеристики
Product Description
Specification

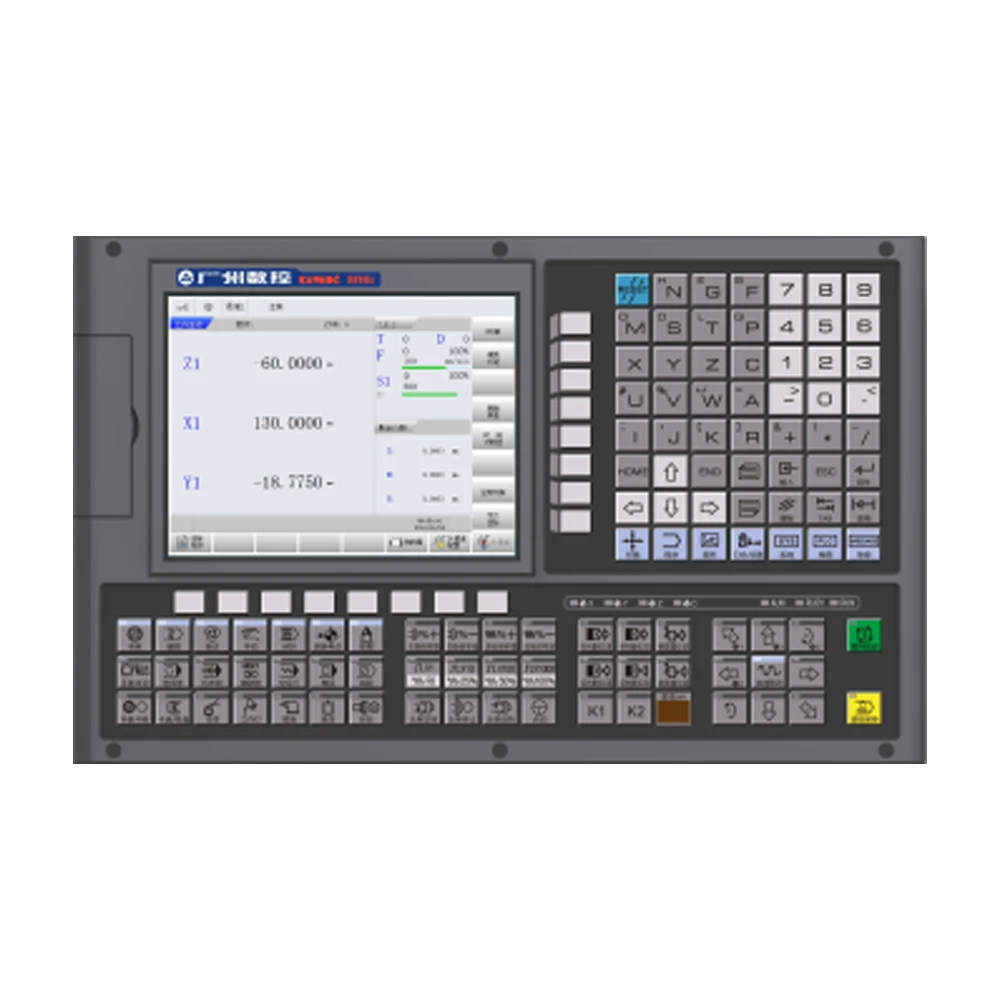

To configure | 986Gs | 986G |
Upgrade content | Aluminum alloy metal panel; Add vertical screen buttons; New layout of panel keys for more convenient operation; | 15 inch full touch screen; Simplify the machine panel; 6 channels optional; External screen optional; |
Number of feed axes (including C / s axis) | Single channel 4 axes, multi-channel up to 10 axes; | Single channel 8 axes, multi-channel up to 16 axes; |
Number of linkage axes (including C / s axis) | 3 linkage | 4 linkage |
principal axis | 2 | 32 |
Grating ruler interface | 1 | 3 |
Hand pulse interface | 1 | 2 |
I / O quantity | 48/32 | 48 / 32 (scalable) |
High speed I / O | 5 points | 8 points |
storage capacity | About 30MB | About 50MB |
Function | 986Gs | 986G | To configure | |
Full closed loop control function (incremental grating ruler) | 1 axis interface | 2-axis interface | Standard configuration | |
Full closed loop control function (absolute grating ruler) | Transfer servo unit | Select configuration | ||
interpolation cycle | 1ms | 1ms、0.5ms | Standard configuration | |
Interpolation accuracy | 1um、0.1um | 1um-1nm | Standard configuration | |
Default control mode | speed control | position control | Standard configuration | |
Maximum number of channels | 2 | 6 | Select configuration | |
Channel execution mode | Sub master-slave | parallel | Standard configuration | |
Maximum number of control axes | 5 | 12 | Standard configuration | |
Maximum single channel control quantity | 3 | 4 | Standard configuration | |
Instruction processing time (fastest) | 1000 pieces / S | 4000 seconds | Standard configuration | |
Memory (system comes with) | 32MB | 75MB | Standard configuration | |
Ladder diagram Number of steps | 6000 steps | 100000 steps | Standard configuration | |
Number of linkage shafts | 3 linkage | 4 linkage | Standard configuration | |
Dual position loop control function | have | Standard configuration | ||
Graphic editing module | Optional | Select configuration | ||
Bidirectional pitch compensation | have | Standard configuration | ||
Spindle (C / S axis) synchronization | have | Select configuration | ||
Automatic grinding wheel dressing and compensation module | have | Select configuration | ||
Truss automatic feeding module | have | Select configuration | ||
Servo motor encoder type | Absolute / incremental | Select configuration | ||
Pulse control of servo | support | Select configuration | ||
Speed smoothing function | No | have | Standard configuration | |
Dual pulse control module | No | have | Select configuration | |
485 serial communication | No | have | Select configuration | |
Meter probe communication function | No | have | Select configuration | |
Grinding machine | Function description | Adaptive model |
Plane / gantry grinder (Guideway Grinder) | Table hydraulic (proportional valve) position control | GSK986G、GSK986Gs |
Synchronous control of single gantry (single column) and double gantry | ||
Graphical operation | ||
Cylindrical / oblique axis grinder | Line grinding, longitudinal grinding, multi longitudinal grinding, oscillating grinding and other grinding processes | GSK986G、GSK986Gs |
Control of end face gauge and up to 4 diameter vector gauges | ||
Oblique axis grinding (linkage / non linkage optional) | ||
Emergency fallback and dead distance protection (protection function) | ||
Adaptive grinding wheel dressing | ||
Internal grinder / honing grinder | High speed oscillation (inner circle / inner hole machining), asynchronous / synchronous feed | GSK986G、GSK986Gs |
Adaptive grinding wheel dressing (forming grinding wheel, end grinding) | ||
Internal grinder / honing grinder | Return to new grinding wheel setting, automatic / Arbitrary compensation | GSK986G、GSK986Gs |
Centerless grinder | Asynchronous / synchronous control (grinding / dressing is carried out synchronously) | GSK986G、GSK986Gs |
Cam grinder | Cam grinding (concave convex wheel) | GSK986G |
Various special-shaped workpieces, such as polyhedron and ellipse | ||
Crankshaft grinder | Follow up machining | GSK986G |
Fixed range cut in | ||
Synchronous dressing of grinding wheel is optional | ||
Roll grinder | Straight roll / arc roll / a roll / cone roll / forming roll | GSK986G |
Tool / tool grinder | Thread / hob / gear | GSK986G |
Various drilling, turning and milling tools |
Product features
Secondary development function
❶interface customization
❷process order customization
❸macro variable annotation customization
❹alarm information customization
❷process order customization
❸macro variable annotation customization
❹alarm information customization
Electronic gearbox
❶configure the following movement of one or more driven shafts and driving shafts
❷the tooth shape proportion is diversified, and the combination of various coupling coefficients can be selected for grinding and hobbing straight teeth, helical teeth, arc teeth, triangular teeth or other non-circular gears;
❸Graphical programming interface, easy to understand operation style;
❷the tooth shape proportion is diversified, and the combination of various coupling coefficients can be selected for grinding and hobbing straight teeth, helical teeth, arc teeth, triangular teeth or other non-circular gears;
❸Graphical programming interface, easy to understand operation style;
Shaft synchronization control
❶spindle synchronous control to realize target dynamic exchange and other functions
❷feed axis synchronous control to coordinate strong coupling multi input / output control objects;
❸synchronous / asynchronous control between multiple channels
❷feed axis synchronous control to coordinate strong coupling multi input / output control objects;
❸synchronous / asynchronous control between multiple channels
Oblique axis function
❶it can not only grind the outer circle, but also grind the end face efficiently;
❷Programming according to Cartesian coordinate system;
❸arbitrarily select z-axis to follow X-axis linkage (M90) or non linkage (M91);
❹the end face gauge can be used to quickly locate or detect the thickness of the workpiece;
❷Programming according to Cartesian coordinate system;
❸arbitrarily select z-axis to follow X-axis linkage (M90) or non linkage (M91);
❹the end face gauge can be used to quickly locate or detect the thickness of the workpiece;
Information management
❶CNC can be equipped with standard TC / IP to connect with computer;
❷Through online factory management (interconnection), data transmission, simple control of machine tool and reading processing information are realized;
❷Through online factory management (interconnection), data transmission, simple control of machine tool and reading processing information are realized;
Multichannel synchronous machining
❶Multiple channels are executed in parallel to realize one system controlling multiple machine tools or multi station processing;
❷Each multi-channel controls multiple axes to realize asynchronous control of special machine tools;
❷Each multi-channel controls multiple axes to realize asynchronous control of special machine tools;
Truss control
❶machine tool automation is the industry trend, especially in the field of grinding. Guangshu 986 CNC provides a complete machine tool automation solution, which can not only provide a double channel truss manipulator scheme, but also provide a robot control scheme according to customer requirements
❷connect measuring devices such as measuring instruments to realize automatic recording and detection of dimension, tolerance and other data.
❷connect measuring devices such as measuring instruments to realize automatic recording and detection of dimension, tolerance and other data.

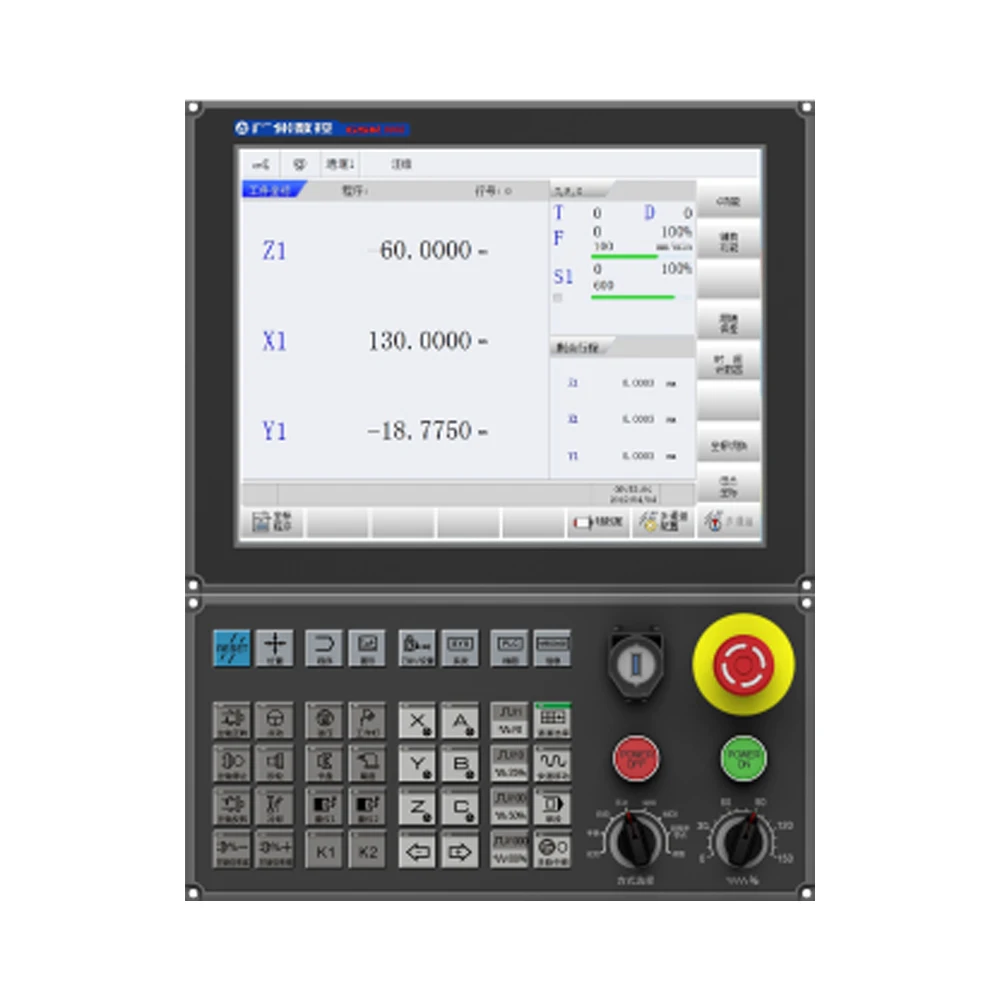

Full touch screen
❶Using 15 'full touch screen, keyboard input is more concise;
❷Integrate multiple functional modules to avoid programming trouble;
❸Add drawing import (DXF) to generate machining program through DXF format drawing;
❹Full touch screen
❷Integrate multiple functional modules to avoid programming trouble;
❸Add drawing import (DXF) to generate machining program through DXF format drawing;
❹Full touch screen
Tool grinder function
❶visual grinding operation interface;
❷rich tool database (can be added by yourself);
❷rich tool database (can be added by yourself);
Product packaging
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
Похожие товары
Промышленные ручной тележки и тележки HT0125, грузовик металла стороны
Автоматический подшипник рулевого управления ACS040412 90369-43001 20x43x12,5 nsk автомобильный подшипник направления
0,99 $ - 2,99 $
Ремень двигателя для автомобиля, ремень Bando 87S5M10
ATMEGA32L-8AU новые оригинальные Интегральные схемы IC MCU 8BIT 32KB FLASH 44QFP микроконтроллер микросхемы ATMEGA32L-8AU
3,43 $ - 3,92 $
Индивидуальный экологически чистый сборный дом 3 спальни модульный дом
1 800,00 $ - 1 860,00 $

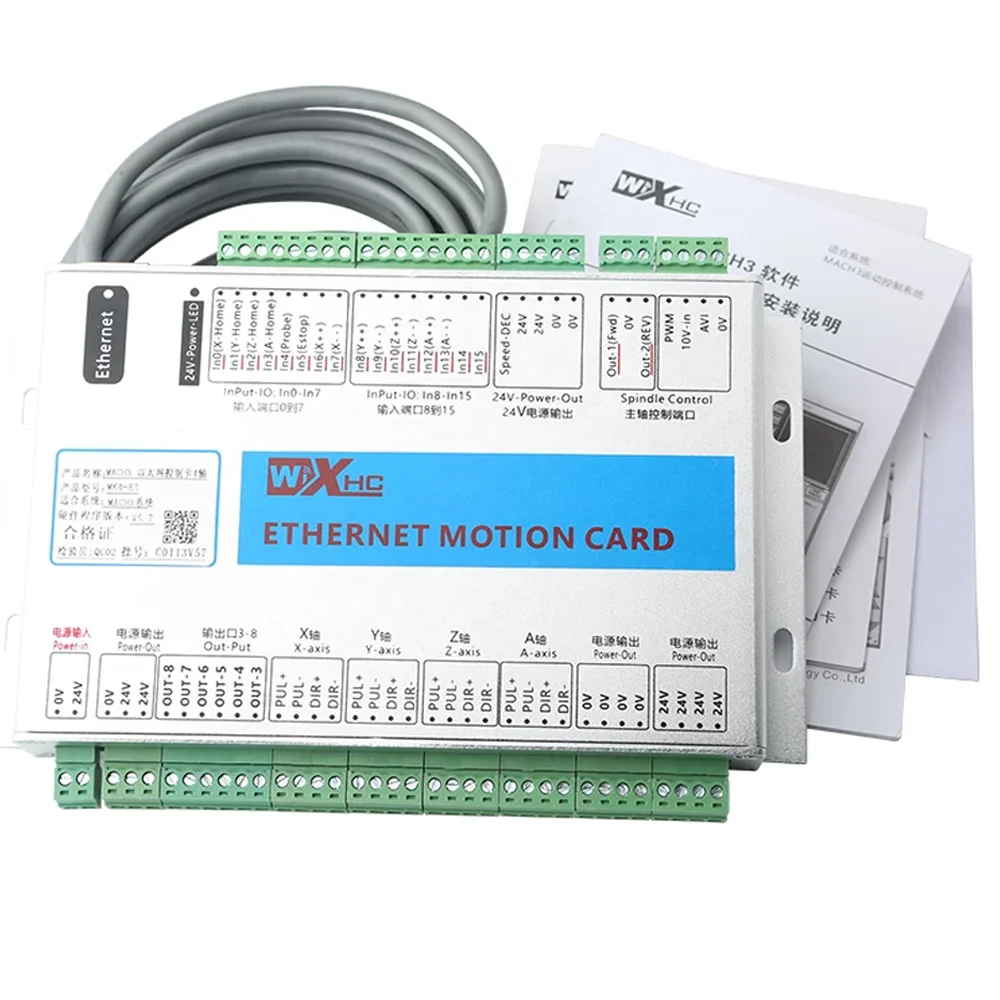

XHC Ethernet Mach3 коммутационная плата 3 4 6 осей управления движением карты частота 2000 кГц контроллер для Токарный станок с ЧПУ гравировальный станок
