Hot selling 6-digit counter Punch counter magnetic induction 5-digit electronic digital display counter stamping punch counter 5-digit counter

Technical Parameters:
Power: 1.5V -AA fifth battery
Clear mode: panel / external
Counting range: 0---99999
Clear the minimum pulse width: 0.1 second
Counting the highest frequency: 1500 times / minute
Operating ambient temperature: -5--40 ° C
Count the minimum pulse width: 10mS
Dimensions: 65*39*38 mm
Contact maximum resistance: ≤10KΩ
Opening size: 63*36 mm
Contact disconnection minimum resistance: ≥500KΩ
Weight: about 130 grams

Super sensitive magnetic control induction switch, strong earthquake resistance, super precise count
Points:

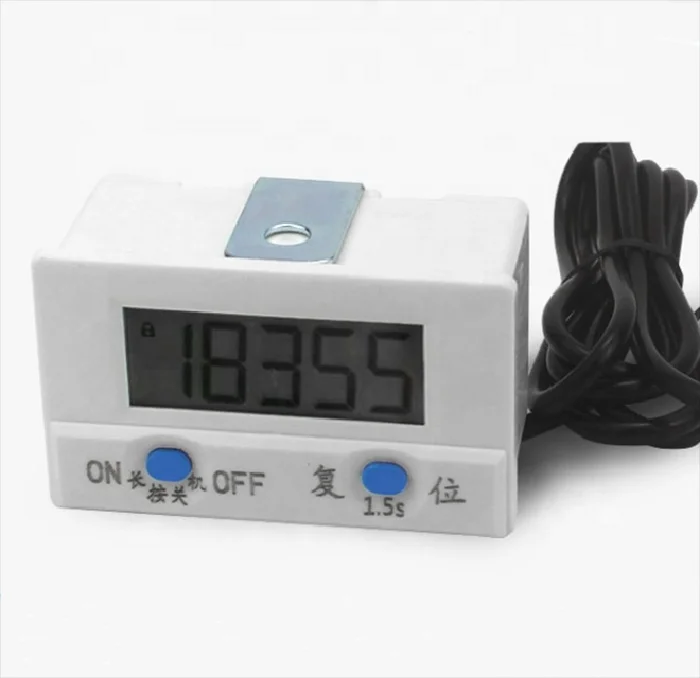

1. Five large LCD screens with large and clear display
2. Common contact signal is adopted for input, and the magnetic induction sensor is simple and convenient to select, with accurate and reliable counting

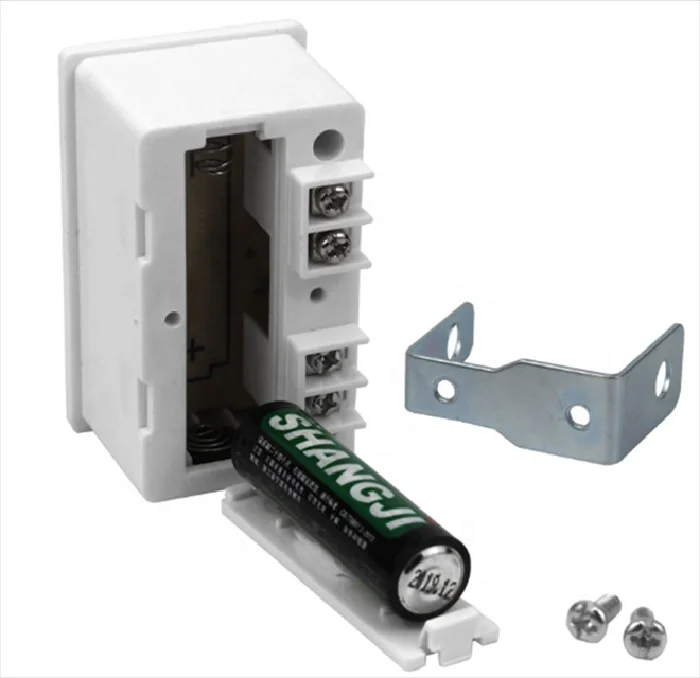

3. No. 5 battery is used, no external power supply is required, and the battery is easy to be replaced (it has been installed when leaving the factory)
4. Launched the first seismic design to effectively prevent data loss
5. Accurate and sensitive counting, up to 1500 times/min
6. No mechanical wear, reliable work, long service life and other characteristics.

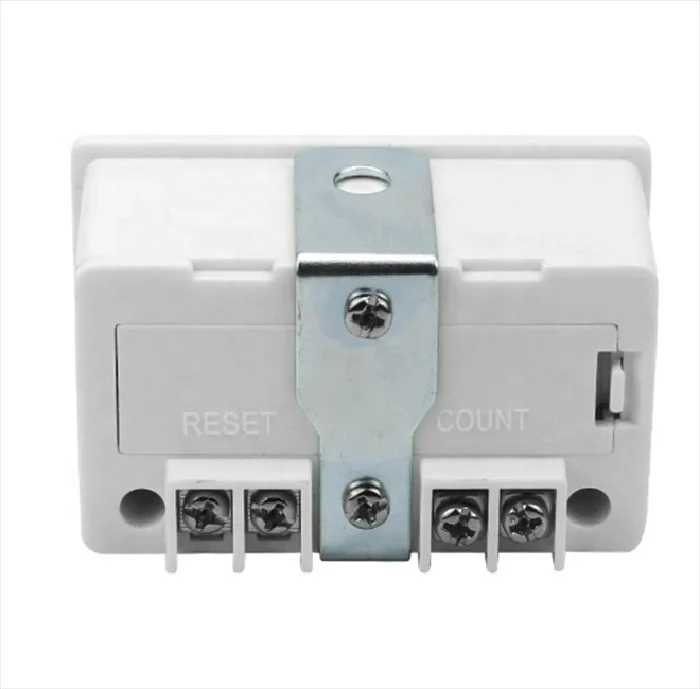

Counting input switch wiring:
Count signal input switch: the factory's magnetic control proximity switch can be selected: ck12-d20h, can also choose: micro switch, stroke switch, etc.

Notes:
1. The counting signal of the counter and the switch or circuit of the zero clearing signal input shall be as close as possible to the wiring terminal of the counter to make the signal line as short as possible.
2. Avoid connecting with other power lines, such as: strong power lines or power lines, etc., in the same pipe or stranded wiring. If necessary, please use the shielding wire, which is connected to the counting terminal +.
3. The counting signal and zero clearing signal of the counter can only be input into the contact signal, and other electrical signals cannot be input.
4. The contact input should be reliable, so as not to cause the wrong count and reset by mistake due to the contact rebound.
5. When the LCD display is fuzzy, please replace the battery.
