Самый продаваемый товар на ali baba газовая горелка для
2,45 $ - 3,45 $
Легкий тяжелый масляный бойлер горелка для отработанного масла распродажа
- Категория: >>>
- Поставщик: Gongyi Baoyuan Machinery Co. Ltd.
Сохранить в закладки 1600466741957:
Описание и отзывы
Характеристики
Products Description
The oil burner uses all combustible gases as fuel for combustion, adopts electronic proportional adjustment control method, the thermal efficiency is as high as 99.99%, and the calorific value of the burner can reach 18 million kcal.
The oil burner uses all combustible gases as fuel for combustion, adopts electronic proportional adjustment control method, the thermal efficiency is as high as 99.99%, and the calorific value of the burner can reach 18 million kcal.
The oil burner uses all combustible gases as fuel for combustion, adopts electronic proportional adjustment control method, the thermal efficiency is as high as 99.99%, and the calorific value of the burner can reach 18 million kcal.
Product Features
1.Natural gas and liquefied petroleum gas burners
2.Two-stage sliding/modulating working.
3.Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
4.The hinge connection,can be opened naturally.
5.Maintenance facilitated by the fact that the atomization unit can be removed without having to remove the burner from the boiler.
6.Sliding/modulating The servo motor which fixed with a cam can adjust the consumption for fuel and air.
7.One flange and one insulating seal for boiler fastening.
8.Combustion air intake with air flow adjustment device.
9.Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
10.Flame presence check by ionization electrode.
11.three-way electric motor to run fan.
2.Two-stage sliding/modulating working.
3.Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
4.The hinge connection,can be opened naturally.
5.Maintenance facilitated by the fact that the atomization unit can be removed without having to remove the burner from the boiler.
6.Sliding/modulating The servo motor which fixed with a cam can adjust the consumption for fuel and air.
7.One flange and one insulating seal for boiler fastening.
8.Combustion air intake with air flow adjustment device.
9.Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
10.Flame presence check by ionization electrode.
11.three-way electric motor to run fan.
Technical Parameters
Model | Heating Power | Oil Consumption | Inner Matrials | Motor Power | Power Supply | Control Method | Packing Size(mm) | Weight(Kgs) |
BYO-10 | 61-122 kw | 6-12 kg/h | Stainless Steel | 0.18kw | 1N 220V 50Hz | One Stage Automatic | 550x470x330 | 16 |
BYO-15 | 89-172 kw | 9-17 kg/h | Stainless Steel | 0.18kw | 1N 220V 50Hz | One Stage Automatic | 550x470x330 | 16 |
BYO-20 | 154-308 kw | 15-30 kg/h | Stainless Steel | 0.37kw | 1N 220V 50Hz | One Stage Automatic | 850x580x440 | 30 |
BYO-30 | 178-391 kw | 18-40 kg/h | Stainless Steel | 0.37kw | 1N 220V 50Hz | One Stage Automatic | 850x580x440 | 30 |
BYO-40 | 237-534 kw | 24-54 kg/h | Stainless Steel | 0.55kw | 3N 380V 50Hz | Two Stage Automatic | 1100x620x550 | 50 |
BYO-60 | 332-652 kw | 33-65 kg/h | Stainless Steel | 0.75kw | 3N 380V 50Hz | Two Stage Automatic | 1100x620x550 | 50 |
BNW-90 | 533-1186 kw | 53-119 kg/h | Stainless Steel | 1.5kw | 3N 380V 50Hz | Two Stage Automatic | 1400x800x660 | 80 |
BYO-120 | 474-1660 kw | 48-160 kg/h | Stainless Steel | 2.2kw | 3N 380V 50Hz | Two Stage Automatic | 1500x1200x900 | 160 |
BYO-200 | 712-2135 kw | 71-210 kg/h | Stainless Steel | 3.0kw | 3N 380V 50Hz | Two Stage Automatic | 1500x1200x900 | 160 |

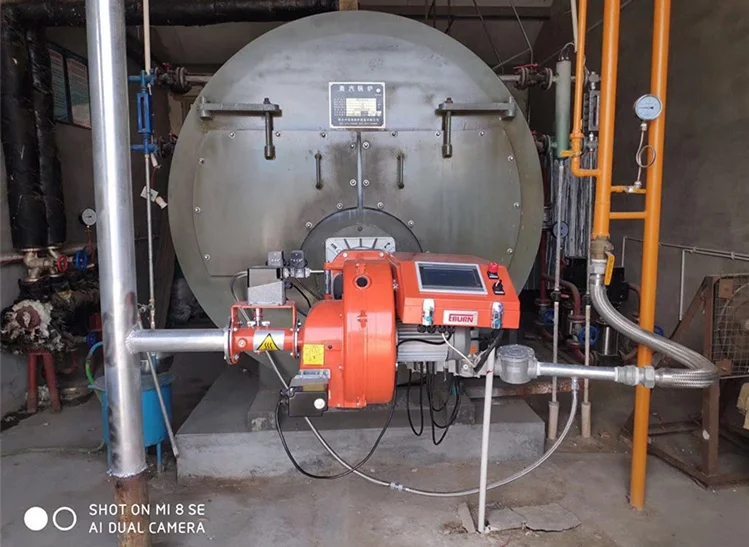

Application
Company Profile
Baoyuan Machinery is a comprehensive enterprise integrating R&D, testing, manufacturing, sales and service. We have successfully developed and provided solutions for the following equipment: drying equipment, activated carbon production equipment, burner equipment.
With the leading technology, advanced processing equipment and the enterprise spirit of "innovation, pragmatism, unity, hard work and dedication", the company has the strength to meet challenges from all aspects. We are confident to build "Baoyuan" into a world-renowned brand, provide high-quality services for dryers and construction processing industries, and achieve a win-win situation between the company and customers.
With the leading technology, advanced processing equipment and the enterprise spirit of "innovation, pragmatism, unity, hard work and dedication", the company has the strength to meet challenges from all aspects. We are confident to build "Baoyuan" into a world-renowned brand, provide high-quality services for dryers and construction processing industries, and achieve a win-win situation between the company and customers.
Related product
Похожие товары
Промышленный Газовый легкий дизельный одноступенчатый бойлер аксессуары масляная
1 000,00 $
Заводская поставка бойлеров запчасти бойлеры по цене Сменные запасные части
Нагреватель отработанного масла
Профессиональный заводской специальный высоковольтный трансформатор зажигания 220 В для дизельного воздушного нагревателя поддержка под
10,50 $ - 12,00 $

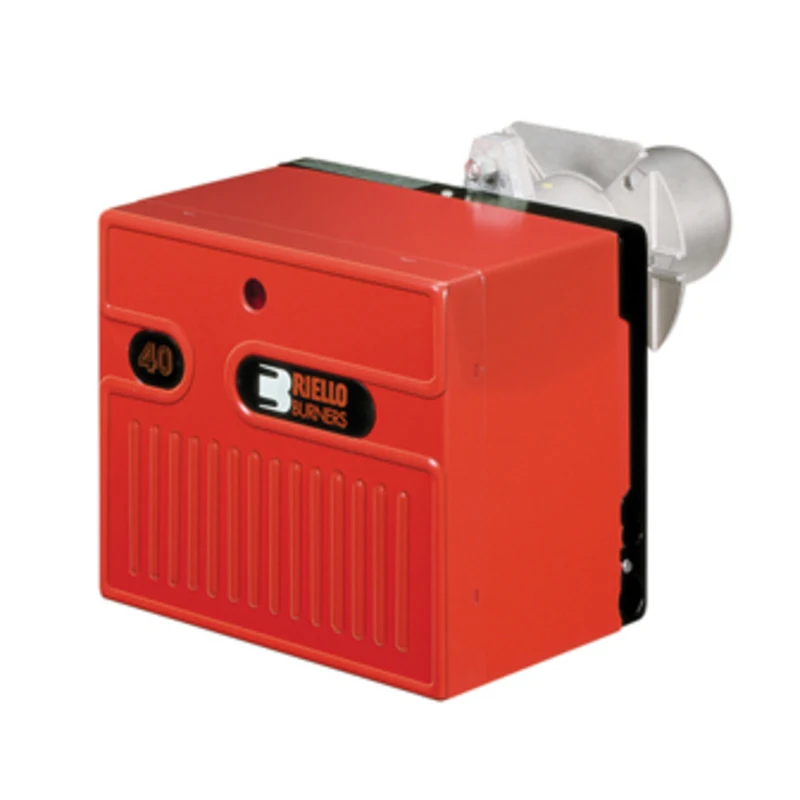

Газовая горелка Riello 40 FS 10 с клапаном MVDLE205/5 промышленная мини-горелка низкотемпературная
610,00 $ - 710,00 $

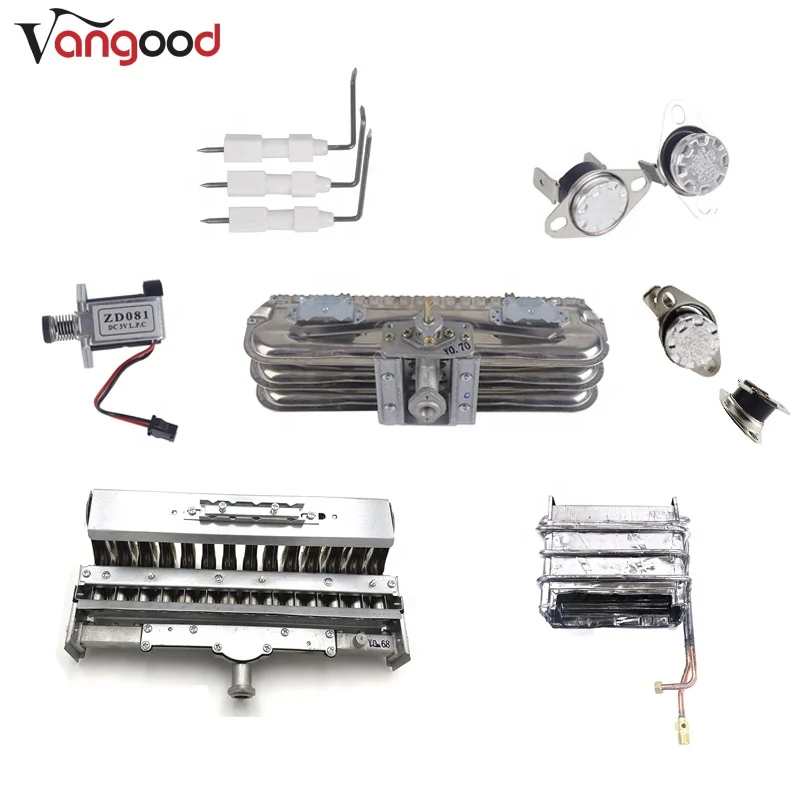

Части газового водонагревателя лезвие из нержавеющей стали Высокоэффективная газовая
