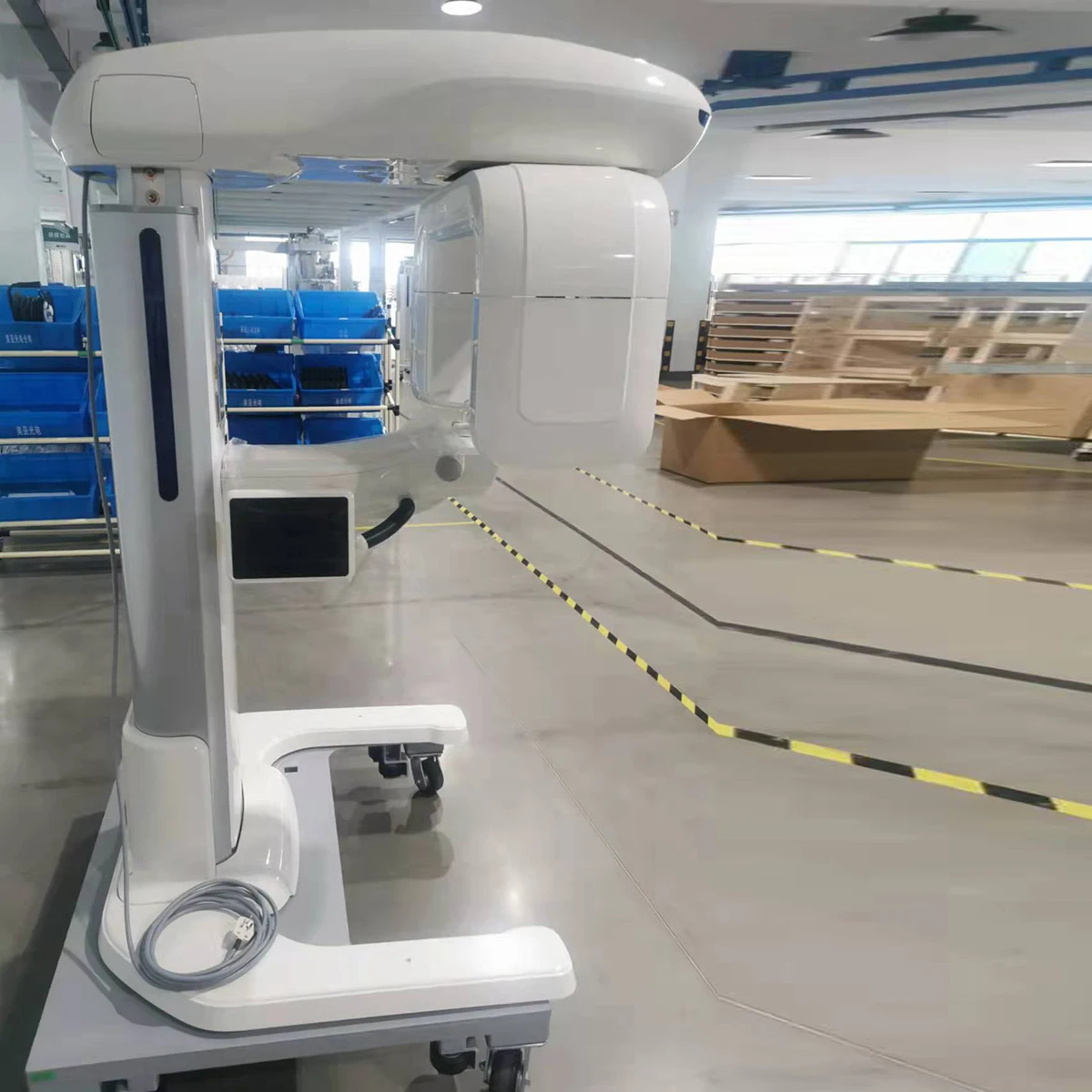

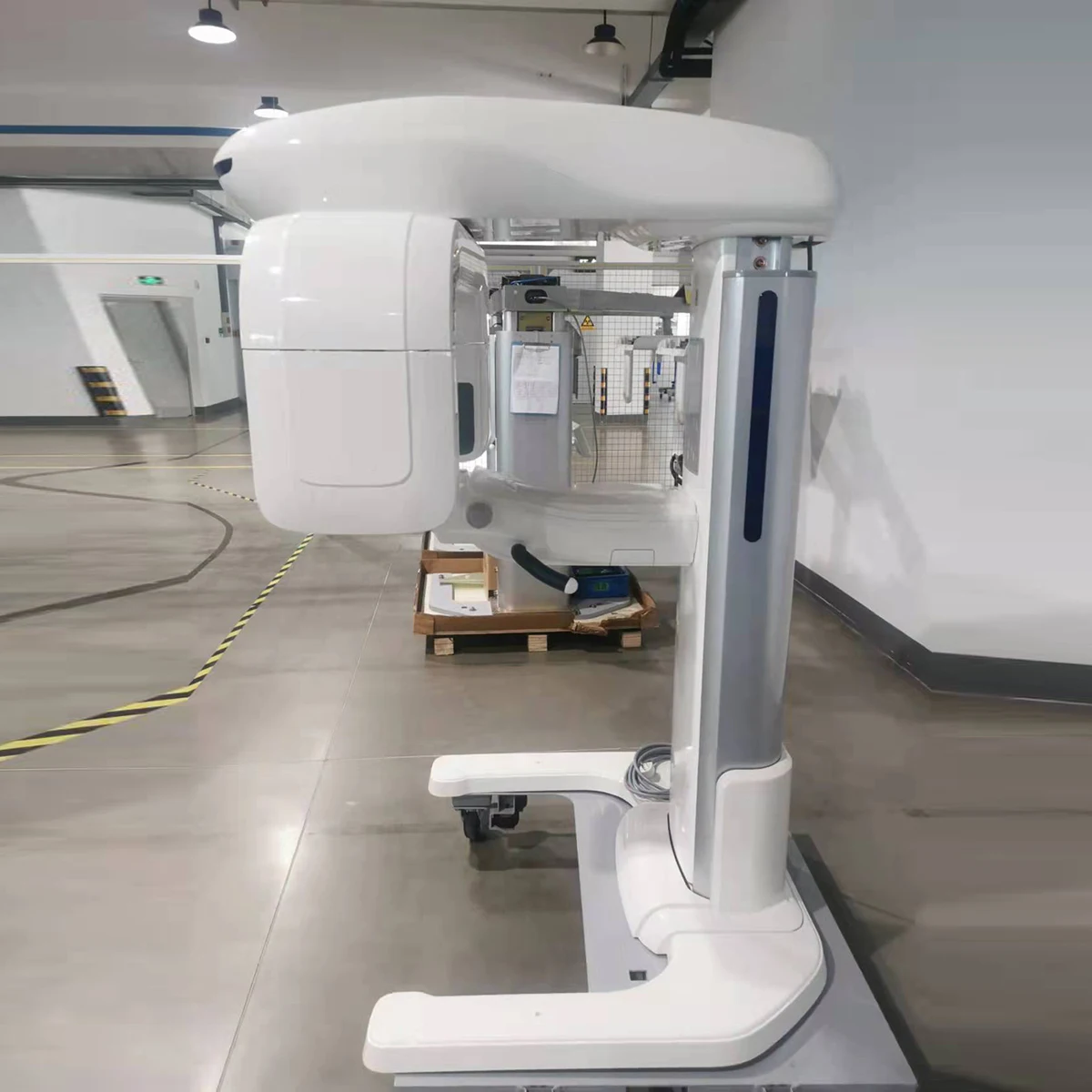

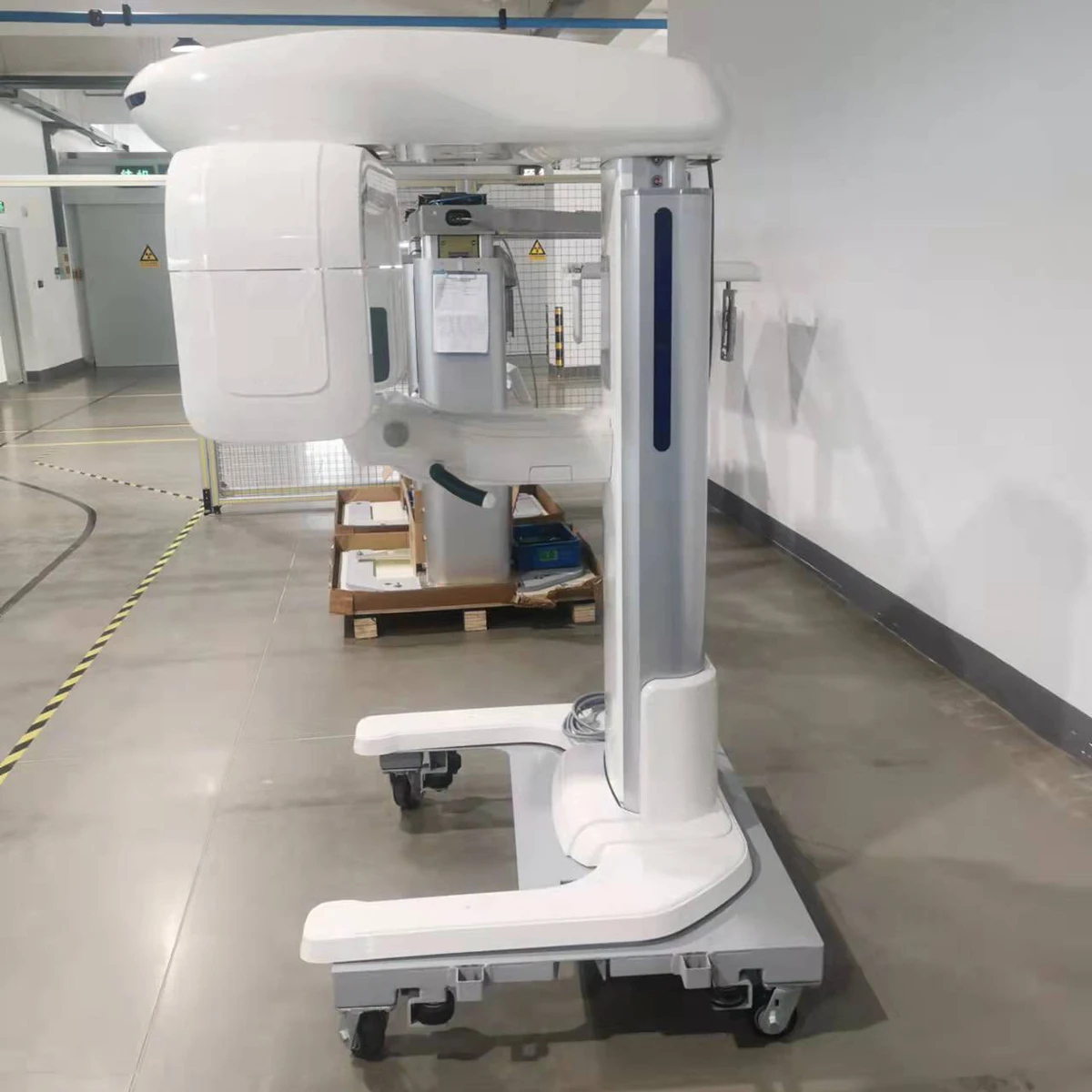

CBCT Come лучевая компьютерная томография 2D 2DE 3D 3DE Стоматологическая панорамная рентгеновская машина

Max resolution panoramic images; Laser beam alignment;
Easy to use 3D imaging up-gradable.

Technical Features- Panoramic X-ray system
Compact control panel with intuitive symbols and display; Remote X-ray controlled key pad
Pulse X-ray generator Focal spot 0.5 Voltage: 60-90kV Current:2-10mA

Exposure time: 15 -20s
Heat dissipation and load management for waiting time reduction Source image distance: 65cm
Dental arch vertical magnification: <30%
Vertical travel of occlusal plane reference point: 90-176cm
Panoramic projections:
1.Adult standard with constant vertical magnification of the dental arch;
2.Child panoramic;
3.Front view of maxillary sinuses
Accessories for positioning:
- bite block
-chin rest
-optional temporo-mandibular adjustable resting bars
Carriage translation
-motorized for vertical movements
-free standing base unit (wheel chair accessible Net weight: 400KG
Digital receiver
COMOS sensor
Spatial resolution >5 line pairs per mm
Acquisition dynamics on 12 levels, 16-bits internal processing Connection to computer via Gigabit network port
