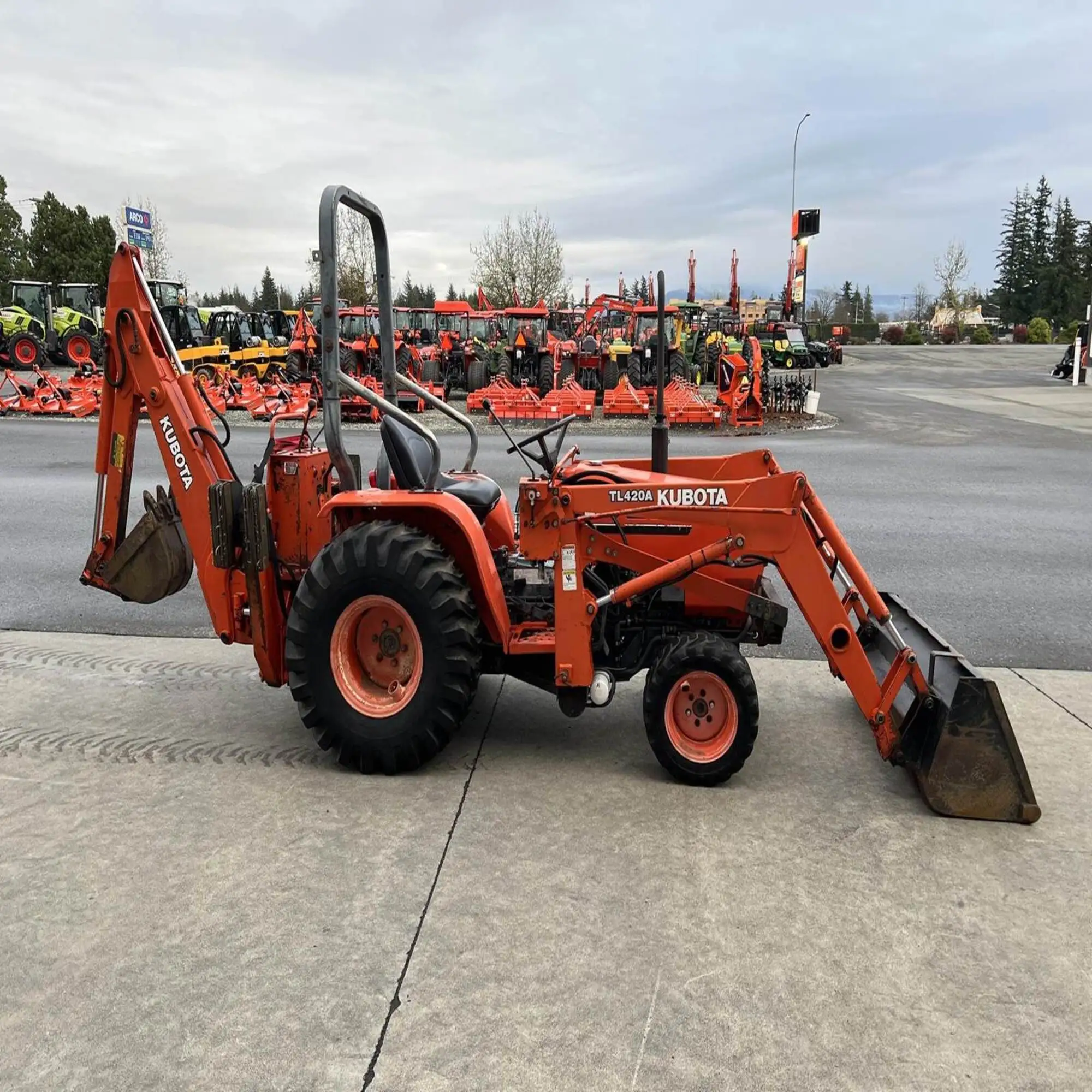

Высококачественный мини-колесный погрузчик Kubota B20 трактор с фронтальным погрузчиком и экскаватором-погрузчиком двигатель насос-Рекламная цена
10 000,00 $
Новый бренд ZL50GN ZL50G CE 5 тонн маленькие сочлененные колесные погрузчики сделано в Китае Лучший мини фронтальный погрузчик для продажи
- Категория: >>>
- Поставщик: Xuzhou Shangheng Engineering Machinery Co. Ltd.Xuzhou Ltd.
Сохранить в закладки 1600496156671:
Описание и отзывы
Характеристики
Product Overview:

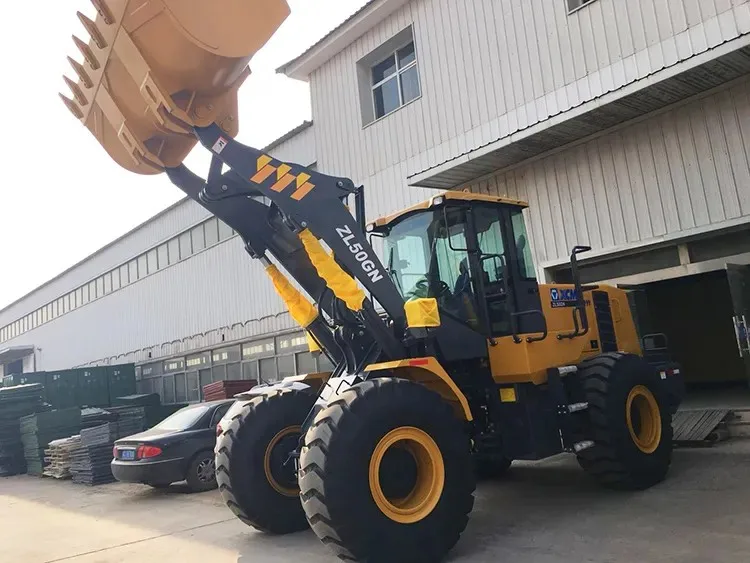

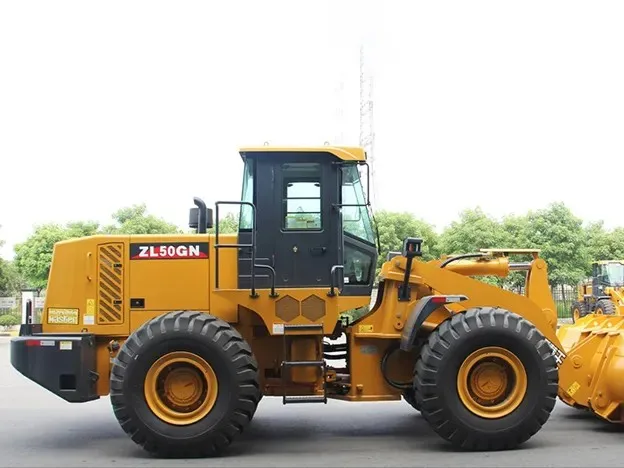

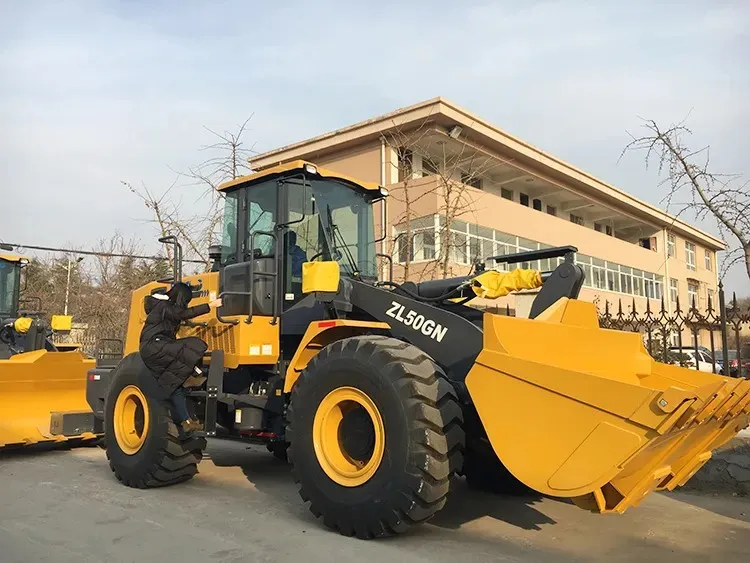

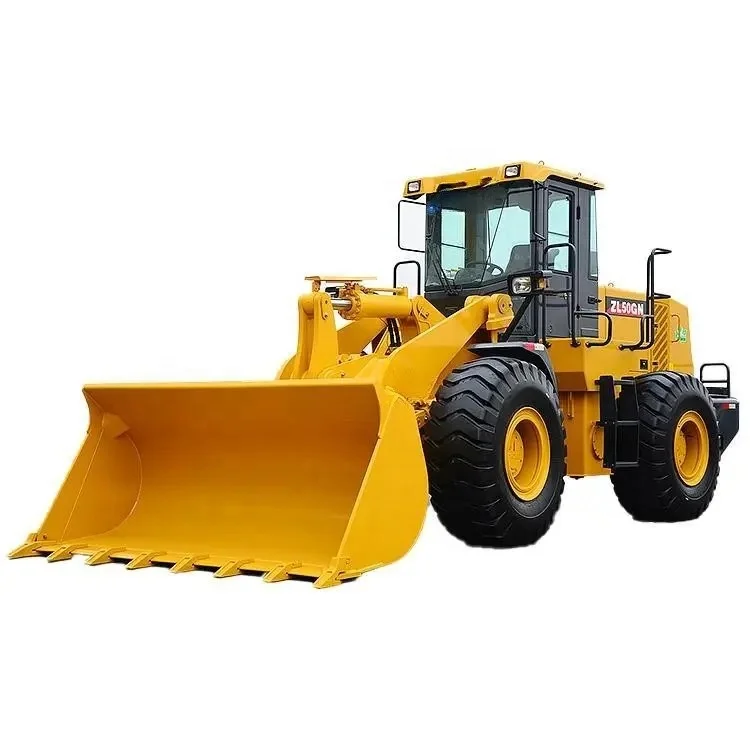

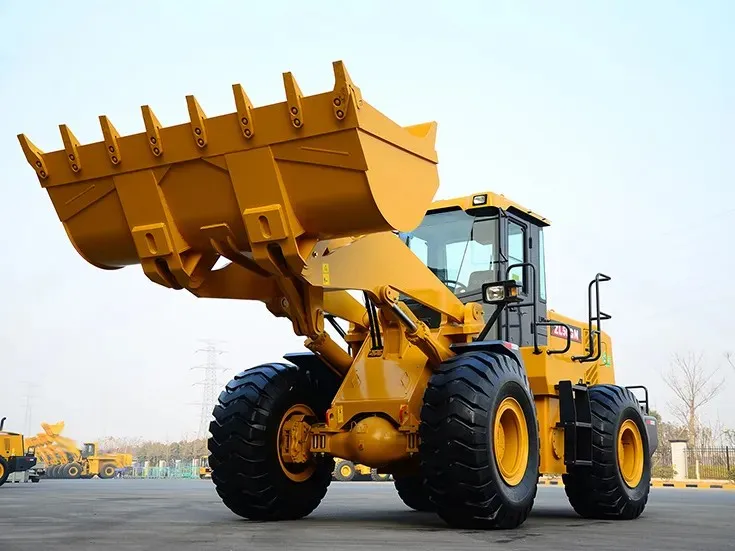

wheel loader ZL50GN is the most popular model of China 5t wheel loader,Now ZL50GN is upgrading to new model
ZL50GV equipped with EURO III engine with electric injector, new model will have high performance.
ZL50GV equipped with EURO III engine with electric injector, new model will have high performance.
ZL50GN wheel loader is the latest cross-generationproduct developed ,the first-choice equipment for the production organizationin the fields of ports, engineeringconstructions, and logistics.
Description | Unit | Parameter value | |||||
Rated operating load | kg | 5000 | |||||
Bucket capacity | m³ | 2.5~4.5 | |||||
Machine weight | kg | 17500±300 | |||||
Dump clearance at maximum lift | mm | 3100~3780 | |||||
Reach at maximum lift | mm | 1100~1220 | |||||
Wheel base | mm | 3300 | |||||
Tread | mm | 2250 | |||||
Operating weight | 10.8 t | ||||||
Max.breakout force | kN | 175±5 | |||||
Max.horse power | kN | 160±5 | |||||
Hydraulic cycle time-raise | s | ≤6 | |||||
Total hydraulic cycle time | s | ≤10.5 | |||||
Min. turning radius over tyres | mm | 5925±50 | |||||
Articulation angle | ° | 38 | |||||
Gradeability | ° | 30 | |||||
Tyre size | 23.5-25-16PR | ||||||
Overall machine dimension L×W×H | mm | 8225×3016×3515 | |||||
Model | WD10G220E21 | ||||||
Rated Power | kW | 162 | |||||
Travel Speed | Ⅰ-gear(F/R) | 13/17km/h | |||||
Ⅱ-gear(F) | 41km/h | ||||||
Performance Highlights:
1.Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.
2.The large rock bucket with capacity of 2.5m³ is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
3.The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.
4.160kN breakout force handle allkinds of materials with ease,≥3.5m high dumping capacityhandle the severe conditions with ease.
Variety attached tools meeting requirements of different working conditions:
Side-dump bucket/ Clipping plier I (paired teeth)/ Clipping teeth II (staggered teeth)/ Toad's mouth clamp/ Port plier/ Grasping grass machine/ Snowplow/Pallet fork
