Устойчивая к коррозии решетка из стеклопластика для доков/промышленная

Устойчивая к коррозии решетка из стеклопластика для доков/промышленная

Категория: Other Fiberglass Products >>>
Поставщик: Nantong Erqing Precision Equipment Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

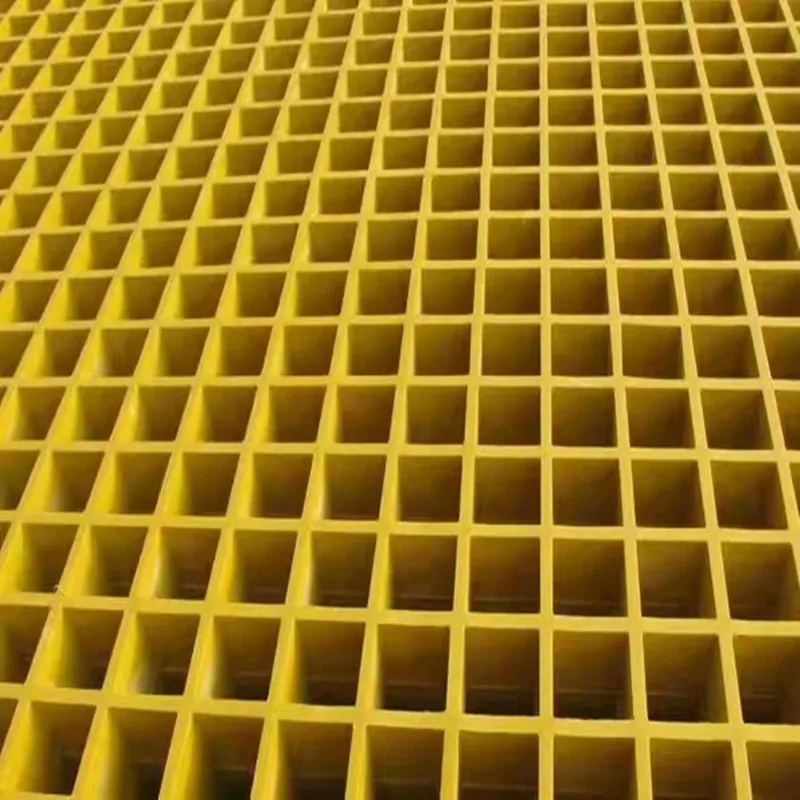

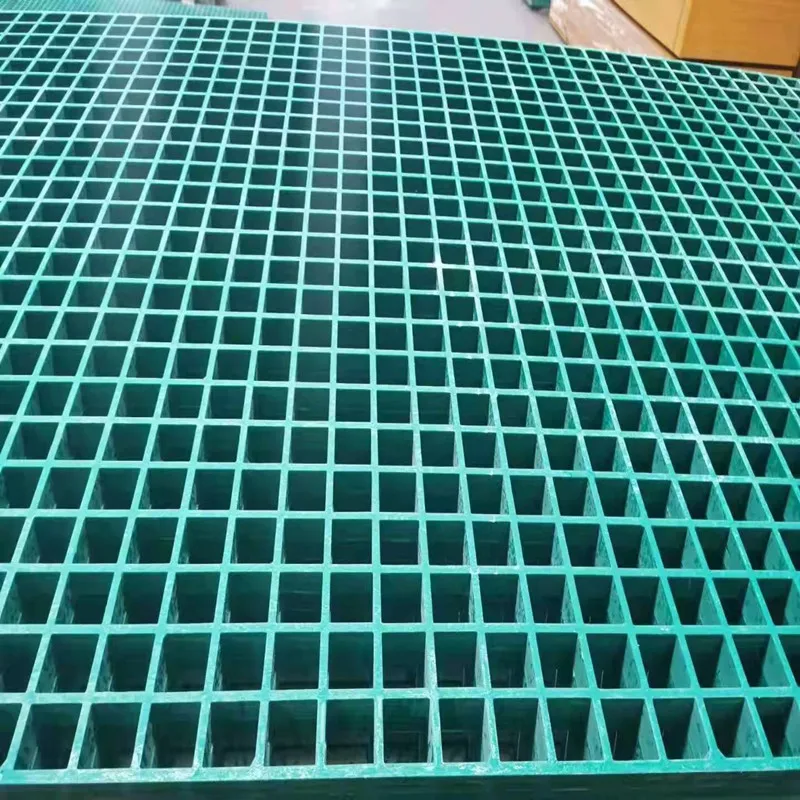

The product is a kind of structure plate which uses high-strength E-Glass roving as reinforcing material , thermosetting resin as matrix and then cast and formed on a special metal mold. It provides properties such as: light weight ,high strength ,corrosion resistance ,fire resistance ,safe and anti-skid .It is widely used in petroleum industry ,power engineering ,sewage treatment and ocean survey as working floor ,stair tread, trench cover ,etc .It is an ideal loading frame on corrosion circumstances .The special transparent grating is also the perfect decoration material for business buildings.

Product Advantages

Color diversity, designability

Yellow, green, blue, grey, light grey, orange, black transparent etc,and customized color are available.

Fire-resistance

Qualified matrix resins as well as unique fire-resistant techniques provide grating with excellfire resistant performance.

Light in weight and high in strength, safe and anti-skid,insulation

The perfect combine of the continuous E-fiberglass strand and resin provide grating withlighe in weight and high in strength.

Corrosion-resistance

Different types of resin provide their own different anti-corrosion properties, which could be used in different corrosion circumstance su acid,alkali,salt,organic solvent(in gas or liquid form) and the like over a long period.

Surface treatment

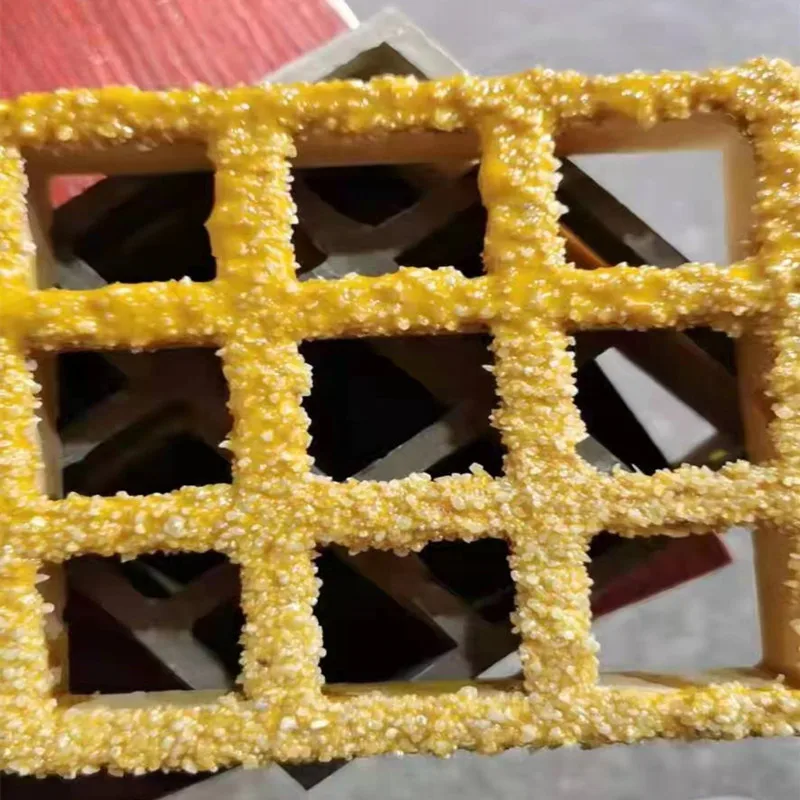

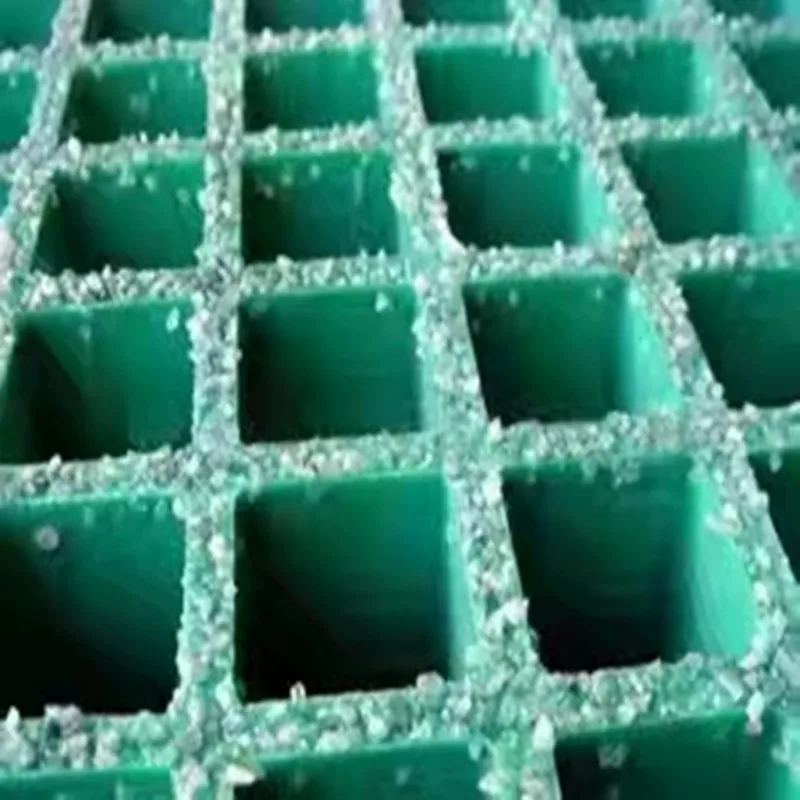

Grit surface

Concave surface

Smooth surface

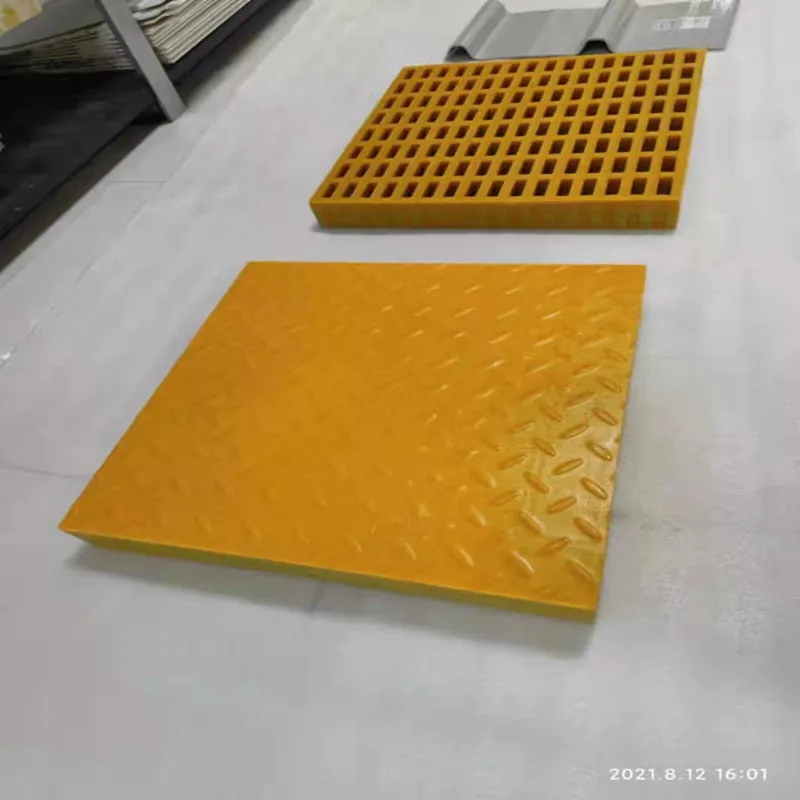

Diamond cover

Smooth cover

Grit cover

Specification

Mesh size：38×38

50×50

100×25

No.	Type	Panel size (width×length)（mm）	Mesh size(mm)	Thickness(mm)	Open area(%)	Unit weight(kg/㎡）
1	AS/38×38×15	1220×3660/1220×2440/915×3050	38×38	15	71	6.3
2	AS/38×38×25			1220×3660/1220×2440/915×3050	38×38	25	67	13
3	AS/38×38×30			1220×3660/1220×2440/915×3050	38×38	30	67	14.6
4	AS/38×38×38			1220×3660/1220×2440/915×3050	38×38	38	67	18.5
5	AL/38×38×38	1525×3965/1525×3660/1525×3050		38×38	38	67	18.5
6	ES/38×38×25	1000×4038/1000×3000/1000×2000		38×38	25	70	13
7	ES/38×38×30			1000×4038/1000×3000/1000×2000	38×38	30	66	16.1
8	ES/38×38×38			1000×4038/1000×3000/1000×2000	38×38	38	70	18.5

No.	Type	Panel size (width×length)（mm）	Mesh size (mm)	Thickness (mm)	Open area (%)	Unit weight (kg/㎡）
9	JS/40×40×25	1247×3087/1007×3007	40×40	25	72	12.9
10	JL/40×40×40	1247×4047/1007×3007/1007×4047	40×40	40×40	40	72	19.8
11	AS/50×50×15	1220×3660/1220×2440/915×3050	50×50	15	78	6
12	AS/50×50×50	1220×3660/1220×2440/915×3050	50×50	50×50	50	78	20.7
13	AS/25×100×25	1220×3660/1220×2440/915×3050	25×100	25	64	15.2
14	AST/25×100×38	1220×3660		25×100	38	47	20.2
15	JS/25×100×25	1009×3007		25×100	25	70	12.9
16	JS/25×25×25	1007×3007	25×25	25	54	17.7
17	AS/25×152×38	1220×3660	25×152	38	59	22.4
18	ST/38×152×38	579×3660/ 579×3050	38×152	38	75	18.1
19	AS/152×38×38	1220×3660	152×38	38	73	18.5
20	JS/100×25×25	1009×3007	100×25	25	66	13.9

Mesh size：40×40+20×20

38×38+19×19

38×38+12×12

No.	Type	Panel size (width×length)（mm）	Mesh size (mm)	Thickness (mm)	Open area (%)	Unit weight (kg/㎡）
21	ES/40×40/22Mini	1247×4047/1007×3007/1007×4047	40×40+20×20	22	42	13.05
22	ES/40×40/30Mini			1247×4047/1007×3007/1007×4047	40×40+20×20	30	42	17.6
23	ES/40×40/38Mini			1247×4047/1007×3007/1007×4047	40×40+20×20	38	42	21.9
24	ES/38×38/25Mini	1413×4000	38×38+19×19	25	42	16
25	ES/38×38/38Mini	1220×3660	38×38+19×19	38×38+19×19	38	42	22.8
26	ES/52×52/30Mini	1000×4050/1000×3000/1000×2000	52×52+26×26	30	52	17.8
27	ES/52×52/38Mini			1000×4050/1000×3000/1000×2000	52×52+26×26	38	52	20
28	ES/52×52/50Mini			1000×4050/1000×3000/1000×2000	52×52+26×26	50	52	26.7
29	ES/52×52/55Mini			1000×4050/1000×3000/1000×2000	52×52+26×26	55	52	28.2
30	ES/38×38/30Mini	1220×3660/1000×4038	38×38+12×12	30	40	18
31	AS/50×50/32Mini	1220×3660/1220×2440/915×3050	50×50+26×26	32	50	16.8
