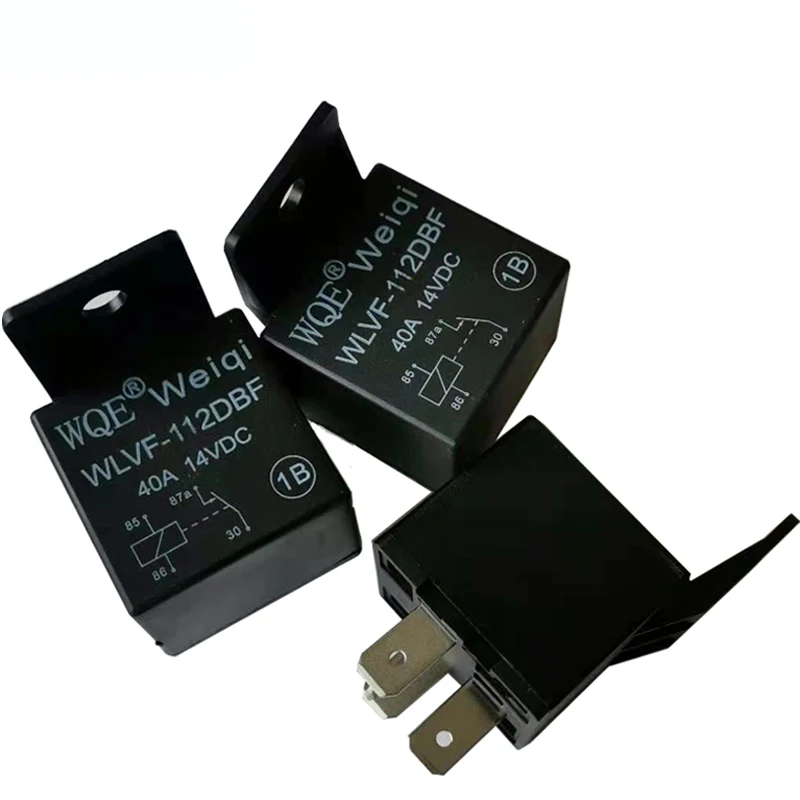

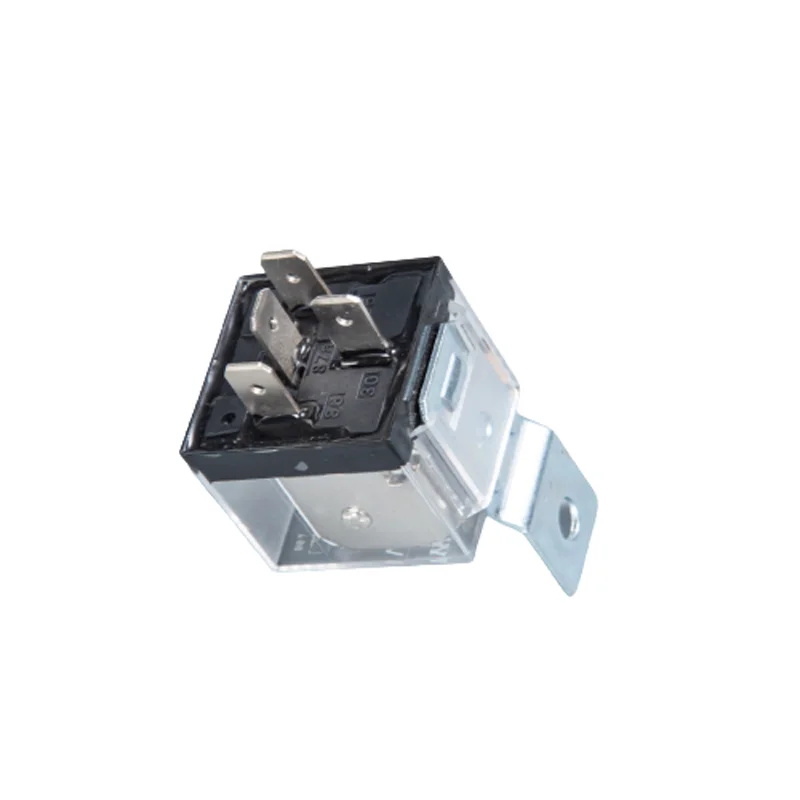

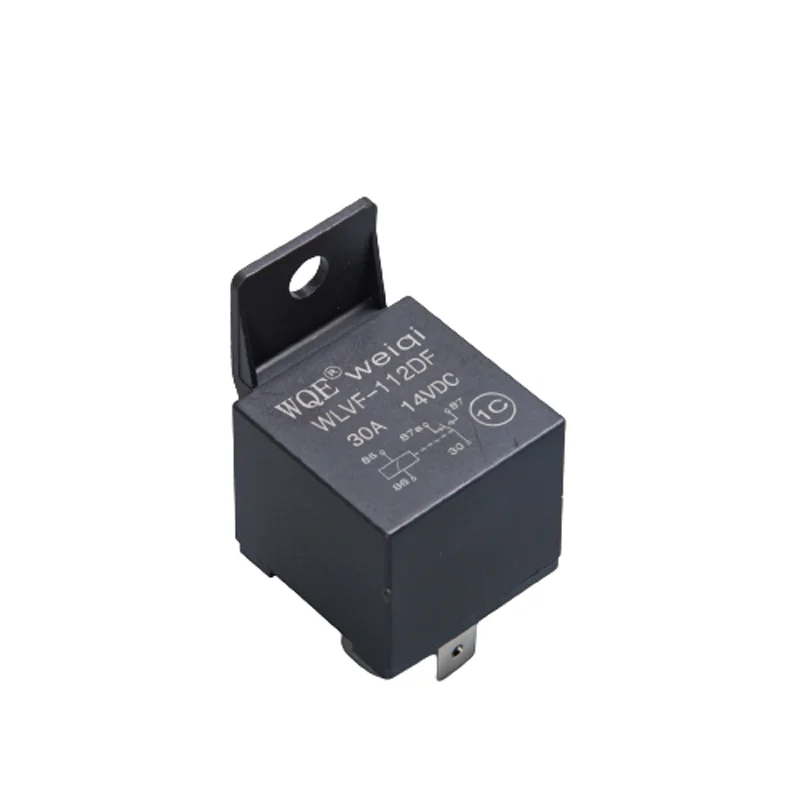

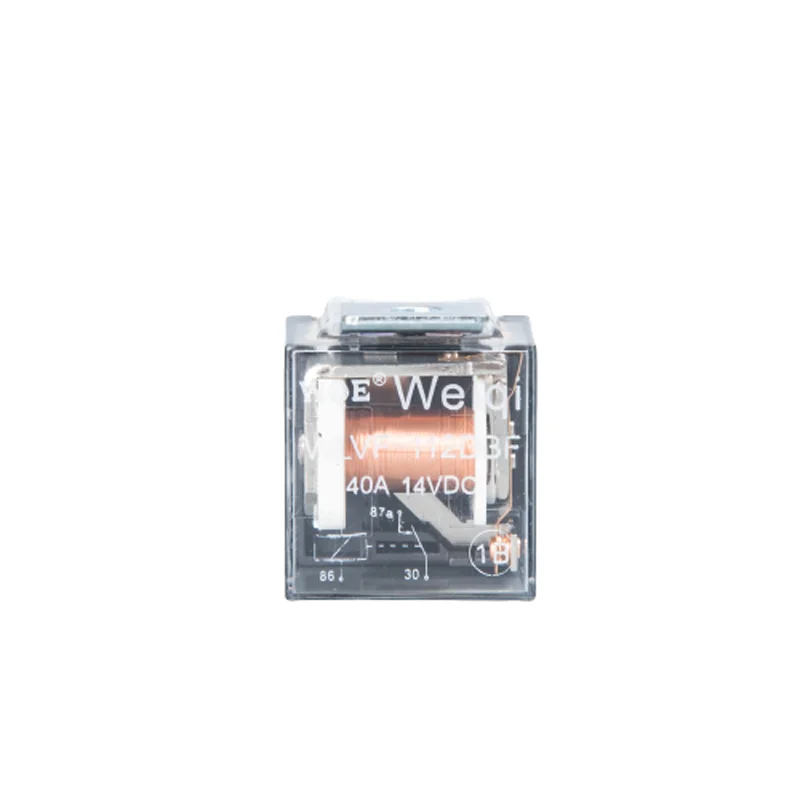

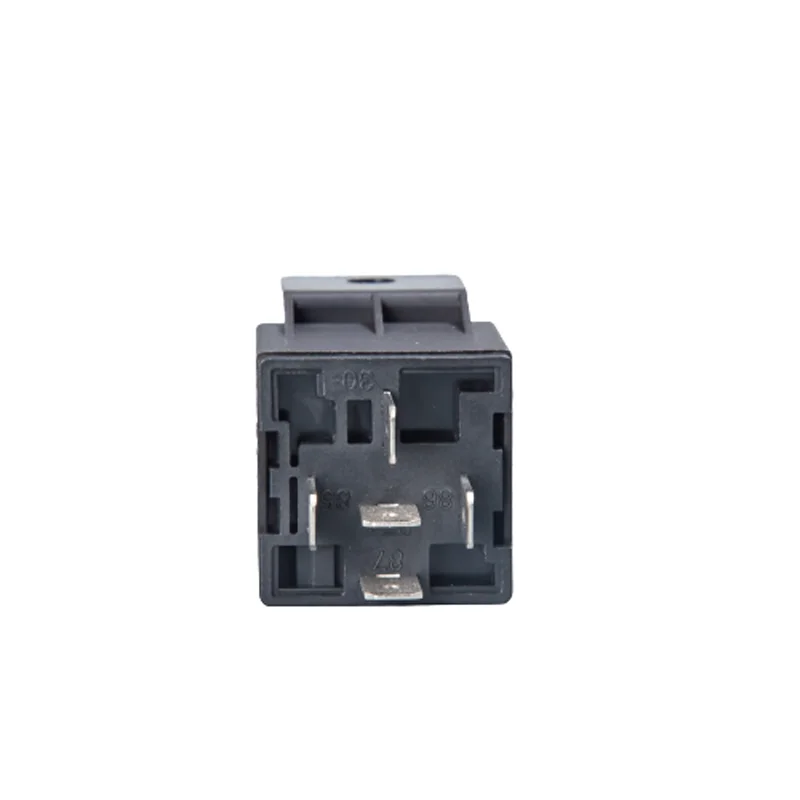

Weiqi Лидер продаж WLVF автомобильное реле 12 В 40 А 4 контакта 5 контактов
- Категория: Relays >>>
- Поставщик: Jiangxi Weiqi Electric Co. Ltd.
Сохранить в закладки 1600510321111:
Описание и отзывы
Характеристики
Products Description
China weiqi manufacturer 40A dc 6v 9v 12v 24v 48v coil power 1.6w 1.9w 2.3w 2.6w relay for auto starter and auto door lock
1、Small size
2、Contact load up to 80A
3、PC board mounting and insert mounting available
4、Overall dimensions
2、Contact load up to 80A
3、PC board mounting and insert mounting available
4、Overall dimensions
（29×29×26.5）mm
Contact load | ||||
Mode | WLVF | |||
Contact form | 1A(SPSTNO)、1B(SPSTNC)、1C(SPDT(B-M))、1U(SPSTNODM) | |||
Maximum switching current | 80A | |||
Maximum switching voltage | 75VDC | |||
Maximum switching power | 1120W | |||
Contact load (resistive) | 1A: 50A,80A/14VDC 40A,25A/24VDC | |||
1B: 40A,70A/14VDC 40A,25A/24VDC | ||||
1C: NC:40A,70A/14VDC NO:50A,80A/14VDC 40A,25A/24VDC | ||||
1U: 2×25A/14VDC 2×15A/14VDC | ||||
Performance parameter | ||||||||
Contact material | Ag alloy | |||||||
Contact Voltage drop | Max 50mV | |||||||
Action time | ≤7ms | |||||||
Release time | ≤5ms | |||||||
Insulation resistance | Min 100MΩ（500VDC) | |||||||
Dielectric Strength | Between contacts | AC 500VAC 50/60Hz 1min | ||||||
Between contact coils | AC 500VAC 50/60Hz 1min | |||||||
To attack | Stability | 147m/s2 | ||||||
Strength | 980m/s2 | |||||||
Vibration | 10~55Hz 1.5mm Double Amplitude | |||||||
Mechanical endurance min | 1×107 | |||||||
Electrial eddurance min | 1X105 | |||||||
Humidity | 5%~85%RH | |||||||
Ambient temperature | -40℃~125℃ | |||||||
Weight | Approx 48g | |||||||
Coil parameters （at 20°C） | ||||||||||
Coil Voltage | Coil Resistance | Pick-up Voltage 65% of rated voltage | Drop-out Voltage 10% of rated voltage | Coil Power | ||||||
Rated | Max | |||||||||
VDC | Ω±10% | VDC | VDC | W | ||||||
6 | 7.8 | 20 | 3.9 | 0.6 | 1.8 | |||||
12 | 15.6 | 80 | 7.8 | 1.2 | ||||||
24 | 31.2 | 320 | 15.6 | 2.4 | ||||||
6 | 7.8 | 15.6 | 3.9 | 0.6 | 2.3 | |||||
12 | 15.6 | 62.6 | 7.8 | 1.2 | ||||||
24 | 31.2 | 250.4 | 15.6 | 2.4 | ||||||
6 | 7.8 | 13.8 | 3.9 | 0.6 | 2.6 | |||||
12 | 15.6 | 55.4 | 7.8 | 1.2 | ||||||
24 | 31.2 | 221.5 | 15.6 | 2.4 | ||||||
Product Usage
Related Products
Company Introduction
Jiangxi Weiqi Electrical Appliance Co.,Ltd
Jiangxi Weiqi Electric Co., Ltd. was established in 2007. It is a high-tech enterprise specializing in the production, research and development and sales of electromagnetic relays, automotive relays
and magnetic latching relays. The company has more than 100 people, including 15 R&D personnel.
and magnetic latching relays. The company has more than 100 people, including 15 R&D personnel.
Certifications
Packaging&Shipping
FAQ
Q1. Can I have sample for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for relay?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
we are always here for you！
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for relay?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
we are always here for you！
Похожие товары

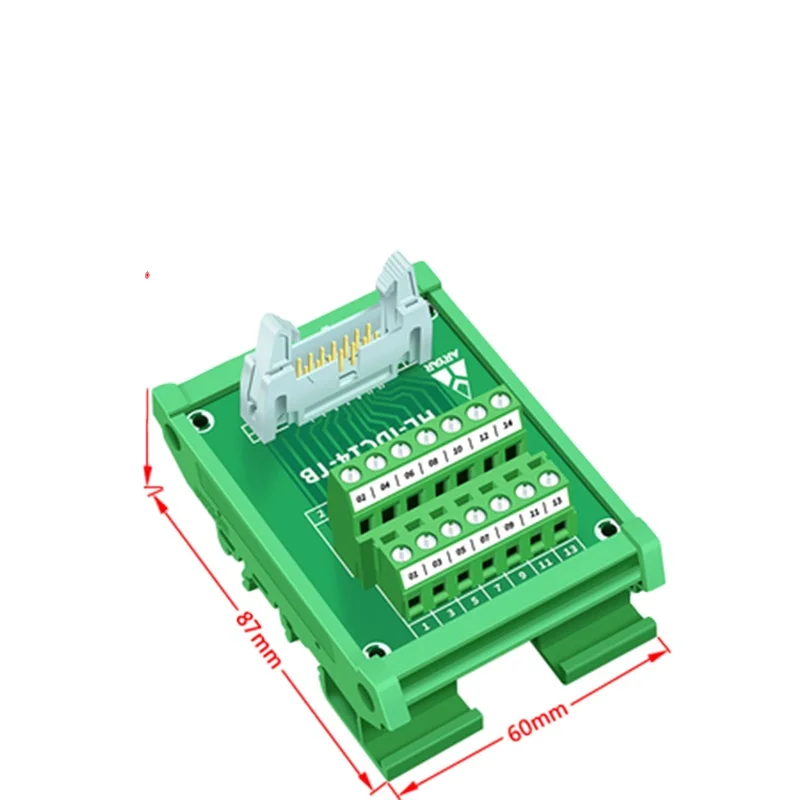

Папа-Клеммная колодка IDC14 разрывная плата соединитель релейный адаптер PLC монтажная на
JQC-25F/018-H(555) герметичное электромагнитное реле мощности

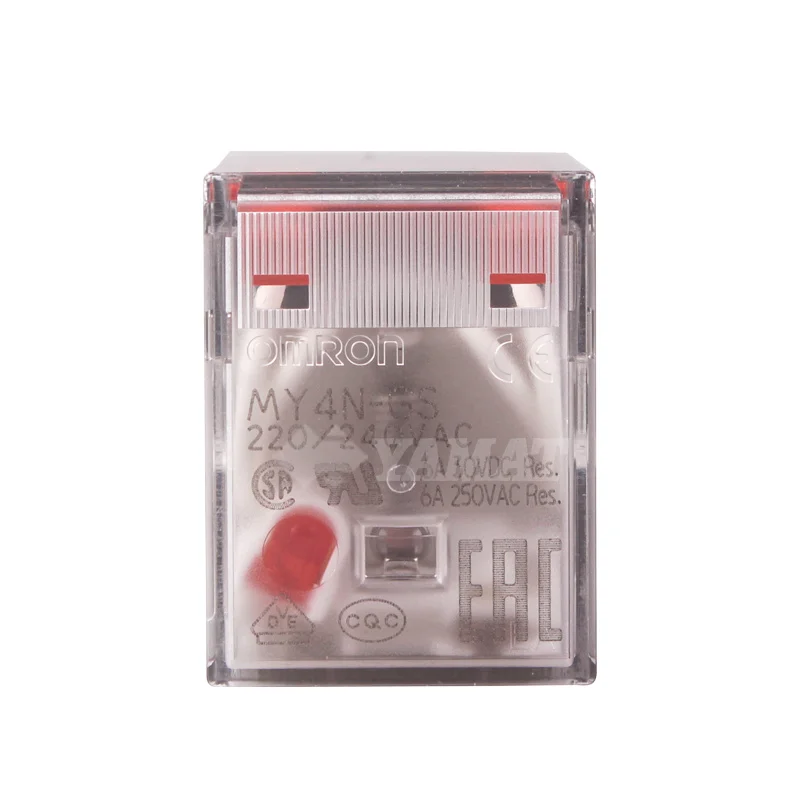

Omron Реле MY4N-GS AC220/240 маленький реле общего назначения промежуточное от
2,50 $ - 3,00 $

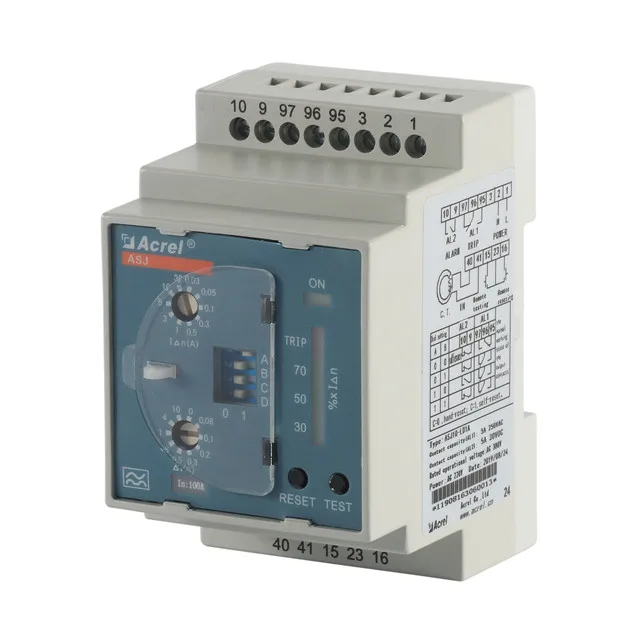

Реле утечки заземления Acrel ASJ10-LD1A din

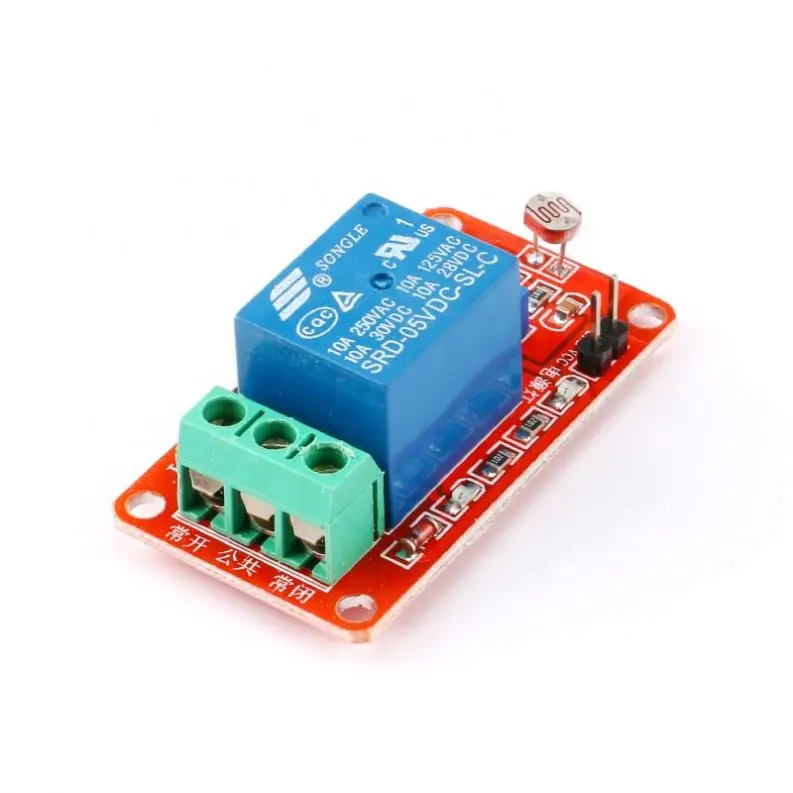

LSR светочувствительный датчик реле оптический релейный модуль 5V для
0,09 $

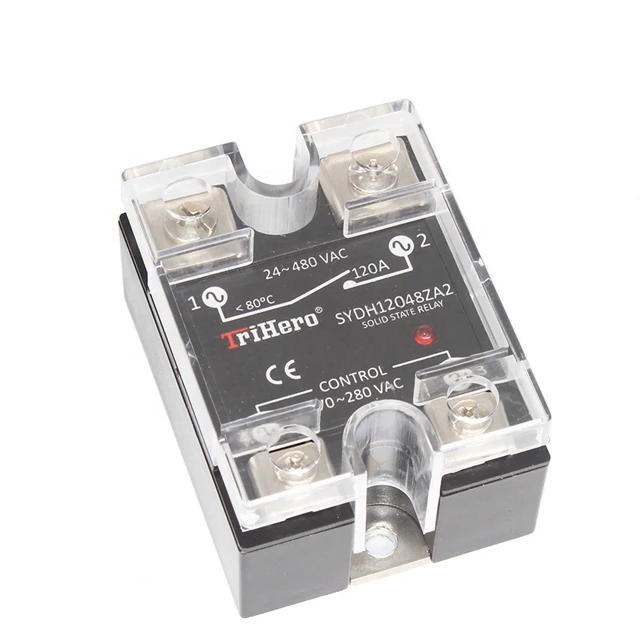

Твердотельное реле AA 80A 90A 100A 120A Однофазное AC 70-280V вход к 24-480V Выход
