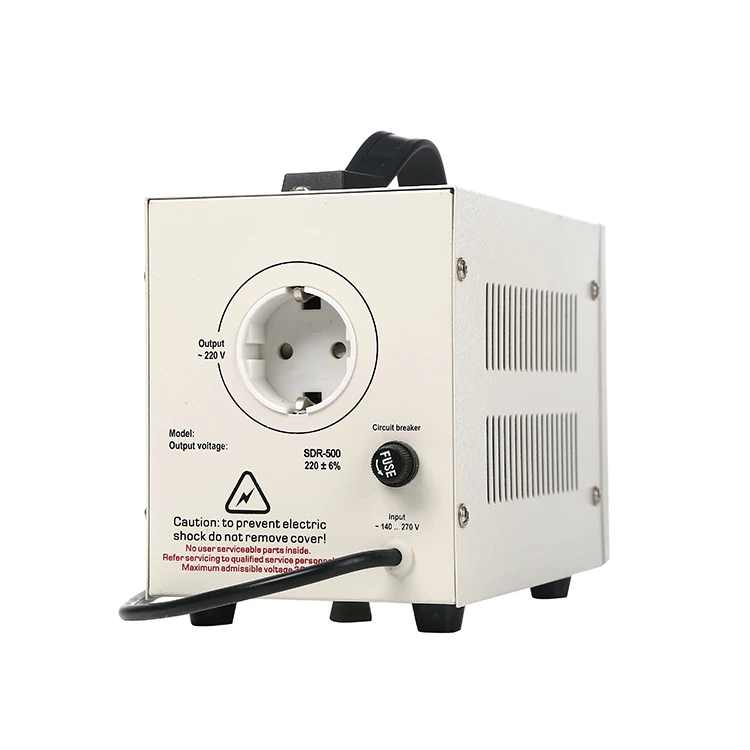

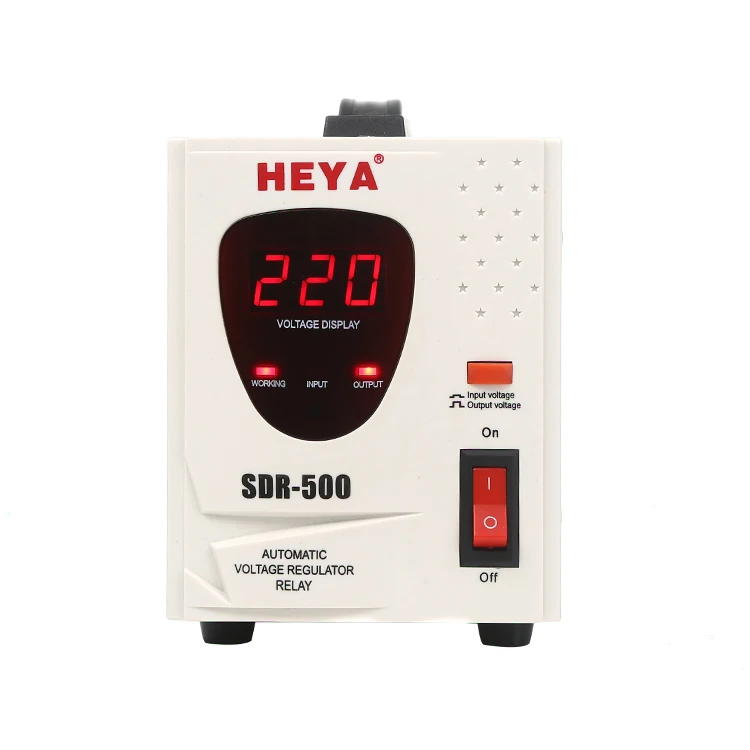

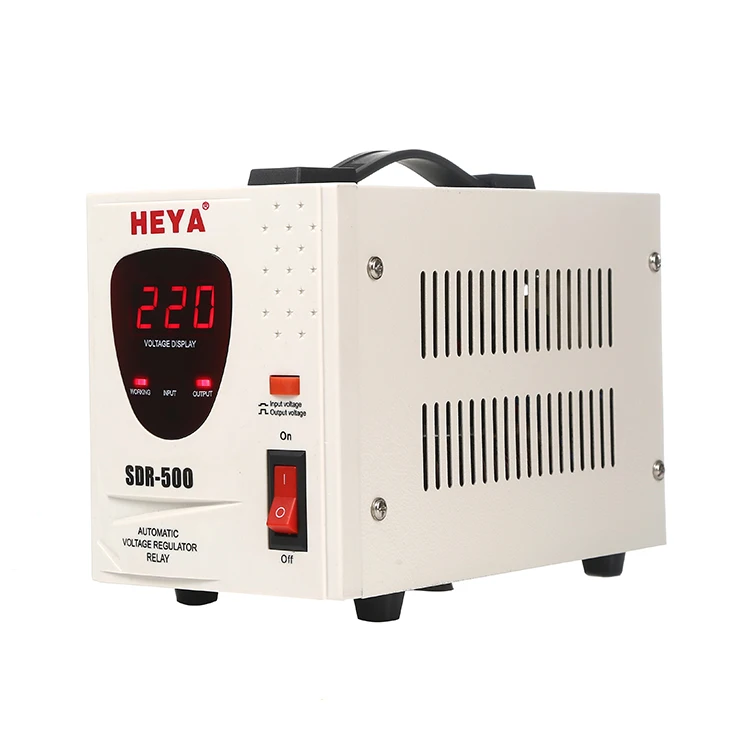

Home 500VA Voltage Stabilizers Regulator AVR 400W 500W
Technical Parameters
| Model | SDR- 500VA | SDR- 1000VA | SDR- 2000VA | SDR- 3000VA | SDR- 5000VA | SDR-10000VA | SDR-12000VA |
| Technology | Relay Control System+Micro compute programed control+control algorithm relay"Cross zero" | ||||||
| LED Display | Color | According to customer requirement | |||||
| Info | Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection | ||||||
| Protection | Over Voltage | Output voltage ≥245v±4 | |||||
| Over Loading | more than 120% | ||||||
| Over Temperture | 120°C±10°C | ||||||
| Delay time | 3 second | ||||||
| Lauguage | English/Russia/Chinese | ||||||
| Input Voltage | AC140~260V | ||||||
| Output Voltage | 220V±8% | ||||||
| Frequency | 50Hz/60Hz | ||||||
| Phase | Single Phase | ||||||
| Efficiency | ≥90% | ||||||
| Ambient Temperature | -15°C~45°C | ||||||
| Relative Humidity | <95% | ||||||
| Waveform distortion | no additional wave form distortion | ||||||
| Insulating Resistance | Normally more than 2MΩ | ||||||
| Power | 350W | 700W | 1400W | 2400W | 3500W | 7000W | 9600W |
| Packing Size(mm) | 575×275×380 | 575×275×380 | 355×305×450 | 355×305×450 | 515×420×310 | 460×265×310 | 460×265×310 |
| Packing | 8 | 8 | 4 | 4 | 2 | 1 | 1 |
| G.W | 19.52 | 23.12 | 21.92 | 23.32 | 22.72 | 15.90 | 18.70 |
Product Description
The advantage of Single Phase Automatic Voltage Regulator Relay Type 220V Ac 10Kva Voltage Stabilizer For India/Pakistan/Bangladesh SDR-10000VA:
1. Wide Input voltage: AC140~260V or customize
2. High technology: Programmed control computerized
3. Fashion design: LED display which can show all protection functions.
4. Quality insurance: Main spare parts made by ourselves, for example, transformer, PCB.
5. Perfect protection function: Over/low voltage protection, over-heat/load protection,short circuit protection.
6. High efficiency: More than 95%
Product Function
Product Function
Related Products
More Products Display
Application Scenarios
Company Profile
Company Profile
FAQ
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL.
Q 2. how's the delivery time ?
A. usually it will take about 10-25 days for production.For sample usually in 1 week.
Q 3. Tell me the standard of package?
A. For the small capacity, color box as inner package and carton as delivery package.
For big capacity, use strong wooden case for protection.
Q 4. What kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.Our logo is HEYA.If your order has good quantity,it absolute no problem to do OEM.
But you use our logo HEYA will be high appreciated.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8.Where is your market?A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 9. what kind of certificate you have ?
A. Our company already obtained CE,ISO9001, BV, EAC, SONCAP, CE, PCT, SGS,design and technical patents certificates.
