Машина Для Производства Кукурузных Чипсов
1 400 235,52 ₽ - 1 640 901,00 ₽
Оборудование для отслаивания овса большой емкости машина экструдера зерновых хлопьев мгновенного риса и кукурузы
- Категория: >>>
- Поставщик: Jinan MT Machinery & Equipment Co. Ltd.
Сохранить в закладки 1600519012772:
Описание и отзывы
Характеристики
Big capacity Oat Flaking equipment Instant rice corn flakes food line breakfast cereals extruder machine
Product Description

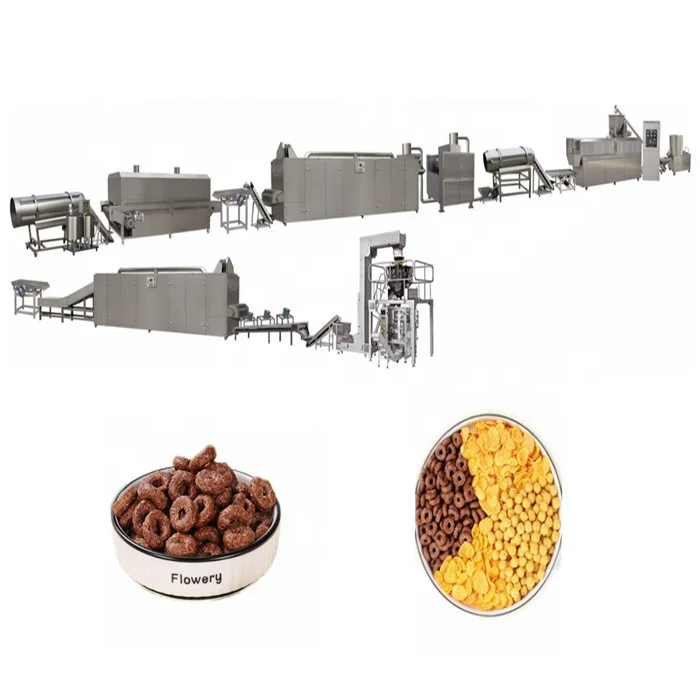

Big capacity Oat Flaking equipment Instant rice corn flakes food line breakfast cereals extruder machine
most nutritious foods and is consumed as breakfast food not only in china but-elsewhere in the world. Basically, it is prepared from maize;this is the main raw material. Flavours, like sugar or salt are also added. Maize,the main raw material, is itself a corn grain. Corn flakes have very good taste.Though several other breakfast cereals are also available in the market but they are still to gain popularity. Besides the good taste, crispy nature, corn flakes are also popular because of their friable texture, blend flavour and above all the ease with which it can be prepared for consumption. Corn Flakes can be manufactured either of thetwo white or yellow corns. The only difference is that flake formed using yellow corn is more dark in color. From raw corn flakes (before roasting) corn syrup can be prepared. It is prepared by removing starch from maize by soaking and treating with chemicals. It is also being used by liquor industry etc.
Big capacity Oat Flaking equipment Instant rice corn flakes food line breakfast cereals extruder machine
rice, wheat, oat, rye and other grains as materials to produce extruded snacks, with crispy taste and lively shape, Inflating food machine is designed according to market demand.We can get different shapes: round,triangle, square, stars, flower, etc.
1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
2. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely
3. SIEMENS(China) Motor
4. It adopts speed adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
5. Adopted the Delta inverters, ensure the extruder better running.
6. The gearbox has automatic lubrication function, with extends gear life.
7. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive. Technical Paramete
1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
2. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely
3. SIEMENS(China) Motor
4. It adopts speed adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
5. Adopted the Delta inverters, ensure the extruder better running.
6. The gearbox has automatic lubrication function, with extends gear life.
7. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive. Technical Paramete
Product parameters
Model | Installed power | Real power | Output | Dimension |
MT-65 | 81.5kw | 53kw | 150kg/h | 21000x1200x2200mm |
MT-70 | 115kw | 76kw | 200kg/h | 23000x1500x2200mm |
MT-85 | 180kw | 117kw | 300kg/h | 28000x1500x4300mm |
Product details
Mixer
Output:10-30kg/load Power:4kw Tank Size: φ600 x500mm Dimention:1000*800*1200mm Flour Mixer is used to mix the raw material, like cornflour , rice flour, fish bone flour with liquid and other additives.
Stainless steel structure, the parts in contacting with the raw material or products, cover small area, easy cleaning and operate stably.
Stainless steel structure, the parts in contacting with the raw material or products, cover small area, easy cleaning and operate stably.
Screw conveyor
Driving Power: 0.75kw Dimension: 2700×500×2400mm
Screw Conveyor is used to convey the materials to the feeder of the extruder.
Stainless steel structure, especially the parts in contacting with the raw material or products; The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking, dust pollution; Equipped with vibrating sifter to feed the materials stably and evenly; Easy cleaning and operation; run stably.
Stainless steel structure, especially the parts in contacting with the raw material or products; The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking, dust pollution; Equipped with vibrating sifter to feed the materials stably and evenly; Easy cleaning and operation; run stably.
High-temperature Oven
Technical Parameter:
Size:4.5*1.4*1.8m
Power:3.75kw
Function: this high temperature oven is used to baking the corn flakes ,this oven we use gas for baking ,and there are both side
baking system ,can make the corn flakes more crisp.
Size:4.5*1.4*1.8m
Power:3.75kw
Function: this high temperature oven is used to baking the corn flakes ,this oven we use gas for baking ,and there are both side
baking system ,can make the corn flakes more crisp.

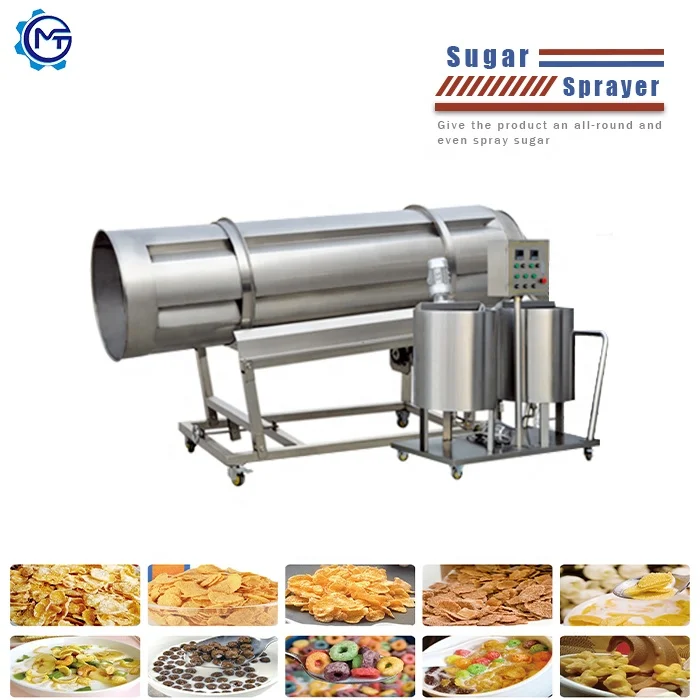

Sugar Spraying System
Technical Parameter:
Total Power: 28.75KW
Dimension: 4000×1900×1880mm
Roller Size: about Ø600 x 2700mm
Function: This machine consists of conveyor, melting tank and temperature keeping roller, and it is used to spray sugar on the
surface of the corn flakes.
Total Power: 28.75KW
Dimension: 4000×1900×1880mm
Roller Size: about Ø600 x 2700mm
Function: This machine consists of conveyor, melting tank and temperature keeping roller, and it is used to spray sugar on the
surface of the corn flakes.

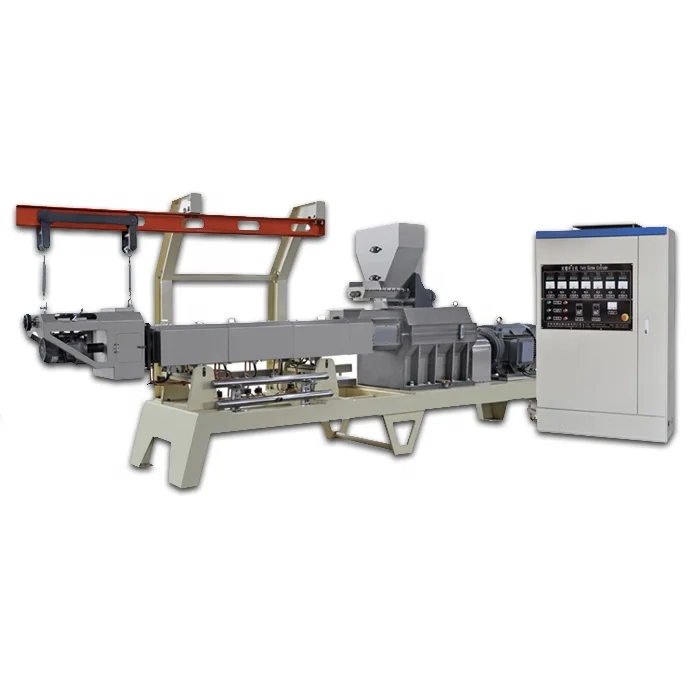

MT-65Double Screw Extruder serves to gelatinize flours and starches continuously and automatically. After dosing, the materials are worked by two co-rotating screws composed by sectional modules for the following functions: forward and backward transport, mixing, de-gassing, cooking and forming.

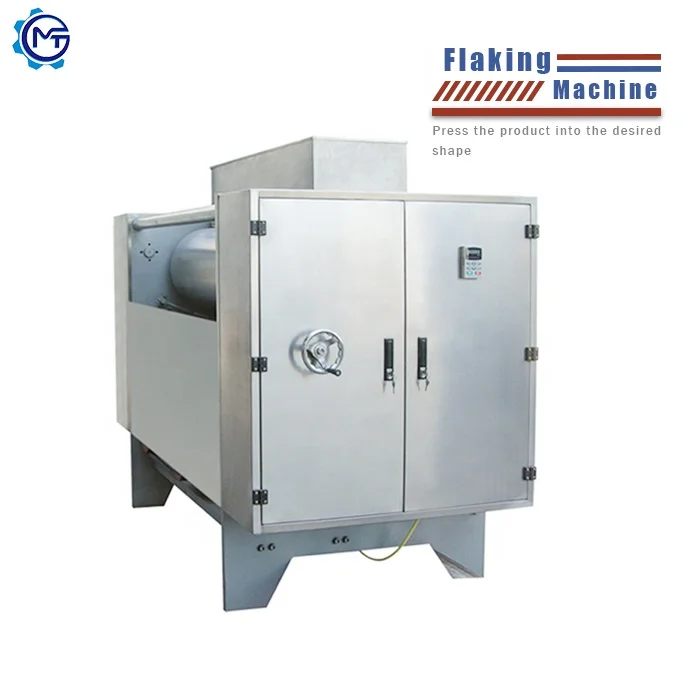

Corn flakes press machine.
Material:- Stainless Steel Function:- Pressing Extruded pellets into flakes Separate Controller Box 1.it with big roller to press
2.it with cooling system 3.it can adjust the roller distance to adjust the flakes thickness Power:16.12 kw Size: 1550*1300*2000mm,
Roller:510* 310*1050mm
2.it with cooling system 3.it can adjust the roller distance to adjust the flakes thickness Power:16.12 kw Size: 1550*1300*2000mm,
Roller:510* 310*1050mm

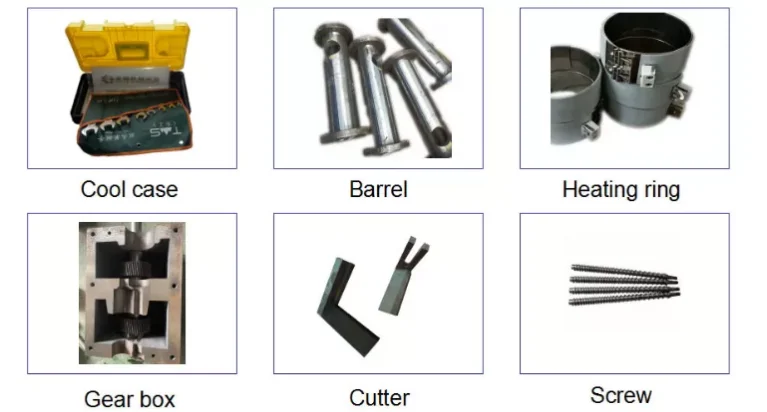

Parts:If you buy our machine, we will prepare some free accessories and toolboxes.

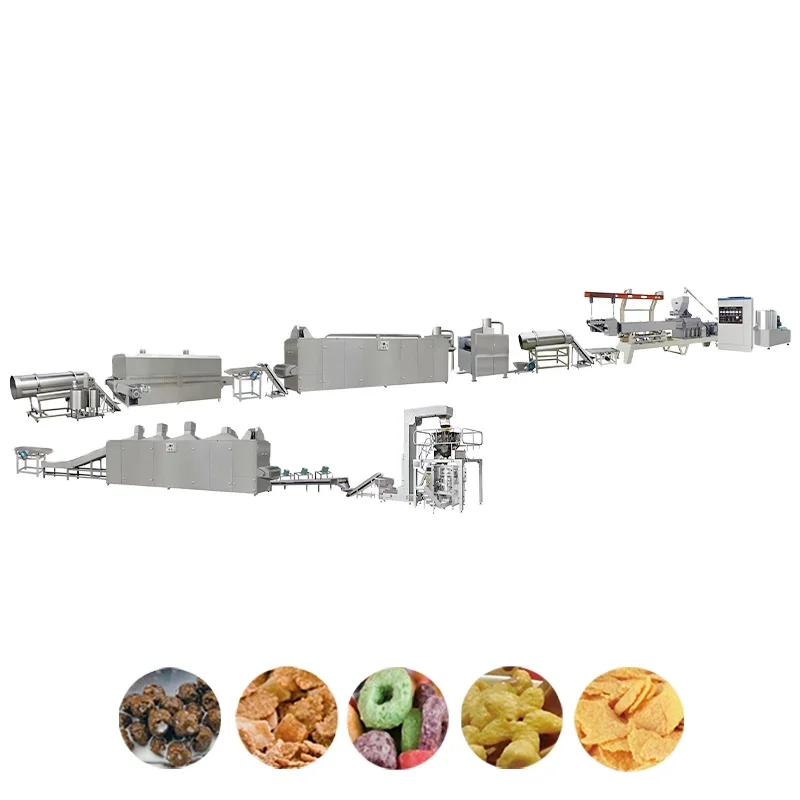

Product Show
Corn flakes being one of most nutritious foods and is consumed as breakfast food not only in China but-elsewhere in the world. Basically, it is prepared from maize; this is the main raw material. Flavours, like sugar or salt are also added. Maize, the main raw material, is itself a corn grain. Corn flakes have very good taste. Though several other breakfast cereals are also available in the market but they are still to gain popularity.
Company Profile

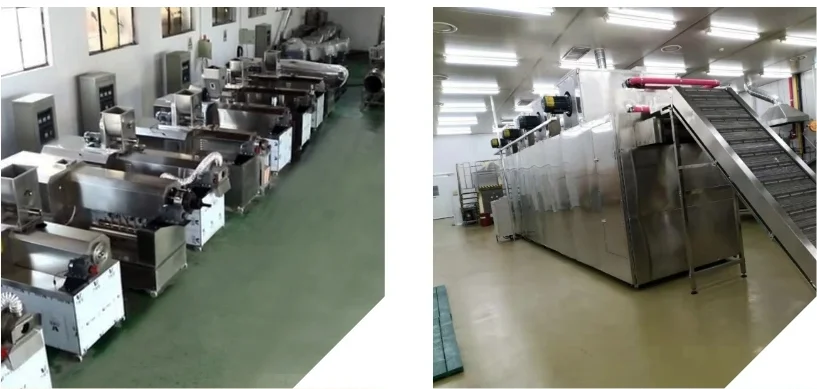

Our company
Our company(MT Machinery Co., Ltd.'s )has good experience of the industry development. We have well-experienced managers,outstanding engineers as well as well trained techincal workers.By constant technical exchange with well_known firms of the same line in the world and also by introduction of advanced technique and experience into our company, we have established a strong technical guarantee system. Our company is a manufacturer of puffed extruder and food machinery. Our products are sold very well throughout China and are also introduced to Southeast Asia, East Europe, Africa and other regions.Our market share is increasing each year.
Our customer:
We have many domestic and foreign customers, and we have our own professional technical team and design team.For machine .The whole machine is made by steel and the screws are made by alloy steel and special craft,so the life is longer.And the uses building block system stucture,may combine willfully Visible auto-temperature controlling system,make temperature-controlling to
be more direct-viewing,parameter to be more precise.The screw have self-cleaning function,when stopping,you do not need to disassemble.
be more direct-viewing,parameter to be more precise.The screw have self-cleaning function,when stopping,you do not need to disassemble.
We can provide the electronic edition certificates for Jinan MT Machinery extruded China High quality breakfast cereals process full automatic sugar corn flakes production line if asked, or you can see the original documents in our factory. We can ensure the truth of our certificates.
Packing&Delivery
Packaging | ||
Packaging Details | 1.Packaging Specification Outside Pachage:Wooden Packing as Exportand Standard. 2.Delivery time: 5-10days after received 40% of the whole payment. 3.About Shipping: We can be resonsible for the shipping ,of course,we can also accept and cooperate with your agent if you have shipping forwarder in China. | |
service &team
Before sale services:
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Welcome to visit our factory or the domestic clients’factory.
3.Inspect the machine before leaving the factory.
After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. We will provide 1-2 engineer to the client's factory for the installation and training. The client need provide room, food, round-trip transportation, visa fee and a nominal daily subsidy per person.
FAQ
Q1: What is your payment term?
A1: 30% T/T as down payment, 70% balance paid before shipping. Or Irrevocable L/C at sight.
Q2: What is your warranty for machinery?
A2: Our warranty is 24 months, life time service.
Q3: Can you arrange shipment?
A3: Yes,we can arrange the shipment for customer according to our customers’ requirements.
Q4: Do you provide installation and commissioning?
A4: Yes, we provide service to send technicians for machine installation and commissioning, machine running and local team training.
A1: 30% T/T as down payment, 70% balance paid before shipping. Or Irrevocable L/C at sight.
Q2: What is your warranty for machinery?
A2: Our warranty is 24 months, life time service.
Q3: Can you arrange shipment?
A3: Yes,we can arrange the shipment for customer according to our customers’ requirements.
Q4: Do you provide installation and commissioning?
A4: Yes, we provide service to send technicians for machine installation and commissioning, machine running and local team training.
