Заводская цена автоматическая подача высокоскоростная лазерная машина для резки труб
3 144 532,67 ₽ - 4 337 327,57 ₽
Автоматическая машина для лазерной резки стекла круглой неправильной формы
- Категория: >>>
- Поставщик: Zhejiang Holy Laser Technology Co. Ltd.
Сохранить в закладки 1600526777009:
Описание и отзывы
Характеристики
Product Overview

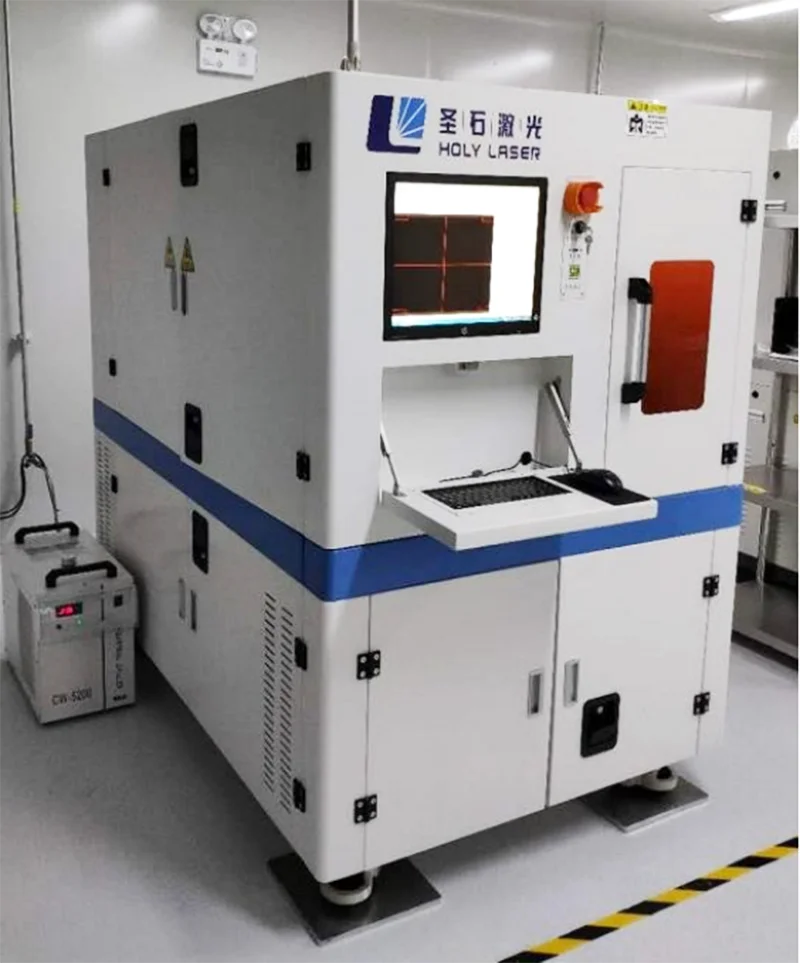

Holy Laser Glass Cutting Machine
The laser glass cutting machine independently developed by Holy Laser, it uses high-power picosecond as laser source, and core components and LD pump sources are provided by international first-tier manufacturers, Let machine processing more stable.
The customized glass cutting head, it's lenses are all imported from the United States, the light spot is thin, the focal depth is long, the minimum focusing spot is less than 2um, and the focal depth can reach 3mm.
The motor platform and the base of the optical platform are made of natural marble, which has undergone secondary fine grinding processing, and the accuracy level reaches 00.
The X/Y axis motor adopts imported high-end linear motor, 0.1um digital grating ruler, and the Z axis adopts high-quality core moving parts of Taiwan screw and guide rail.
High negative pressure vacuum pump is used to adsorb products to ensure positioning stability.
Equipped with alignment CCD and telecentric vision lens to accurately identify circles, crosses and special-shaped Mark points.
FEATURES AT A GLANCE
*High cutting strength.
*Small edge chipping.
*High production efficiency and low cost.
*The electrical components are made of French Schneider, and the switching power supply is made of Taiwan's MEAN WELL, with quality assurance
.

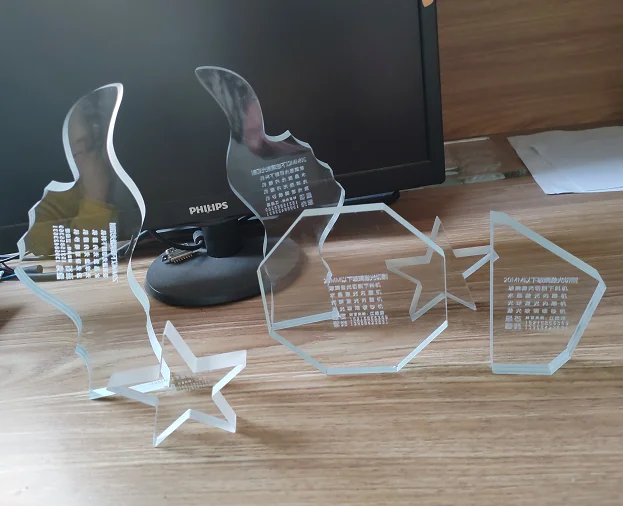

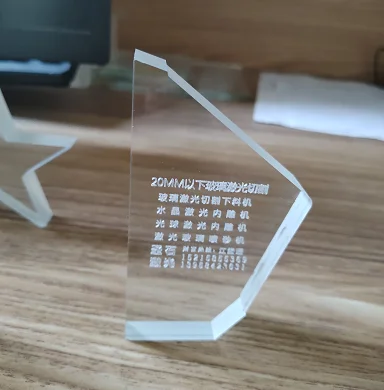

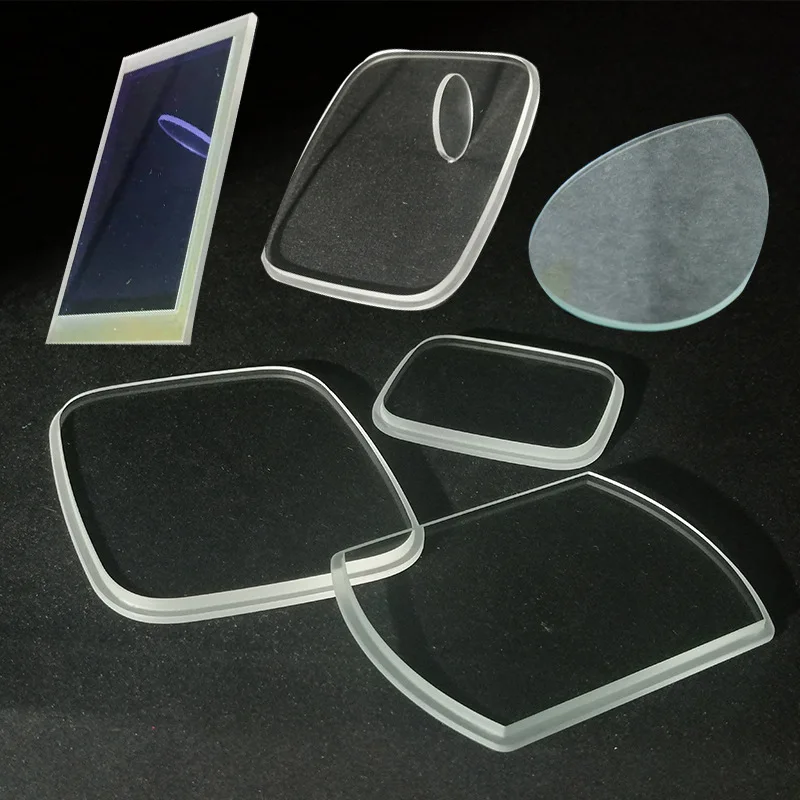

Different Shape Glass Cutting
PRODUCT SPECIFICATIONS
No | Item | Glass Laser Cutting Machine | ||
1 | Laser Power | 20W, 50W, 70W | ||
2 | Max Working Area | 1500*1100mm | ||
3 | Laser Wavelength | 1064nm | ||
4 | Laser Spot Dia | 1-3mm | ||
5 | Repeatability | ± 5 µm per axis @ 20°C ± 1K | ||
6 | Positioning Accuracy | ± 10 µm per axis @ 20°C ± 1K | ||
7 | Pulse Width | ≤12ps | ||
8 | Single Pulse Energy | 800μJ | ||
9 | Control Software | Holy Laser | ||
10 | Cooling | Water Cooling | ||
11 | Power Supply | AC 220V/50-60Hz | ||
Testing Room
Various Fairs
Sales All Over The World
FAQ
Q: What’s the package?
A: We have 3 layers package: The outside is plywood case, which is fumigation-free packaging. In the middle is covered with thick sponge to protect the machine from shaking. Inside this is covered by thickening plastic bag for waterproof.
A: We have 3 layers package: The outside is plywood case, which is fumigation-free packaging. In the middle is covered with thick sponge to protect the machine from shaking. Inside this is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation.
Q: How to install and run the machine?
A: Our engineer have installed and tested the machine before shipping. No parts need installed.
For running machine, we have menus and videos to show you for training. And we also will training you on line. Most of customers training to run the machine like this, very little customer come factory for training.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us ASAP and do not try to fix the machine by yourself or someone else. We will response within 24 hours as quickly as we can to solve it for you.
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation.
Q: How to install and run the machine?
A: Our engineer have installed and tested the machine before shipping. No parts need installed.
For running machine, we have menus and videos to show you for training. And we also will training you on line. Most of customers training to run the machine like this, very little customer come factory for training.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us ASAP and do not try to fix the machine by yourself or someone else. We will response within 24 hours as quickly as we can to solve it for you.
Похожие товары
Полностью покрытая нержавеющая сталь высокого качества металлическая пластина Автоматизация обменный стол высокомощный волоконно-лазерный станок для резки
1 279 543,62 ₽ - 2 038 594,92 ₽

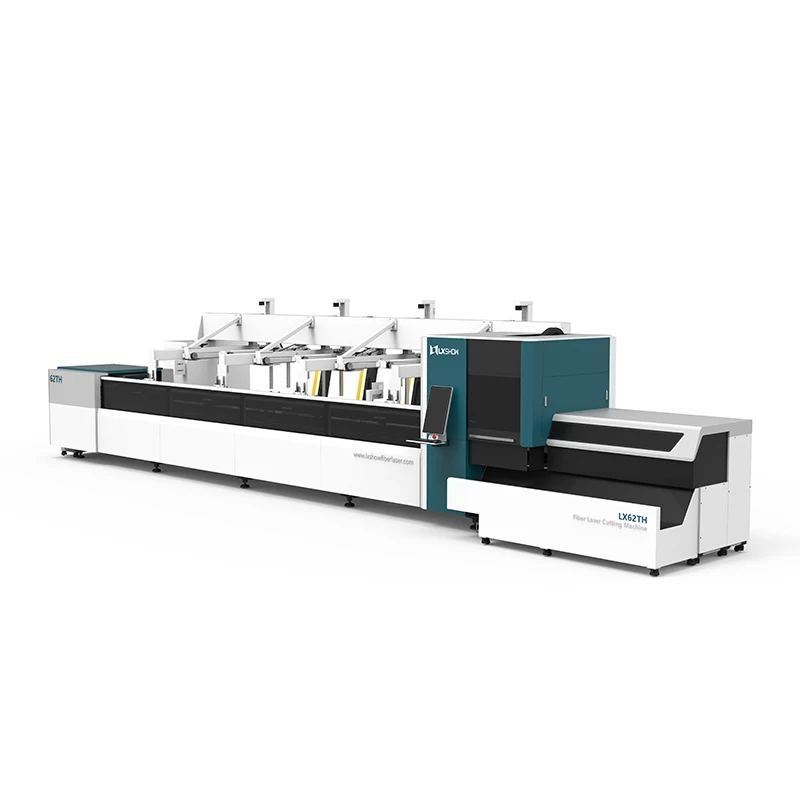

Автоматическая трубка волоконно-металлическая Лазерная резка машина для металлической стальной трубы из нержавеющей стали углеродистый алюминий
2 895 238,53 ₽ - 3 659 711,63 ₽

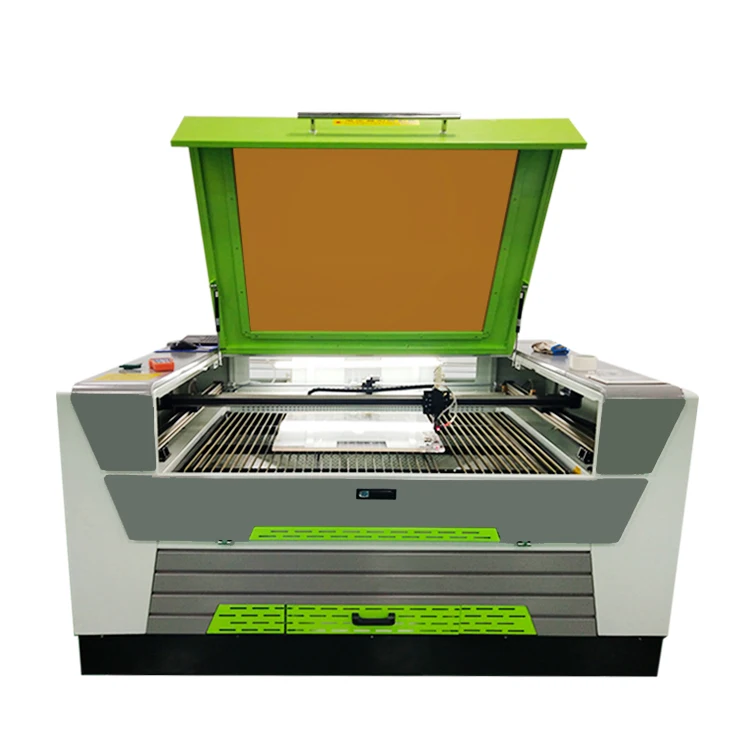

CO2 лазерная резка и гравировка машины 6040 6090 1390 1313 1410 1610 1325 1530 2030 2040
249 402,57 ₽

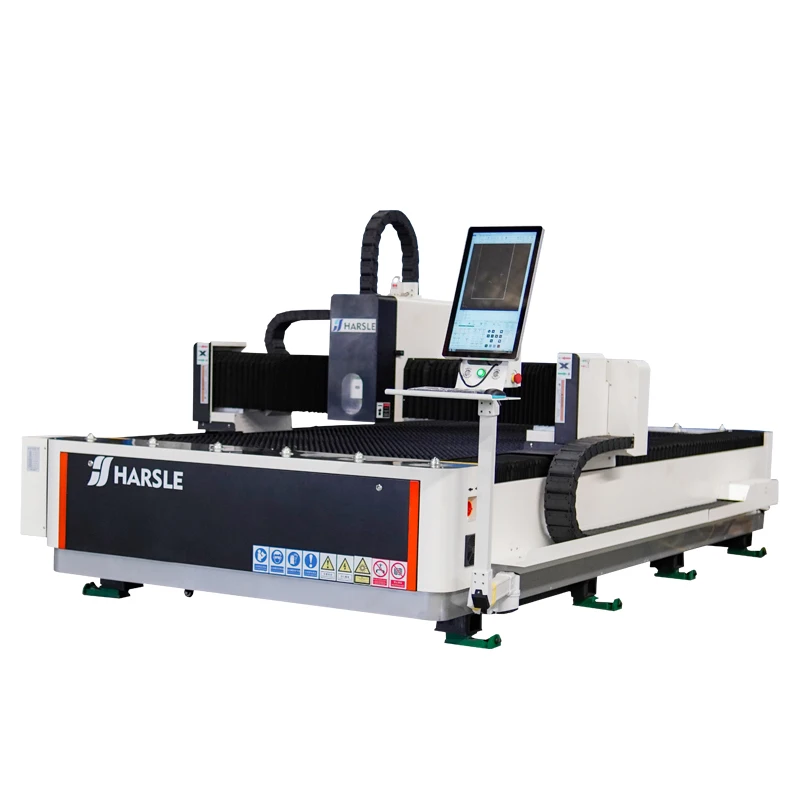

Оптовая Продажа с фабрики волокна 3000 Вт умная Лазерная резка для листового металла
1 138 576,95 ₽ - 1 463 884,65 ₽
Дешевый IPG Большой мощный приносящий деньги станок для лазерной резки листового металла с сертификацией CE

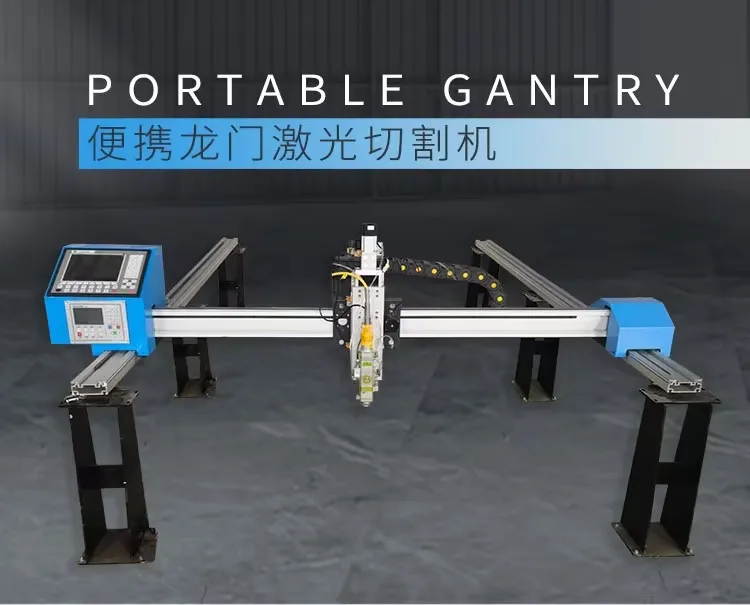

1500 Вт Портативный станок для лазерной резки волокна по лучшей цене от прямого завода
838 209,51 ₽

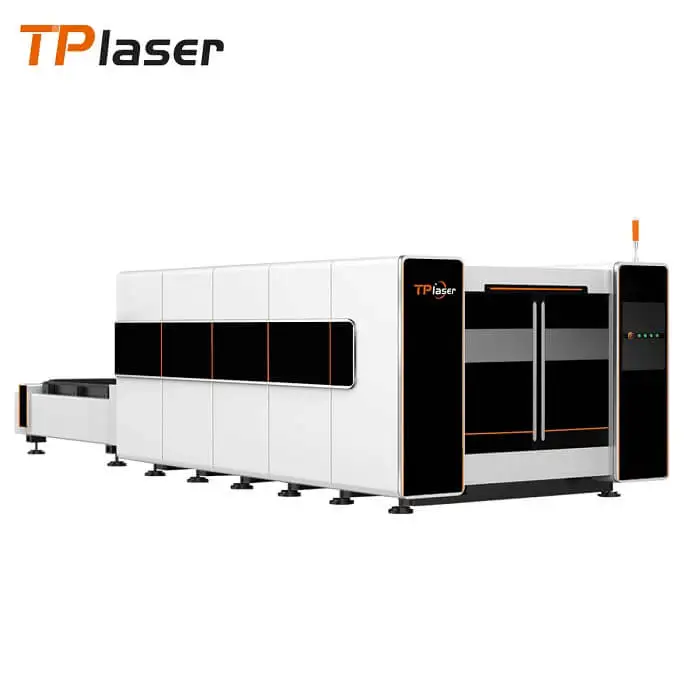

Углеродистая сталь нержавеющая сталь алюминий медное волокно Лазерная резка машина 6000 Вт 12 кВт 20 кВт
