Высокоэффективный паровой котел горизонтального типа серии ПРС для бумажной
- Категория: Boilers >>>
- Поставщик: Taishan Group Taian Boao International Trade Co. Ltd.
Сохранить в закладки 1600549241397:
Описание и отзывы
Характеристики
SPECIFICATION
Model | Rated Evaporation Capacity (t/h) | Rated Steam Pressure (MPa) | Rated Steam Temperature (°C) | Feed Water Temperature (°C) | Heating Area (m²) | Furnace volume (m³) | Flue Gas Temperature (°C) | Fuel Consumption (m³/h) | Max Transport Weight (t) |
WNS1-0.7-Q | 1 | 0.7 | 170 | 20 | 21.52 | 0.74 | 157 | 81 | 4.9 |
WNS1-1.0-Q | 1 | 1 | 184 | 20 | 21.52 | 0.74 | 165 | 82 | 4.9 |
WNS2-0.7-Q | 2 | 0.7 | 170 | 20 | 49.72 | 1.47 | 158 | 162 | 8.4 |
WNS2-1.0-Q | 2 | 1 | 184 | 20 | 49.72 | 1.47 | 138 | 162 | 8.4 |
WNS2-1.25-Q | 2 | 1.25 | 193 | 20 | 49.72 | 1.47 | 144 | 162 | 8.4 |
WNS3-1.25-Q | 3 | 1.25 | 193 | 20 | 71.86 | 2.16 | 163 | 246 | 10.3 |
WNS4-1.0-Q | 4 | 1 | 184 | 20 | 99.62 | 2.85 | 158 | 323 | 12.3 |
WNS4-1.25-Q | 4 | 1.25 | 193 | 20 | 99.62 | 2.85 | 160 | 323 | 12.3 |
WNS4-1.6-Q | 4 | 1.6 | 204 | 20 | 99.62 | 2.85 | 167 | 324 | 12.3 |
WNS6-1.0-Q | 6 | 1 | 184 | 105 | 149.22 | 3.89 | 152 | 418 | 15.1 |
WNS6-1.25-Q | 6 | 1.25 | 193 | 105 | 149.22 | 3.89 | 167 | 419 | 15.1 |
WNS6-1.6-Q | 6 | 1.6 | 204 | 105 | 149.22 | 3.89 | 167 | 420 | 15.1 |
WNS8-1.0-Q | 8 | 1 | 184 | 105 | 186.33 | 5.1 | 155 | 556 | 20.3 |
WNS8-1.25-Q | 8 | 1.25 | 193 | 105 | 186.33 | 5.1 | 165 | 560 | 20.3 |
WNS8-1.6-Q | 8 | 1.6 | 204 | 105 | 186.33 | 5.1 | 169 | 562 | 20.3 |
WNS10-1.25-Q | 10 | 1.25 | 193 | 105 | 218.63 | 5.8 | 157 | 694 | 21.9 |
WNS10-1.6-Q | 10 | 1.6 | 204 | 105 | 218.63 | 5.8 | 168 | 712 | 21.9 |
WNS15-1.25-Q | 15 | 1.25 | 193 | 105 | 285.9 | 11.6 | 170 | 1050 | 35 |
WNS15-1.6-Q | 15 | 1.6 | 204 | 105 | 285.9 | 11.6 | 166 | 1057 | 35 |
WNS20-1.25-Q | 20 | 1.25 | 193 | 105 | 440 | 16 | 164 | 1391 | 43.2 |
WNS20-1.6-Q | 20 | 1.6 | 204 | 105 | 440 | 16 | 165 | 1401 | 43.2 |
PRODUCT DISPLAY
PRIDUCT ACESSORIES
1. There is more heating surface to spare to assure running of full load and overcharge.

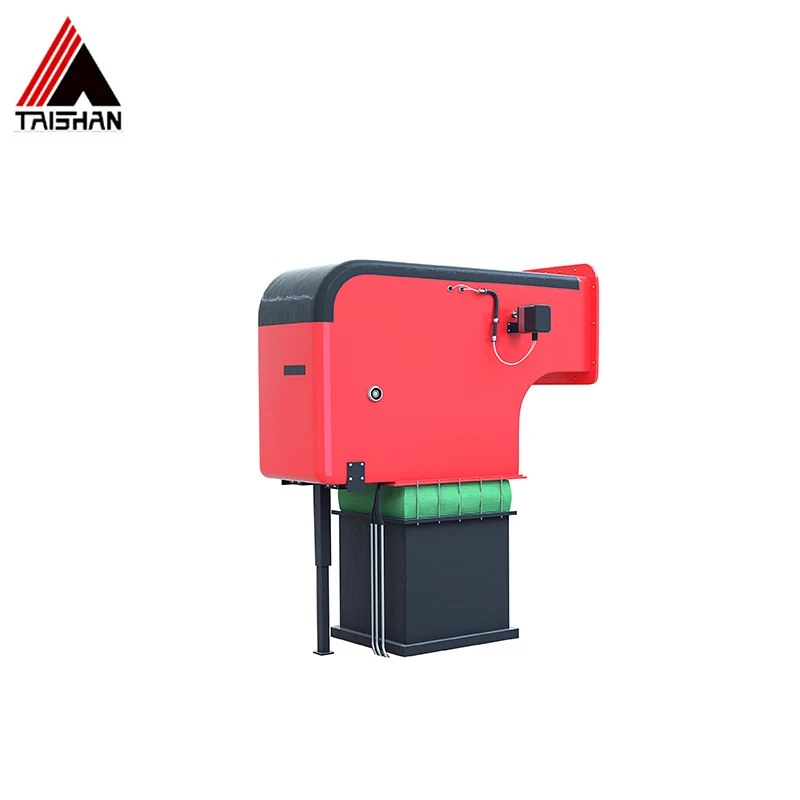

2. The boilers are matched with imported burner of European brand. Proportional control, procedure ignition, automatic blowing and flameout protective device. The burning efficiency is over 99.5%.
3. The furnace shape is fit for the shape of flame, avoiding the flame washing out the heating surface area.
4. The temperature of rear flue chamber is low so that the operators feel comfortable and safe.
5. Boiler adopts light quality thermal insulation material: aluminum silicate fiber, good heat preservation, less heat lost, high heating efficiency.
6. The automatic control box adopts full automatic operating to actualize auto-igniting and auto-outage. And it also has manual switch.
7. The automatic control protection procedure has full functions, such as automatic blowing, fuel gas leak alarm, safe operating interlock protection, flameout protection, fuel gas pressure protection.
8. Boiler set the explosion-proof gate to keep safe.
9. Boiler is packaged leaving the factory, installed and adjusted in local.
2. The boilers are matched with imported burner of European brand. Proportional control, procedure ignition, automatic blowing and flameout protective device. The burning efficiency is over 99.5%.
3. The furnace shape is fit for the shape of flame, avoiding the flame washing out the heating surface area.
4. The temperature of rear flue chamber is low so that the operators feel comfortable and safe.
5. Boiler adopts light quality thermal insulation material: aluminum silicate fiber, good heat preservation, less heat lost, high heating efficiency.
6. The automatic control box adopts full automatic operating to actualize auto-igniting and auto-outage. And it also has manual switch.
7. The automatic control protection procedure has full functions, such as automatic blowing, fuel gas leak alarm, safe operating interlock protection, flameout protection, fuel gas pressure protection.
8. Boiler set the explosion-proof gate to keep safe.
9. Boiler is packaged leaving the factory, installed and adjusted in local.

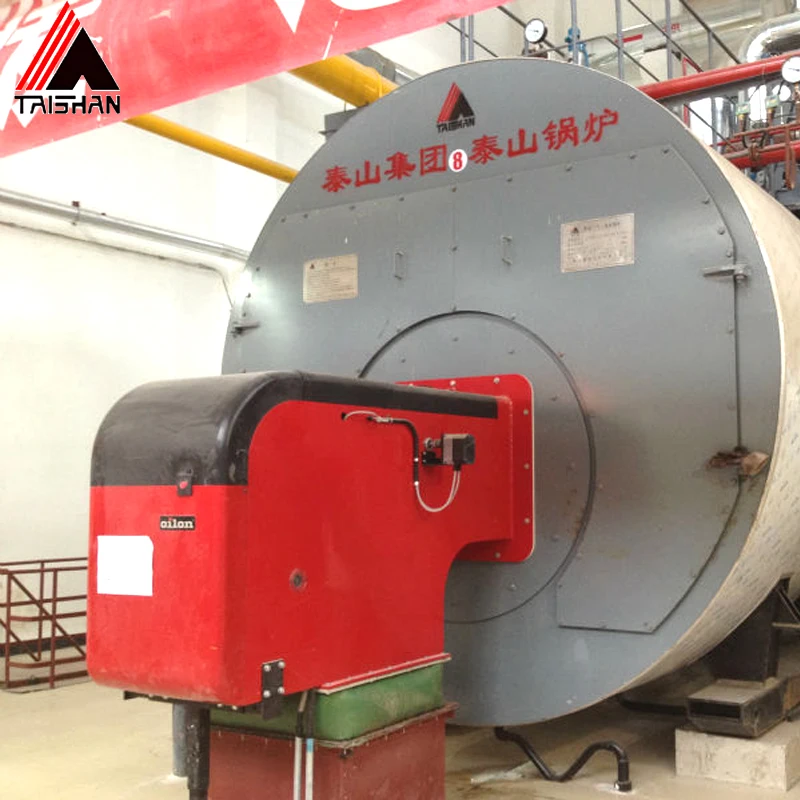

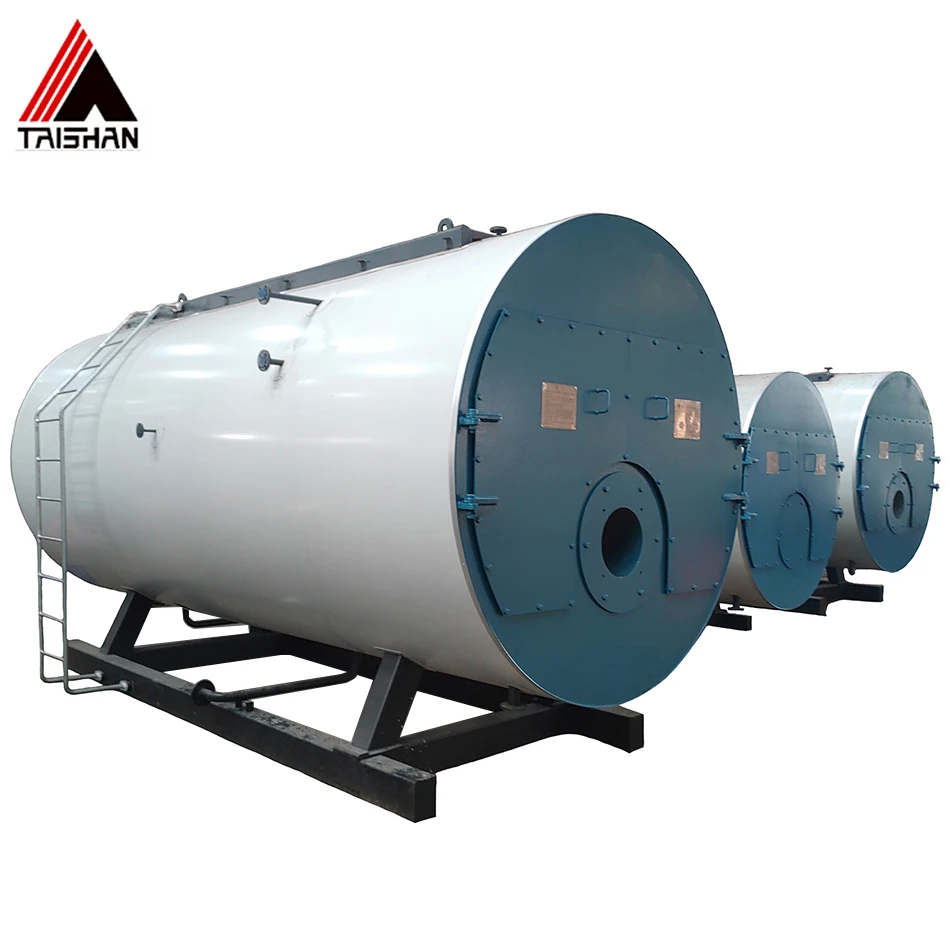

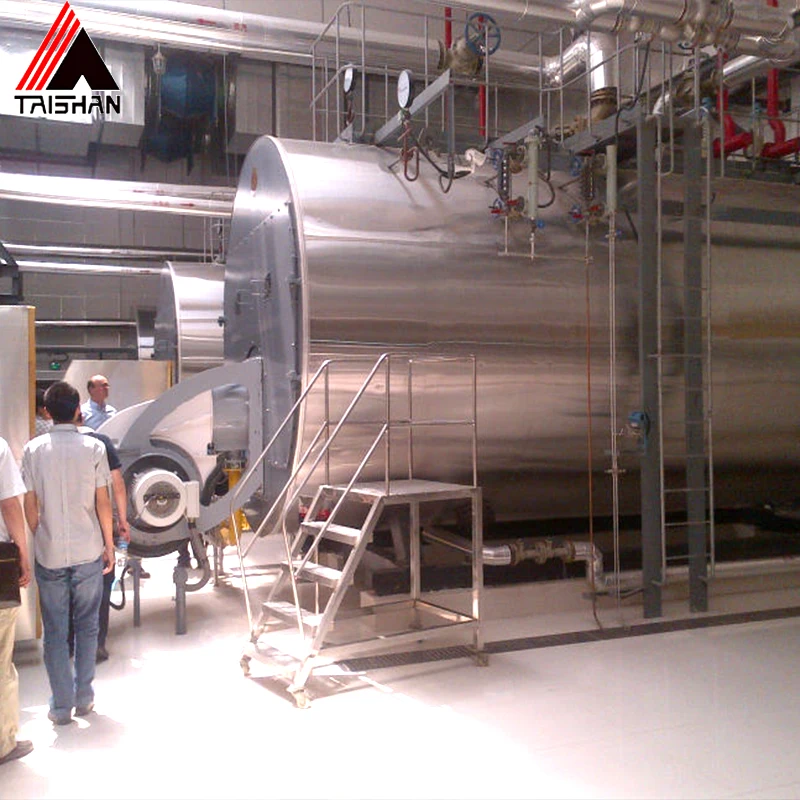

WNS series gas/oil fired steam boiler is three-pass full wet back structure, adopting large furnace and thick smoke pipe to increase the heat absorption of the furnace and effectively save energy and reduce consumption. The threaded pipe and corrugated furnace greatly enhance the heat transfer effect and greatly save fuel consumption. The main structure includes: boiler shell, ripple furnace, reversal chamber, thread smoke tube, etc. The burner brand can be chosen according to user’ s requirement.
WNS series gas/oil fired steam boiler is designed and optimized to produce low pressure steam or hot water with rated evaporation capacity from 1 to 20 ton/hour and rated pressure from 0.7 to 1.6MPa. The design heat efficiency is up to 95%.
WNS series gas/oil fired steam boiler is designed and optimized to produce low pressure steam or hot water with rated evaporation capacity from 1 to 20 ton/hour and rated pressure from 0.7 to 1.6MPa. The design heat efficiency is up to 95%.
WNS BOILER PROPER
APPLICATION
MORE PRODUCTS

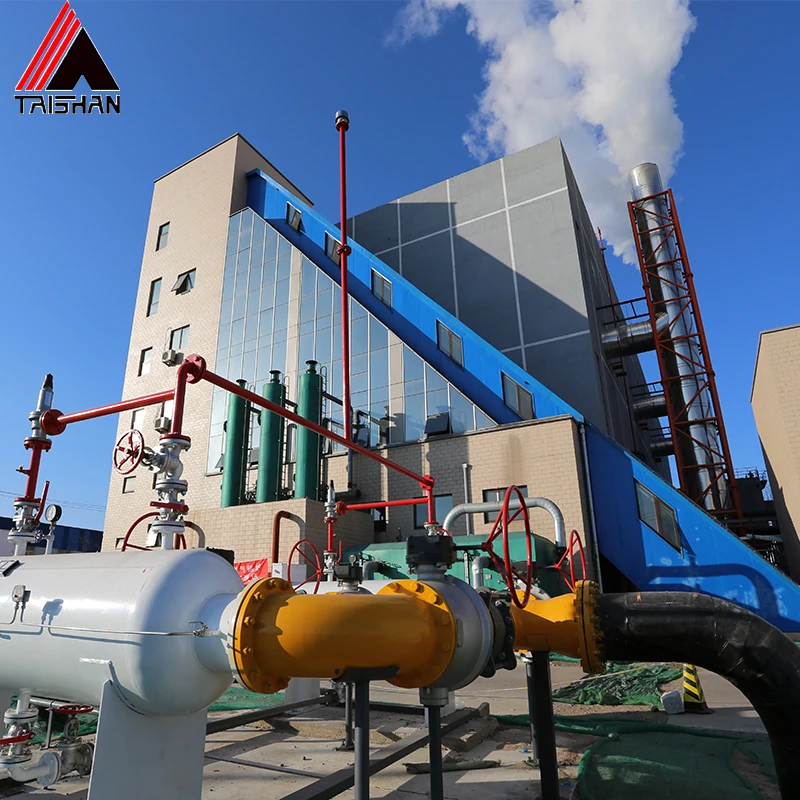

WNS series gas/oil fired steam boiler is widely used in chemical industry, paper making industry, textile industry, food industry, pharmaceuticals industry, heating industry, construction industry.
WNS Gas/Oil Boiler
Coal-fired steam boiler
Biomass boiler
COMPANY PROFILE
FAQ
1. How to get a boiler price?
Pls tell us below information to confirm the boiler model first, and then offer the right boiler price:
1.1 Which fuel you prefer for the boiler, coal, biomass, gas & oil, or others?
1.2 The boiler capacity
1.3 The boiler pressure
1.4 The boiler application
2. How long is the product warranty period ?
Our boilers have one year warranty period or depending on your requirements.
3. What about after-sale service?
We will supply professional after-sale service team as soon as we receiving your problem feedback, and dispatch our engineers to your country and solve your problems right now.
4. What's the advantages of your company?
4.1 Reasonable heat surface and burning device, heat efficiency is 4%~5% higher than national standard.
4.2 Reasonable flue gas speed, heating surface without ash deposition and no abrasion, under the condition of no soot-blowing, the boiler can work full-load, high-efficiency and safety in long term.
4.3 The big and tall boiler furnace can be designed according to the different fuel to improve the burning rate of fuel and remove black smoke.
4.4 All independent loop and reasonable coal boiler injected circulation are specially designed and adopted for the hot water boilers. The medium speed in loop of heat surface is higher than national standard
4.5 1-20T/H & 0.7-14MW boiler adopt big and high strength grate, add rolling device improves the boilers’ 4.6 Over 20T/H & 14MW boiler adopt flake type or beam type chain grate, less coal leakage, convenient burning adjustment. Closed soot cleaning avoid second pollution and save time and labor.
4.7 Dust inertia separation at the furnace outlet can reduce exhaust gas concentration and lessen abrasion of rear heat surface.
4.8 Compact structure makes its installation volume smaller than other types of boilers, it will shorten installation period and lower boiler room cost.
4.9 Big water volume benefits for power-off protection, high ability suitable for load changing.
Pls tell us below information to confirm the boiler model first, and then offer the right boiler price:
1.1 Which fuel you prefer for the boiler, coal, biomass, gas & oil, or others?
1.2 The boiler capacity
1.3 The boiler pressure
1.4 The boiler application
2. How long is the product warranty period ?
Our boilers have one year warranty period or depending on your requirements.
3. What about after-sale service?
We will supply professional after-sale service team as soon as we receiving your problem feedback, and dispatch our engineers to your country and solve your problems right now.
4. What's the advantages of your company?
4.1 Reasonable heat surface and burning device, heat efficiency is 4%~5% higher than national standard.
4.2 Reasonable flue gas speed, heating surface without ash deposition and no abrasion, under the condition of no soot-blowing, the boiler can work full-load, high-efficiency and safety in long term.
4.3 The big and tall boiler furnace can be designed according to the different fuel to improve the burning rate of fuel and remove black smoke.
4.4 All independent loop and reasonable coal boiler injected circulation are specially designed and adopted for the hot water boilers. The medium speed in loop of heat surface is higher than national standard
4.5 1-20T/H & 0.7-14MW boiler adopt big and high strength grate, add rolling device improves the boilers’ 4.6 Over 20T/H & 14MW boiler adopt flake type or beam type chain grate, less coal leakage, convenient burning adjustment. Closed soot cleaning avoid second pollution and save time and labor.
4.7 Dust inertia separation at the furnace outlet can reduce exhaust gas concentration and lessen abrasion of rear heat surface.
4.8 Compact structure makes its installation volume smaller than other types of boilers, it will shorten installation period and lower boiler room cost.
4.9 Big water volume benefits for power-off protection, high ability suitable for load changing.
