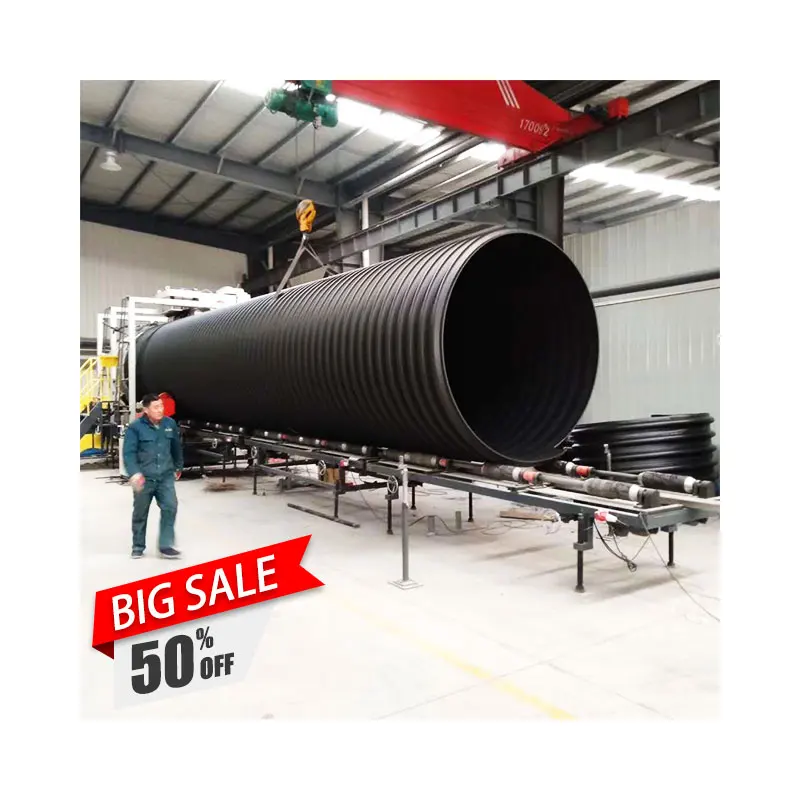

6 дюймов Hdpe на стальном браслете с проволокого einforced сетки скрученных спиралью спираль гофрированные канализационные трубы замотки стены полости большого диаметра
- Категория: Plastic Products >>>
- Поставщик: Henan Hesu Group Co. Ltd.Henan Ltd.
Сохранить в закладки 1600553753277:
Описание и отзывы
Характеристики
Welcome to HESU HOME
Professional HDPE pipe/ PVC pipe manufacture
we are sincerely recruit agents from all over the world.
large diameter 30inch hdpe steel belt composite corrugated pipe for drainage
Product Description
Model Number | DN50MM-DN1000MM |
Material | pe, steel wire and hot melt adhesive |
Characteristics | double-faced anticorrosion |
Structure | excellent and no easy to be burst |
Service life | over 70 years |
Mechanical properties | big strength and impact resistance |
Application | used for underground wastewater, electrical and optical cable protection, eeawater and rainwater transmission, and so on. |

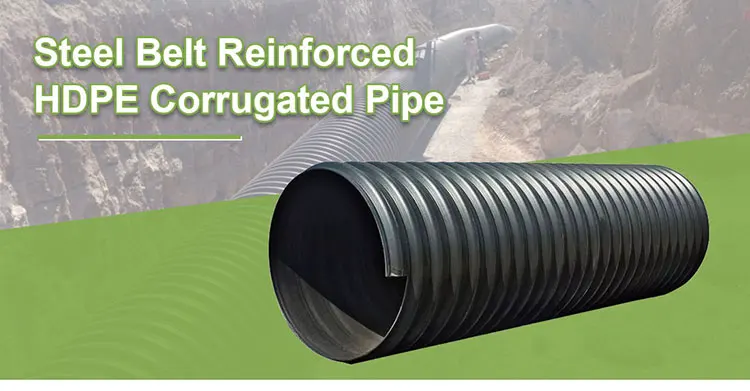

HDPE steel belt reinforced spiral bellows are made of HDPE as the matrix, and the steel belt coated with adhesive resin is formed into waveform as the main supporting structure, and the double wall spiral bellows are wound and compounded with polyethylene material as a whole.Steel belt reinforced polyethylene (PE) spiral corrugated pipe of high rigidity, high strength steel and plastic, such as corrosion resistance, wear resistance and flexibility is better, not only can make the pipe to SN8, SN12.5, SN16 three ring stiffness, and solve the problem of the corrosion of steel, makes up for the large diameter of the plastic underground drainpipe normally only reached the ring stiffness SN8 weakness.
Product Paramenters
DN MM | Internal Diameter MM | SN8 | SN10 | SN12.5 |
>=8KN/m2 | >=10KN/m2 | >=12.5KN/m2 | ||
External Diameter MM | External Diameter MM | External Diameter MM | ||
200 | 200 | 224 | 224 | |
300 | 300 | 325 | 325 | |
400 | 400 | 438 | 438 | |
500 | 500 | 539 | 539 | |
600 | 600 | 644 | 644 | 644 |
700 | 700 | 745 | 745 | 745 |
800 | 800 | 852 | 852 | 852 |
900 | 900 | 963 | 963 | 963 |
1000 | 1000 | 1063 | 1063 | 1063 |
1100 | 1100 | 1173 | 1173 | 1173 |
1200 | 1200 | 1273 | 1273 | 1273 |
1300 | 1300 | 1385 | 1385 | 1385 |
1400 | 1400 | 1485 | 1485 | 1485 |
1500 | 1500 | 1585 | 1585 | 1585 |
1600 | 1600 | 1693 | 1693 | 1693 |
1700 | 1700 | 1793 | 1793 | 1793 |
1800 | 1800 | 1893 | 1893 | 1903 |
2000 | 2000 | 2105 | 2105 | 2121 |
2200 | 2200 | 2307 | 2307 | 2323 |
2400 | 2400 | 2527 | 2527 | 2533 |
2500 | 2500 | 2629 | 2629 | 2635 |
2600 | 2600 | 2729 | 2729 | 2743 |
2700 | 2700 | 2848 | 2848 | 2858 |
2800 | 2800 | 2958 | 2958 | 2973 |

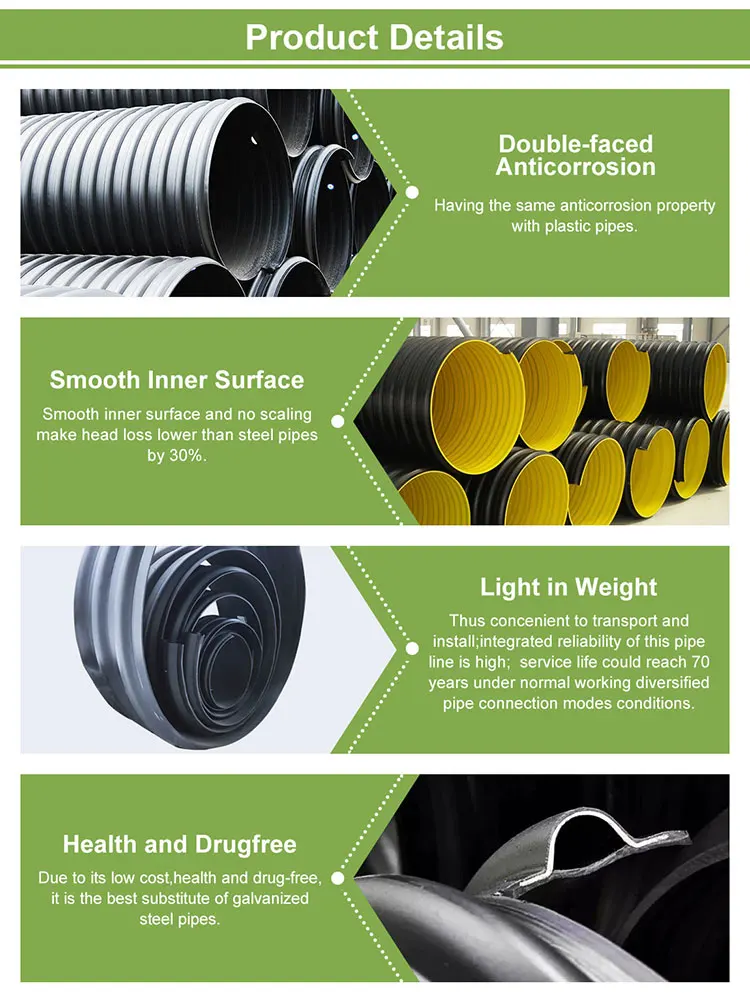

Details Images
Features:
1. The pipeline material with strong corrosion resistance is PE, which will not be corroded by acid, alkali and oil.
2. The pipeline with strong resistance to external forces has the shape of spiral structure and flexibility. When it is subjected to external impact, it has strong resilience.
3, strong aging resistance pipeline substrate characteristics at 20 degrees can be effectively used for more than 50 years, has a strong aging resistance.
4, strong cold resistance in the environment of minus 60 degrees, pipe will not be frozen broken water.
5. The light weight is only 1/8 of the concrete pipe of the same specification and 2/3 of the traditional wound plastic structural pipe, which is convenient for transportation and construction and does not require large construction equipment, thus reducing the installation cost.
6. Low construction cost, light weight, convenient connection, and low requirements for excavation projects. It can save project time and costs in urban drainage project construction.
7, easy to connect the connection of various ways, simple, reliable.The site can be easily constructed.
8, superior abrasion resistance pipeline friction coefficient low, small resistance, transmission medium, drainage, sewage speed.
9, good environmental performance Pe itself is non-toxic renewable material, environmental health.
10. High ring stiffness can reach SN12.5 and SN16
1. The pipeline material with strong corrosion resistance is PE, which will not be corroded by acid, alkali and oil.
2. The pipeline with strong resistance to external forces has the shape of spiral structure and flexibility. When it is subjected to external impact, it has strong resilience.
3, strong aging resistance pipeline substrate characteristics at 20 degrees can be effectively used for more than 50 years, has a strong aging resistance.
4, strong cold resistance in the environment of minus 60 degrees, pipe will not be frozen broken water.
5. The light weight is only 1/8 of the concrete pipe of the same specification and 2/3 of the traditional wound plastic structural pipe, which is convenient for transportation and construction and does not require large construction equipment, thus reducing the installation cost.
6. Low construction cost, light weight, convenient connection, and low requirements for excavation projects. It can save project time and costs in urban drainage project construction.
7, easy to connect the connection of various ways, simple, reliable.The site can be easily constructed.
8, superior abrasion resistance pipeline friction coefficient low, small resistance, transmission medium, drainage, sewage speed.
9, good environmental performance Pe itself is non-toxic renewable material, environmental health.
10. High ring stiffness can reach SN12.5 and SN16

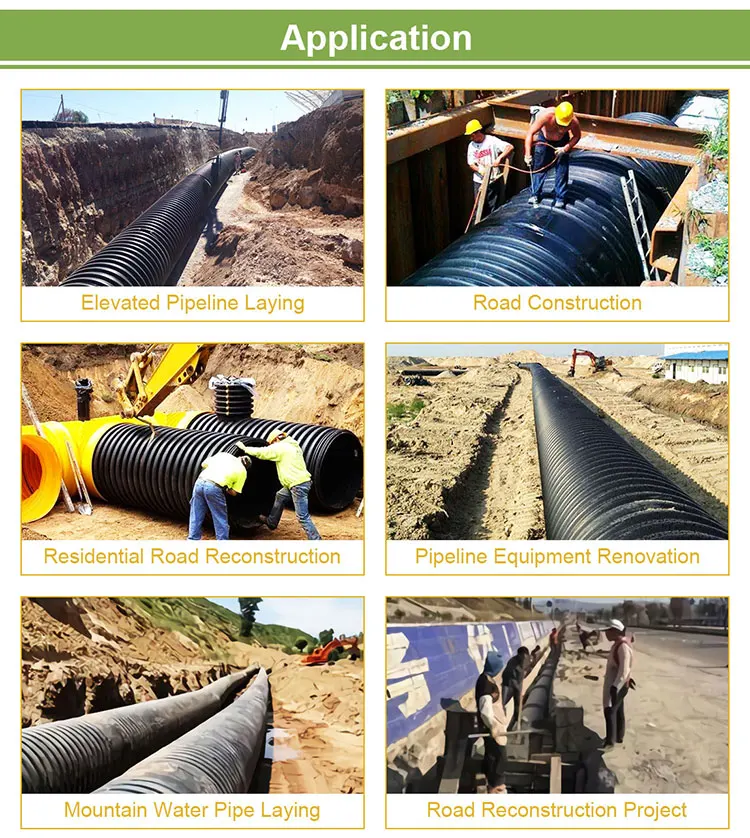

Application Field
1. Drainage and ventilation pipes of mines and buildings;
2. Municipal engineering, underground drainage and sewage pipes of residential areas;
3. Irrigation, water transmission and drainage;
4. Sewage treatment plant and waste disposal plant drainage pipes;
5. Chemical ventilation pipes and conveying pipes used for fluid in chemical industry and mine;
6. Overall machining of pipeline inspection Wells;
7. Embedded pipeline of expressway;
8. High voltage cable, post and telecommunication cable protection sleeve, etc
2. Municipal engineering, underground drainage and sewage pipes of residential areas;
3. Irrigation, water transmission and drainage;
4. Sewage treatment plant and waste disposal plant drainage pipes;
5. Chemical ventilation pipes and conveying pipes used for fluid in chemical industry and mine;
6. Overall machining of pipeline inspection Wells;
7. Embedded pipeline of expressway;
8. High voltage cable, post and telecommunication cable protection sleeve, etc
Accessories：

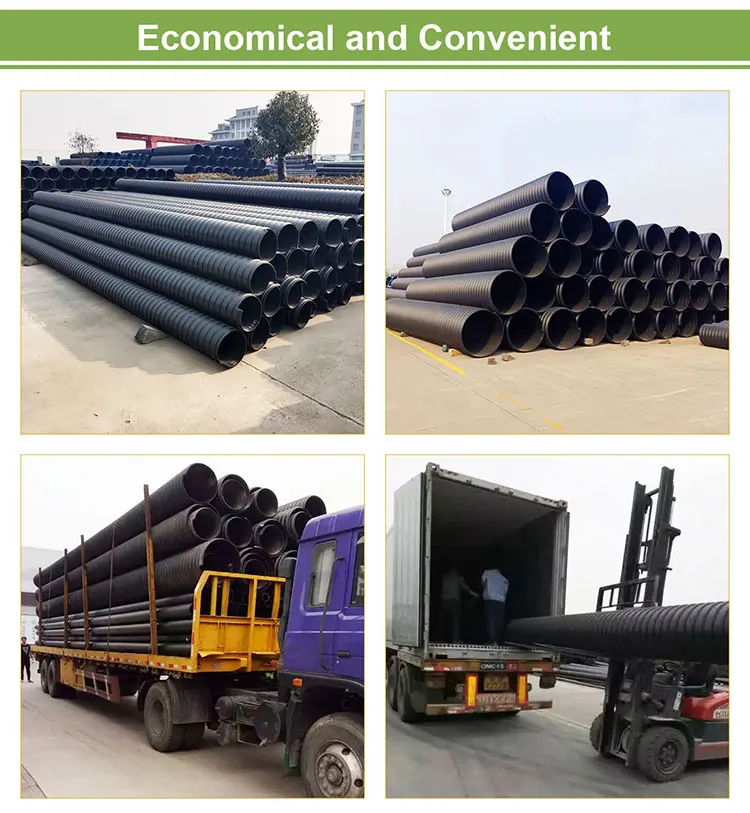

Packing & Delivery
Company Profile
CORE COMPETITVENESS：
Professional------60 sets of advanced HDPE pipe production lines and production capacity of more than 80,000 MT per year .Owing expeirnced producing and international marketing teams.
Quality-----Well-equipped laboratory and advanced test machines ensure each process from HDPE raw materials to finished HDPE pipe meet the international standards.
Service------Providing professional support and guanrantee in each stages of the sales of the HDPE pipe.
Professional------60 sets of advanced HDPE pipe production lines and production capacity of more than 80,000 MT per year .Owing expeirnced producing and international marketing teams.
Quality-----Well-equipped laboratory and advanced test machines ensure each process from HDPE raw materials to finished HDPE pipe meet the international standards.
Service------Providing professional support and guanrantee in each stages of the sales of the HDPE pipe.
FAQ
Q: what is your minimum order quantity?
A: It depends on your order (if different kinds of products have different minimum order quantity)
Q: Trading company or manufacturer?
A: Manufacturer.
Q: Can I get free samples?
A: Yes, but you need to pay for the transportation. If there's a follow-up Cooperation, sample fee can be deducted from the purchase price.
Q: Can we visit your company or factory?
A: Of course, and we are always looking forward to your visit.
Q: How do you guarantee your product?
A: We use 100% new materials and every product will be tested by raftsmen.
Q: What is your delivery time?
A: According to the quantity requirements, generally within 10 days.
Q: What trade incoterms are acceptable for you ?
A: FOB, EXW, etc.
Q: What kind of pipes do you specialize in?
A: We mainly produce HDPE pipe, PVC pipe, PPR pipe, MPP pipe, hot-dip galvanized steel pipe series, plastic
coated steel pipe, plastic lined steel pipe and valve series.
coated steel pipe, plastic lined steel pipe and valve series.
If You Are Interested In Our Products, Please Contact Us, Thank You！
