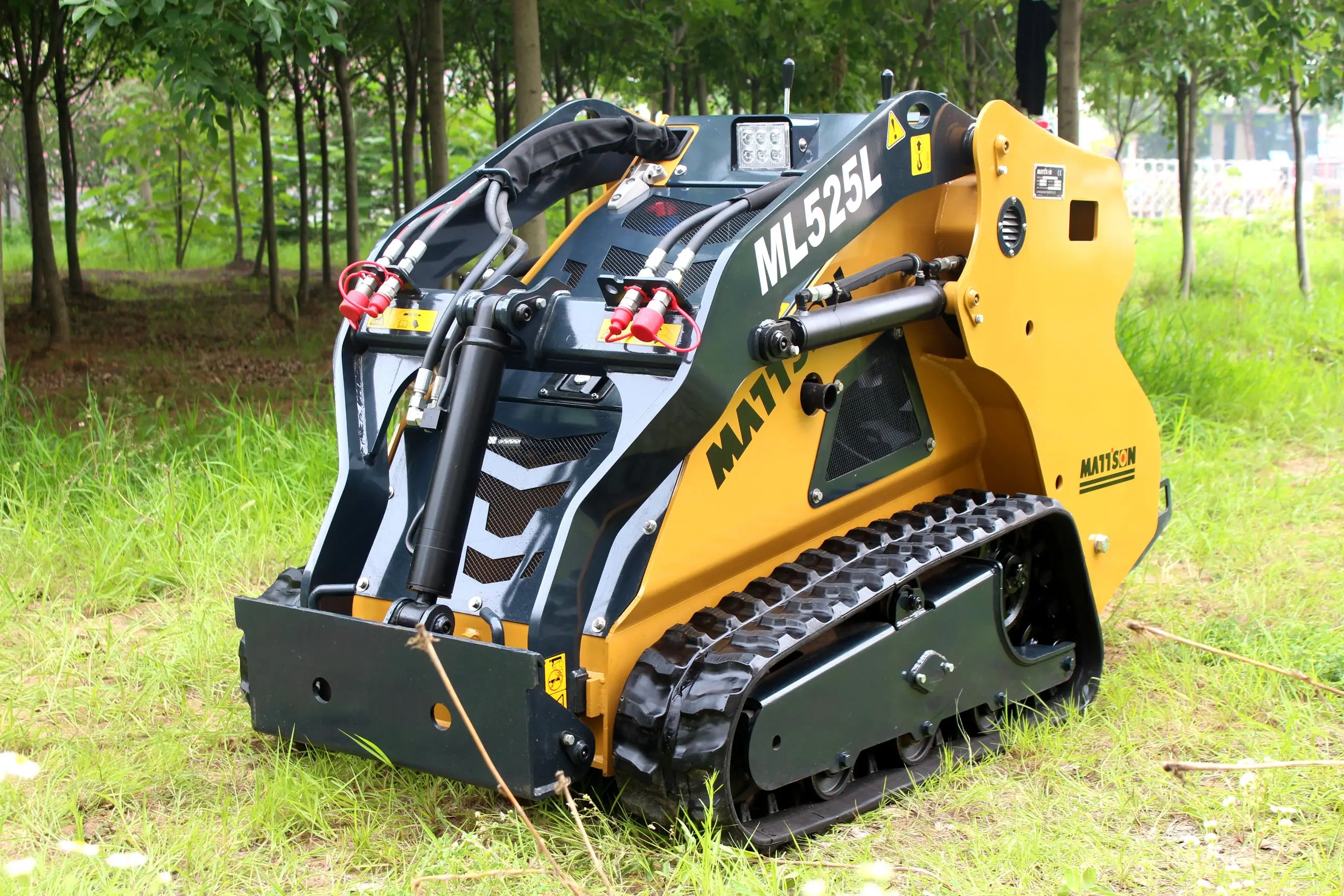

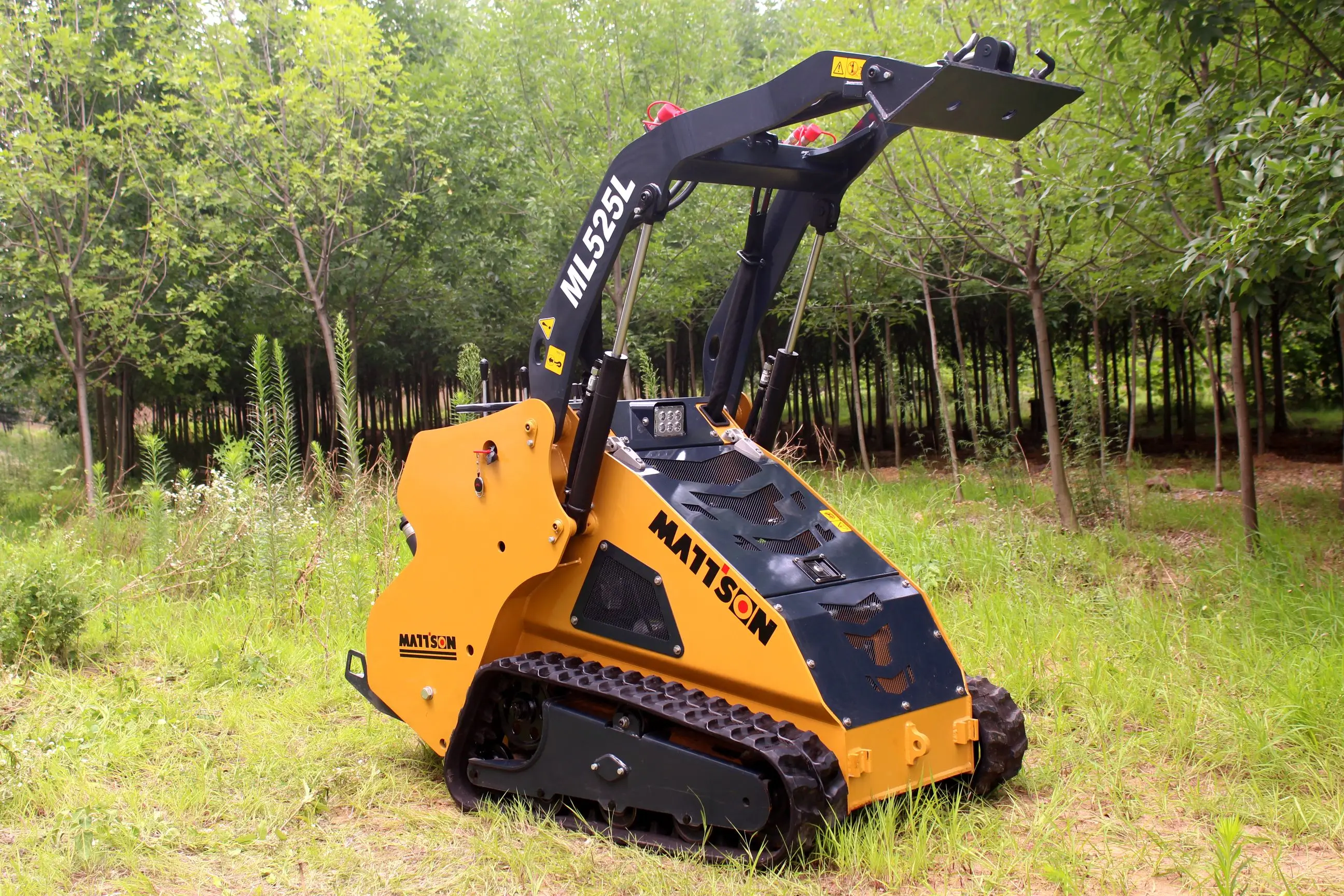

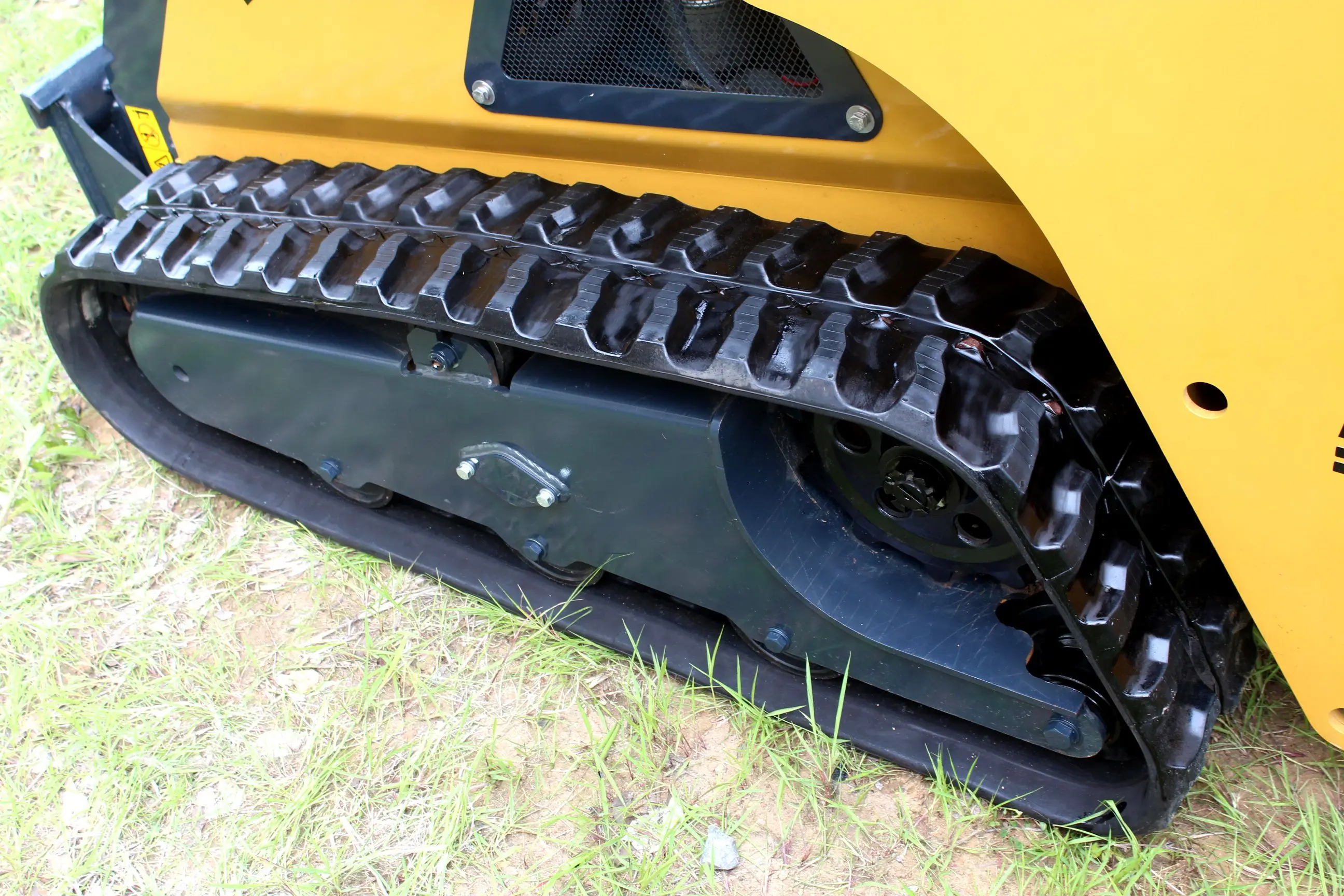

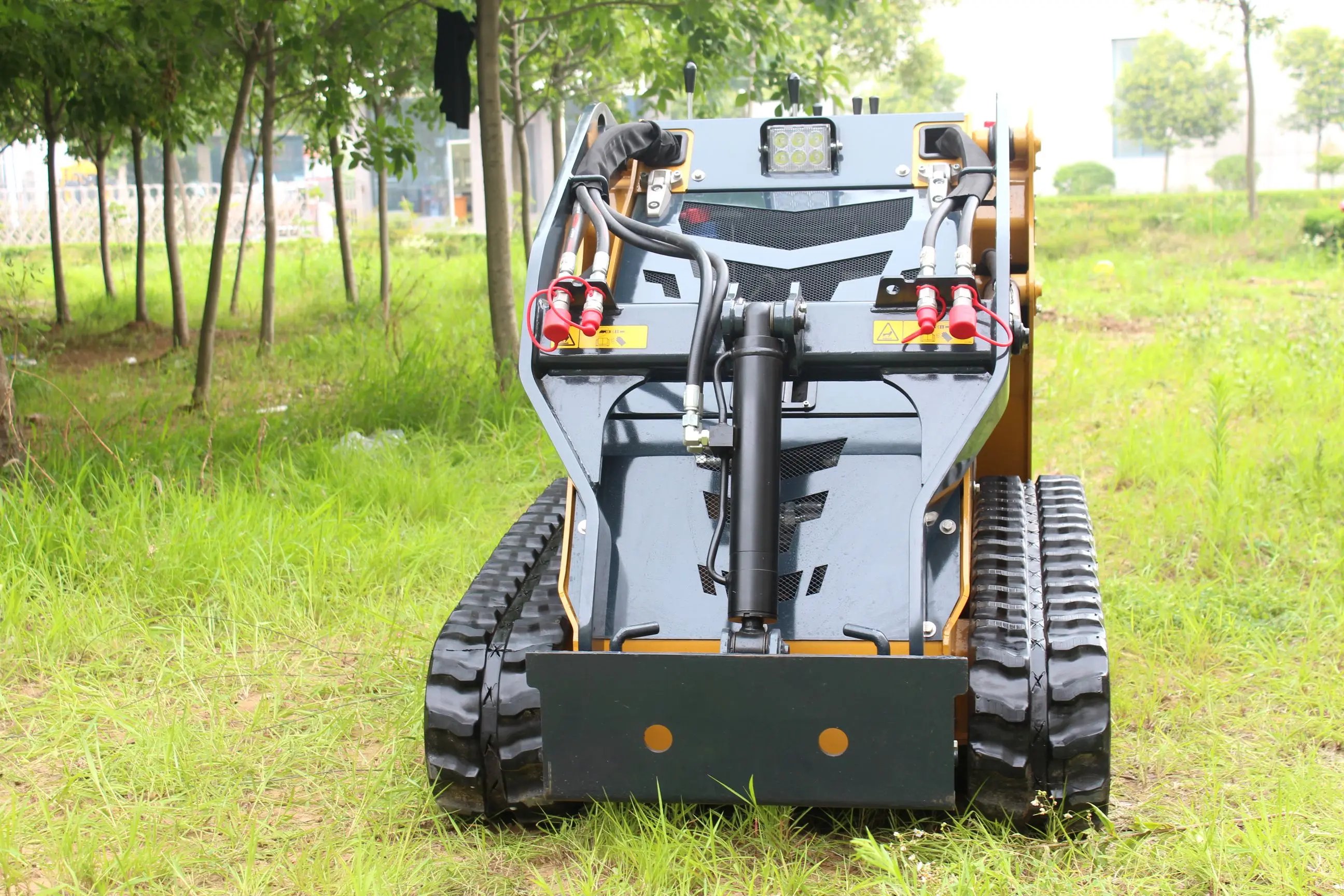

Официальный 3 T новый компактный ковшовый погрузчик трактор фронтальный
30 000,00 $ - 35 500,00 $
Лидер продаж мини погрузчик с бортовым поворотом сделано в Китае для Европы
- Категория: Loaders >>>
- Поставщик: Linyi Yunfan Comprehensive Agricultural Development Co. Ltd.
Сохранить в закладки 1600565610549:
Описание и отзывы
Характеристики
Product Description
Size Information
PERFORMANCE
Operating Capacity (30%)--291 kg
Operating Capacity (50%)--416kg
Tipping Capacity--832kg
Weight(no attachment)--1069kg
TravelSpeed--5.6 km/h
Operating Capacity (50%)--416kg
Tipping Capacity--832kg
Weight(no attachment)--1069kg
TravelSpeed--5.6 km/h
ENGINE/ELECTRICAL
Make/Model ................................... Kubota // D1105-EF02
Fuel/Cooling ................................... Diesel/Liquid
Horsepower(SAEGross) ............... 18.2kW
Maximum Governed RPM .............. 3000RPM
Torque @ 2200 RPM(SAENet) ..... 71.5Nm
Numberof Cylinders ........................ 3
Displacement ................................. 1.1L
Bore/Stroke .................................... 78mm/78.4 mm
Fuel Consumption .......................... 6.1 L/h
Lubrication ..................................... GearPumpPressure
CrankcaseVentilation .................... Closed
AirCleaner ..................................... Dry replaceable cartridge with safety element
Ignition ........................................... Diesel-Compression
Engine Coolant............................... Propylene glycol/water mix (53%-47%)
with freeze protection to -37°C
StartingAid .................................... Glow plugs
Alternator ....................................... Belt Driven; 40amps; Open
Battery ........................................... 12 V；45Ah
Starter ............................................ 12 volt；Gear Reduction Type；1.4 kW
Fuel/Cooling ................................... Diesel/Liquid
Horsepower(SAEGross) ............... 18.2kW
Maximum Governed RPM .............. 3000RPM
Torque @ 2200 RPM(SAENet) ..... 71.5Nm
Numberof Cylinders ........................ 3
Displacement ................................. 1.1L
Bore/Stroke .................................... 78mm/78.4 mm
Fuel Consumption .......................... 6.1 L/h
Lubrication ..................................... GearPumpPressure
CrankcaseVentilation .................... Closed
AirCleaner ..................................... Dry replaceable cartridge with safety element
Ignition ........................................... Diesel-Compression
Engine Coolant............................... Propylene glycol/water mix (53%-47%)
with freeze protection to -37°C
StartingAid .................................... Glow plugs
Alternator ....................................... Belt Driven; 40amps; Open
Battery ........................................... 12 V；45Ah
Starter ............................................ 12 volt；Gear Reduction Type；1.4 kW
HYDRAULIC SYSTEM
PumpType............................................... Engine driven, TwoGear type
PumpCapacity ........................................ 53.4L/min@ 3000 RPM
System Relief @ Quick Couplers ............. 210Bar
Hydraulic Filter ......................................... Fullflow replaceable, 10micron synthetic media element
HydraulicCylinders .................................. Double-acting
Main ControlValve ................................... 5-Spool,open center seriesparallel configuration
Attachment Control Valve…………………. 2-Spool,open center series parallel configuration
PumpCapacity ........................................ 53.4L/min@ 3000 RPM
System Relief @ Quick Couplers ............. 210Bar
Hydraulic Filter ......................................... Fullflow replaceable, 10micron synthetic media element
HydraulicCylinders .................................. Double-acting
Main ControlValve ................................... 5-Spool,open center seriesparallel configuration
Attachment Control Valve…………………. 2-Spool,open center series parallel configuration
Best Selling
Company Introduction
LINYI YUNFAN COMPREHENSIVE AGRICULTURAL DEVELOPMENT CO.,LTD was established in year 2014. We specialized agricultural related items such as farm tractors, plough, cultivator,combined harvester and other handmade items made from farmers. our products are sold both domestic and abroad.
FAQ
Q1. What are your terms of packing?
A: Generally, we pack our goods in the wood frame into 2 levels to maximize space
Q2. How do you ensure your quality?
We have 2 QC managers whom work on this field more than 15 years, they can test the tractors parts by parts, our working attitude
is carefully, strictly and seriously ;
Q3. What are your terms of payment?
A: T/T 100% as the deposit for 1-2 unit and 50/50 for the wholesale. We'll show you the photos of the products and packages before
you pay the balance.
Q4. What are your terms of delivery?
A: FOB, CIF, CNF
Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your advance payment. The specific delivery time depends on the items and the
quantity of your order.
Q6: How do you make our business long-term and a good relationship?
1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with each other.
A: Generally, we pack our goods in the wood frame into 2 levels to maximize space
Q2. How do you ensure your quality?
We have 2 QC managers whom work on this field more than 15 years, they can test the tractors parts by parts, our working attitude
is carefully, strictly and seriously ;
Q3. What are your terms of payment?
A: T/T 100% as the deposit for 1-2 unit and 50/50 for the wholesale. We'll show you the photos of the products and packages before
you pay the balance.
Q4. What are your terms of delivery?
A: FOB, CIF, CNF
Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your advance payment. The specific delivery time depends on the items and the
quantity of your order.
Q6: How do you make our business long-term and a good relationship?
1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with each other.
Похожие товары

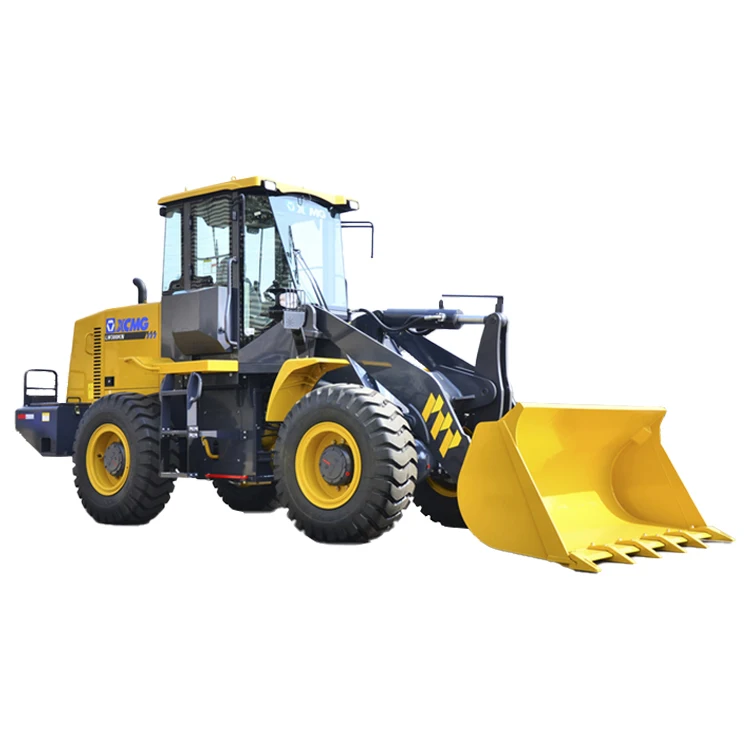

SHANTUI 3-тонный колесный погрузчик L36-B5 погрузчик
21 000,00 $ - 23 000,00 $
Недорогой подвальный мини-погрузчик 1380 кг, поставщик Халк
6 250,00 $ - 6 670,00 $

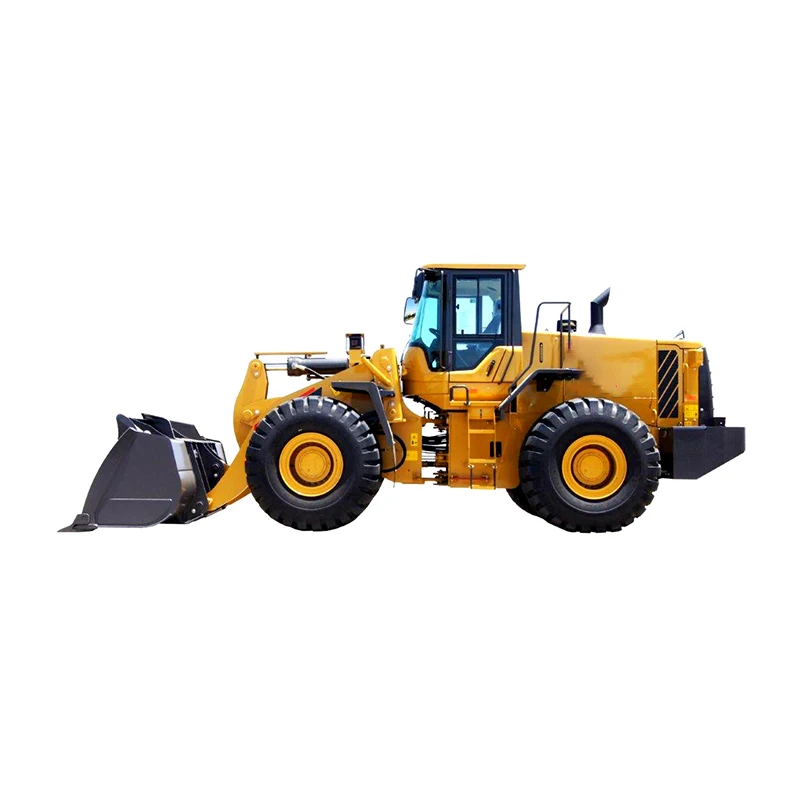

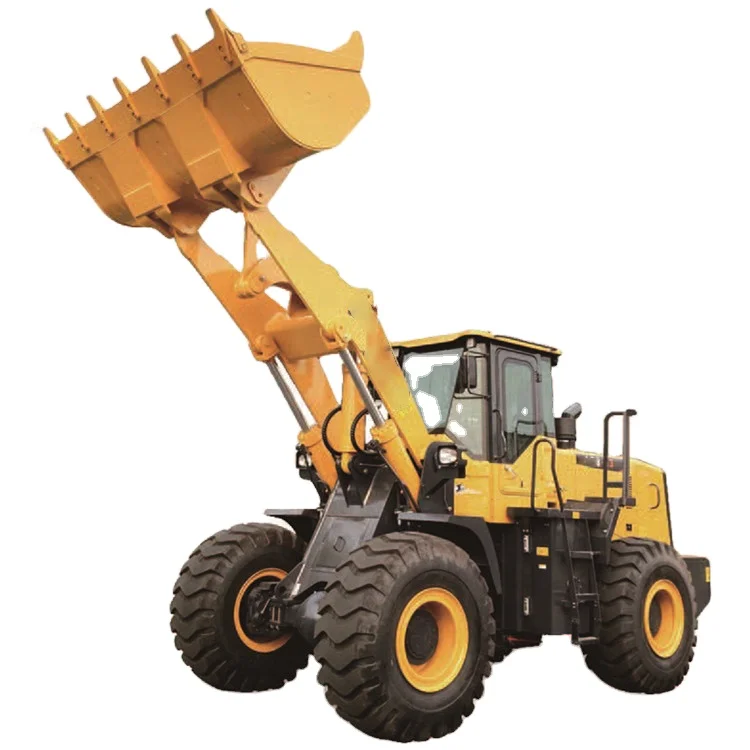

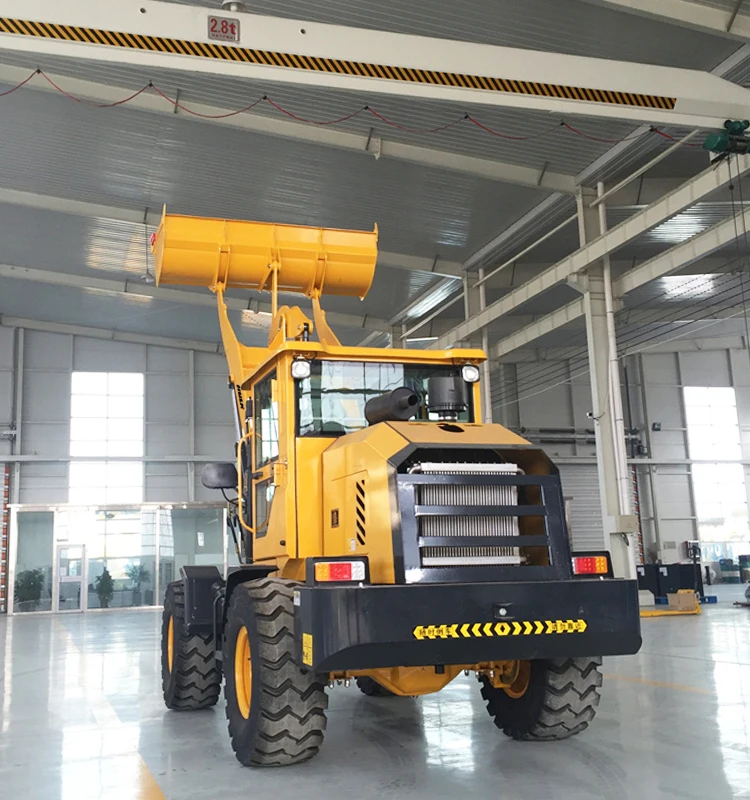

Лидер продаж, китайская новая модель FL955H, 5-тонный колесный погрузчик с дешевой ценой для продажи в Алгерии
37 500,00 $ - 38 200,00 $

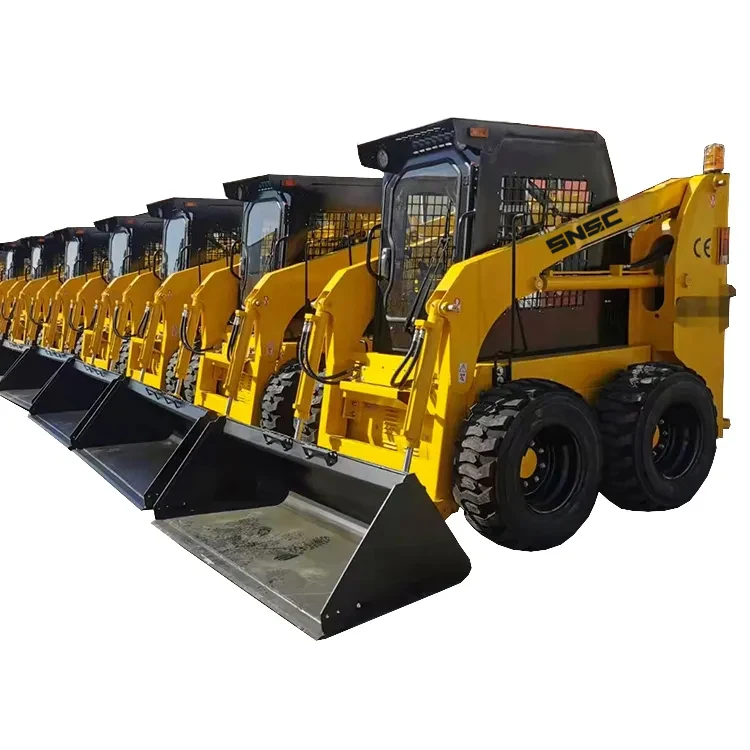

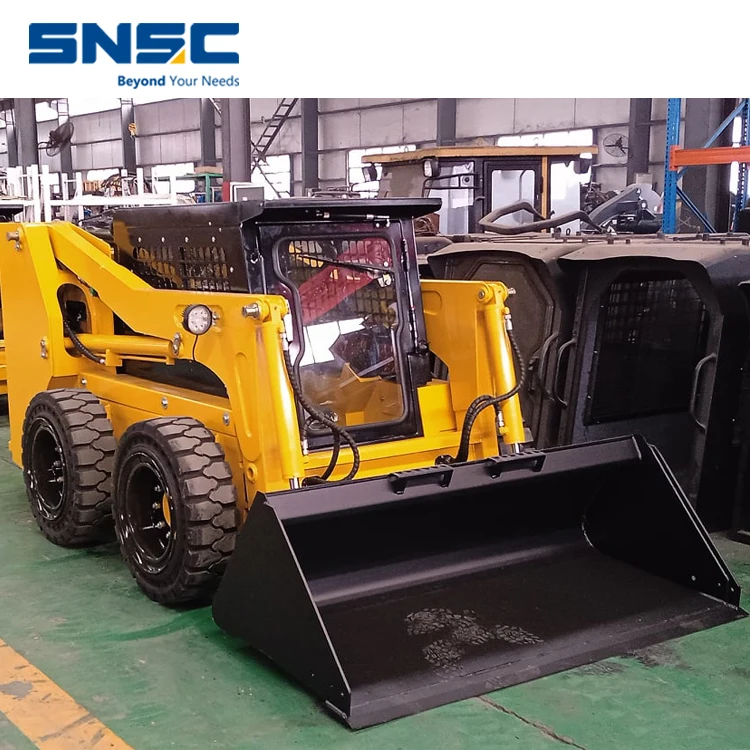

SNSC EPA подписанный 350 кг 500 мини-погрузчик с дизельным двигателем для
