JIHPUMP dc 3 в 5 6 12 В микро насос для переноса жидкости небольшой лабораторный перистальтический насос с низким потоком медицинское дозирование oem
- Категория: >>>
- Поставщик: Chongqing Jieheng Peristaltic Pumps Co. Ltd.
Сохранить в закладки 1600565658064:
Описание и отзывы
Характеристики
Hot Sale Products
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
1.China leading manufacturer of peristaltic pumps.
2.Focus on peristaltic pump solutions.
3.Peristaltic pump expert, 16+ years experience.
4.More than 10,000 cooperative customers.
2.Focus on peristaltic pump solutions.
3.Peristaltic pump expert, 16+ years experience.
4.More than 10,000 cooperative customers.
Lilian He(Europe , North and South America) : | April Huang(Asia and Africa) : |
WhatsApp:+8618983834629 | WhatsApp:+8615703016080 |
Skype：+8618983834629 | Skype：jihpump |
Email：alan@jihpump.com | Email：april@jihpump.com |
Product Discription

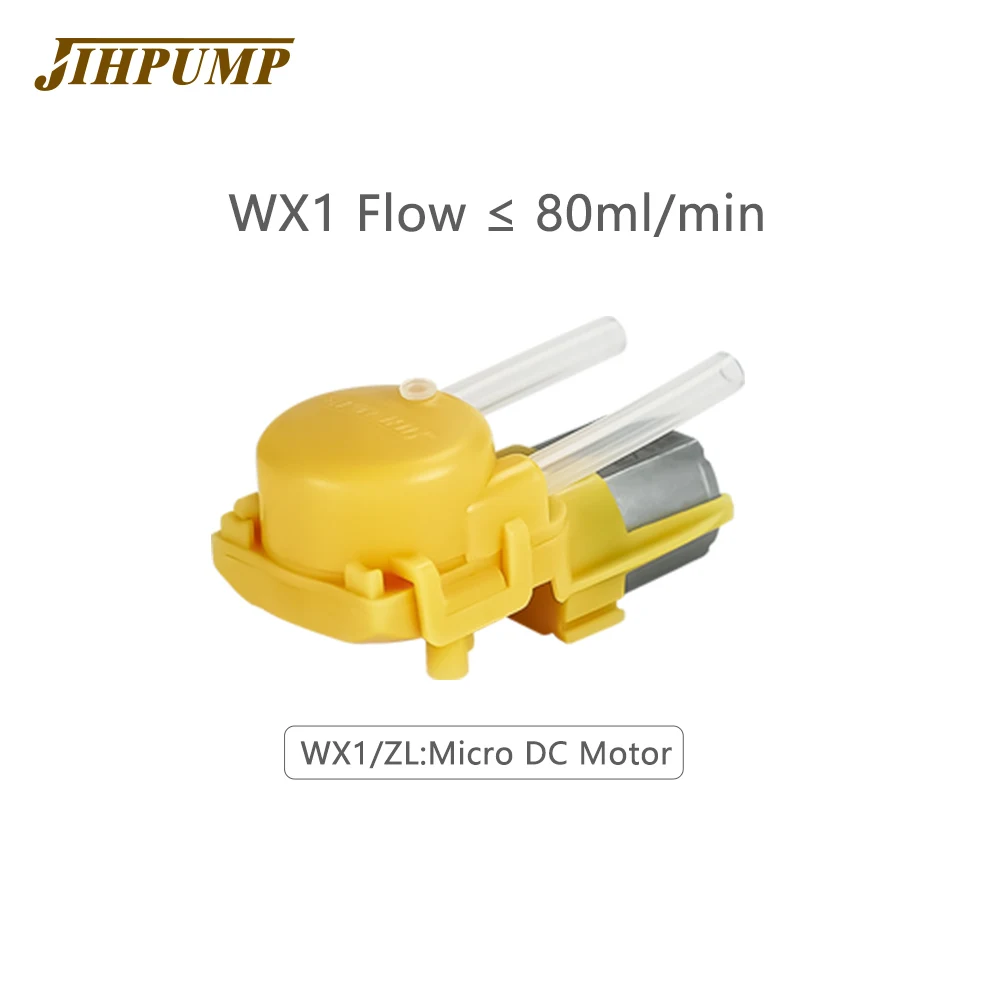

WX1 Peristaltic Pump Features | ||||||
Miniature and compact | Width only 32mm | 3 roller low pulse | The outlet pipe can be reversed | |||
DC motor drive | Precise metering and conveying | Numerous application experience | Mature solution | |||
Product Parameters | ||
Product number | WX1 | |
Motor type | Micro DC Motor | |
using electric | DC 3～6V，1A / 6～12V，1A | |
Use power | ≤4W , ≤6W | |
Motor life | More than 150h | |
weight | 41g | |
Outlet pressure | ≤0.1MPa | |
main material | Pump Cover: Polyacetal; Wheel Frame: Polyacetal; Roller: Polyamide | |
Reference flow： Unit(ml/min） | ||||||
Hose type | Silicone tube (ID*OD*WALL unit: mm) | BPT Tube | ||||
Tube number Motor speed | 3*5*1mm | 4*6*1mm | 3*5*1mm | |||
3~6V 116rpm | 13～26ml/min | 18～45ml/min | 12～23ml/min | |||
6~12V 116rpm | 11～28ml/min | 20～50ml/min | 10.5～28ml/min | |||
6~12V 200rpm | 25～50ml/min | 38～80ml/min | 20～46ml/min | |||

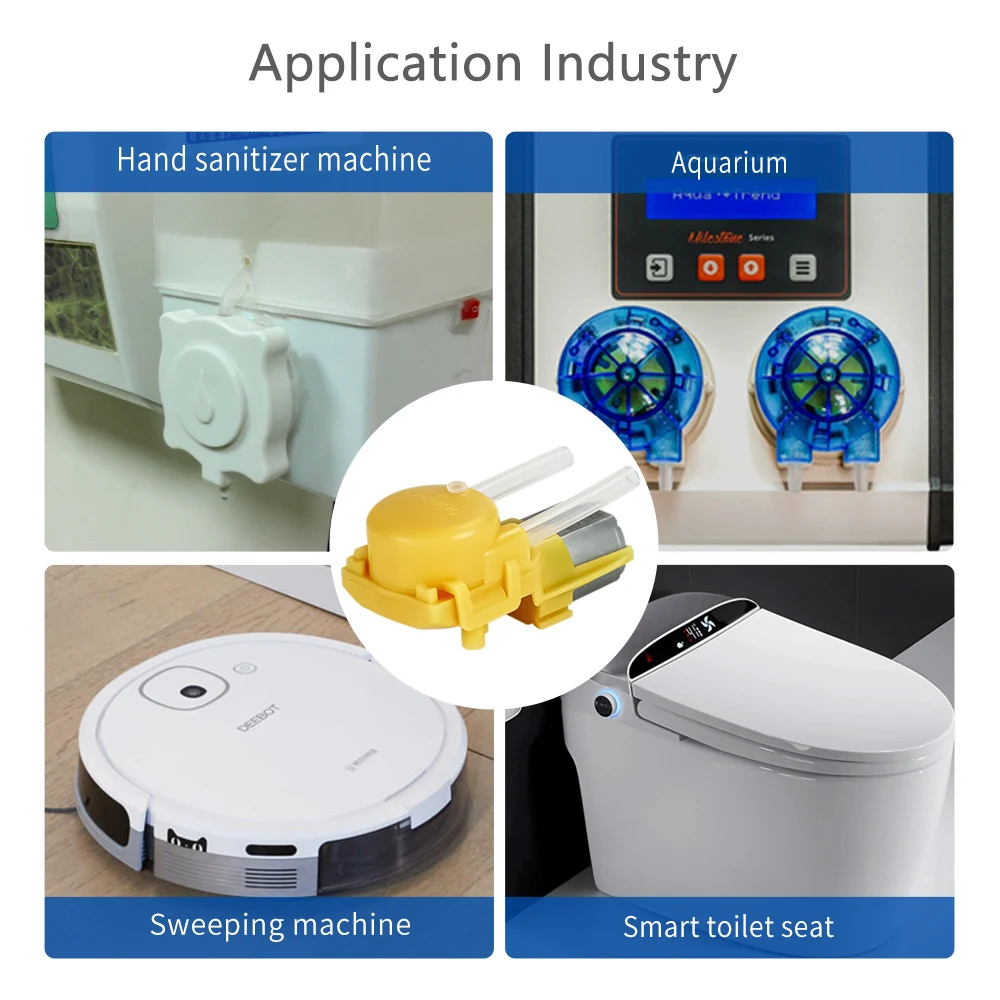

Common Applications: Hand sanitizer machine , Aquarium , Sweeping robot, robot cleaner , Smart toilet seat , Automatic laundry detergent dispenser , Seasoning distributor of frying machine etc.
Applications Industry: washing cleaning industry, Food and Drink industry，Analytical Instruments, Analytical Instruments, Inkjet Ink, Printing industry， Food and Drink industry, Experimental Research, Pharmaceutical Machinery, Industrial Machinery，Smart Home Appliances etc.

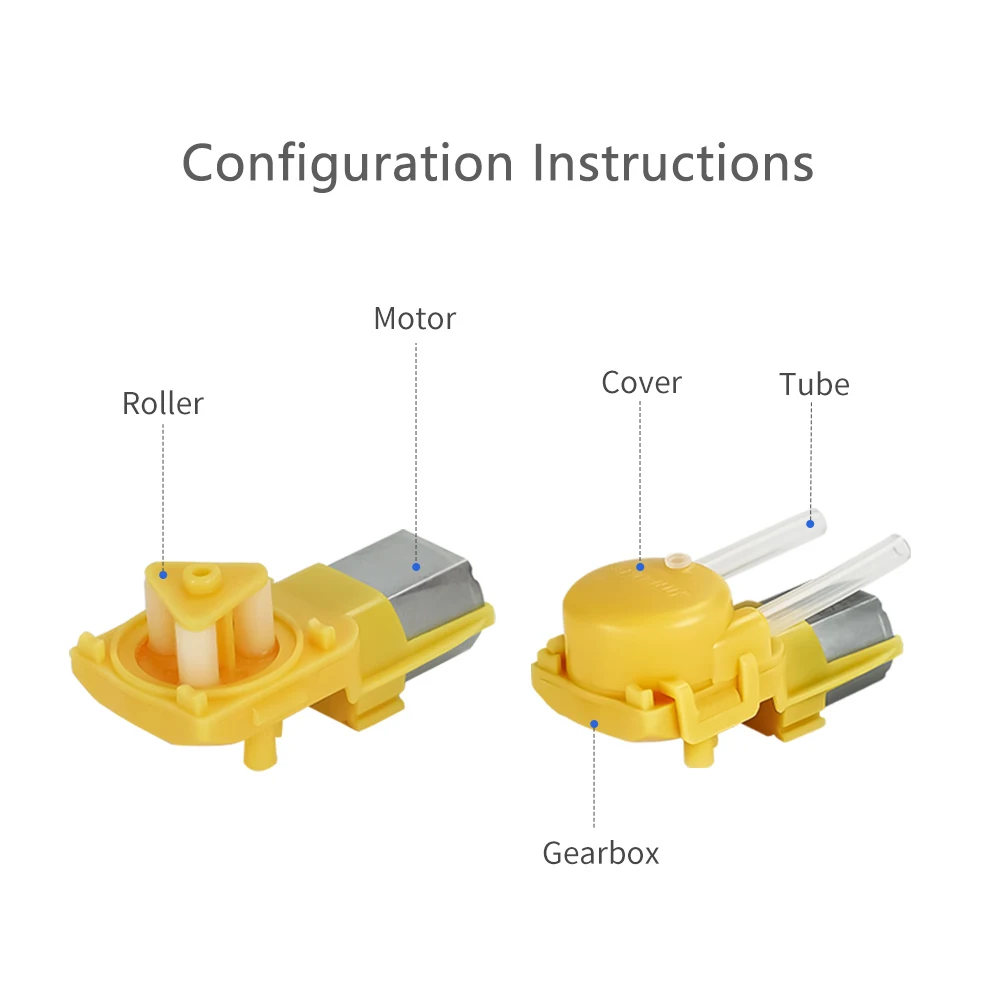

①Pump cover : Tool-free installation, optional in both positive and negative directions | ②Pump tube: 3 types of hoses available | |
③Roller : 3 roller, conveying smooth pulse low | ④Gearbox: Precision gear reduction, smooth operation | |
⑤Motor : Driven by DC motor | ||
Pump head direction
The direction of the hose inlet and outlet can be adjusted according to the customer's application (can be rotated 180°) micro small mini peristaltic pump .
Number of rollers
3 rollers structure, smooth conveying, low pulse for the mini micro small peristaltic pump .

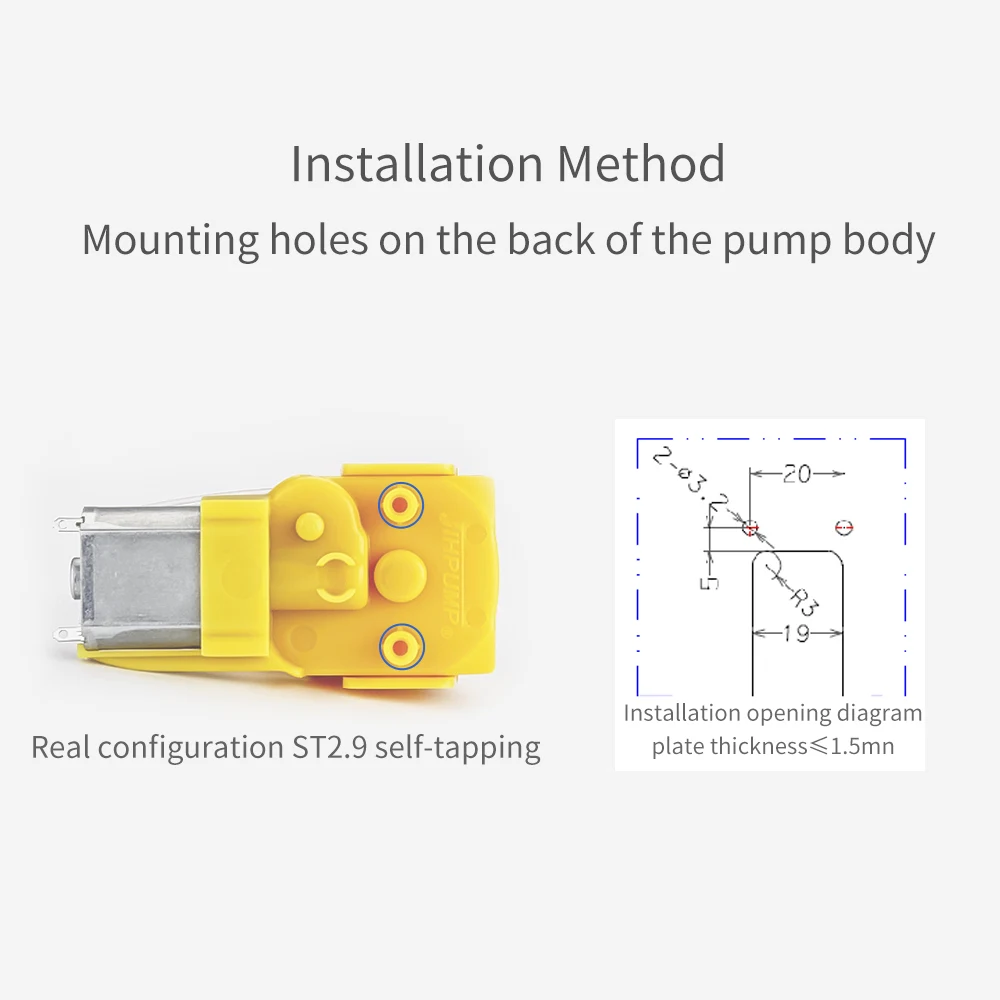

Installation method
Mounting holes on the back of the mini micro small peristaltic pump body.
Compact structure design
With a width of only 31.6 mm, it takes up very little space.
Precision gear
Precision gear reduction, stable operation for the mini micro small peristaltic pump .
Certifications
CE,ISO,SGS Other various patterns and certifications
Certificate Details View, Click On "Company profile "in the company profile of shop home page or let me know, we'll send details to you.
Company Profile
Chongqing Jieheng Peristaltic Pump Co., Ltd. is a leading peristaltic pump manufacturer in China and an expert in peristaltic pump fluid technology solutions. Specializing in the R&D, manufacturing and sales of peristaltic pumps, focusing on providing peristaltic pump solutions for OEM customers, with more than 16 years of application experience, more than 1 million pumps have been sold, jihpump has 60+ rich and mature product series, which can meet the needs of various Various industry application needs, and can provide customized development services, we are always ready to find a suitable solution for your needs, please contact us, thank you!
Packaging&Shipping
JIHPUMP Standard export packing for peristaltic pump
A: Small quantities of goods shall be packed in cartons.
B: For mass delivery, the cartons are stacked into stacks and then wrapped with pvc plastic for loading.
B: For mass delivery, the cartons are stacked into stacks and then wrapped with pvc plastic for loading.
FAQ
1.What's your required liquid flow rate(ml/min) for the peristaltic pump?
After we know your liquid flow rate , we recommend the right peristaltic pump according to the flow rate.
-------------------------------------------------------------------------------------------------------------------------------------------
2.What liquid may be moved by the peristaltic pump?
Different liquids have different viscosities. Some pumps can deliver low viscosity and some pumps can deliver high viscosity . Especially viscous liquids cannot be delivered by peristaltic pumps.
-------------------------------------------------------------------------------------------------------------------------------------------
3.Do you prefer to adjust the flow rate ? or fixed flow rate?
Peristaltic pump flow is adjustable or fixed according to your actual situation to choose, please tell our sales manager.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
4.Can you please let us know the 3V, 6V, 12V, 24V or 220V peristaltic pump that you need?
Peristaltic pumps run on electricity, so tell us what voltage you need to run on and we can help you choose the right pump.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
5.Do you mount the peristaltic pump on any equipment or not?
We need to know whether the peristaltic pump you use is installed on the equipment or can be used directly by plugging in the power supply. The types of pumps used in the two cases are different.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
