Металлическая цветная сталь IBR трапециевидный лист кровельного профиля холодная кровля формовочная машина цены
9 500,00-10 500,00 $
Строительный материал металл гипсокартон стальная рама легкий Киль канал холодный профилирующий Станок
- Категория: >>>
- Поставщик: Jinan Steelmama International Trade Co. Ltd.Jinan Ltd.
Сохранить в закладки 1600567472798:
Описание и отзывы
Характеристики
Building Material Metal Drywall Steel Frame Light Keel Furring Channel Cold Roll Forming Machine![C stud machine.jpg]()

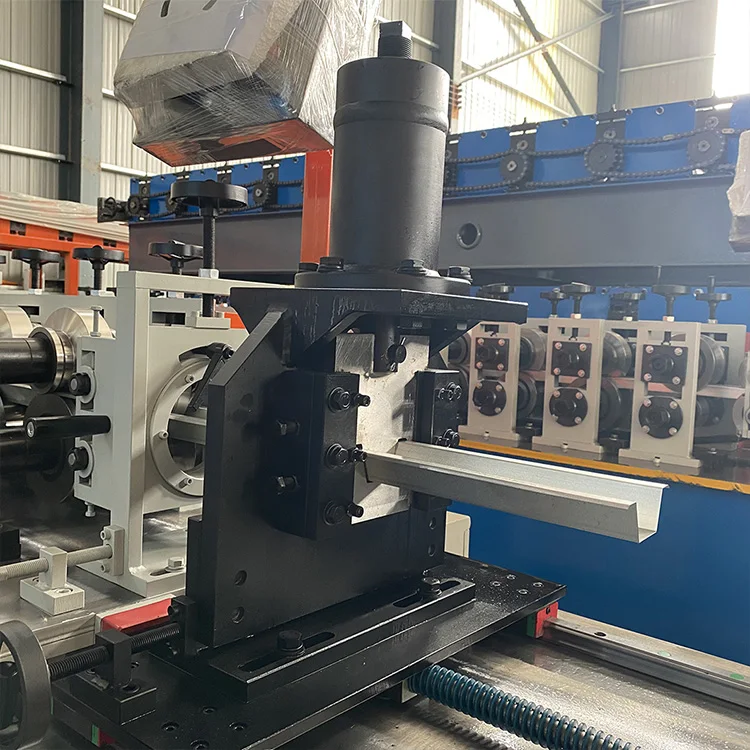

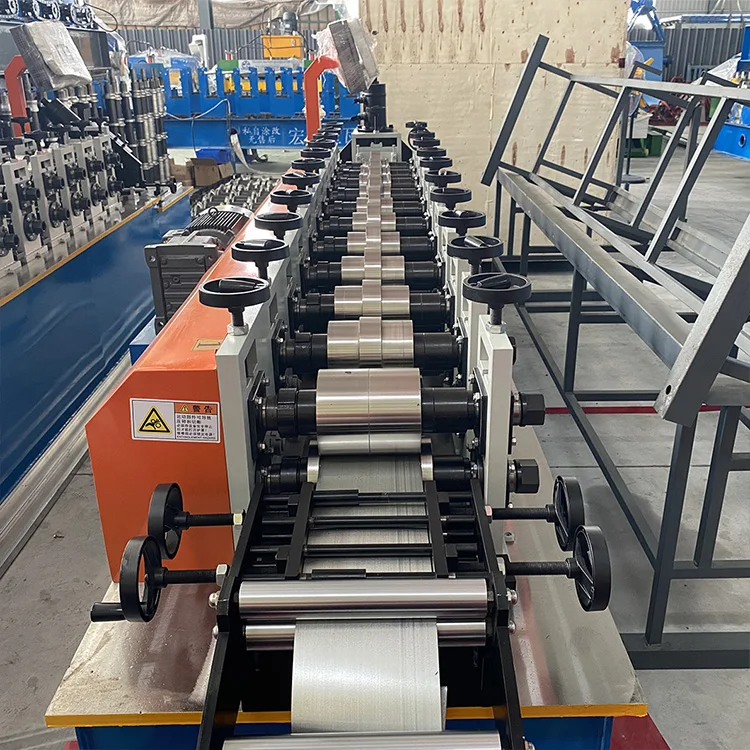

Product Display
Furring Channel Steel Roll Forming Machine:
Machine Flow Chart
Main workflow of Furring Channel Steel Making Machine:
Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system ----- Step Formed Mechanism -----Automatic Shearing Mechanism ----- Products Receiving Tables
Roll Forming Machine Components:
No. | Name | Qty |

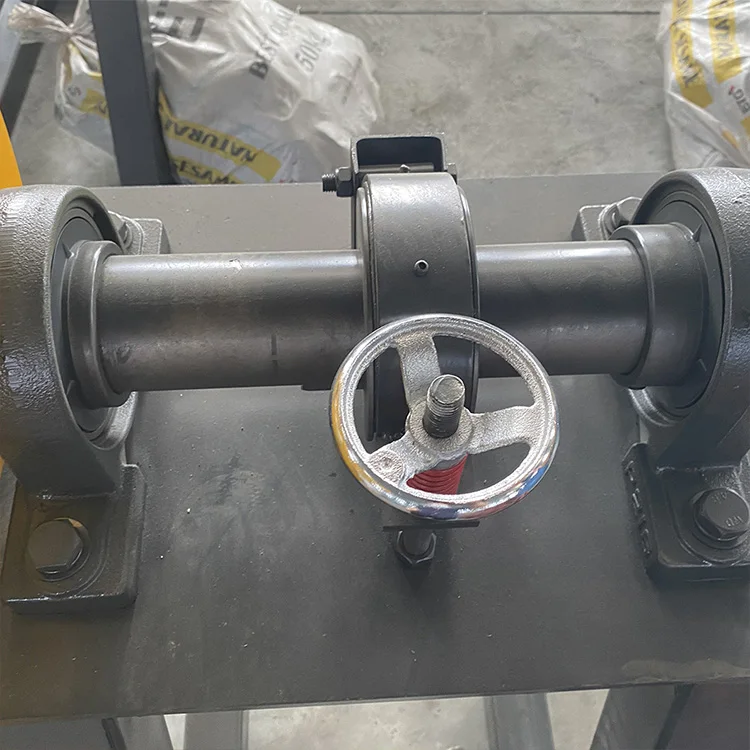

1 | De-coiler | 1 Set |
2 | Feeding Device With Pre-sliding Cutter | 1 Set |
3 | Roll Forming Machine | 1 Set |
4 | Cut-off Device | 1 Set |
5 | PLC Control Box | 1 Set |
6 | Hydraulic Pump Station | 1 Set |
6 | Production Support Table | 1 Set |
Product Description
| Building Material Metal Drywall Steel Frame Light Keel Furring Channel Cold Roll Forming Machine | |
Material thickness | 0.3-0.8mm |
Diameter of shaft(solid shaft) | 70mm |
Material of shaft (solid shaft) | (high grade) 45# Steel, quenching and tempering treatment |
Material of roller | 45# steel polished and coated with chrome HRC55-60° |
Reducer | 8# cycloid reducer (high grade) |
Cutting | hydraulic cutting after roll forming |
Control system | PLC Frequency Control System with touch screen |
Drawing and Machine
Exhibition
About us
Our roll forming machine sell to lots of countries in the world, like Indonesia,Pakistan,Iraq,Argentina,Algeria,Dominica,Ghana,Tanzania,Turkmenistan,Russla,Nigeria,Cameroon,Mexico,Azerbaijan,Saudi Arabia,Poland, Bolivia,Zimbabwe, Russia, Kyrgyzstan, Azerbaijan, Ukraine, Poland, Italy, Guiena,South Africa, Tanzania, Ethopia, America, Bolivia, Chile, Guyana etc.
STEELMAMA was founded in 2009. Since its inception, STEELMAMA has always uphold the "createa first-class enterprise, first-class talents, first class contribution" vision, to create a well-known "STEELMAMA" brand.
STEELMAMA's main business is to "project" as the theme of "CHINA STEEL AGENT SERVICE", leading products for steel profile machinery include roll forming machine, press brake bending machine and other steel processing machinery, and steel coil include PPGl coil, GI coil, Aluminium coil, Alu-zinc coil and steel strips and plates, also steel building material like metal roofing sheet, purlin sections, H steel,welding mill tube and some hardwares to be global brand.
FAQ
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
