TBS DVB S2X IP Шлюз сервер 4 частоты спутниковое телевидение Потоковое вещание в UDP RTP HTTP RTMP

TBS DVB S2X IP Шлюз сервер 4 частоты спутниковое телевидение Потоковое вещание в UDP RTP HTTP RTMP

Категория: >>>
Поставщик: Shenzhen TBS Technologies Ltd.

Цена:510,00 $ - 598,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

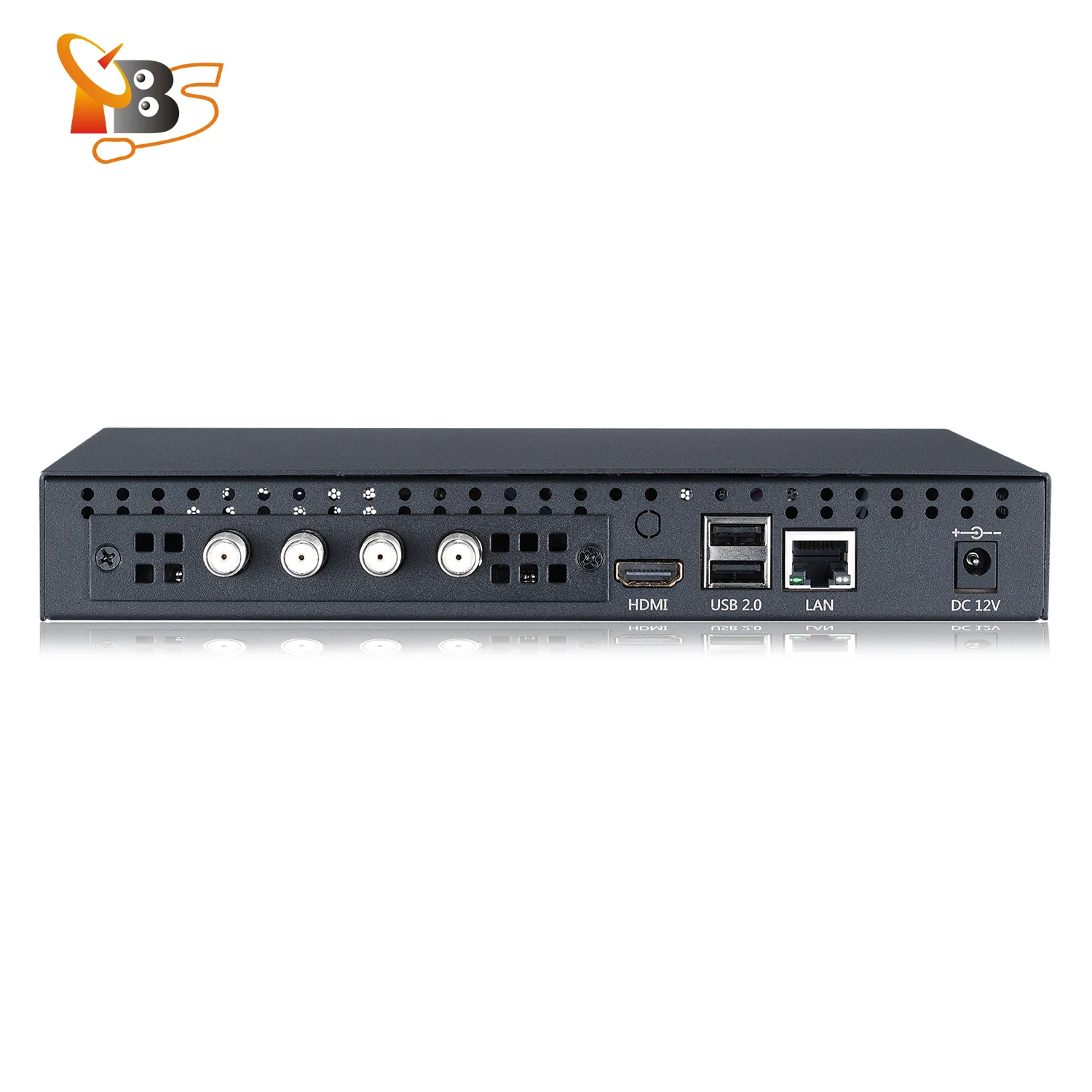

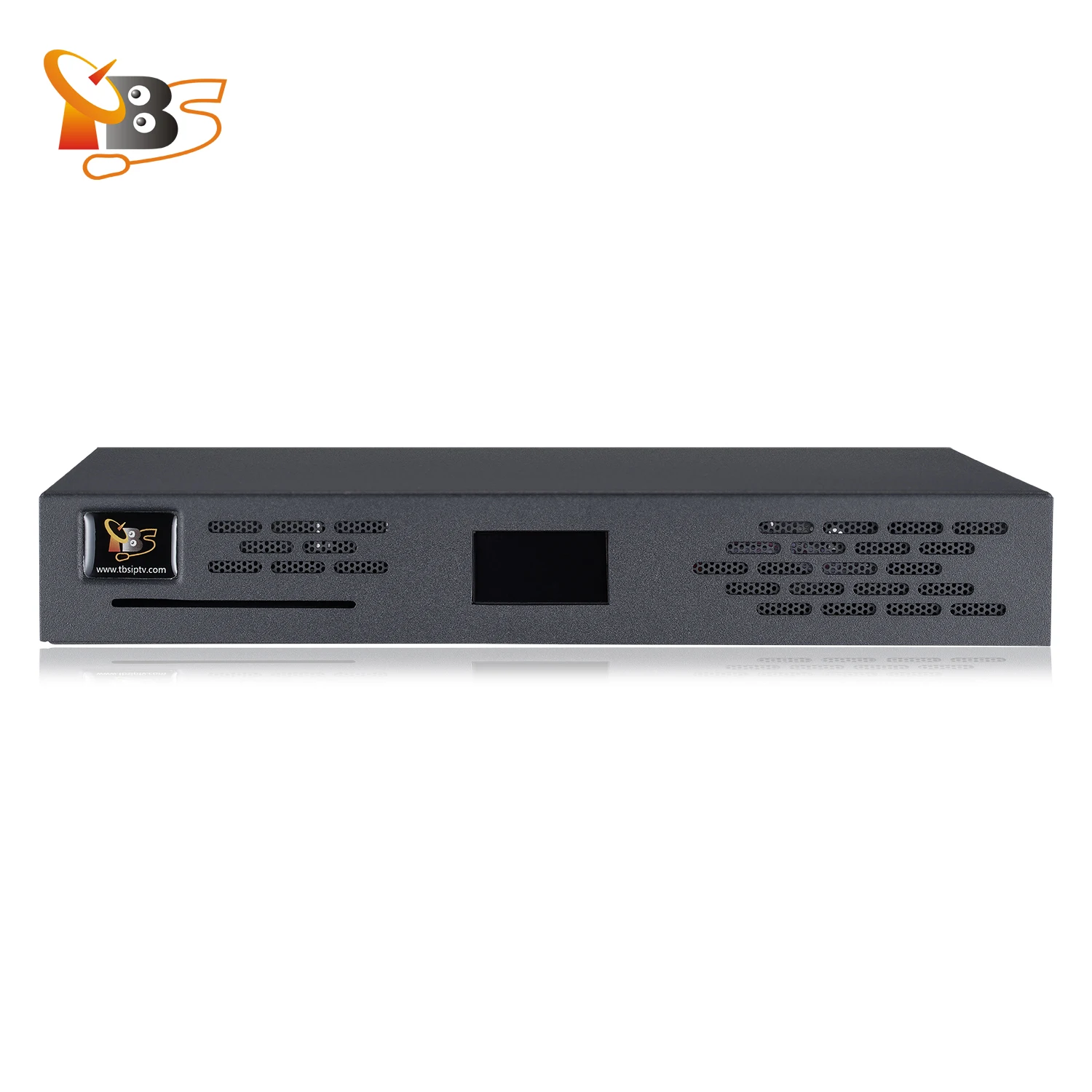

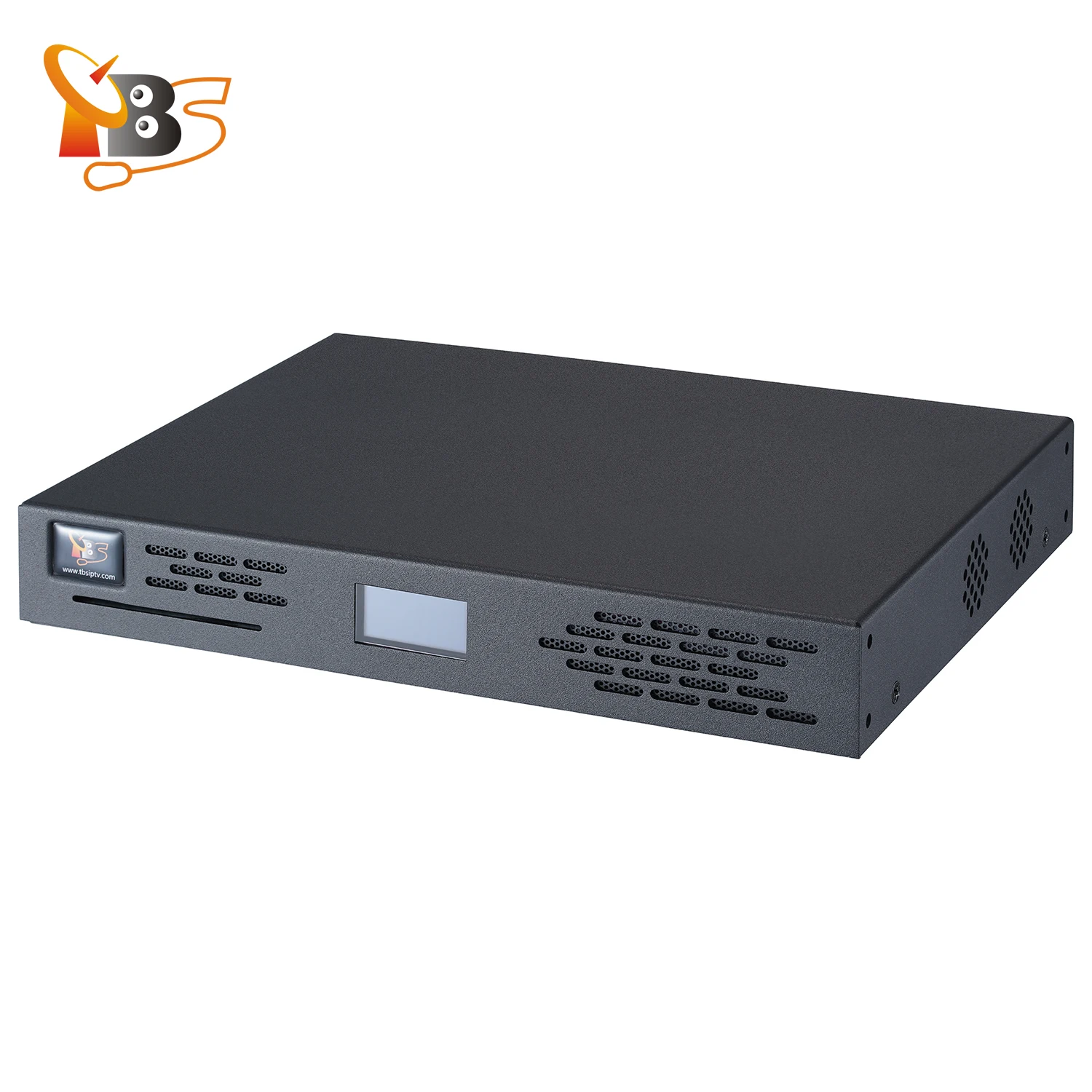

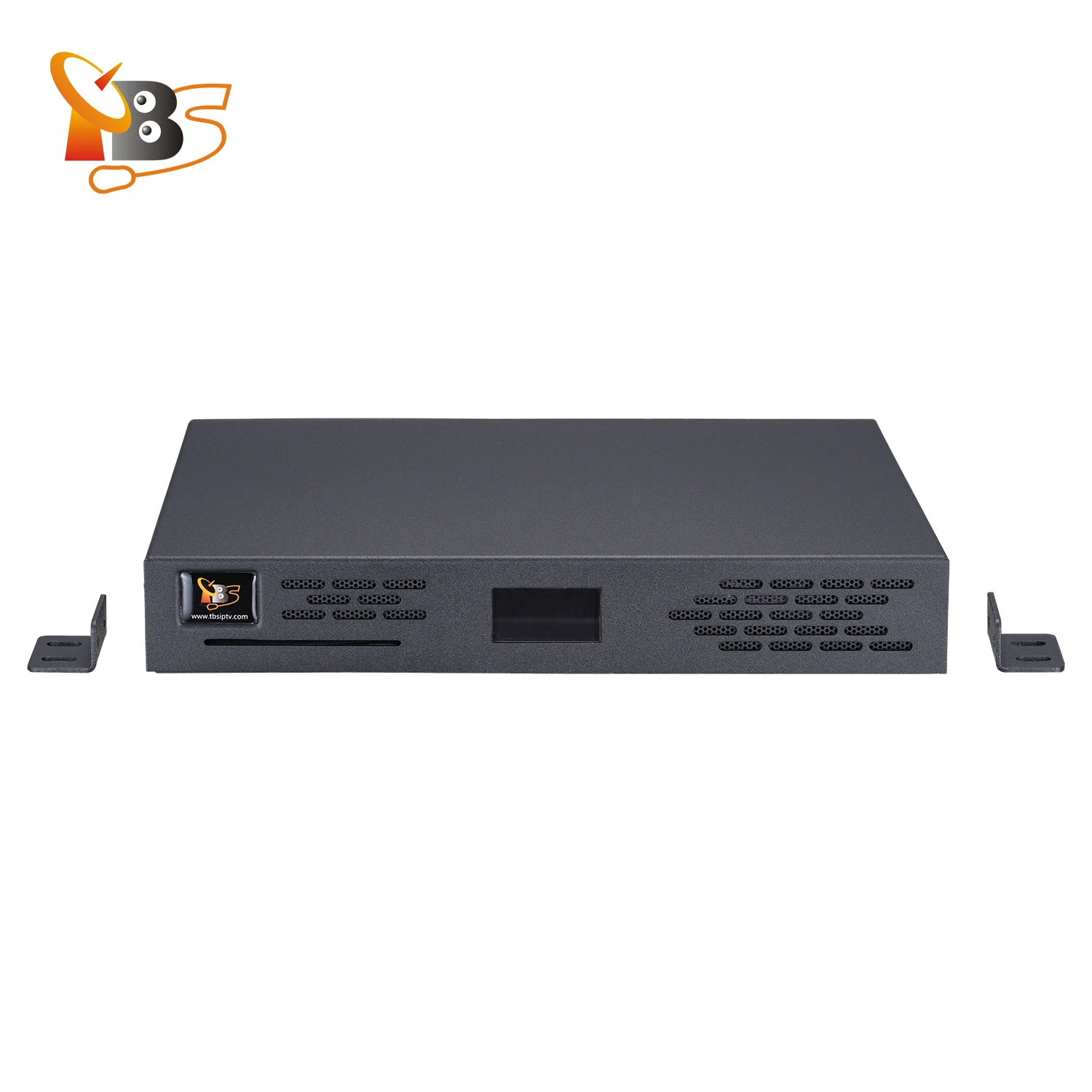

TBS2925-1 MOI Smart Box 4 frequencies satellite to IP gateway streaming server

TBS2925-1 MOI Smart Box DVB-S/S2/S2X to IP gateway server supports to capture free satellite channels from 4 Frequencies and stream in UDP/RTP/HTTP/RTMP. The 1Gb network port allows MOI Smart box to deliver
about 800M video streams over the network simultaneously.

TBS2925-1 MOI Smart Box provides many possibilities to IPTV system integrators or TV service operators, as it allows to use different open-source software, such as Tvheadend, VDR, MuMuDVB, DVBlast, etc., to deliver the video streams in different protocol according to the requirements of the IPTV system.

Key Features
• Live DVB-S/S2/S2X SD/HD TV streaming
• BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
• High-performance graphics processing
• Low power consumption
• Linux Open Source software support: Kodi( XBMC), OpenPCTV, VDR
• Supports up to 4 DVB-S/S2/S2X tuners (4 TV tuner)
• Supports DASH (Desktop and Mobile Architecture for System Hardware) remote management

Specifications：

Processor	BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
RAM	4GB LPDDR4
Flash	16GB eMMC
LAN	1Gb onboard Ethernet
USB2.0	2 * USB2.0 port
HDMI	1 * HDMI2.0 Out
PCIe Slot	* 1 x PCIe slot in TBS2925-1 * 2 x PCIe slot in TBS2925-2
UART	1 x LCD Display
PSU	* 12V/3A external PSU for TBS2925-1
Free software	Tvheadend, VDR, MuMuDVB, DVBlast, dvbdate, dvbscan, dvbdstream, dvbsnoop, scan-s2, szap-s2, tzap-t2, LIRC, telnet, ssh, ftp, samba
Protocol	UDP, HTTP, SRT
Working Environment	* Operating temperature: 0 ~ 40 deg C * Storage temperature: –20 ~ 70 deg C * Relative Humidity: 5% ~ 90% non-condensing

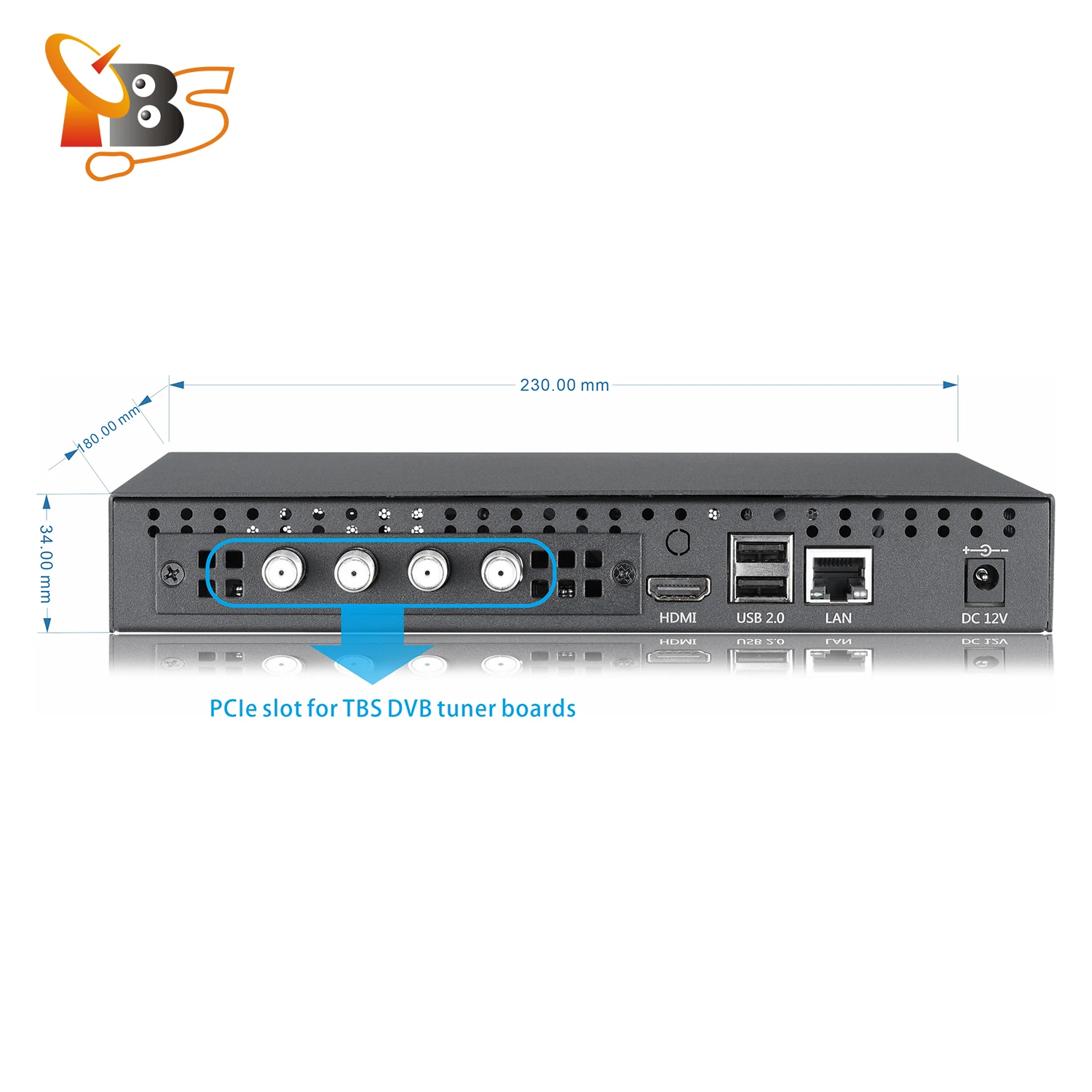

Dimensions(chassis)	* 230 * 180 * 34mm for TBS2925-1

Detailed Images

Configurate the tuners, channels and IP streams friendly.

Packing & Delivery

Dimension: 230 * 180 * 4mm

Net weight: 2kg

temperature\t-20℃+ 60℃

Our Comany

TBS Technologies International Ltd

TBS Technologies is one of the leading providers for cost-efficient IPTV headend solutions, a company which specializes in developing, producing and marketing of IPTV streamers, HDMI encoding device and digital TV tuner cards for PCs. We are committed to providing customers with high quality products. With years of unremitting efforts, TBS has become one of the worldwide leaders in production of IPTV headend provider.

Our main products include IPTV streaming server, professional HDMI encoder , PCIe DVB-S2 TV Octa/Quad tuner devices, PCIe DVB-S2 Dual TV tuner cards, PCIe DVB-S2 TV tuner CI receivers, USB DVB-S2 TV tuners CI box, USB DVB-S2 TV Box with blind scan, DVB-C TV tuner USB boxes, DVB-C digital Cable TV CI box and so on.

TBS has an excellent R & D team with many years experience in providing a high degree of technology integration and development capabilities. We persist in seeking a breakthrough in technique and strive to provide wider space for designing and developing new products for our customers.

TBS Technologies International Ltd

Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District,
SZ, China, 518055

Tel: +86-755-26501345

Web: www.tbsiptv.com

Irene Jiang

Email: irene @tbsdtv.com

Skype: irene_jiangjiahong
Whatsapp: +86-18620325239

Related Products

H.264 IP Video Encoder IPTV

UDP Multicast H DMI Encoder H.264 H.265 IPTV Encoder

16 channel UDP Multicast SDI Encoder H.264 H.265 IPTV Encoder

FAQ

Q1: How does your factory do regarding Quality Control?

A1: Quality is very important and always be put at the first place. Our team members always pay great attention to quality controlling from the very beginning to the end.

Inspections of each step will be done during the production process.

Q2: Can I get some Samples?

A2: Yes, sure, we are honored to offer you samples to test, but sample is not free.

Q3: What is your Delivery date and method of Transportation?

A3: All goods in stock , just need 100%QC testing and Aging testing again before delivery.So delivery within 2~7 days after confirm payment !

We deliver goods via International Express like FedEx, UPS, DHL, TNT, EMS etc, take 3-6 days to your address!

Q4: Could you please make OEM for us?

A4: Surely yes. We provide the service of replacing your logo and company name on box and software interface of the device.

Q5: What's your Payment method supported?

A5: We accept T/T, Paypal, Western Union, MoneyGram , Alibaba Trade Assurance etc.

Q6: What about your Warranty?

A6: It's 1 year warranty for free repair or replacement.
