Электроприводы A150 220 В переменного тока CR202 нормально закрытый моторизованный клапан Электропривод шарового крана

Описание и отзывы

Характеристики

Product Description

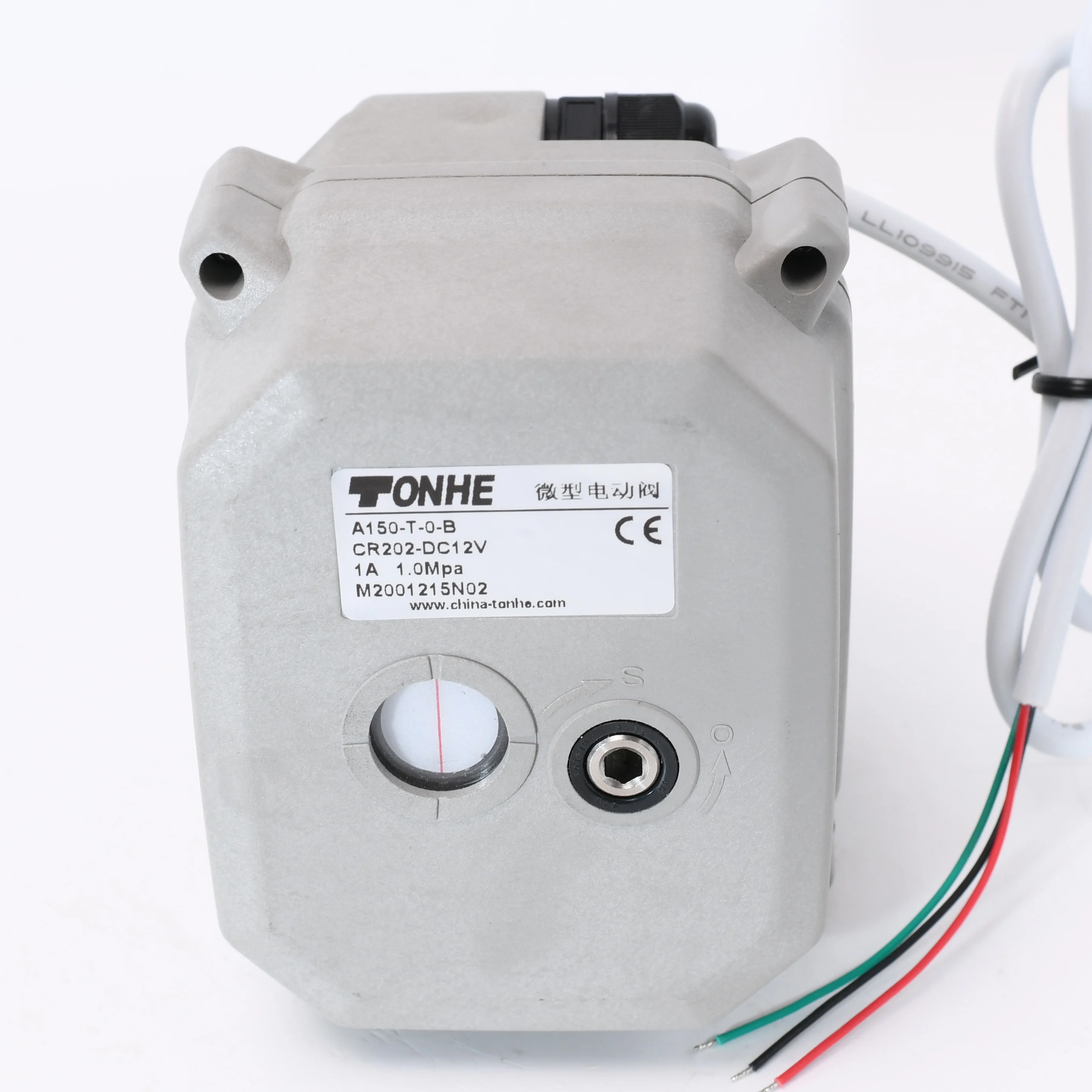

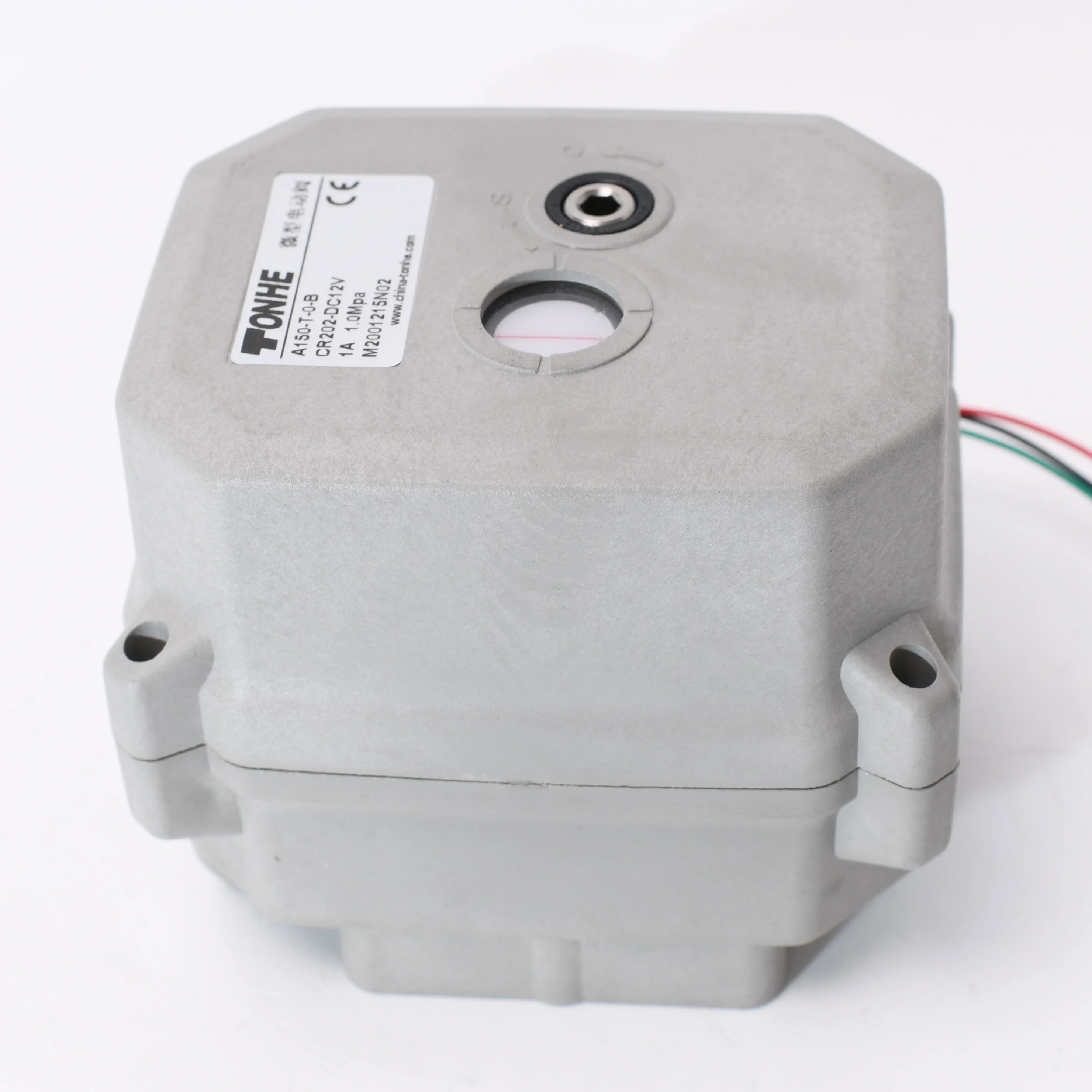

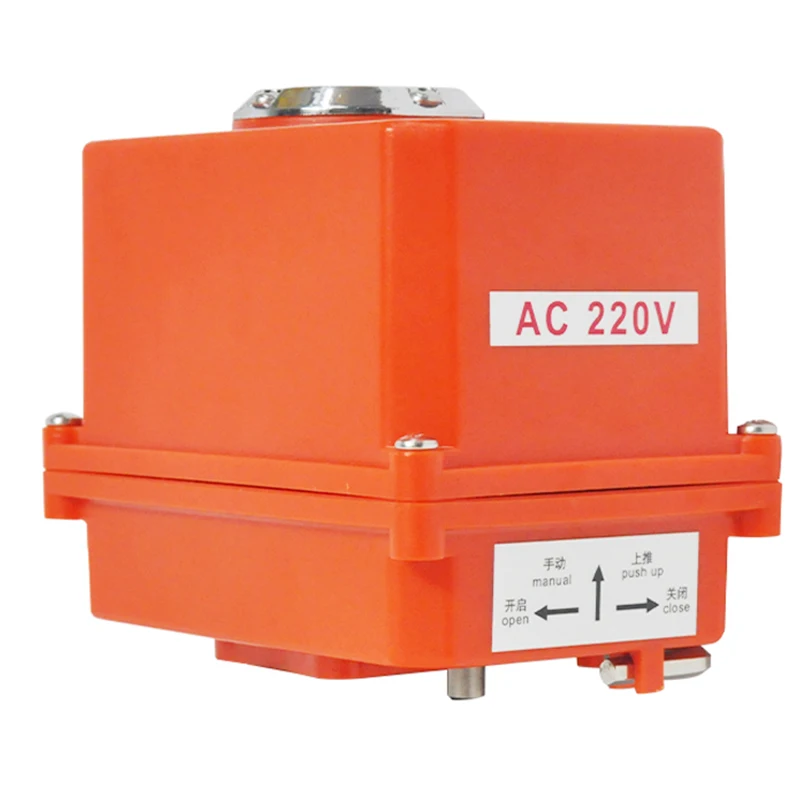

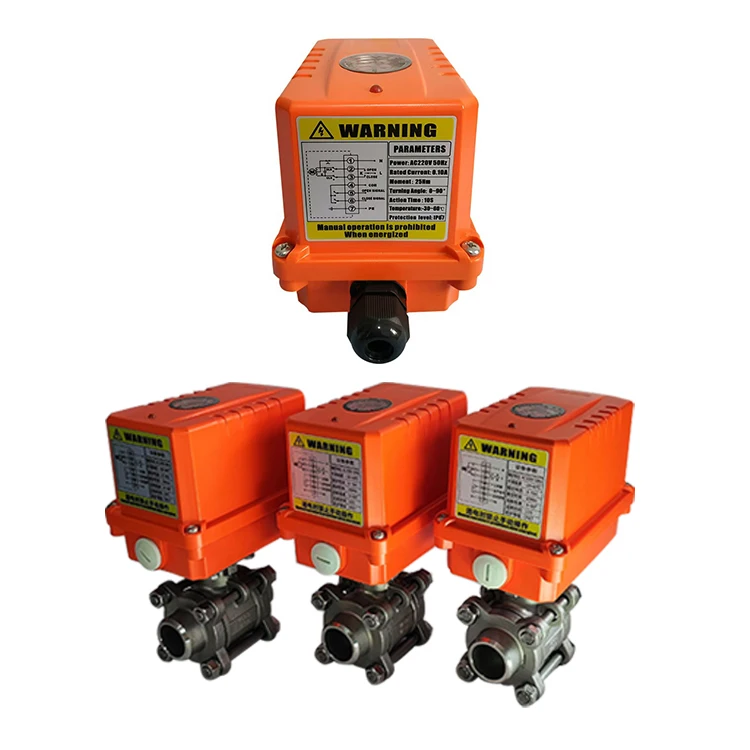

A150 AC220v CR202 motorized electric actuator valve with manual override

Detailed information

Technical Parameters:

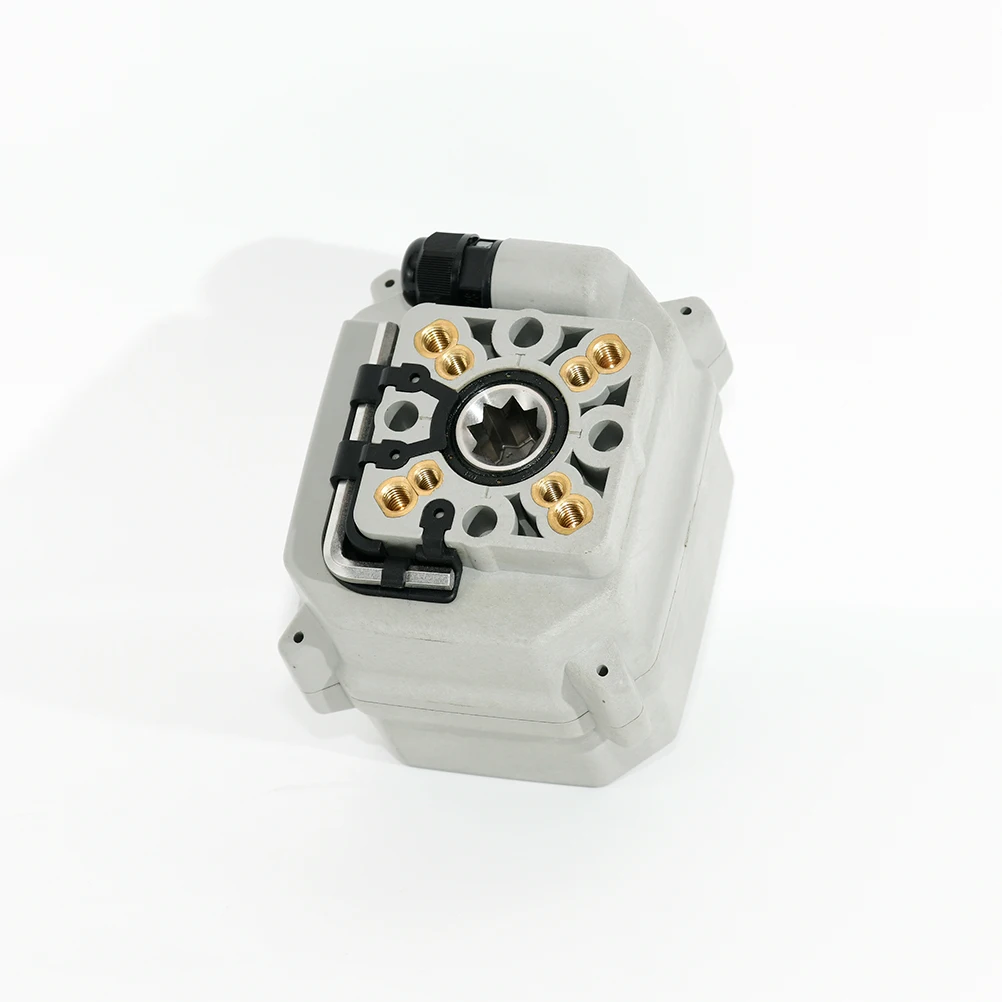

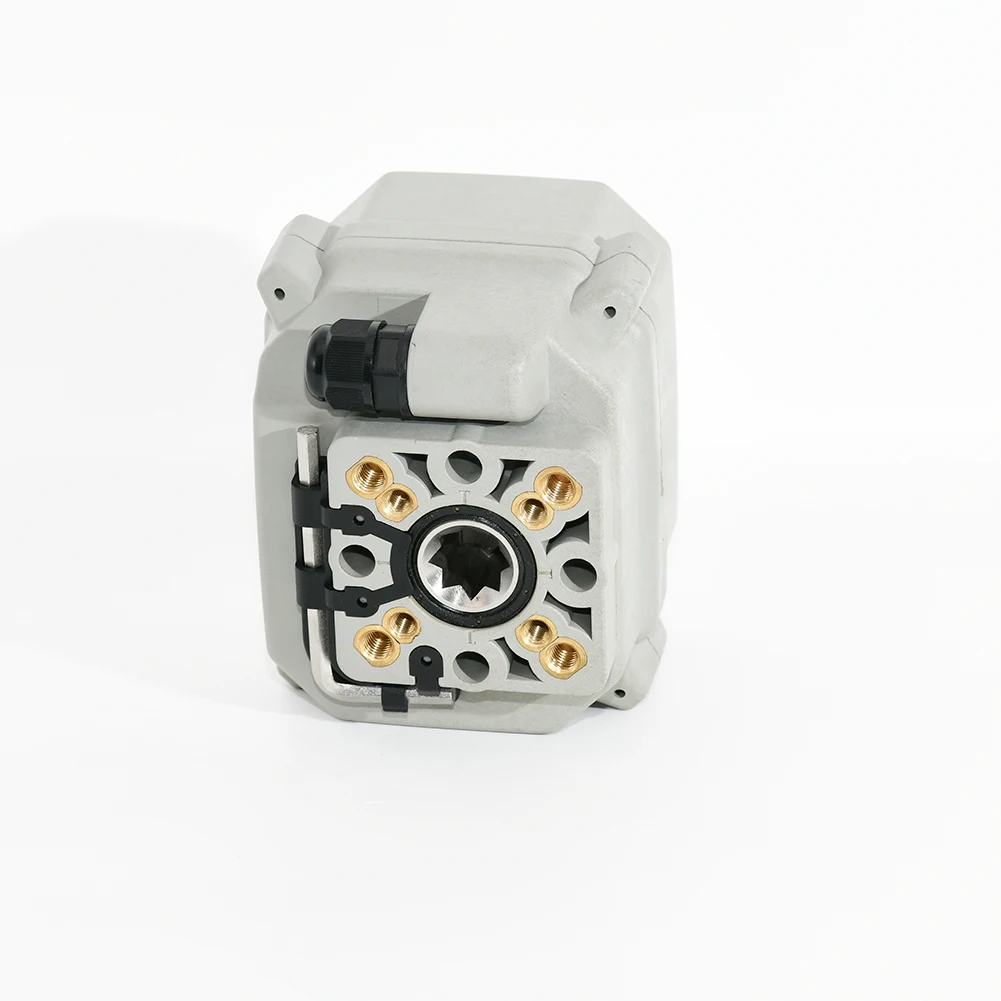

Connection standard	ISO5211 F03,F05
Output axis specification	Female octagonal 9*9 or 11*11
Maximum working pressure	1.5MPa
Rated voltage	AC220v ;                       (Optional )

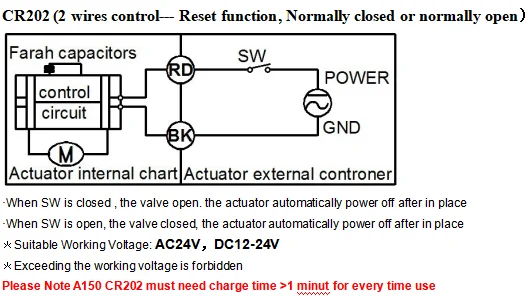

Wiring diagram	CR202 normally closed
Life time	70000 times(testing pressure is 0.4MPa, medium is water)
Actuator material	Engineering Plastics PPO
Torque force	15 N.m
Cable Length	0.5m;1.5m                                           (Optional )
Environment temperature	-15℃~60℃
Liquid temperature	2℃~90℃
Manual operation	Yes
Open/close indicator	Yes
Protection class	IP67









Application

Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.



Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, working voltage

2, wire control normally closed or normally open?

3, actuator cable length 0.5m or 1.5m?

A150 series 2D drawing

Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.


Tonheflow is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .

FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.

Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.

Q: Can I get samples from your factory?

A: Yes, Samples can be provided.

Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
