Сверхтонкая мельница Raymond гипсовый карбонат кальция извести каменный порошковый фрезерный станок
9 989,00-13 200,00 $
Редактировать бокситовый известняковый мраморный тальк мелкорудный камень Clrm Raymond мельница для мелкого Порошка
- Категория: >>>
- Поставщик: Shanghai Clirik Machinery Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1600618392807:
Описание и отзывы
Характеристики
Products Description

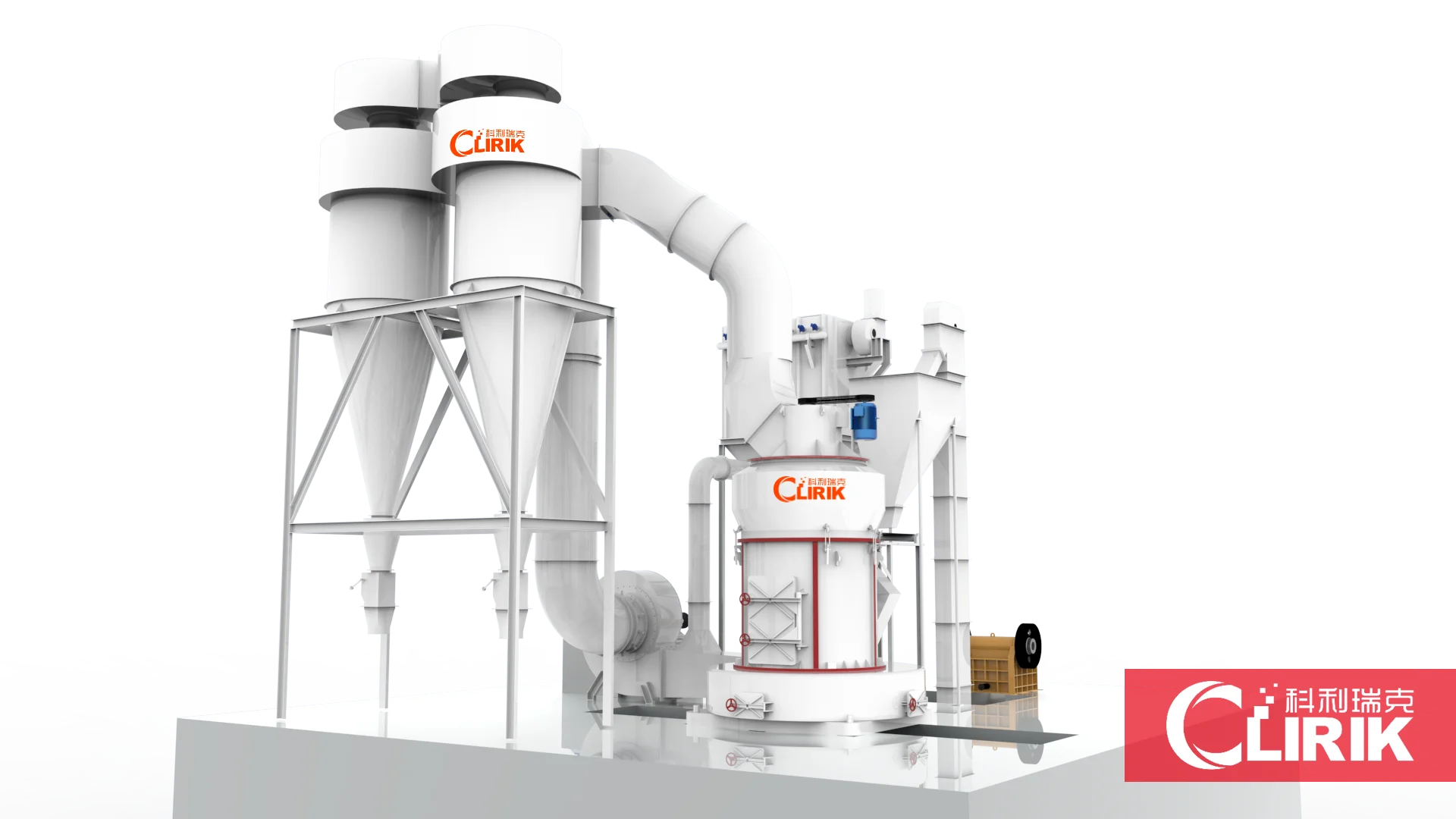

Enhanced Roller Grinding Mill
Clirik enhanced roller grinding mill is suitable
for processing various non-flammable and non-explosive mineral materials with Moh's hardness less than 6 and humidity less than
6%, it is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc,. The granularity of the finished powder size can be adjusted between 50 and 325 meshes (315-45 micron). Examples of processing materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic, iron ore, carborundum, bauxite, rock phosphate, coal and other materials, total about 400 kinds of materials.
for processing various non-flammable and non-explosive mineral materials with Moh's hardness less than 6 and humidity less than
6%, it is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc,. The granularity of the finished powder size can be adjusted between 50 and 325 meshes (315-45 micron). Examples of processing materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic, iron ore, carborundum, bauxite, rock phosphate, coal and other materials, total about 400 kinds of materials.
Components

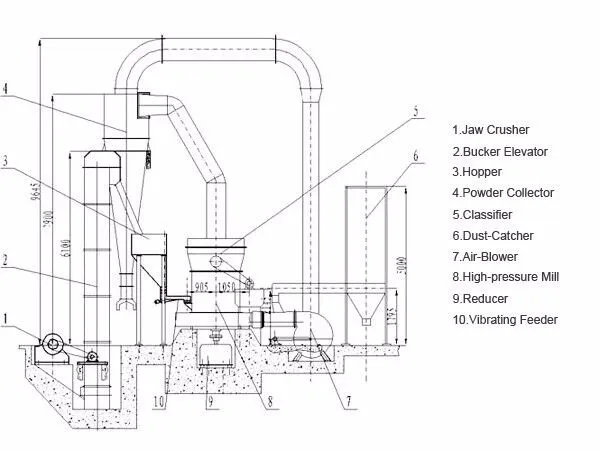

The standard configuration of the CLRM enhanced roller grinding mill consists of main unit, reducer, powder classifier, cyclone powder collector, dust cleaner, blower, electrical cabinet and pipes. The optional accessories include crusher, bucket elevator, feeder.
Working Principle
Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, and are separated and collected there.
They are discharged at the discharging valve to become finished products; the airflow is sucked to the blower by return pipe on the top of cyclone collector. The whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.
They are discharged at the discharging valve to become finished products; the airflow is sucked to the blower by return pipe on the top of cyclone collector. The whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.
Product Paramenters
Model | Roller Qty（pcs) | Roller Size (mm) | Ring External Dia (mm) | Ring H (mm) | Main Shaft Speed | Feeding Size (mm) | mesh | Motor(kw) | Capacity（t/h） |
CLRM9720 | 3-4 | Φ320*200 | 1077 | 200 | 145 | <20 | 80-500 | 45*15*37 | 1-7 |
CLRM1280 | 3 | Φ370*240 | 1280 | 240 | 125 | <20 | 80-400 | 75*15*55 | 2-12 |
CLRM1300 | 4 | Φ410*280 | 1390 | 280 | 112 | <20 | 80-400 | 110*22*90 | 3-15 |
CLRM1620 | 4 | Φ450*300 | 1620 | 300 | 102 | <20 | 80-400 | 160*30*132 | 5-20 |
CLRM1700A | 4 | Φ510*300 | 1700 | 300 | 102 | <30 | 80-325 | 185*37*160 | 6-25 |
CLRM1900A | 4 | Φ600*300 | 1900 | 300 | 92 | <35 | 80-325 | 250*45*220 | 8-32 |
CLRM2200 | 4 | Φ650*300 | 2200 | 300 | 82 | <35 | 80-325 | 315*55*280 | 16-40 |
Working Features
· Optimized grinding part, increase grinding efficiency
Compared with the previous mill the grind pressure increased 10%, grinding area up 15-20%. Optimized the roller layout, escalated the efficient grinding space.
· Grinding device adopts superimposed multistage seal, prolong the lubricating cycle.
Compared with the previous mill the grind pressure increased 10%, grinding area up 15-20%. Optimized the roller layout, escalated the efficient grinding space.
· Triple vibrating damping for working stability
Triple damping to resist the vibrating transmit in the main unit base, volute airflow house, unit body, grinding part. Be sure the stable grinding condition.
Triple damping to resist the vibrating transmit in the main unit base, volute airflow house, unit body, grinding part. Be sure the stable grinding condition.
· New type impeller of classifier with VFD
Equipped the new cage type impeller for classifier, adjust the speed freely by VFD, enlarge the output size range to 80-425 mesh.
Equipped the new cage type impeller for classifier, adjust the speed freely by VFD, enlarge the output size range to 80-425 mesh.
· Grinding device adopts superimposed multistage seal, prolong the lubricating cycle.
Contact Us
Shanghai CLIRIK Machinery Co.,Ltd. has dedicated itself to the ultra fine powder grinding machine industry for two decades.
We boast a state-of-the-art manufacturing facility equipped with standardized and intelligent production lines.
CLIRIK's expert teams in R&D, sales, installation，and after-sales support have delivered comprehensive services to over 100 countries and regions, ensuring exceptional customer satisfaction.
We boast a state-of-the-art manufacturing facility equipped with standardized and intelligent production lines.
CLIRIK's expert teams in R&D, sales, installation，and after-sales support have delivered comprehensive services to over 100 countries and regions, ensuring exceptional customer satisfaction.
FAQ
Because of different kinds of hammer crusher , so our hammer crusher has different prices, I need to ask you some details for sending you the more suitable quotation:
1.Which kind of material you are going to grinding?
(Dolomite; Calcite; Quartz; Basalt; Barite; Feldspar ; Gravel; Bentonite; Gypsum; Granite; Coal; Slag; Pebble; Others )
2. What's the production capacity you want? How many tons or cubic meters per hour?
( > 100 TPH > 50 TPH > 30 TPH > 10 TPH > 1 TPH < 1 TPH)
3.What's the granularity of the final products you need?
(in milimeter, micron or mesh)
4. What's the max input size of the material?
(In inch, centimeter or milimeter)
We will give you factory price with full specification,so pls leave us an inquiry to know more details about price, packaging
shipping and discount.
1.Which kind of material you are going to grinding?
(Dolomite; Calcite; Quartz; Basalt; Barite; Feldspar ; Gravel; Bentonite; Gypsum; Granite; Coal; Slag; Pebble; Others )
2. What's the production capacity you want? How many tons or cubic meters per hour?
( > 100 TPH > 50 TPH > 30 TPH > 10 TPH > 1 TPH < 1 TPH)
3.What's the granularity of the final products you need?
(in milimeter, micron or mesh)
4. What's the max input size of the material?
(In inch, centimeter or milimeter)
We will give you factory price with full specification,so pls leave us an inquiry to know more details about price, packaging
shipping and discount.
